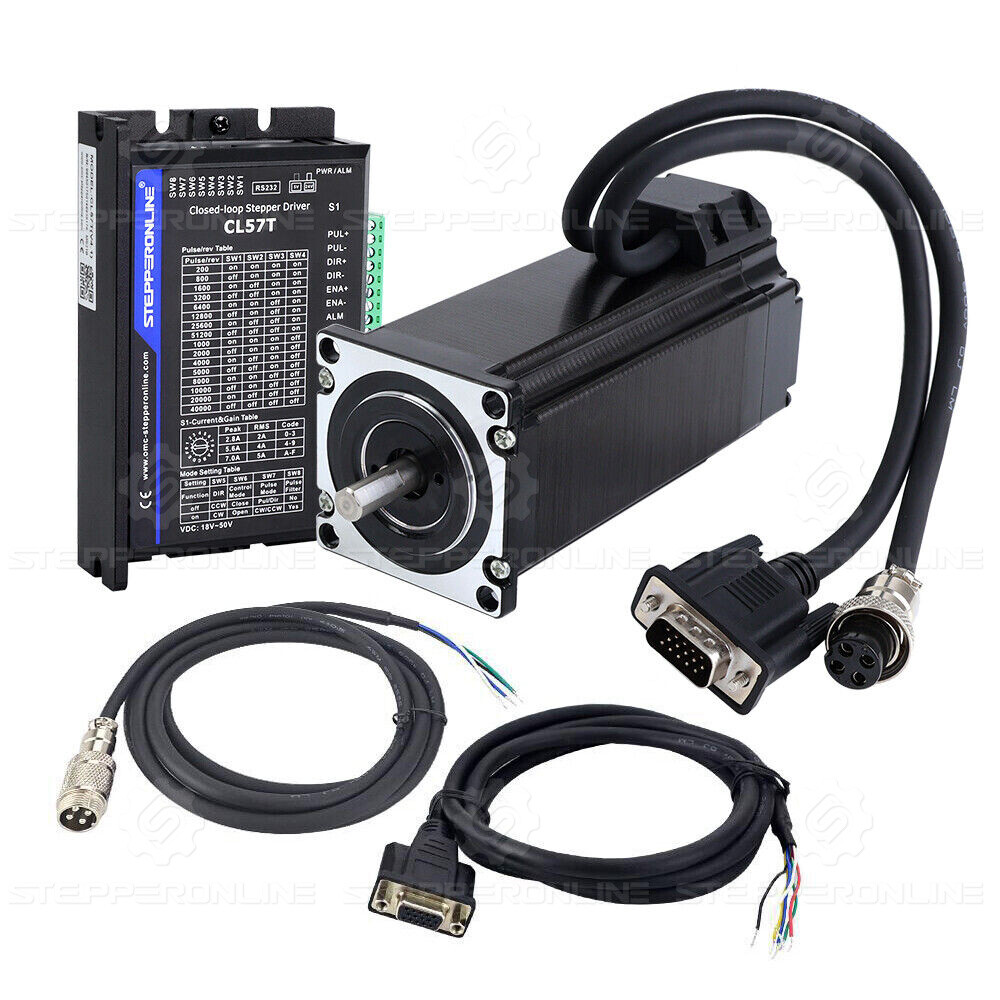

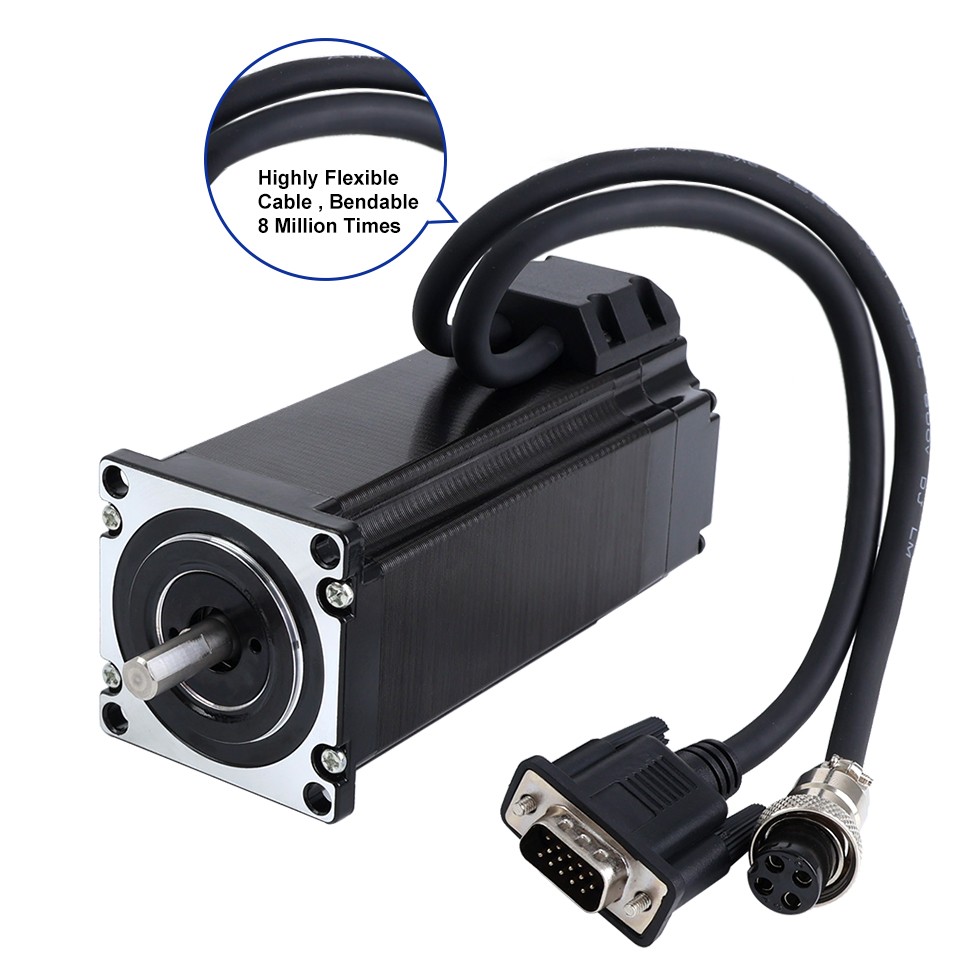

STEPPERONLINE 3Nm Nema 23 Closed Loop Stepper Motor 425oz.in & Driver CL57T Kit
STEPPERONLINE 3Nm Nema 23 Closed Loop Stepper Motor 425oz.in & Driver CL57T Kit STEPPERONLINE 3Nm Nema 23 Closed Loop Stepper Motor 425oz.in & Driver CL57T Kit STEPPERONLINE 3Nm Nema 23 Closed Loop Stepper Motor 425oz.in & Driver CL57T Kit STEPPERONLINE 3Nm Nema 23 Closed Loop Stepper Motor 425oz.in & Driver CL57T Kit STEPPERONLINE 3Nm Nema 23 Closed Loop Stepper Motor 425oz.in & Driver CL57T Kit

STEPPERONLINE 3Nm Nema 23 Closed Loop Stepper Motor 425oz.in & Driver CL57T Kit

USD 79.00 USD
SKU: 0sBhofHA
Brand: StepperOnline
MPN: 24HS34-5004D-E1000
GTIN: 0750226820059
Condition: New
Tags: 0.39 in 0.45ohms± 10% 0750226820059 1.8° (200 Steps) 24-48VDC 24HS34-5004D-E1000 3Nm(424.92oz.in) 4-Wire Bipolar 4.2A 48 V 750226820059 D-cut STEPPERONLINE
Categories: Testers & Calibrators

Specifications

Shaft TypeD-CUT
Wiring Configuration4-Wire Bipolar
Actual Rated Input Voltage24-48VDC
Holding Torque3Nm(424.92oz.in)
Rated Current Per Phase4.2A
Resistance Per Phase0.45ohms± 10%
UPC750226820059
EAN0750226820059
Full Step Angle1.8° (200 Steps)
BrandStepperOnline
Nominal Rated Input Voltage48 V
Model24HS34-5004D-E1000
Shaft Diameter0.39 in
MPN24HS34-5004D-E1000

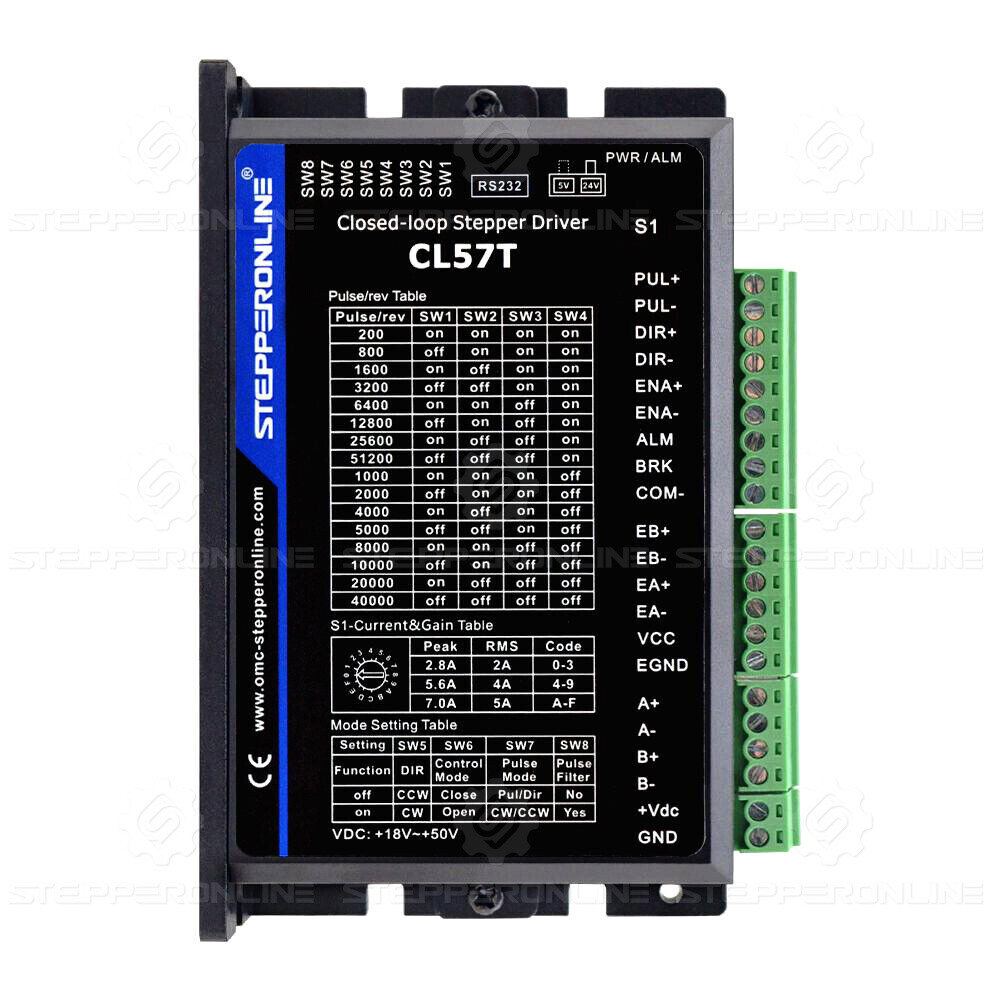

1x driver CL57T User Manual. 2-Phase Hybrid Stepper Servo Driver CL57T. 1 xClosed Loop Stepper Driver 0-8.0A 24-48VDC for Nema 17, 23, 24 Stepper MotorV4.1. 1 xNema 23 Closed Loop Stepper Motor 3.0 Nm/424.83oz.in Encoder 1000CPR.

Related Items

STEPPERONLINE Nema 23 Stepper Motor 269oz.in 2.8A 76mm CNC Mill Lathe Router
STEPPERONLINE Nema 23 Stepper Motor 269oz.in 2.8A 76mm CNC Mill Lathe Router

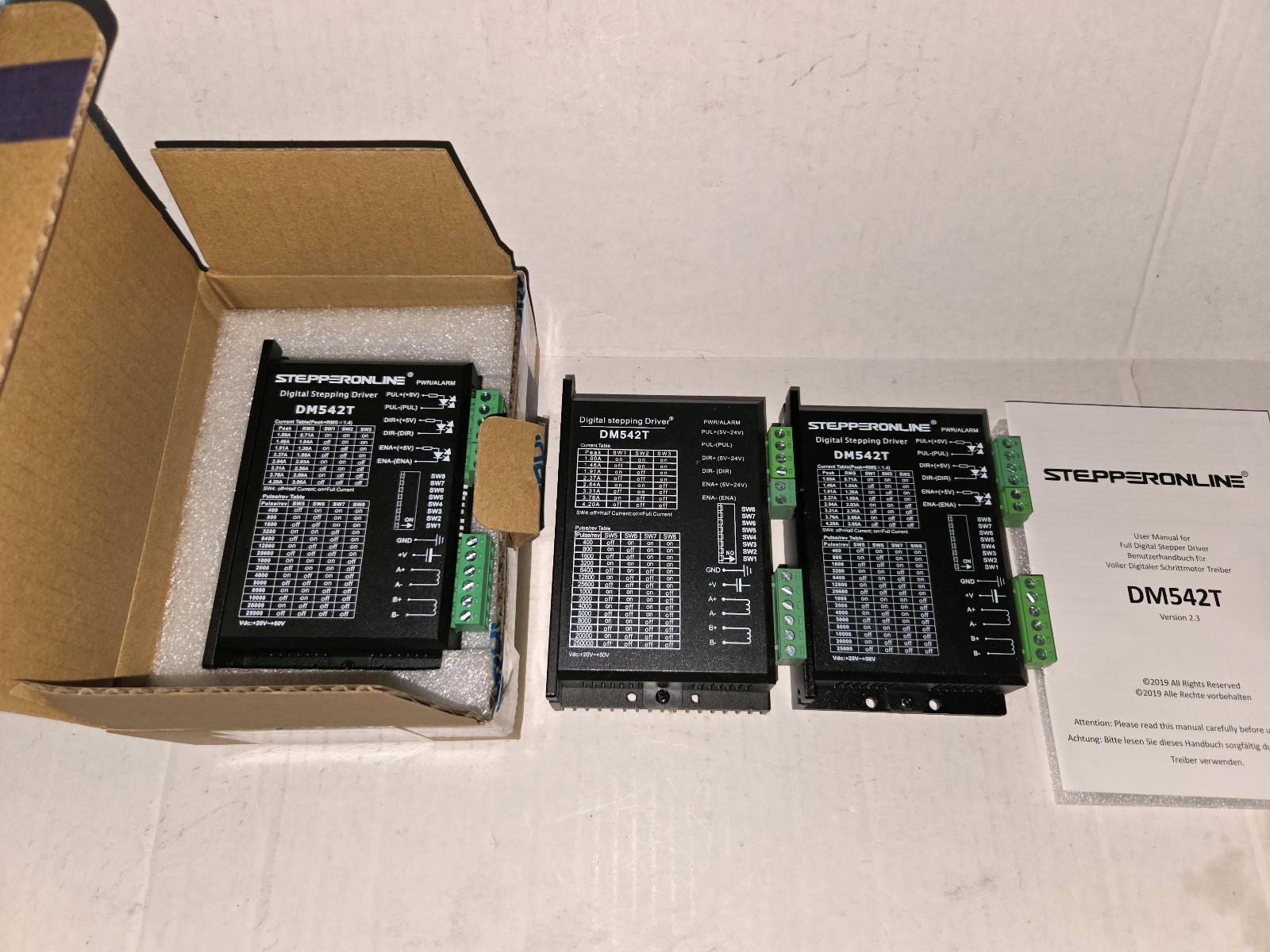

 3 Stepperonline Stepper motor drivers DM542T for Nema 17/23 Motors
