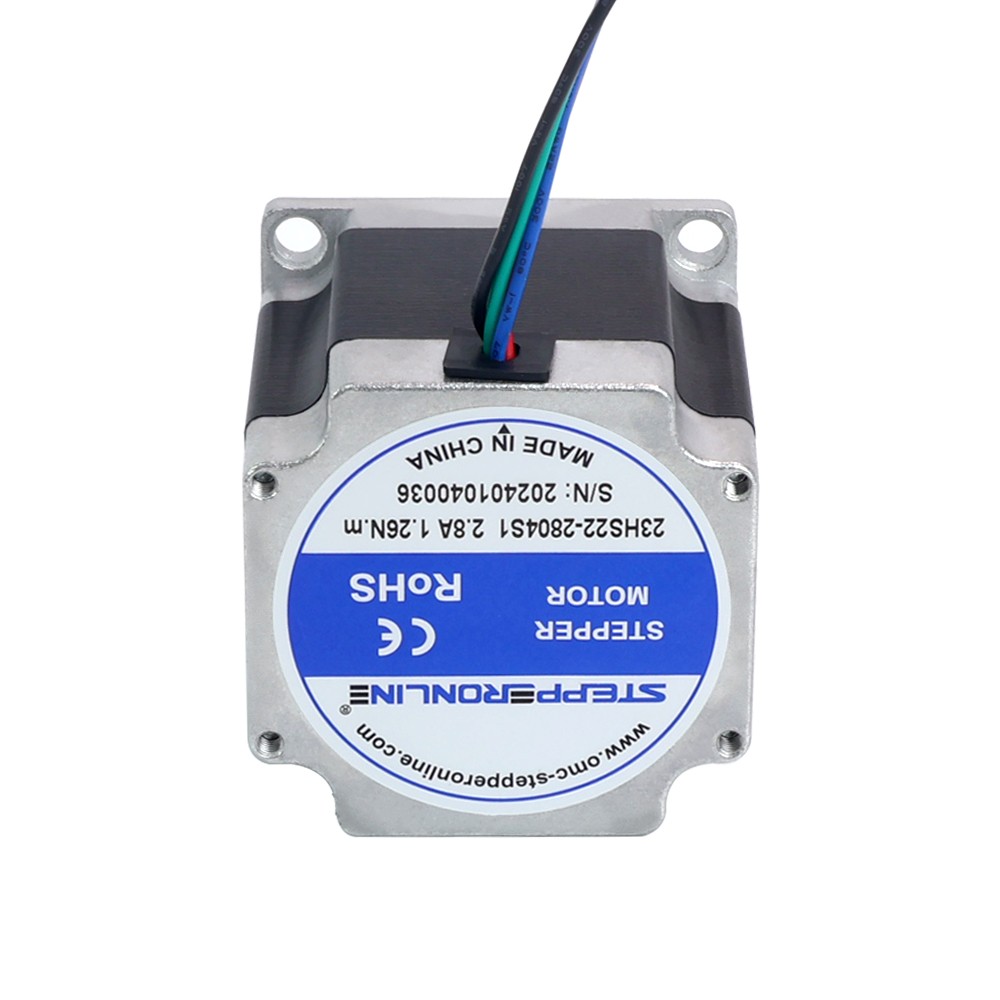

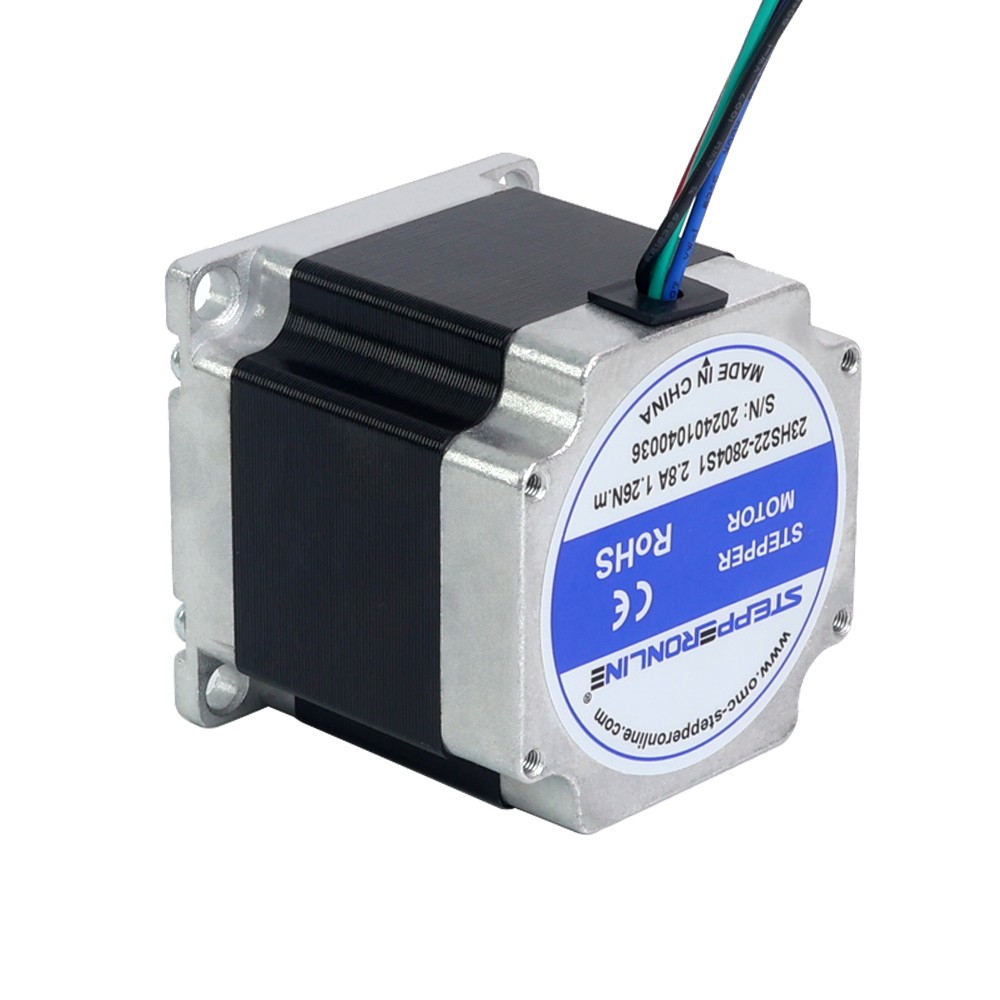

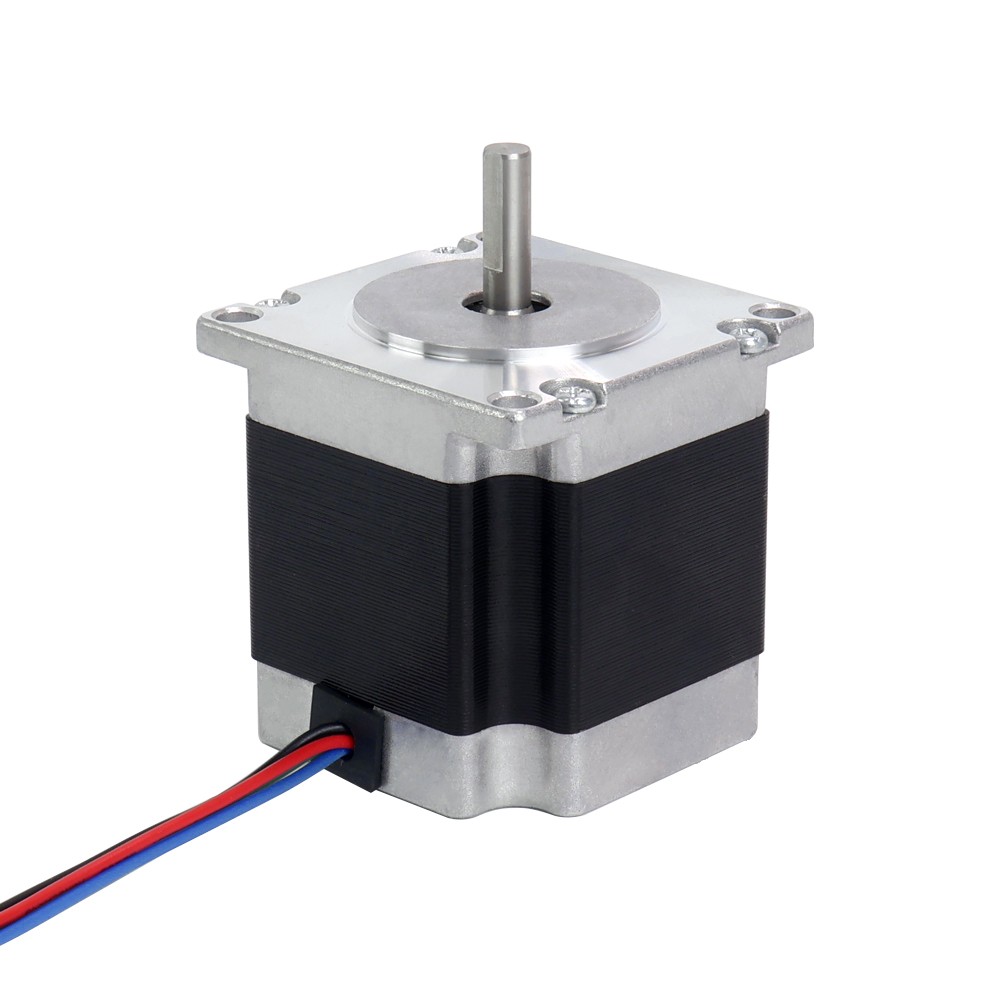

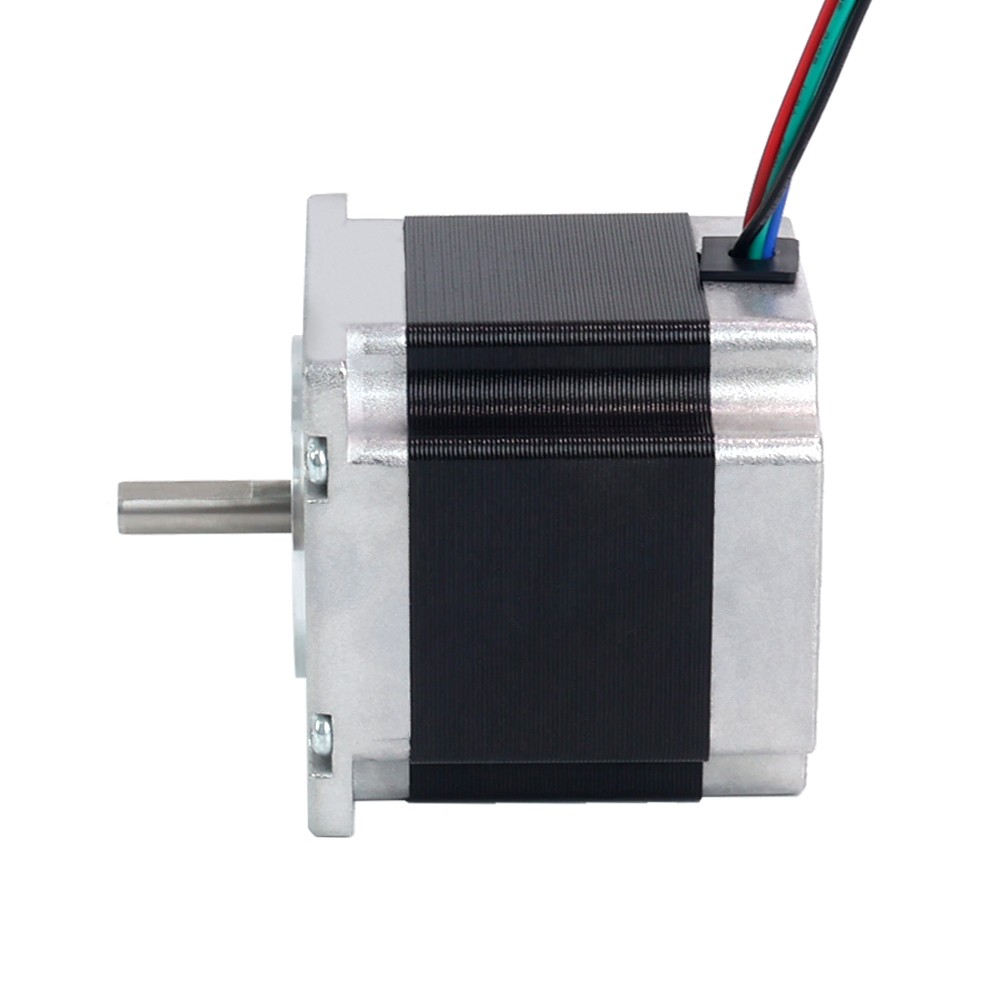

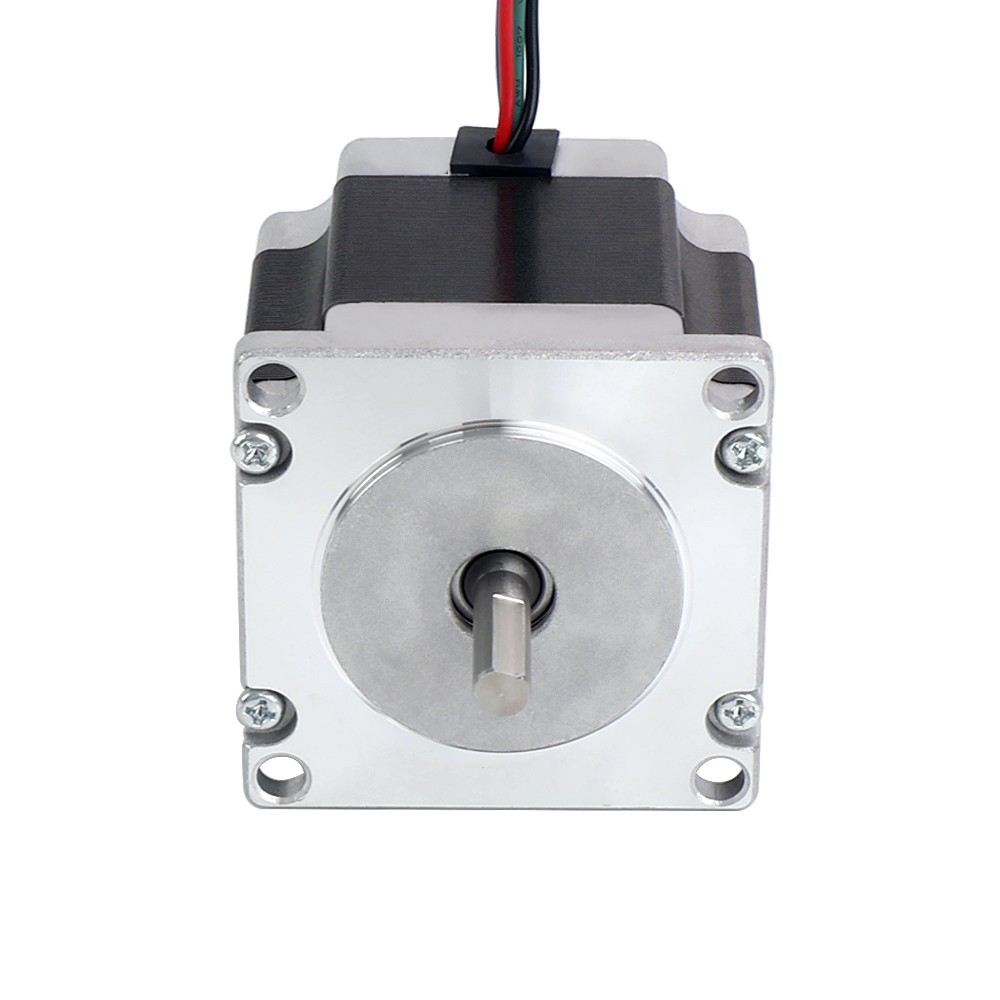

STEPPERONLINE Nema 23 Stepper Motor Bipolar 1.26Nm Φ6mm 2.8A 57x56mm D-cut
USD 28.50 USD
Specifications
| Brand | StepperOnline |
| Nominal Rated Input Voltage | 24-48VDC |
| Shaft Type | D-cut |
| Wiring Configuration | 4-Wire Bipolar |
| Shaft Diameter | 6mm |
| Full Step Angle | 1.8° (200 Steps) |
| IP Rating | IP40 |
| MPN | 23HS22-2804S1 |
| Actual Rated Input Voltage | 24-48VDC |
| Full Load Amps | 2.8A |
| Holding Torque | 1.26Nm(178.4oz.in) |
| Insulation Class | B (Max 266°F) |
| Rated Current Per Phase | 2.8A |
| Resistance Per Phase | 0.9ohms |
| Country Of Origin | China |
| UPC | 742803041032 |
| EAN | 0742803041032 |
This bipolar Nema 23 stepper motor with step angle 1.8deg and size 57x57x56mm. It has 4 wires, each phase draws 2.8A, with holding torque 1.26Nm(178.4oz.in). Motor Type: Bipolar Stepper. Step Angle: 1.8deg.
