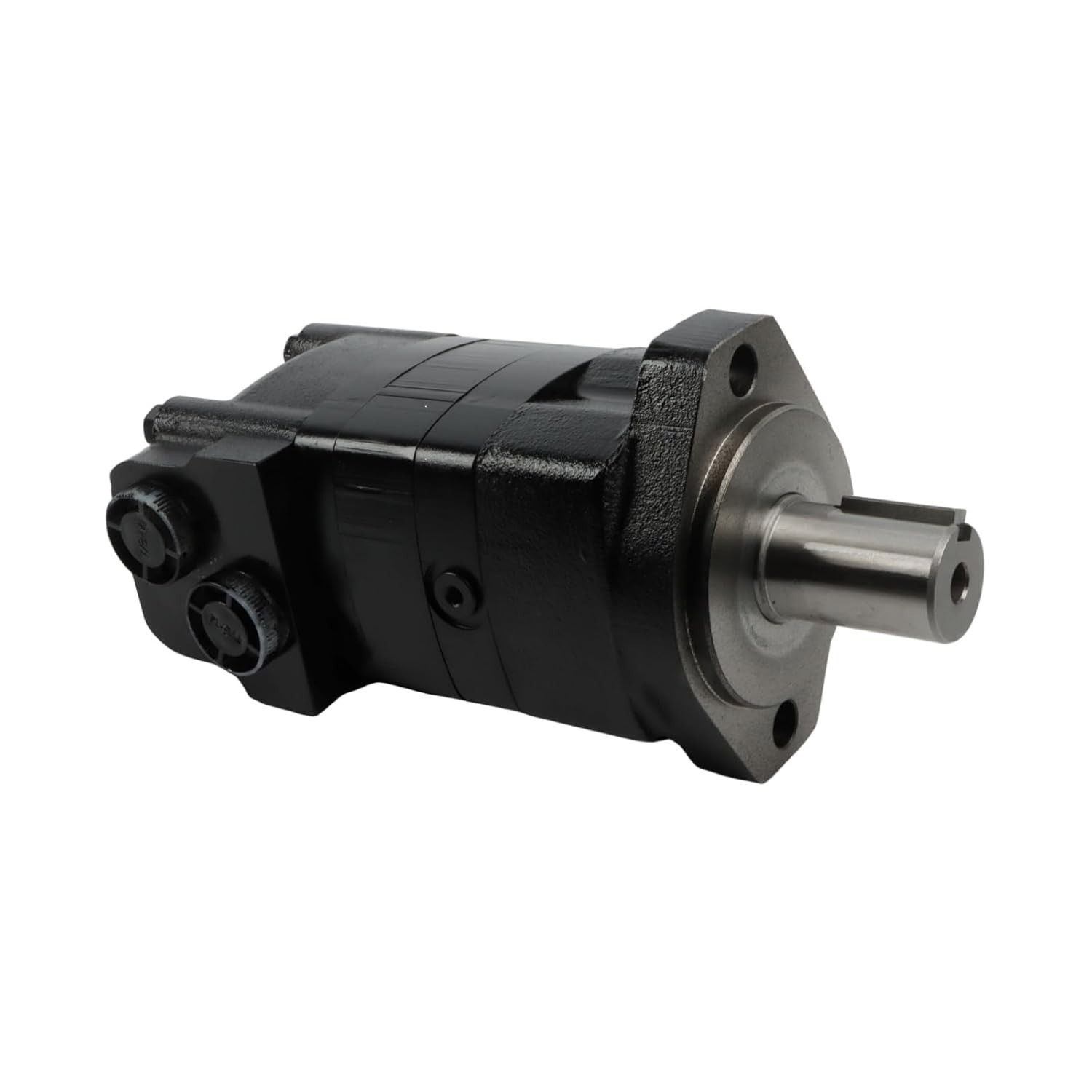

Quality Aftermarket 2000 Series Eaton Char Lynn 104-1025-006 Hydraulic Motor
Quality Aftermarket 2000 Series Eaton Char Lynn 104-1025-006 Hydraulic Motor Quality Aftermarket 2000 Series Eaton Char Lynn 104-1025-006 Hydraulic Motor Quality Aftermarket 2000 Series Eaton Char Lynn 104-1025-006 Hydraulic Motor Quality Aftermarket 2000 Series Eaton Char Lynn 104-1025-006 Hydraulic Motor Quality Aftermarket 2000 Series Eaton Char Lynn 104-1025-006 Hydraulic Motor Quality Aftermarket 2000 Series Eaton Char Lynn 104-1025-006 Hydraulic Motor Quality Aftermarket 2000 Series Eaton Char Lynn 104-1025-006 Hydraulic Motor Quality Aftermarket 2000 Series Eaton Char Lynn 104-1025-006 Hydraulic Motor Quality Aftermarket 2000 Series Eaton Char Lynn 104-1025-006 Hydraulic Motor Quality Aftermarket 2000 Series Eaton Char Lynn 104-1025-006 Hydraulic Motor Quality Aftermarket 2000 Series Eaton Char Lynn 104-1025-006 Hydraulic Motor Quality Aftermarket 2000 Series Eaton Char Lynn 104-1025-006 Hydraulic Motor Quality Aftermarket 2000 Series Eaton Char Lynn 104-1025-006 Hydraulic Motor Quality Aftermarket 2000 Series Eaton Char Lynn 104-1025-006 Hydraulic Motor

Quality Aftermarket 2000 Series Eaton Char Lynn 104-1025-006 Hydraulic Motor

USD 147.51 USD
SKU: ZD2VCIJQ
Brand: Aftermarket
MPN: 104-1025-006
Condition: New
Tags: 1-1/4" 104-1025-006 2 Bolt Flange 20 GPM 30 GPM 3000 psi 3750 Psi 4040 lb-in 477 RPM 5040 lb'in 7/8"-14 9.65 CI Aftermarket China Hydraulic Cabinet Hydraulic Motor Keyed Quality Aftermarket
Categories: Commercial Cooking Equipment Parts & Accessories

Specifications

Maximum Continuous Pressure3000 PSI
Part Number104-1025-006
Inlet/Outlet Port Size7/8"-14
Outlet Port Diameter7/8"-14
Shaft TypeKeyed
Maximum Intermittent Torque5040 lb'in
Maximum Intermittent Pressure3750 PSI

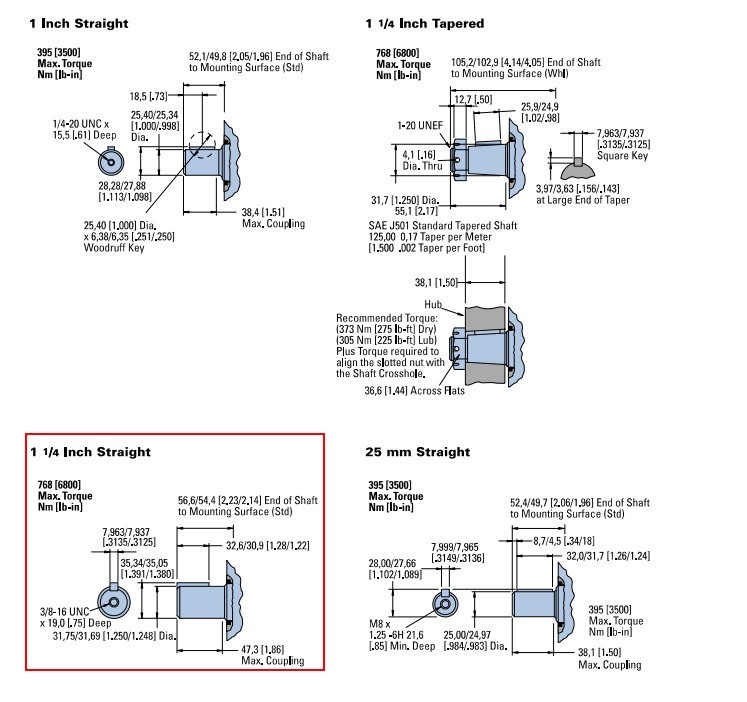

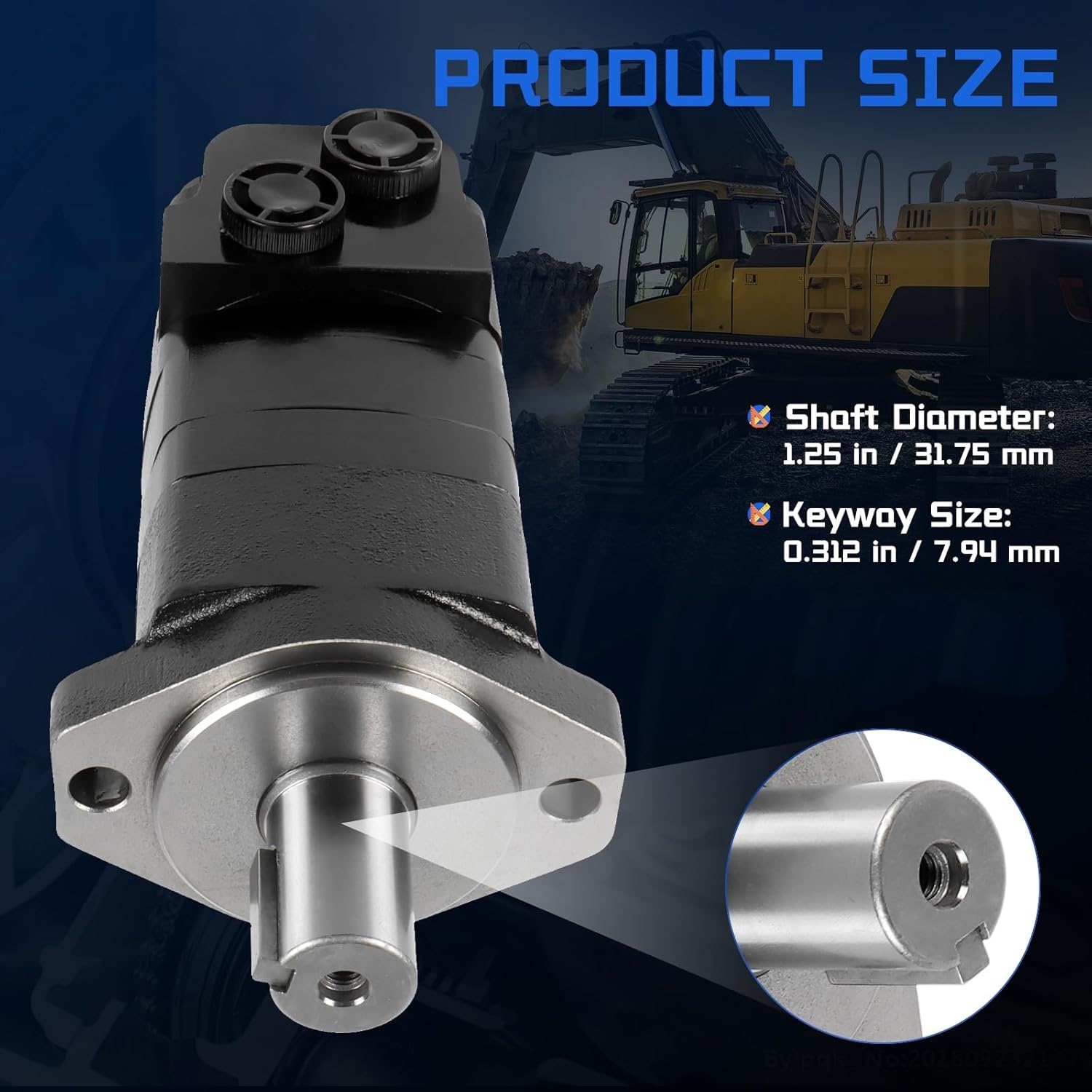

Shaft Diameter1-1/4"
MPN104-1025-006
Mounting Type2 Bolt Flange
Displacement9.65 CI
Maximum Intermittent Flow Rate30 GPM
BrandAftermarket
Maximum Continuous Flow Rate20 GPM
TypeHydraulic Motor
Maximum Continuous Speed477 RPM
Inlet Port Diameter7/8"-14
Maximum Continuous Torque4040 lb-in
Country Of OriginChina
Loc:Hydraulic Cabinet

Eaton Char-Lynn 2000 Series. Char Lynn Model Code Hydraulic Motor. with 3/8"-16 NC Thread in End. 4.188" Bolt Circle. 2000 Series Motor. Case Flow Option - 7/16"-20 SAE O-Ring.
