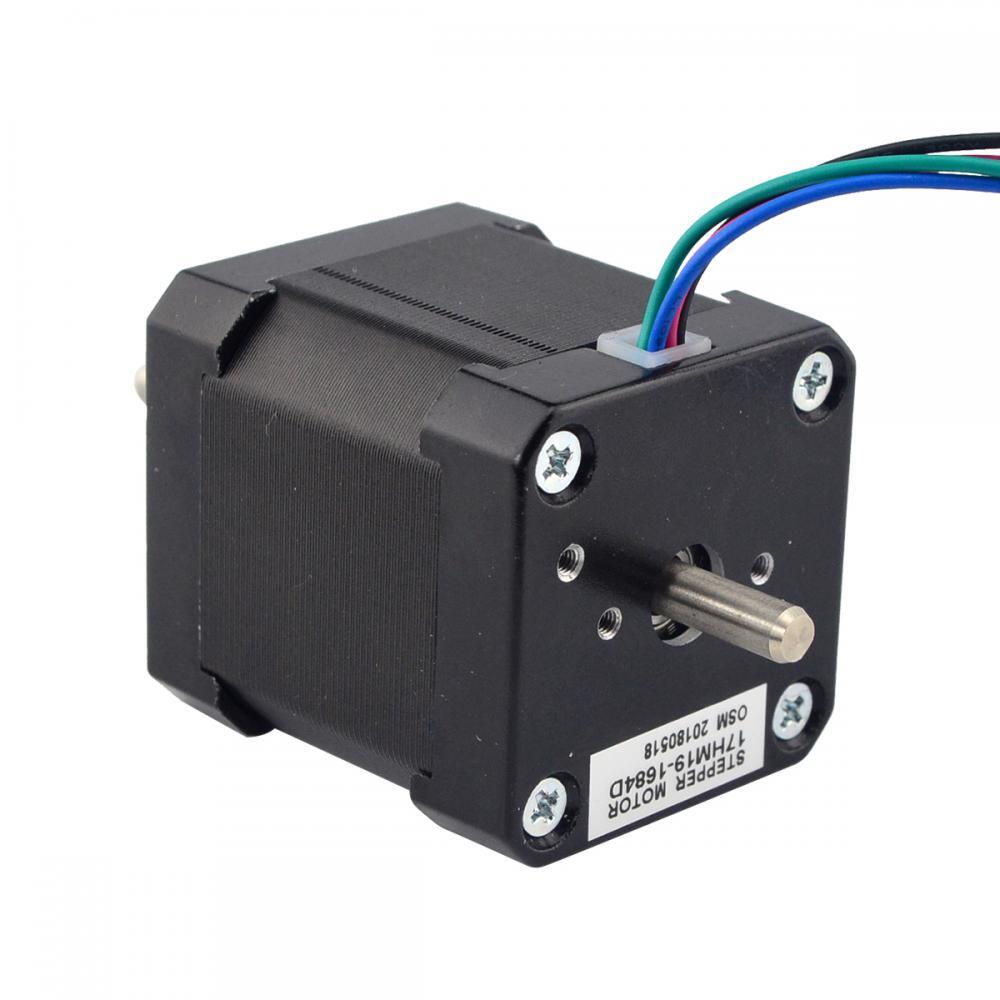

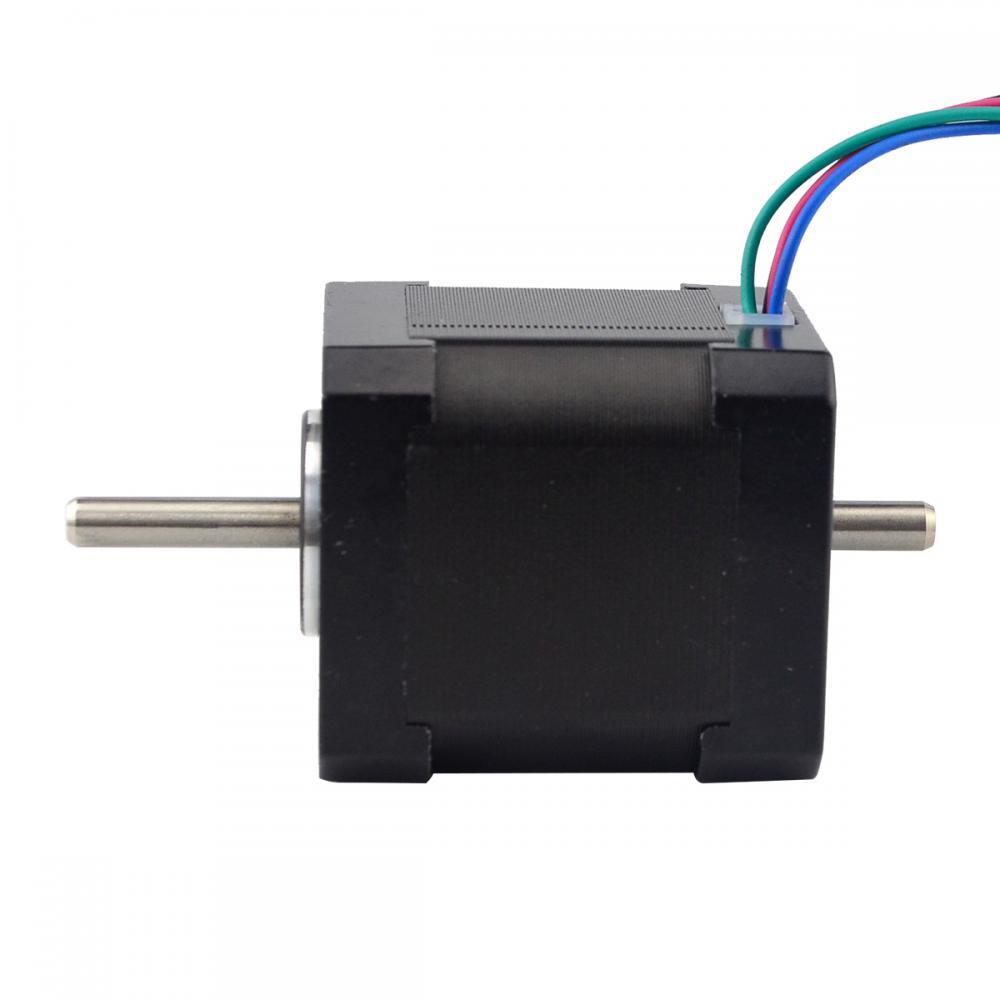

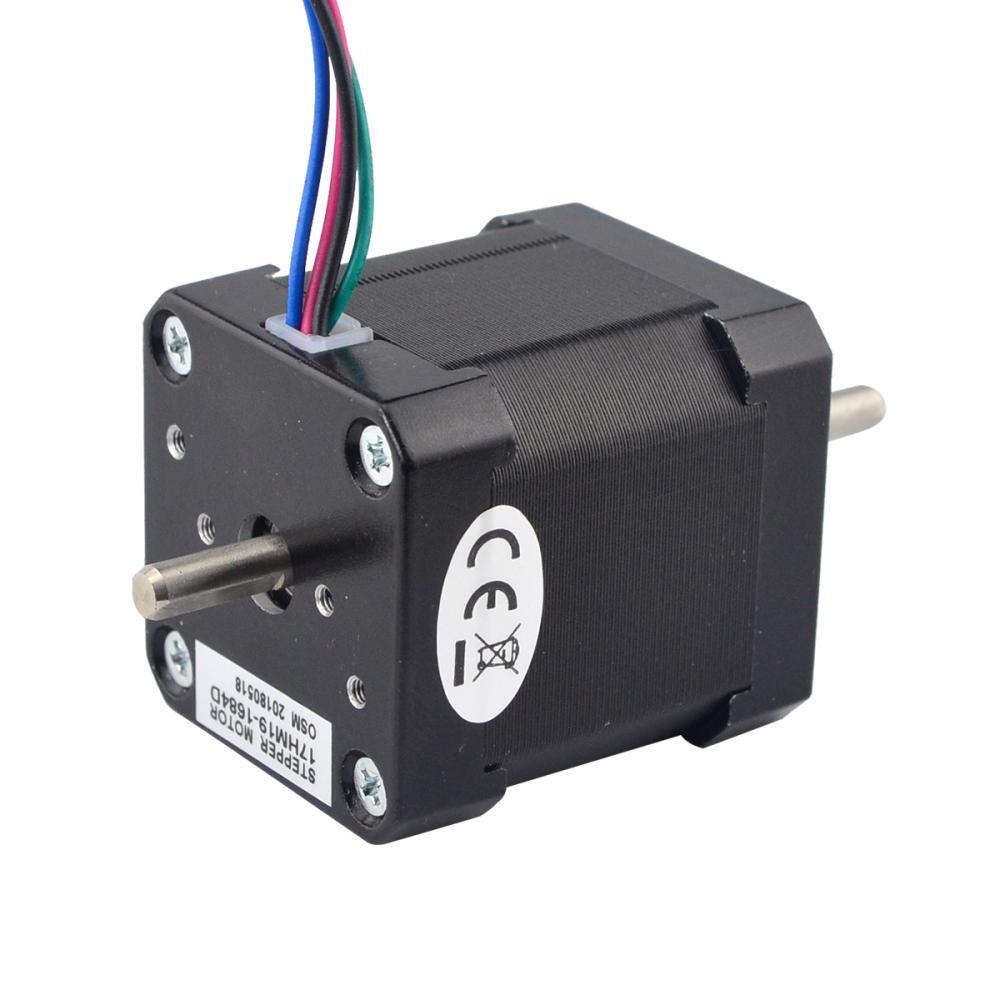

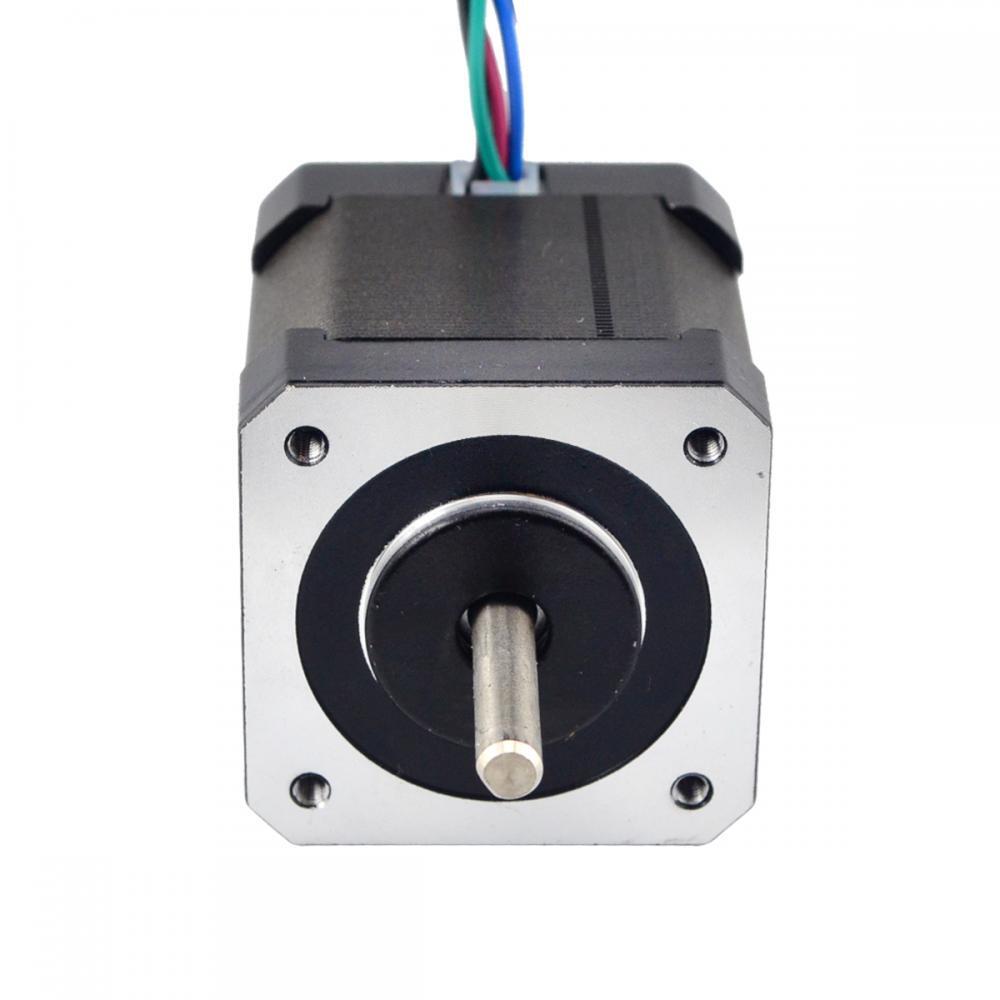

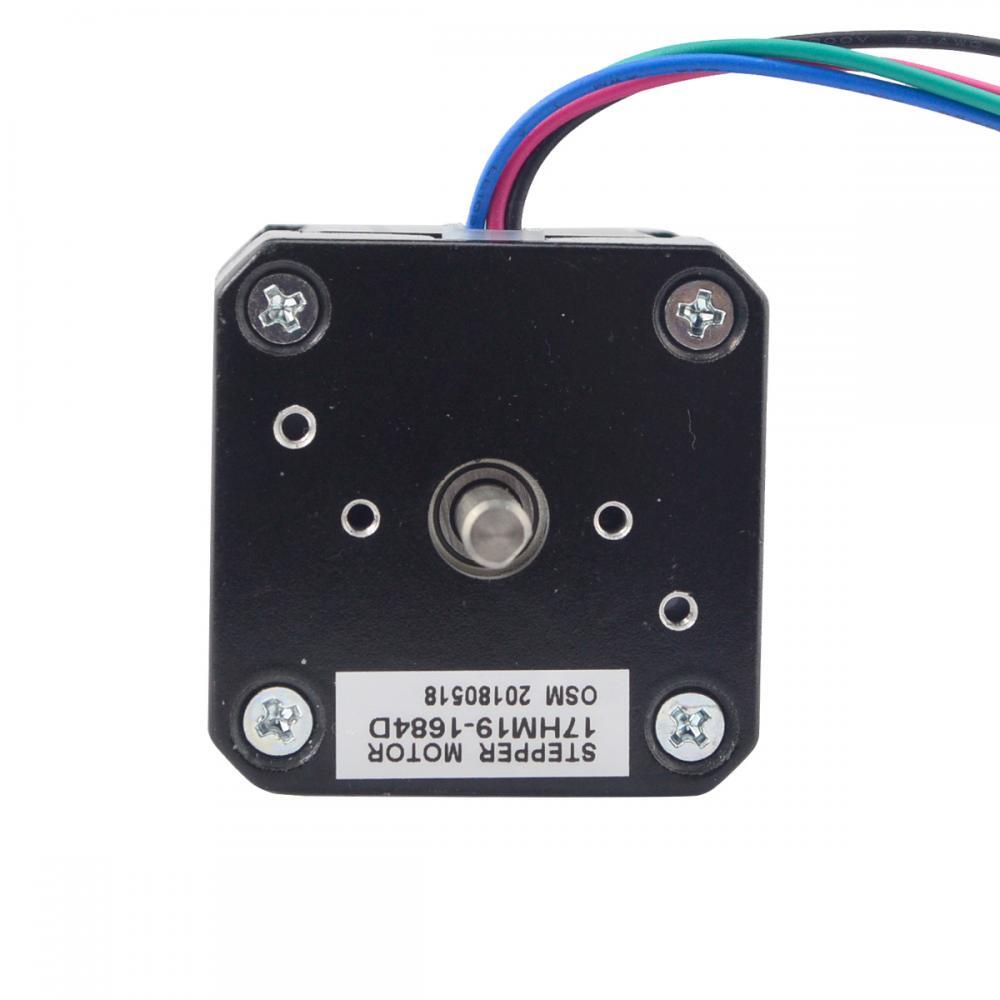

STEPPERONLINE Nema17 Dual Shaft Bipolar Stepper Motor 0.9deg 44Ncm 1.68A 4 wires
STEPPERONLINE Nema17 Dual Shaft Bipolar Stepper Motor 0.9deg 44Ncm 1.68A 4 wires STEPPERONLINE Nema17 Dual Shaft Bipolar Stepper Motor 0.9deg 44Ncm 1.68A 4 wires STEPPERONLINE Nema17 Dual Shaft Bipolar Stepper Motor 0.9deg 44Ncm 1.68A 4 wires STEPPERONLINE Nema17 Dual Shaft Bipolar Stepper Motor 0.9deg 44Ncm 1.68A 4 wires STEPPERONLINE Nema17 Dual Shaft Bipolar Stepper Motor 0.9deg 44Ncm 1.68A 4 wires STEPPERONLINE Nema17 Dual Shaft Bipolar Stepper Motor 0.9deg 44Ncm 1.68A 4 wires STEPPERONLINE Nema17 Dual Shaft Bipolar Stepper Motor 0.9deg 44Ncm 1.68A 4 wires

STEPPERONLINE Nema17 Dual Shaft Bipolar Stepper Motor 0.9deg 44Ncm 1.68A 4 wires

USD 30.08 USD
SKU: FNM5SfHw
Brand: StepperOnline
MPN: 17HM19-1684D
GTIN: 742803043661
Condition: New
Tags: 0.9° (400 Steps) 0742803043661 1.65ohms 1.68A 12-24VDC 17HM19-1684D 4-Wire Bipolar 4.10mH±20%(1KHz) 44Ncm(62.48oz.in) 5mm 742803043661 China Dual Shaft Solid Shaft STEPPERONLINE
Categories: Testers & Calibrators

Specifications

Country Of OriginChina
BrandStepperOnline
Nominal Rated Input Voltage12-24VDC
Wiring Configuration4-Wire Bipolar
Full Step Angle0.9° (400 Steps)
Shaft TypeSolid Shaft
Shaft Diameter5mm
MPN17HM19-1684D
Actual Rated Input Voltage12-24VDC
Holding Torque44Ncm(62.48oz.in)
Rated Current Per Phase1.68A
Resistance Per Phase1.65ohms
UPC742803043661
EAN0742803043661
Inductance4.10mH±20%(1KHz)
Single Shaft/Dual ShaftDual Shaft

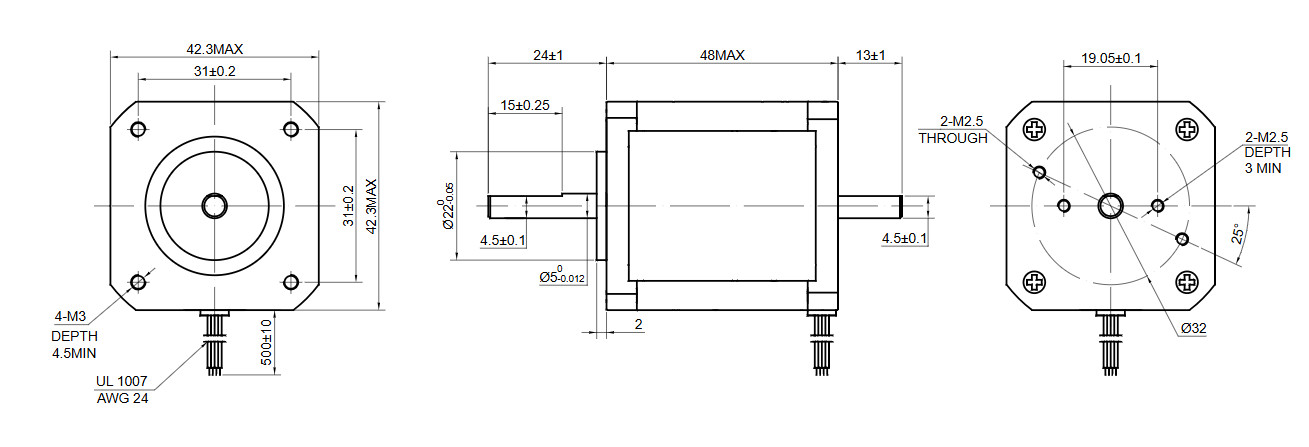

This model is dual shaft Nema 17 Bipolar stepper motor,it with step angle 0.9deg and size 42x42x48mm. It has 4 wires, each phase draws 1.68A at 2.8V, with holding torque 44Ncm(62.3oz.in). Holding Torque: 44Ncm(62.3oz.in).
