Hydraulic Low Speed High Torque Orbital Motor 50-500cc 760rpm 14.5gpm Bi-rotate
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | Fluidhaus |
| MPN | MFOS |
| Country/Region Of Manufacture | Turkey |

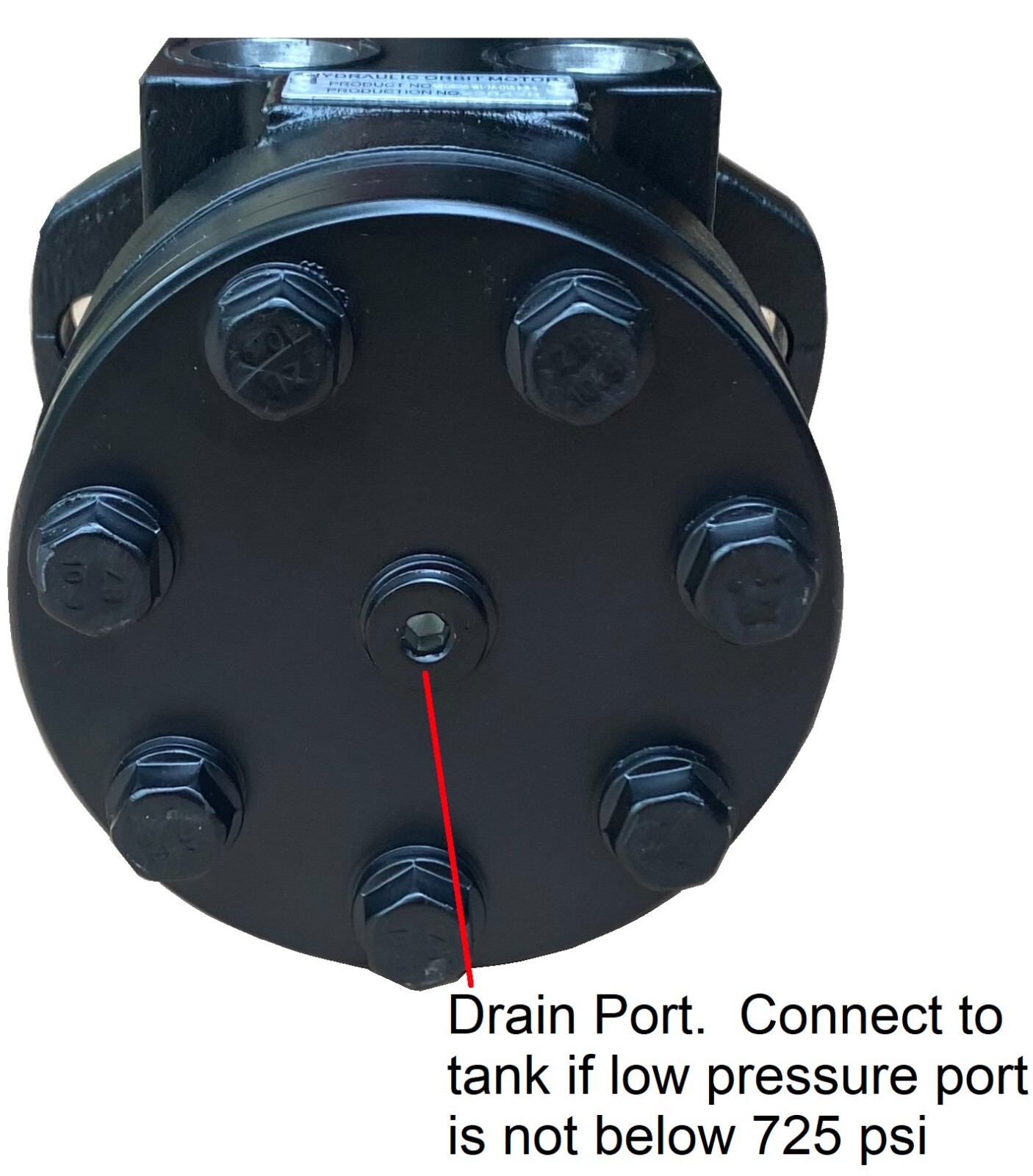

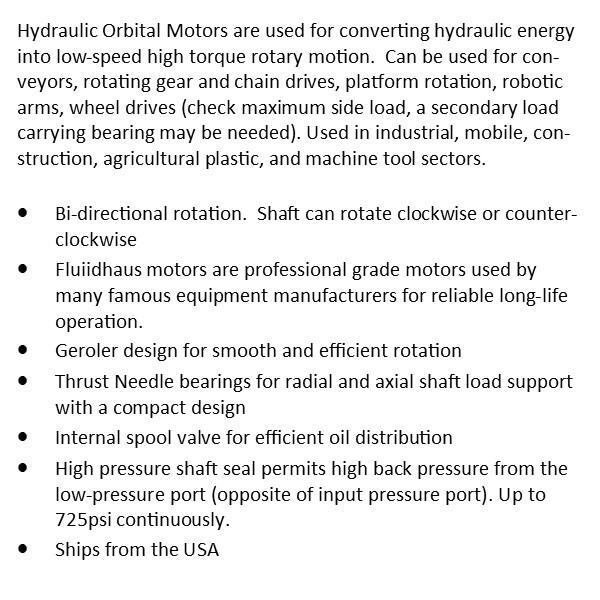

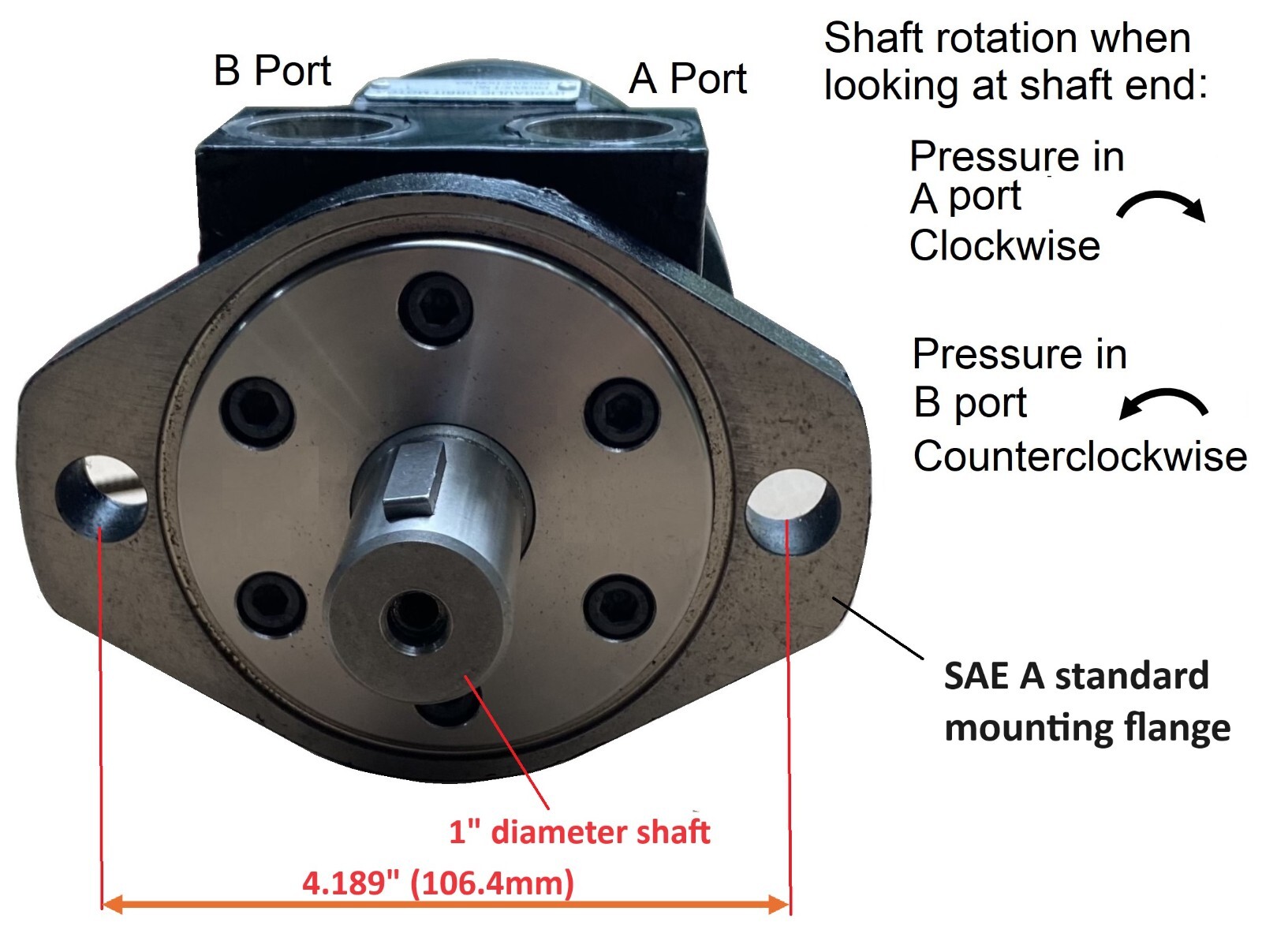

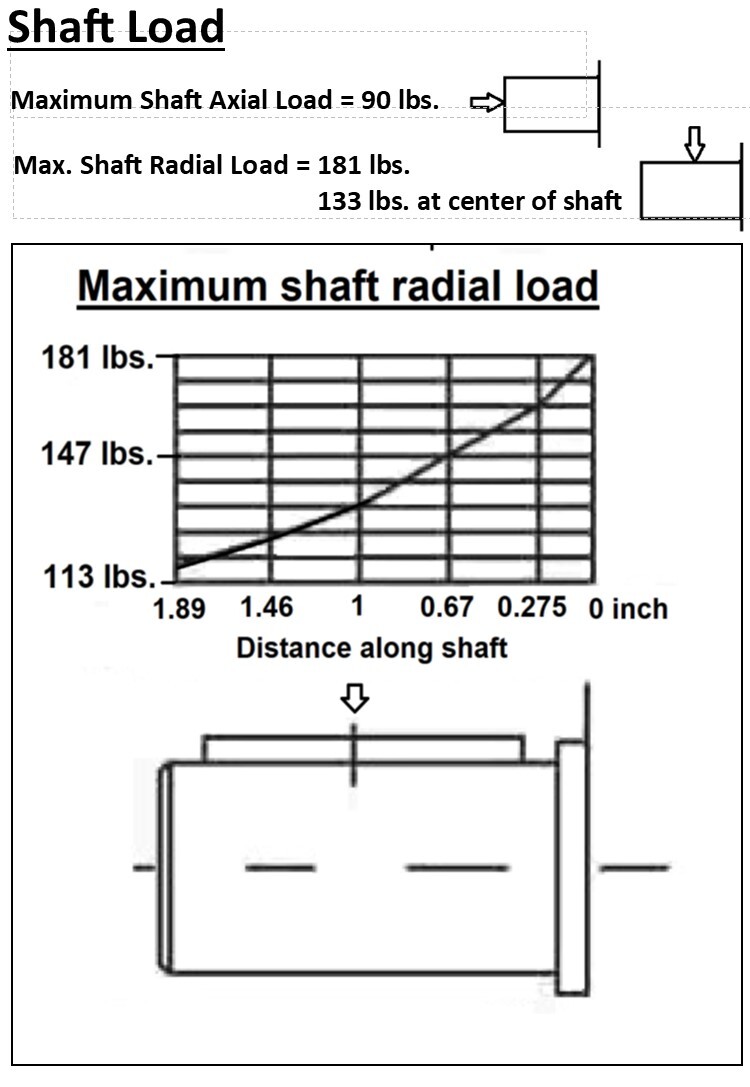

Hydraulic Orbital Motors are used for converting hydraulic energy into low-speed high torque rotary motion. Can be used for conveyors, rotating gear and chain drives, platform rotation, robotic arms, wheel drives (check maximum side load, a secondary load carrying bearing may be needed). Used in industrial, mobile, construction, agricultural plastic, and machine tool sectors. Bi-directional rotation. Shaft can rotate clockwise or counterclockwiseFluiidhaus motors are professional grade motors used by many famous equipment manufacturers for reliable long life operation.Geroler design for smooth and efficient rotationThrust Needle bearings for radial and axial shaft load support with a compact designInternal spool valve for efficient oil distributionHigh pressure shaft seal permits high back pressure from the low-pressure port (opposite of input pressure port). Up to 725psi continuously.Ships from the USA
