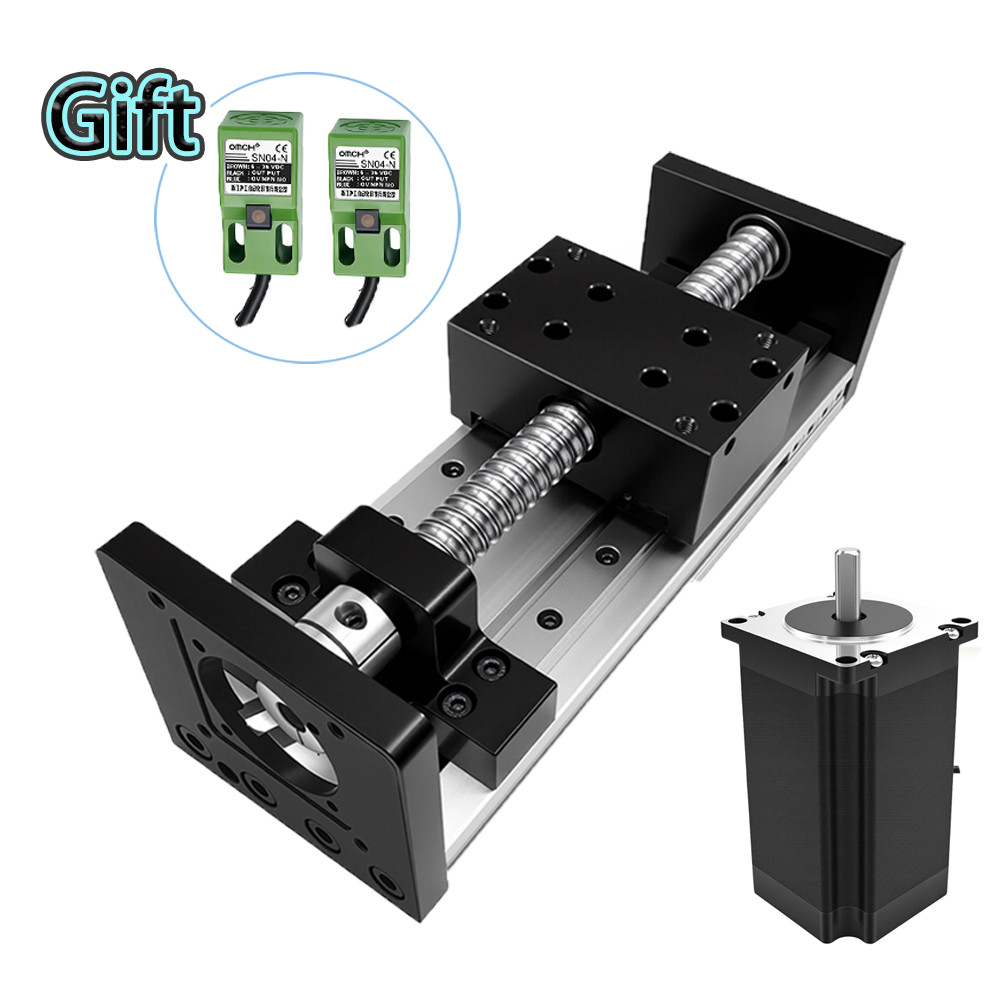

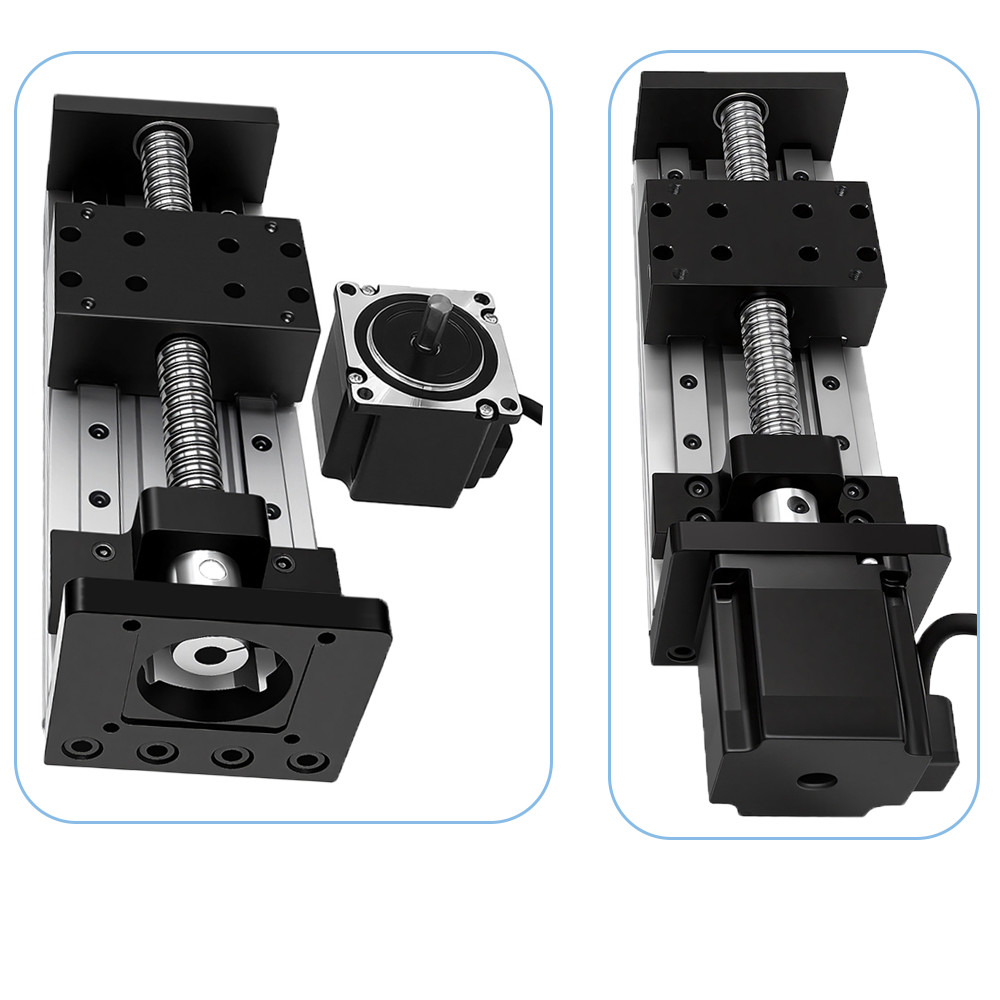

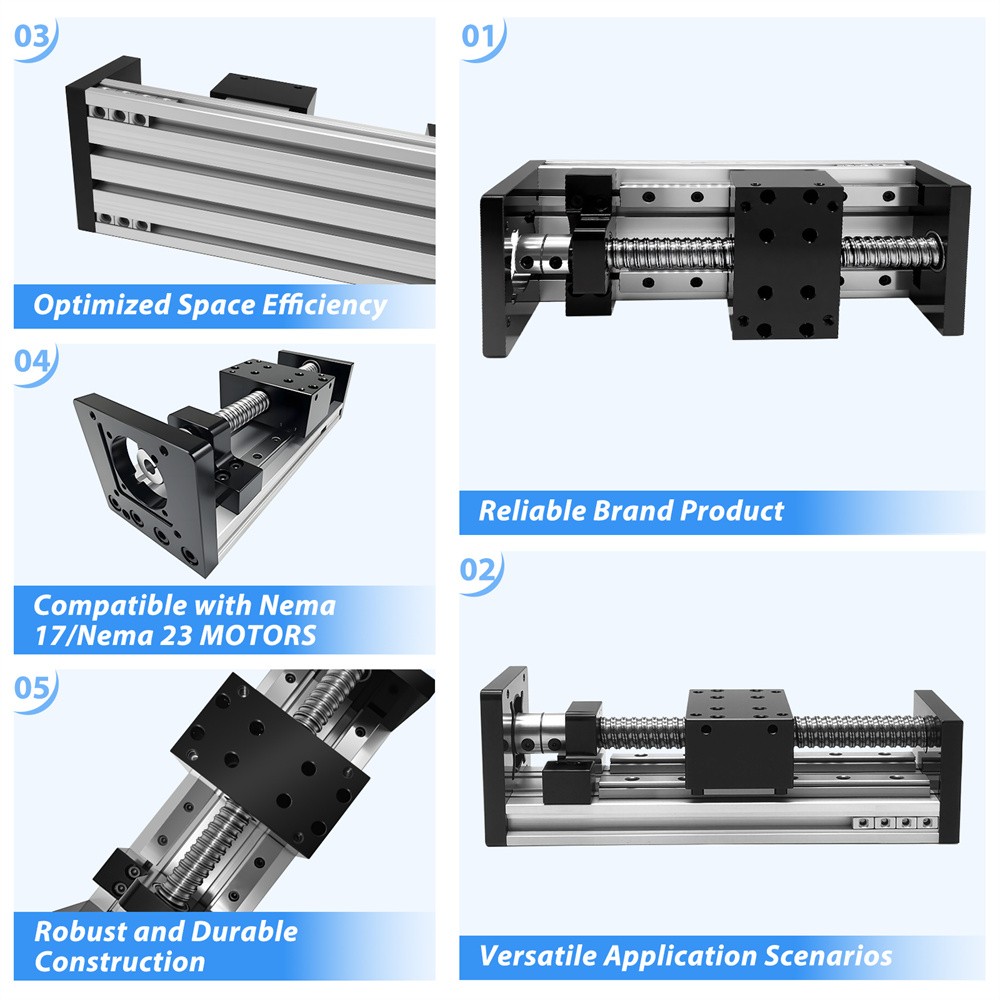

50kg Loads Linear Double Guides Ball Screw Slide Table With Stepper Motor Kits
USD 189.99 USD
Specifications
| Stroke Length | 100mm (4 in) |
| Package Include | 1*Ball Screw Slide |
| Accuracy | 0.03mm |
| Ballscrew Diameter | 16mm |
| Horizontal Load | Max 60kg(132.28lb) |
| Vertical Load | Max 30kg（ 66.14lb) |

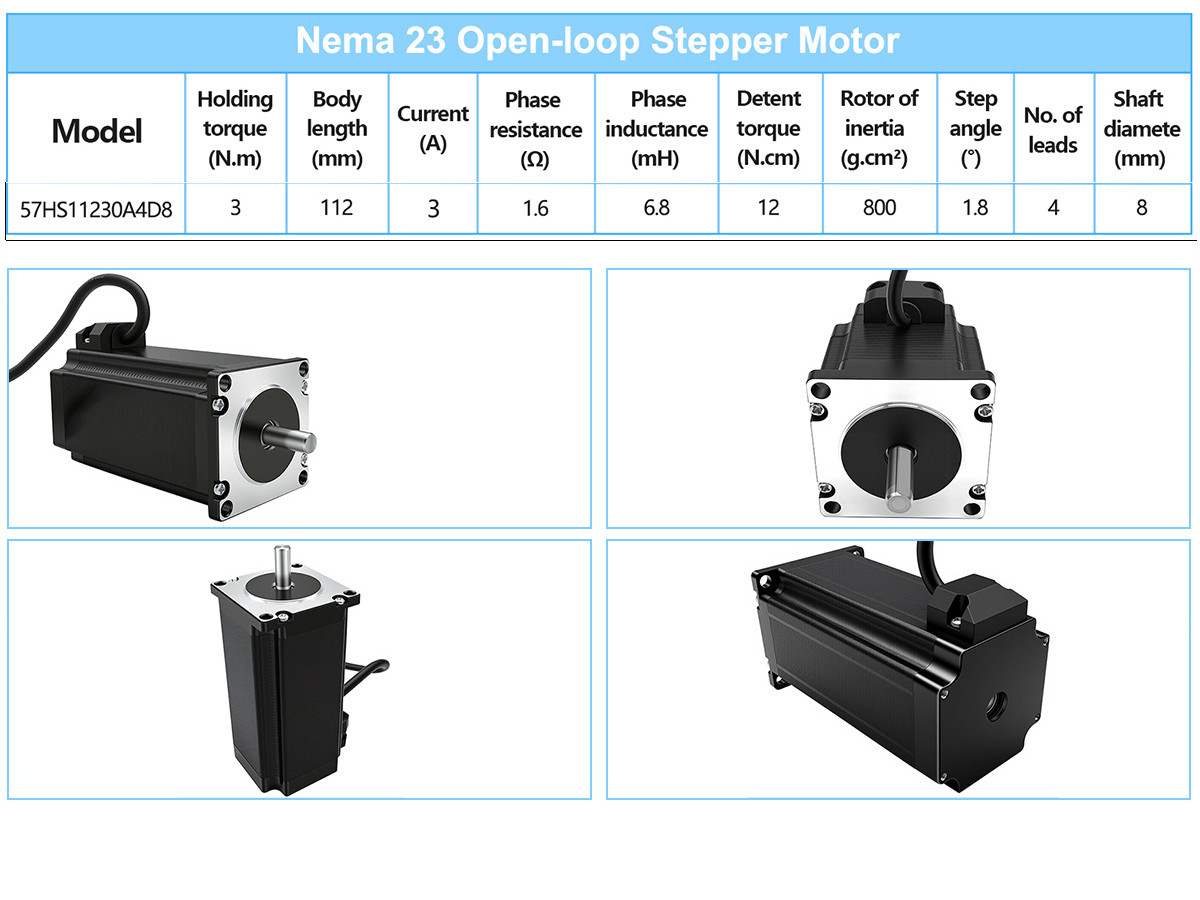

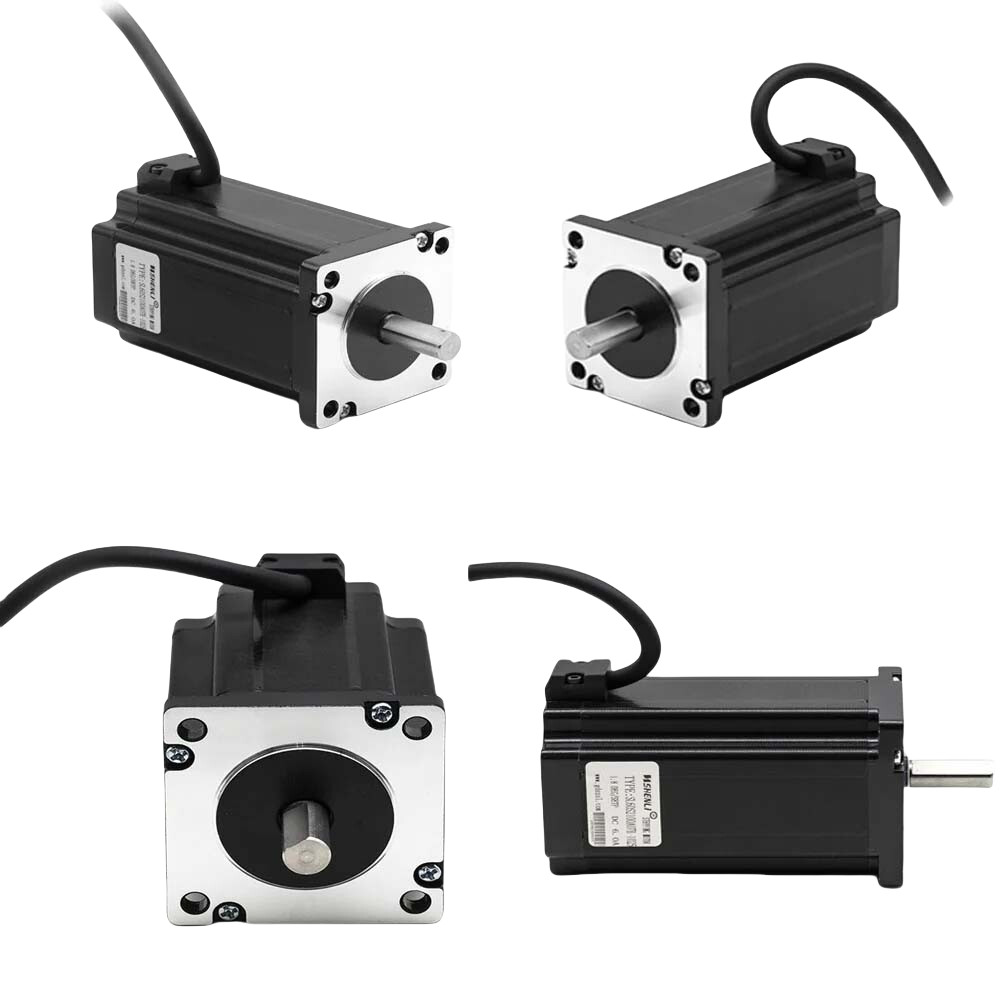

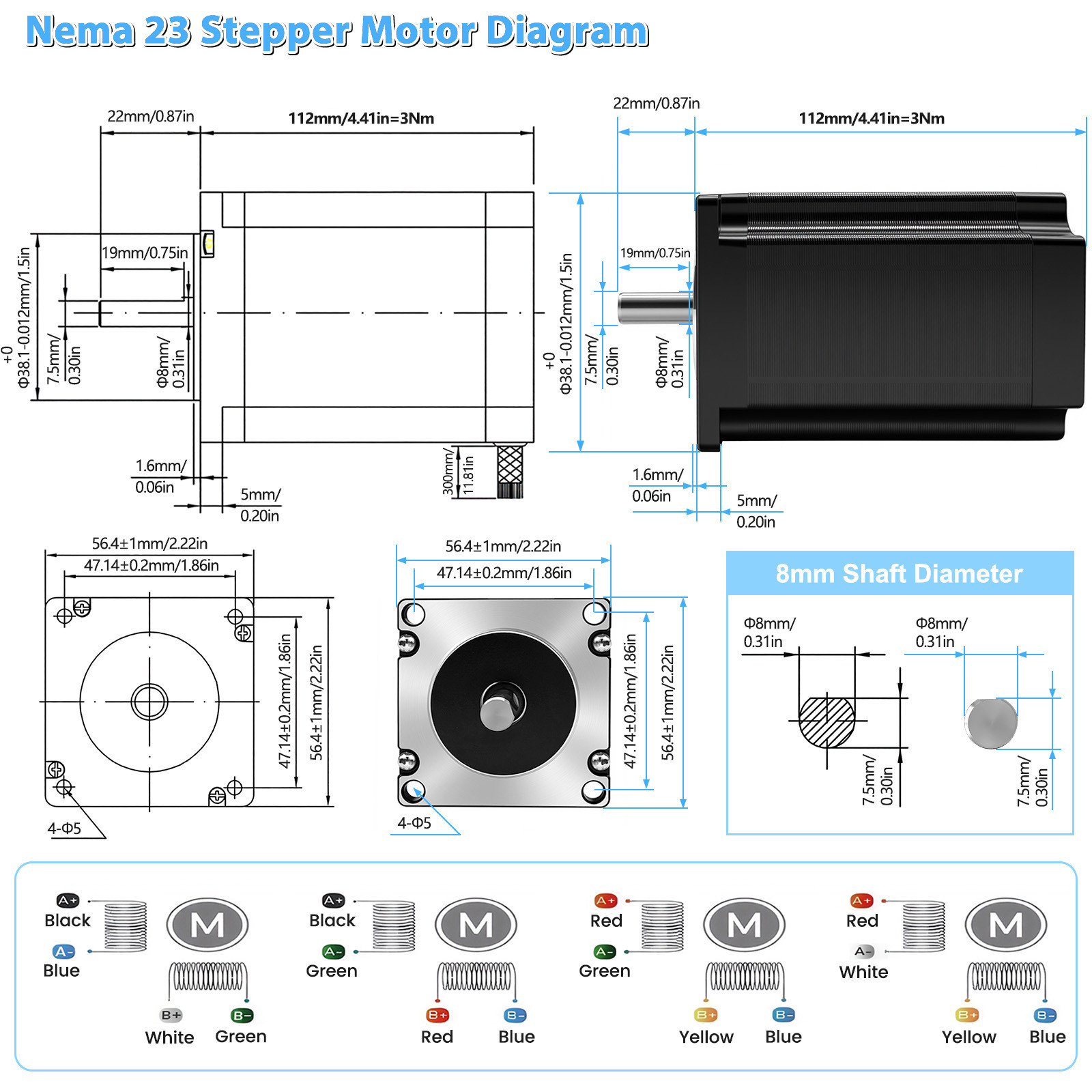

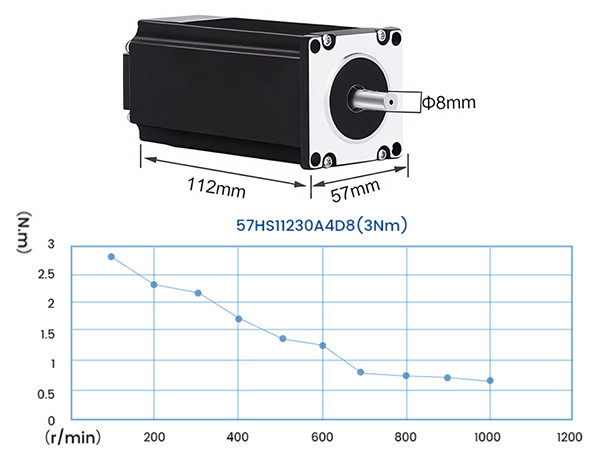

| Compatible Motor | 57 Nema23 |
| Torque | 3NM |
| Brand | TOSEASTARS |

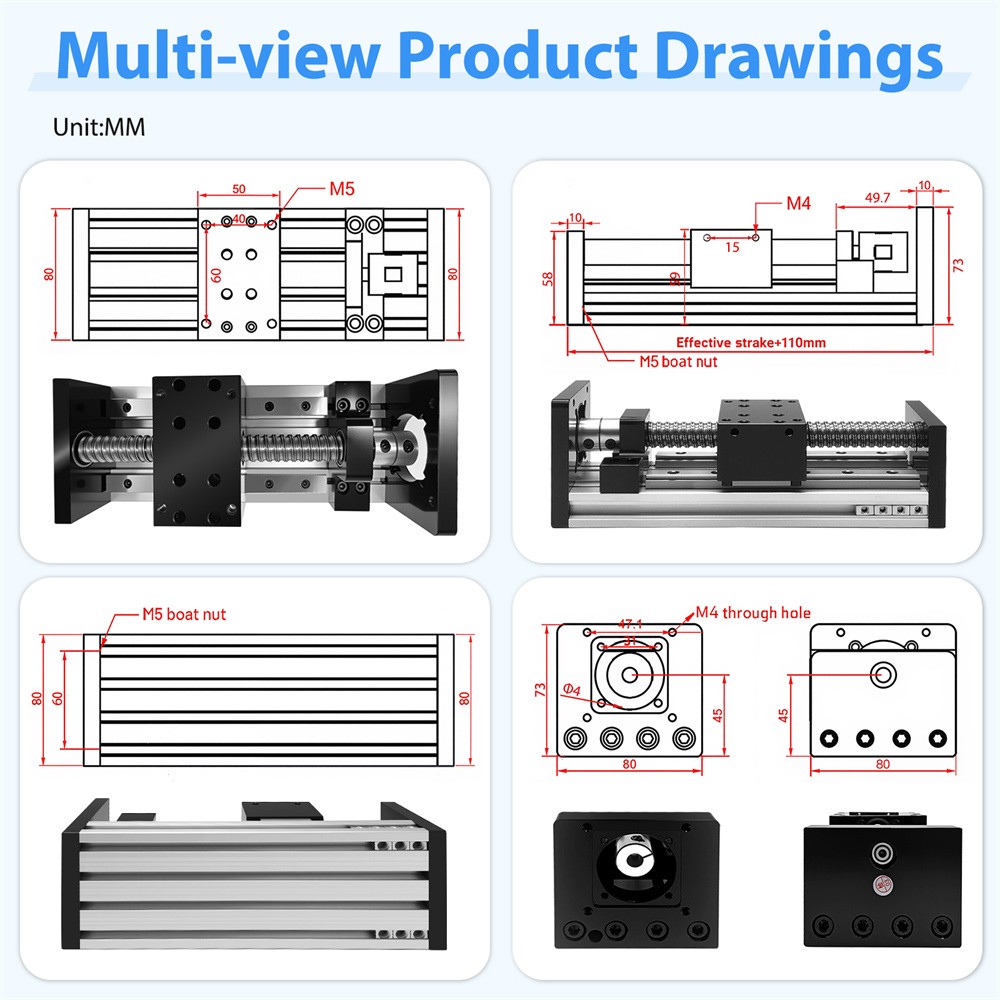

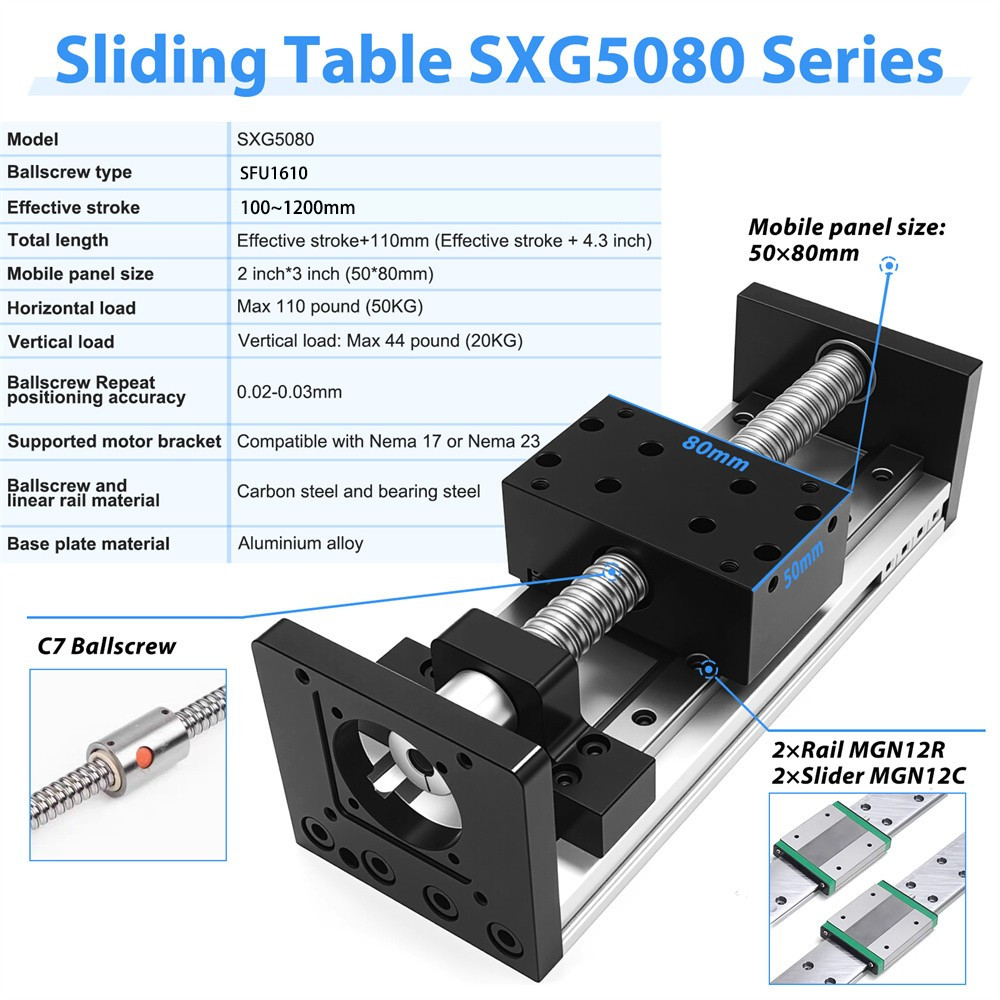

Product parameter Model: SXG5080---80mm width 60kg(132.28lb) ; ●Ballscrew type: SFU1610 (Screw Diameter 16mm, Pitch 10mm,the screw rod rotates once and the panel moves 10mm) ●Ballscrew accuracy: C7 level ●Effective stroke: 300mm Optional ●Total length: Effective stroke+110mm (50*80 Table) ●Mobile panel size: 50*80mm ●Guide diameter: 12mm ●Guide Type: 2*MGN12R ●Slider Type:2*MGN12C (for 50*80mm table); ●Horizontal load: Max 60kg/ 132.28lb (for 50*80mm table); ●Vertical load: Max 30kg/ 66.14lb (for 50*80mm table); ●Maximum speed: 500mm/s ●Ballscrew Repeat positioning accuracy: 0.02-0.03mm ●Ballscrew and linear rail material: Carbon steel and bearing steel.
