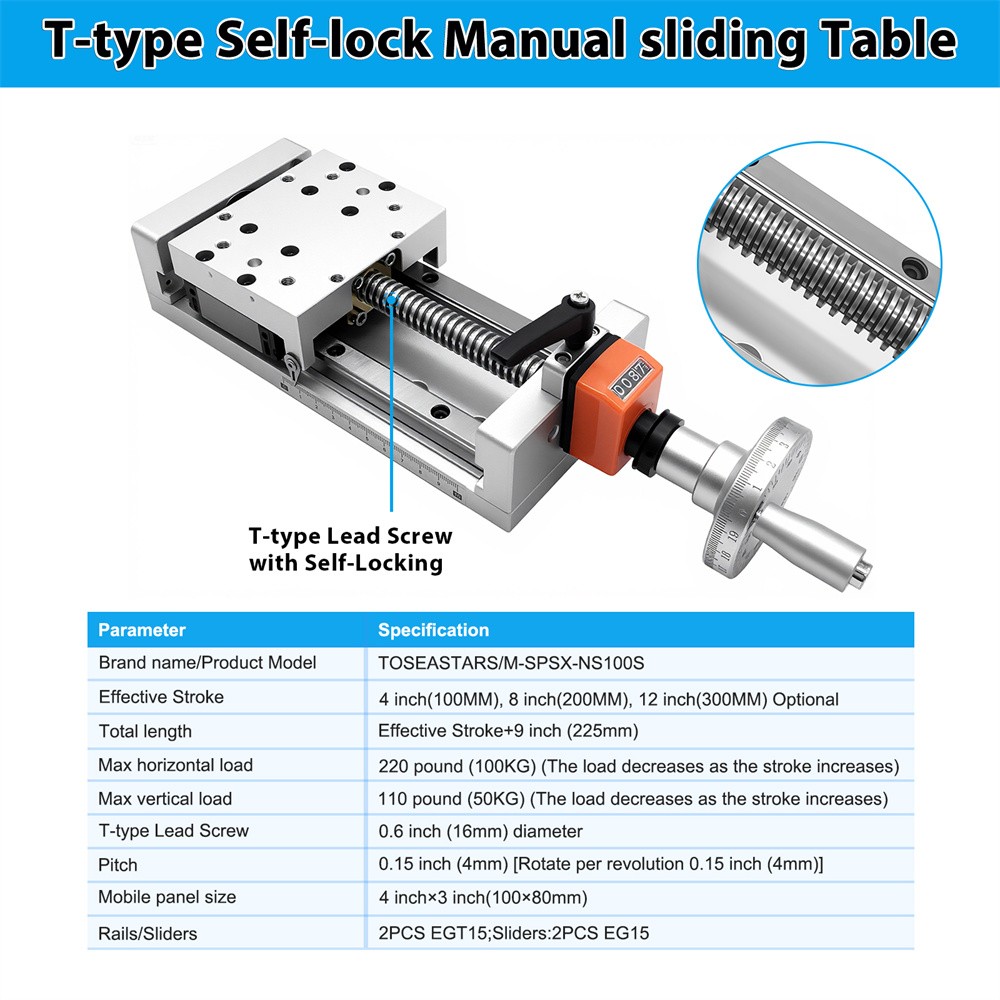

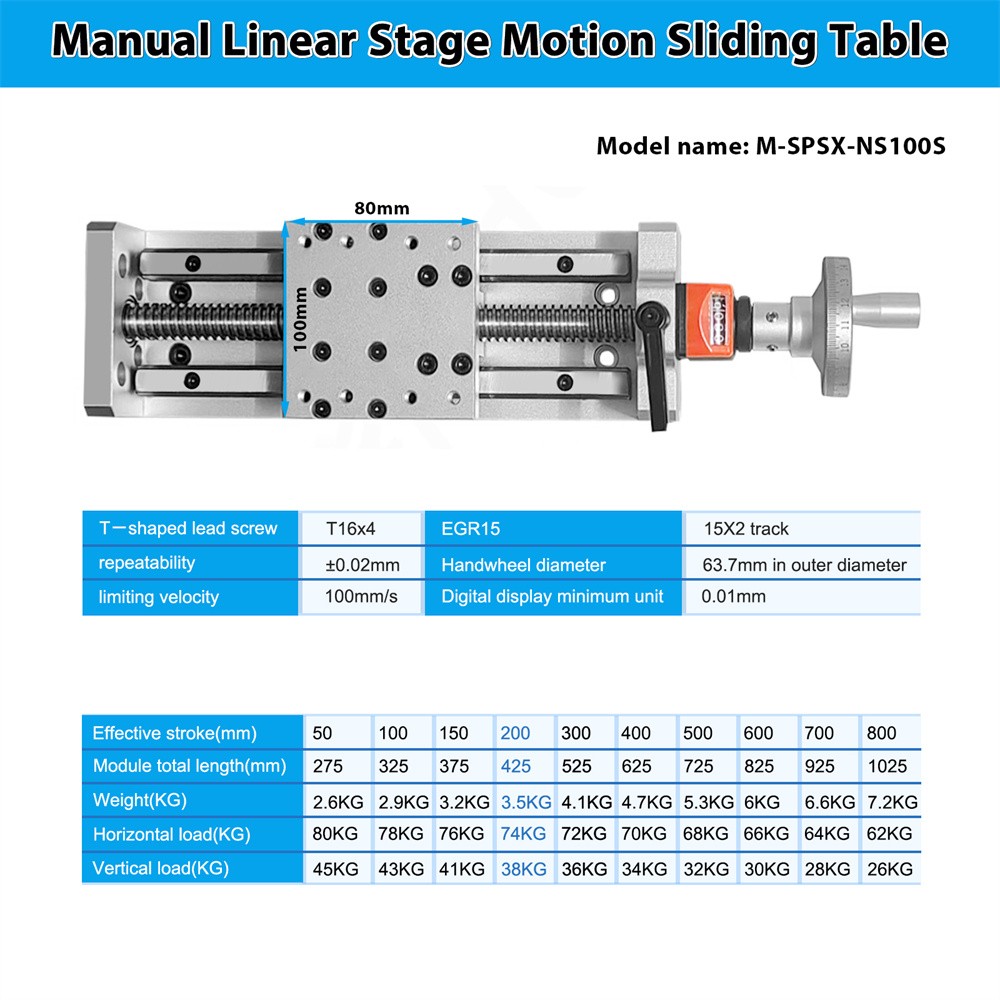

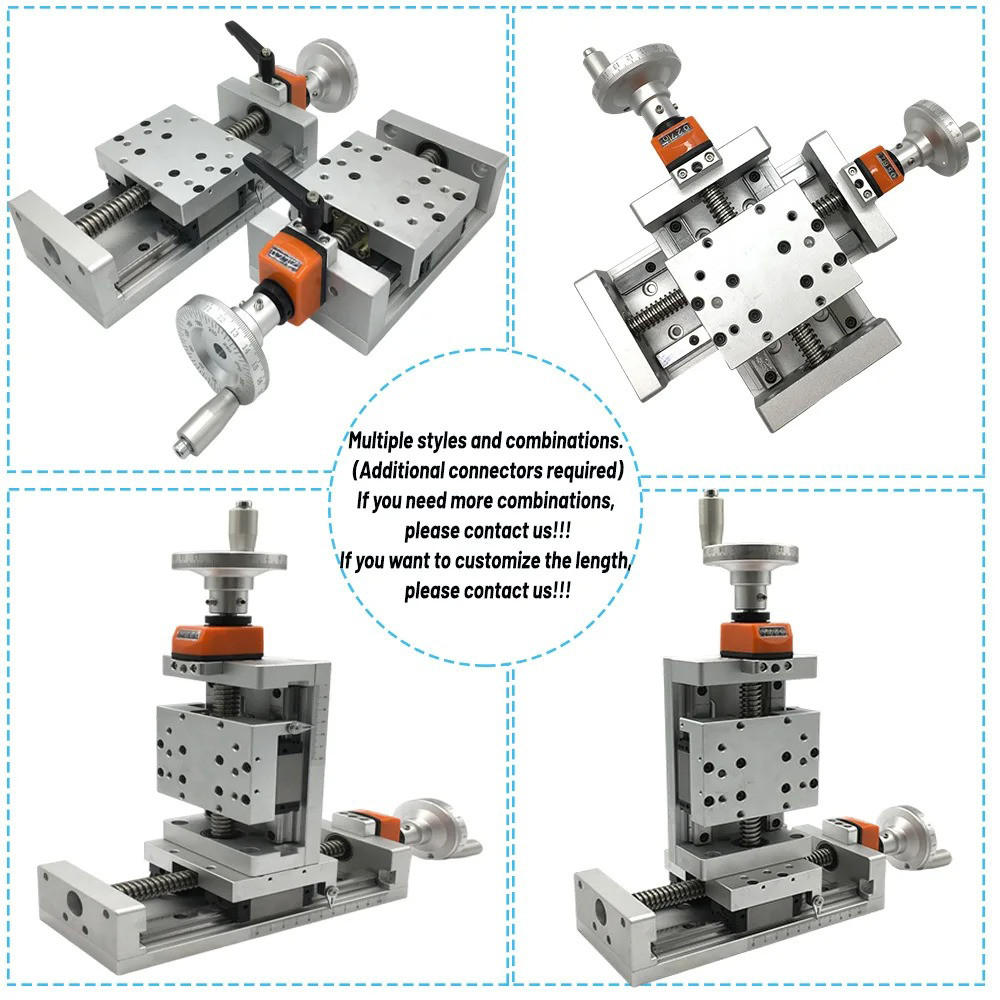

Manual CNC Slide Table Self-lock Digital Display Linear Module Z Position Stage
USD 159.42 USD
Specifications
| Stroke Length | 100mm (4 in) |
| Brand | TOSEASTARS |
| Country/Region Of Manufacture | China |
| Repeat Positioning Accuracy: | 0.03-0.05mm |
| Supporting | graduated handwheel |
| Type | Linear Rail Guide Slide |
| Screw Material | 304 stainless steel |
| Screw Diameter | 16mm |
| Guide Rail Diameter | 15mm |
| Nut Material | H95 brass |
| Pitch | 4mm |
| Module Width | 100mm |
| Horizontal Load | Max 80kg(176.37lbs) |
| Vertical Load | Max 45kg(99.21lbs） |
| Voltage | manual |
| Rated Load | 112 lb |
| Screw Type | trapezoidal screw |

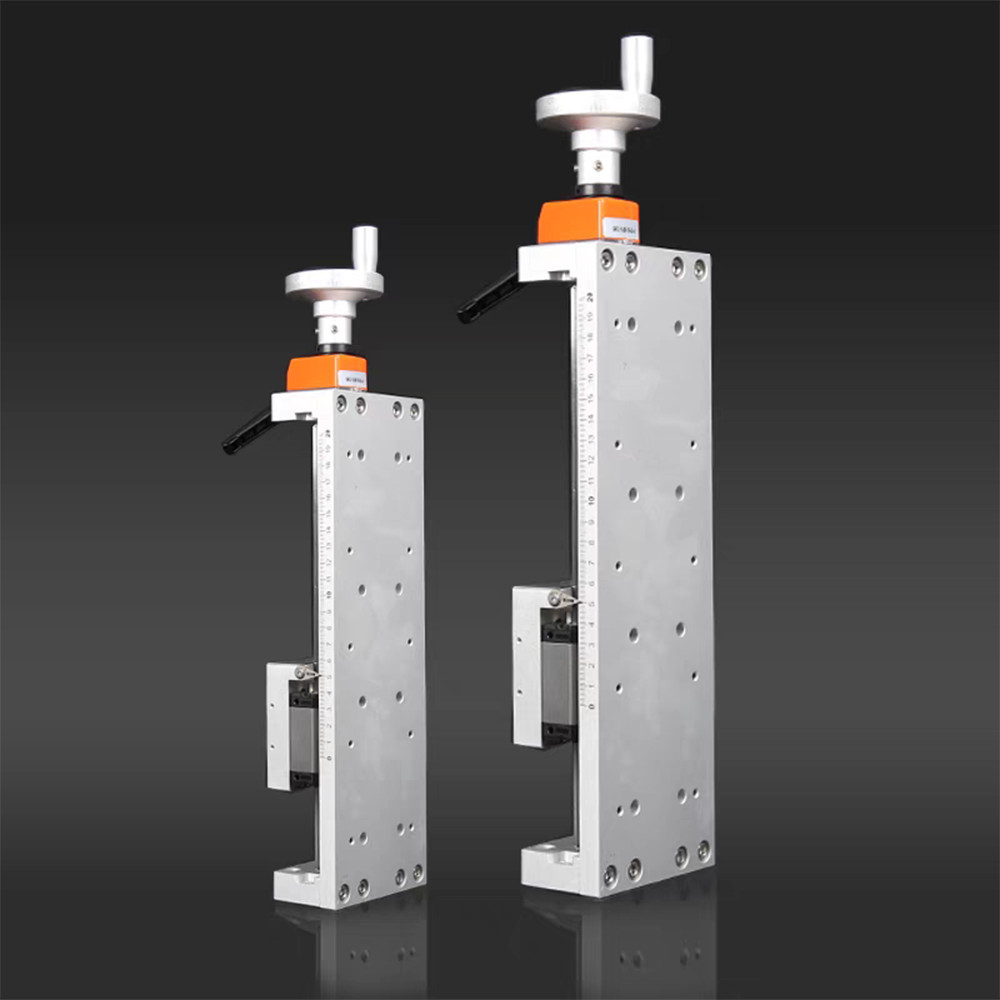

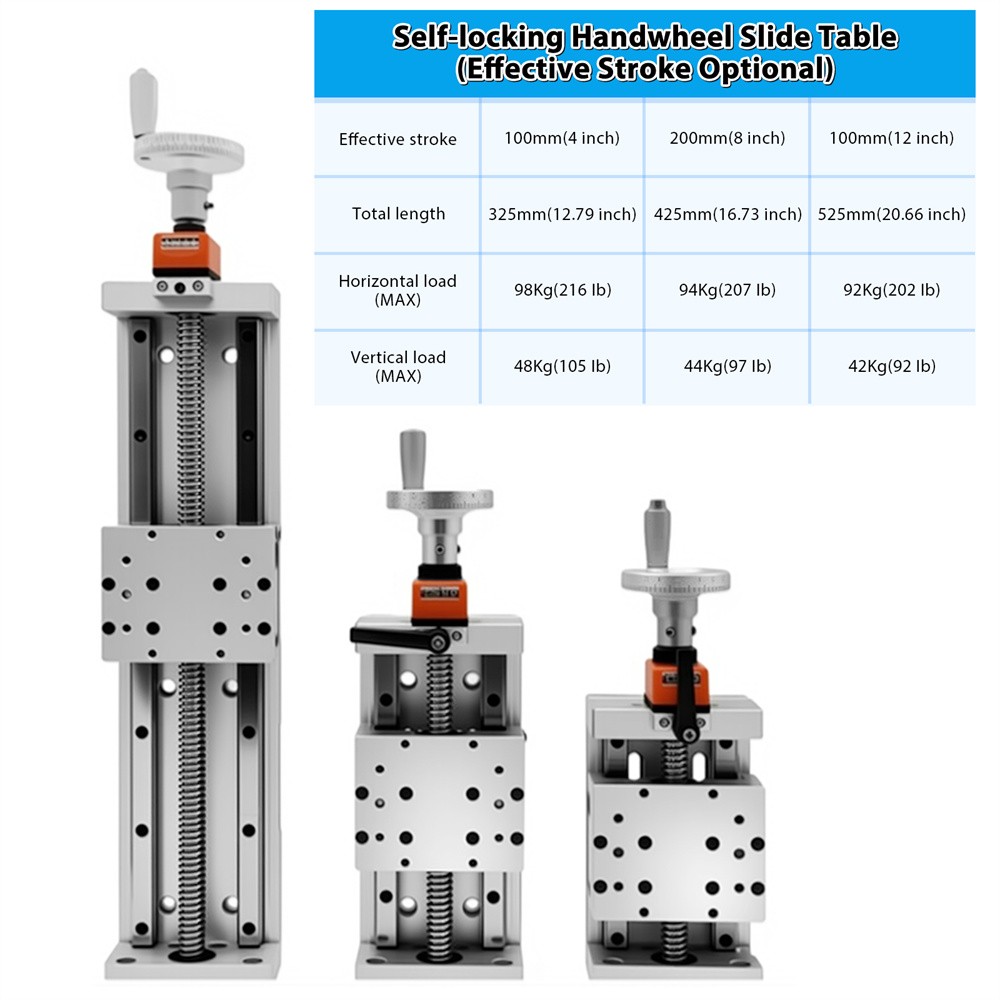

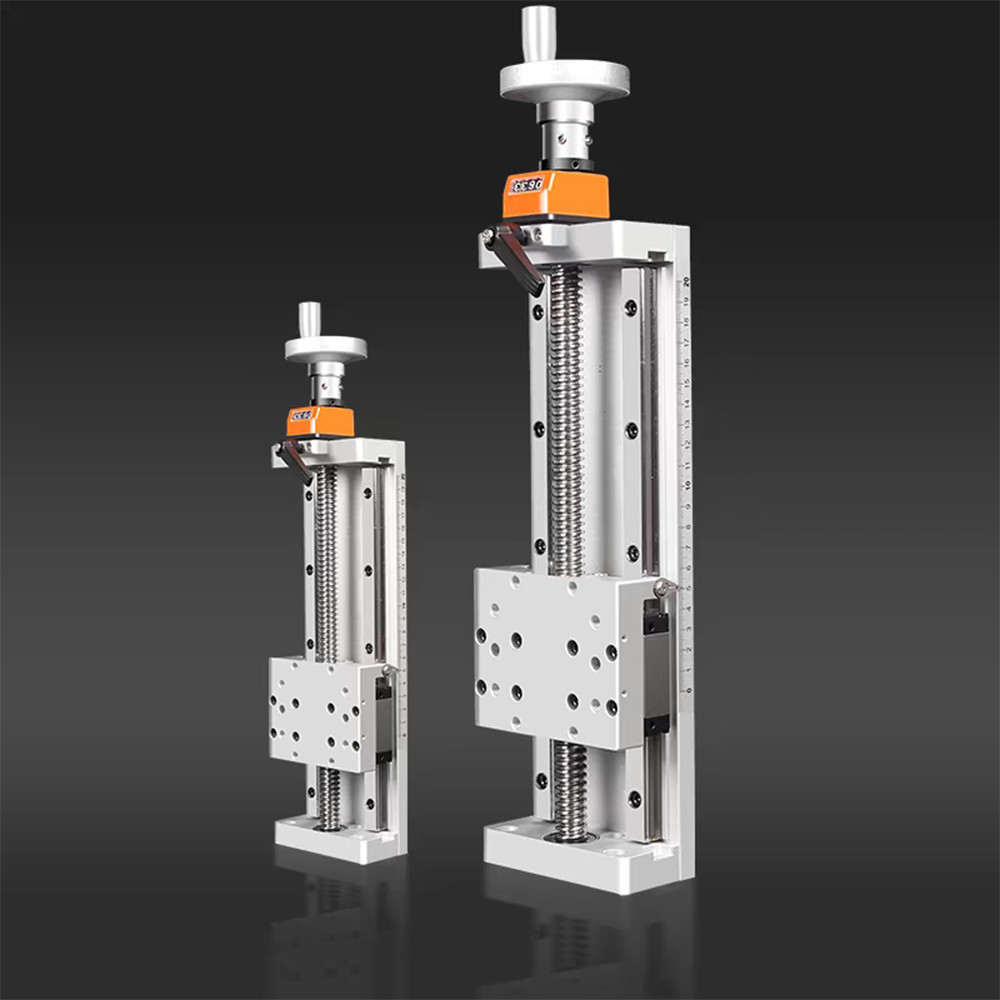

Precision Cross Mini Manual Sliding Table Linear Rail for Digital CNC Processing from Toseastars. ✅This high-quality product is designed with industrial aluminum profile module material and H95 brass nut material. ✅Equipped with digital display (horizontal and vertical). Horizontal digital display is suitable for reading when the slide table is installed horizontally. vertical digital display is suitable for reading when the slide table is installed vertically. ✅ Self locking function:When the Z-axis moves vertically and the screw stops rotating, the moving panel will lock itself and not slide down, ensuring safety and reliability.
