(5 Pack) PGN #420 Roller Chain Offset Links – 1/2″ Pitch – Half Link
USD 7.45 USD
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| MPN | RC-#420-OL/5 |
| Brand | PGN Bearings |
| UPC | 810135403597 |
| Manufacturer Part Number | RC-#420-OL/5 |

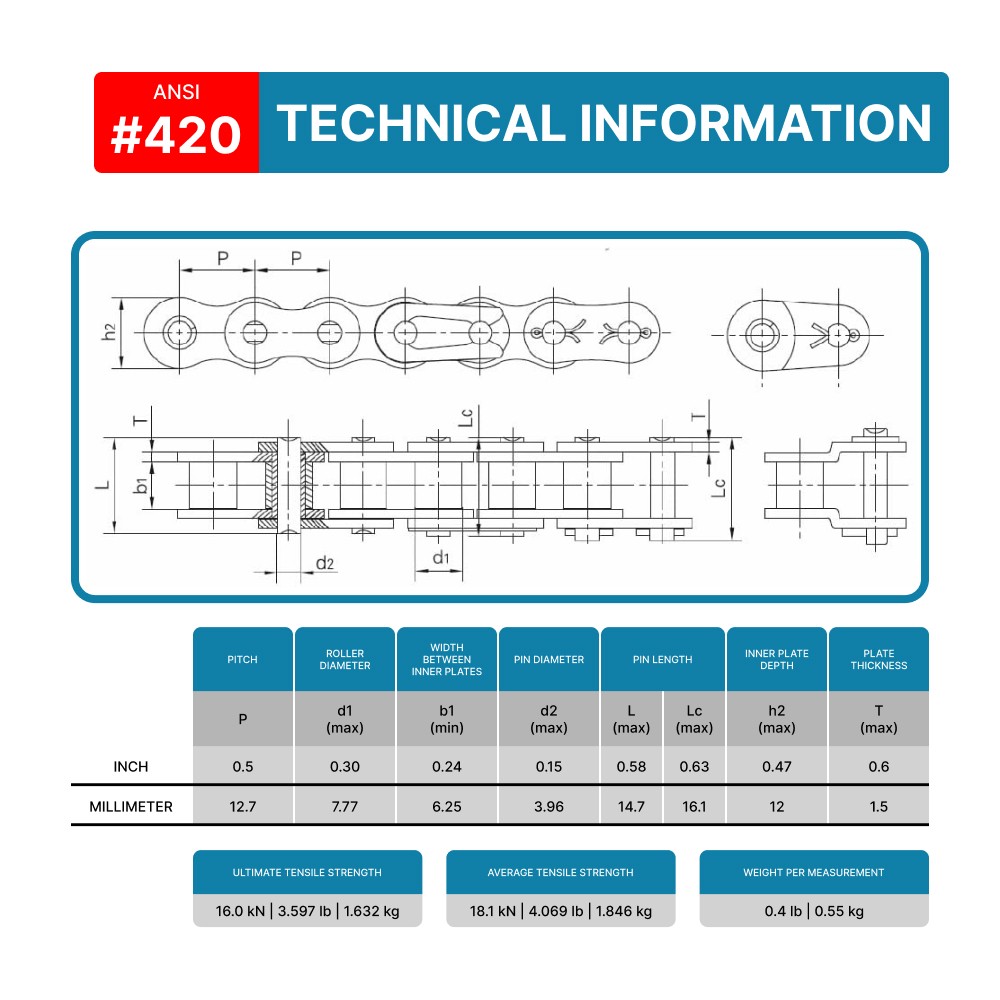

Units per package: 5 Below are the specifications for the chain that uses this half link: ANSI Chain No.: #420 Pitch (P): 0.5 inch (12.7 mm) Roller Diameter (d1 max): 0.30 inch (7.77 mm) Width Between Inner Plates (b1 min): 0.24 inch (6.25 mm) Pin Diameter (d2 max): 0.15 inch (3.96 mm) Pin Lenght (L max): 0.66 inch (17 mm) Pin Lenght (Lc max): 0.72 inch (18.4 mm) Inner Plate Depth (h2 max): 0.47 inch (12 mm) Plate Thickness (T max): 0.07 inch (2.03 mm) Ultimate Tensile Strenght (Q min): 16.00/3636 kN/LB Average Tensile Strenght (Qo): 16.1 kN Weight (q): 0.76 lb/ft (0.34 kg/m)
