3S 100A 12.6v BMS LED Heatsink Li-ion Lithium Battery Balance

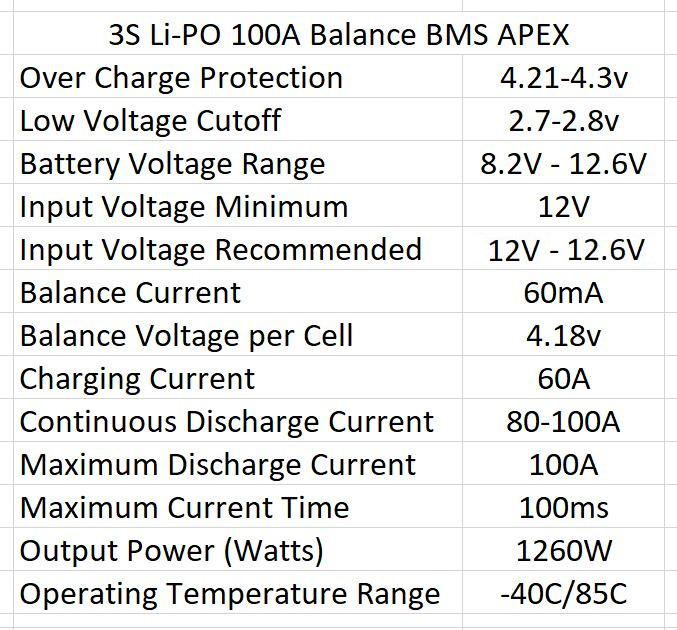

Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Nominal Voltage Rating (DC) | 8 V |
| Maximum Continuous Output Current | 100 A |
| Nominal Voltage Rating (AC) | 12 V |
| Nominal Current Rating | 100 A |
| Current Conversion | DC to DC |
| Size | 6cm x 4.2cm |
| Color | White |
| Nominal Power Rating | 1200W |
| Charging Voltage | 12V - 12.6V |
| MPN | Does Not Apply |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Brand | APEX |
| Output Voltage Rating (AC) | 3 V |
| Type | BMS |
| Output Voltage Rating (DC) | 12 V |
| Inrush Current Rating | 60 A |
| Input Voltage Range | 12V - 12.6V |
| Maximum Operating Temperature | 85 °C (185 °F) |
| Country/Region Of Manufacture | United States |
| Output Voltage Range | 8.2V - 12.6V |
| Maximum Peak Output Current | 100 A |

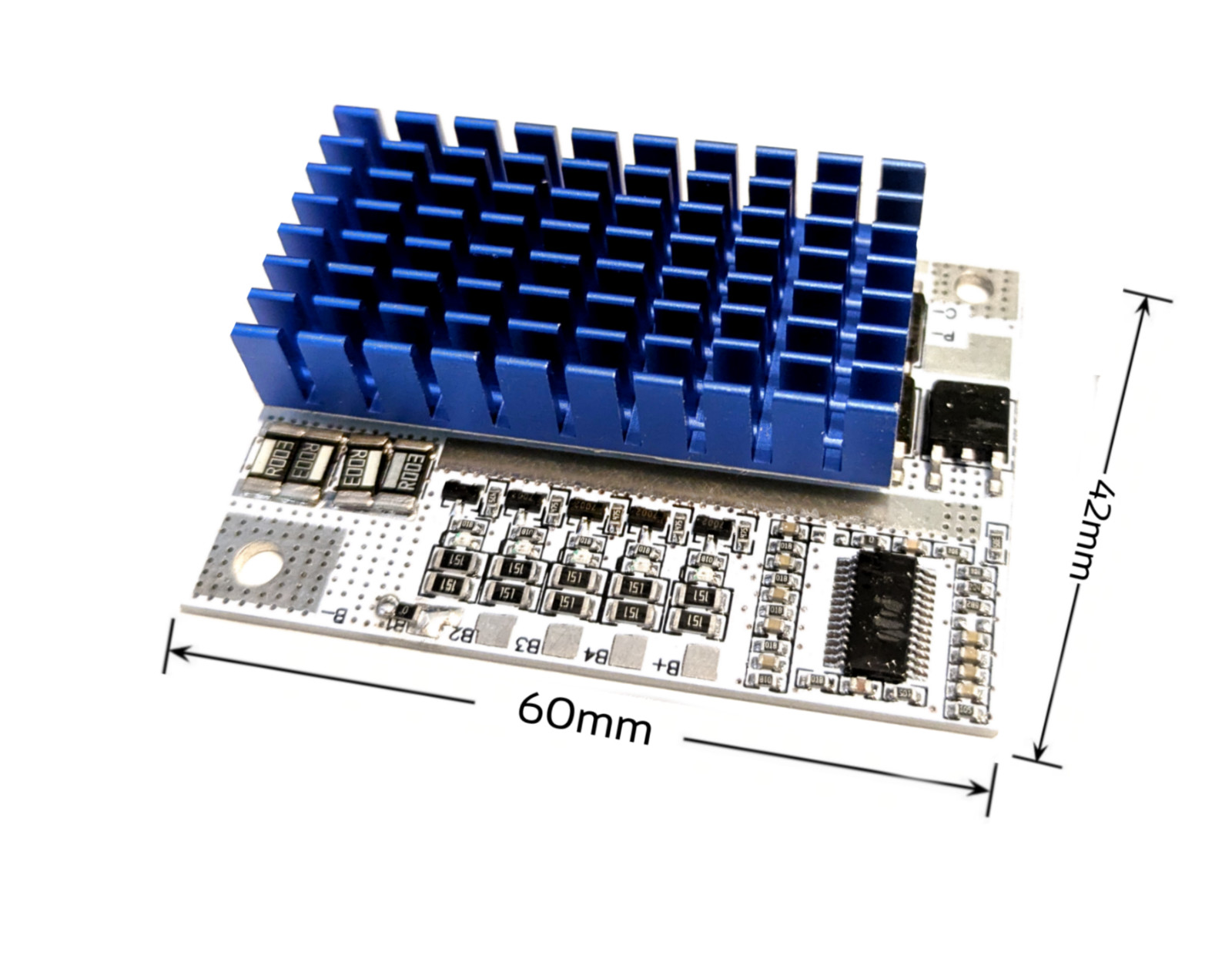

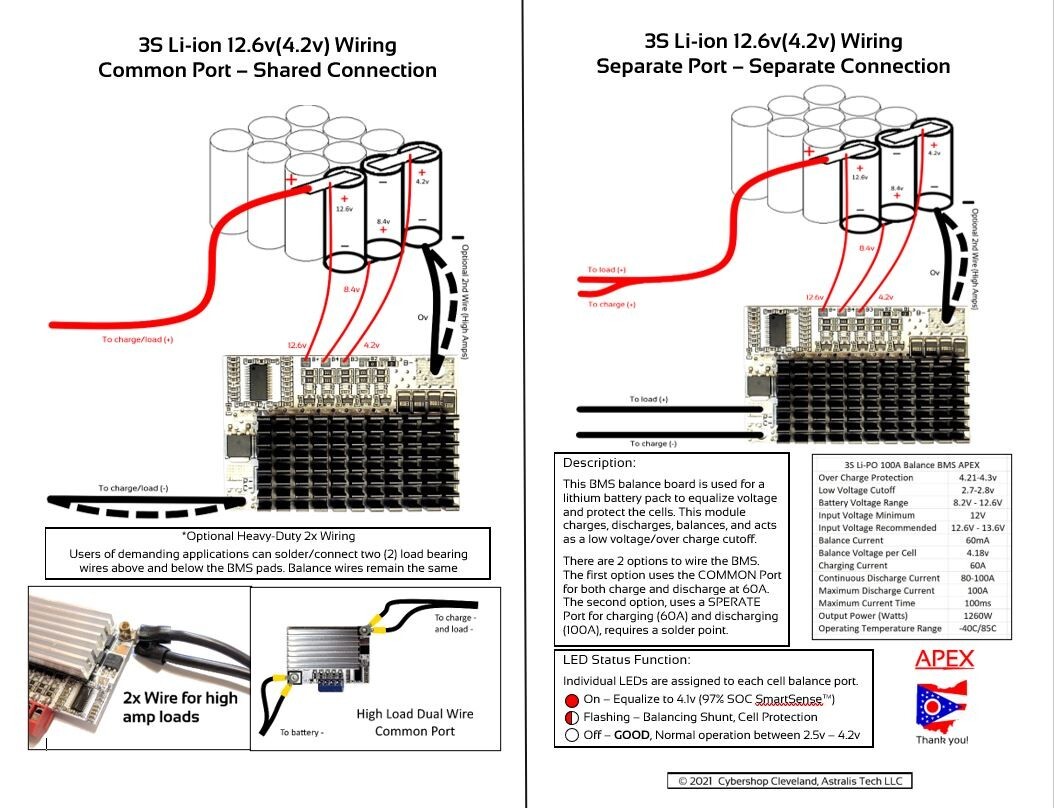

3S 100A BMS LED Heatsink Li-ion Lithium Battery Balance Charger 3s 3 Cell Description:This BMS balance board is used for a lithium battery pack to equalize voltage and protect the cells. This module charges, discharges, balances, and acts as a low voltage/over charge cutoff. There are 2 options to wire the BMS. The first option uses the COMMON Port for both charge and discharge at 60A. The second option, uses a SPERATE Port for charging (60A) and discharging (100A), requires an extra solder point but is worth the added output. Battery compatibility: Voltage of 2.7V - 4.2V lithium battery (18650, 26650, LiPo, Li-ion)Charging input voltage: 12V - 12.6VMaximum starting current: 100ADischarge current: 100A Charge current: 60ABoard Size: approx. 42*60*7.4mmPackage includes: 1 x Lithium Battery Protection Board 3S 100A BMS LED Heatsink Li-ion Lithium Battery Balance Charger 3s 3 Cell. Condition is New. Shipped with USPS First Class.
