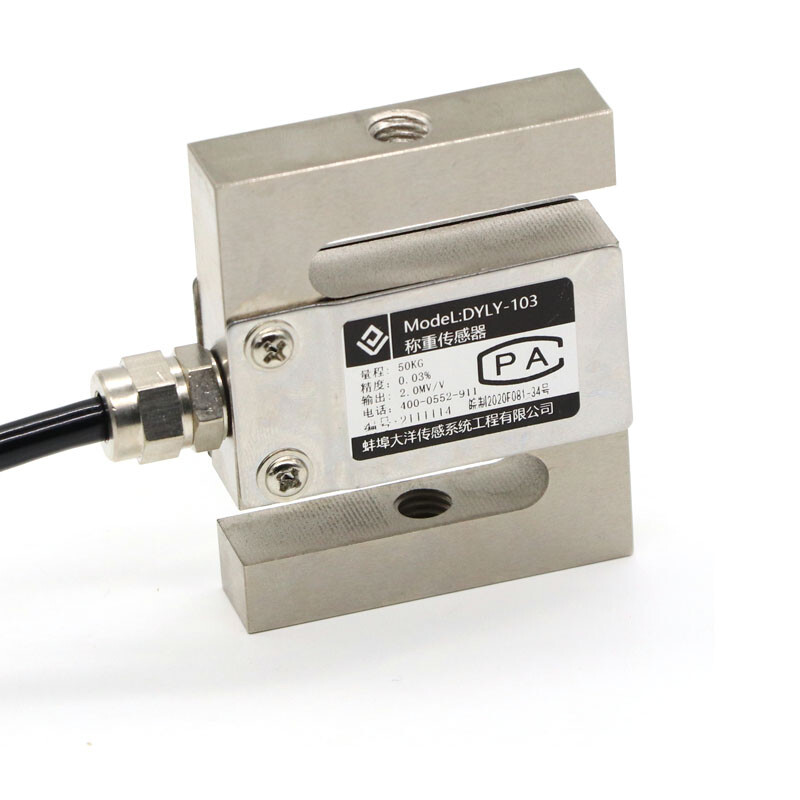

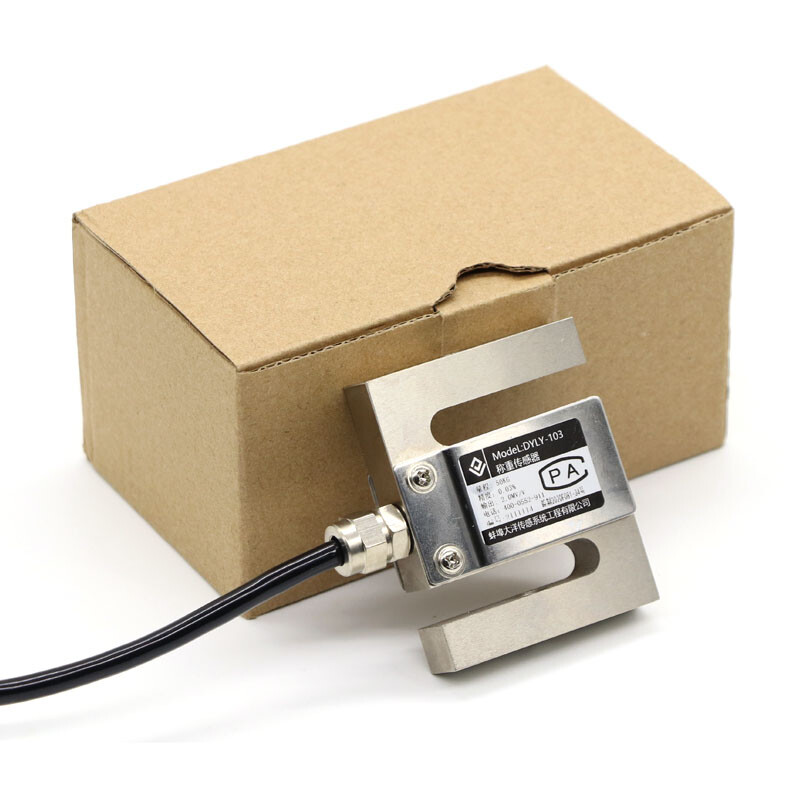

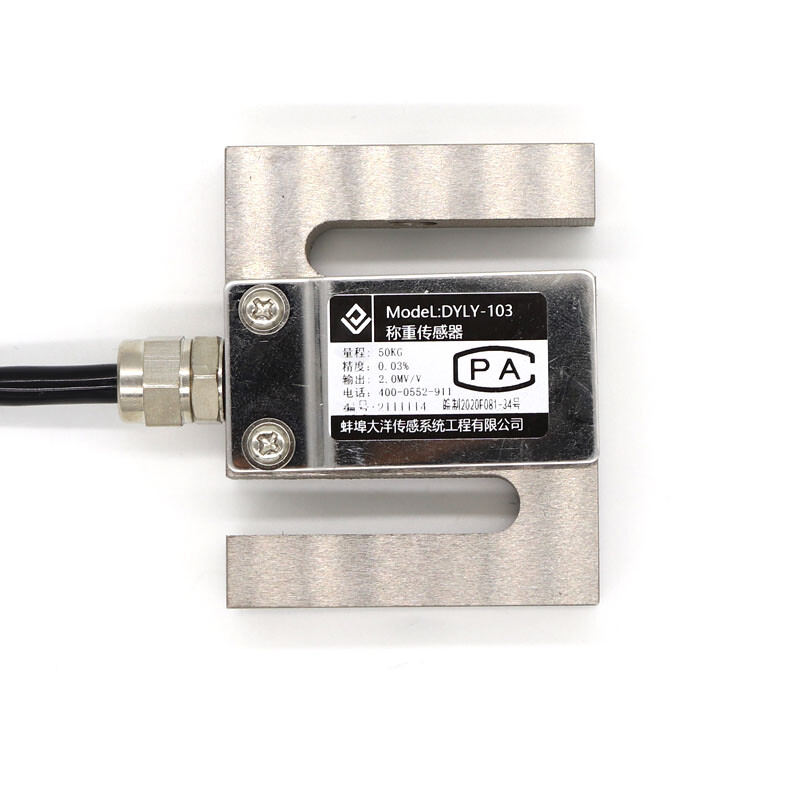

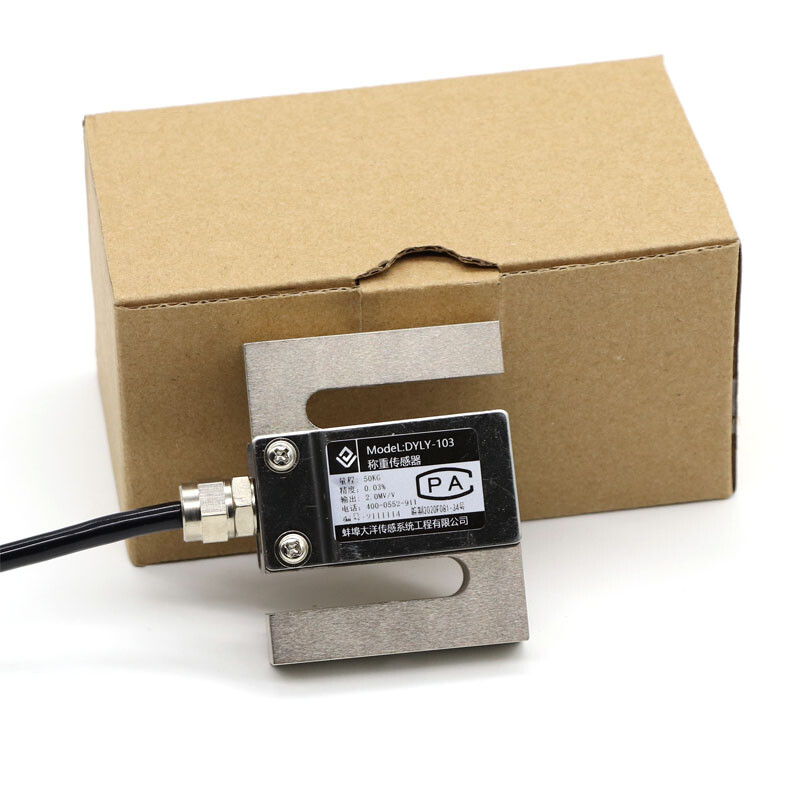

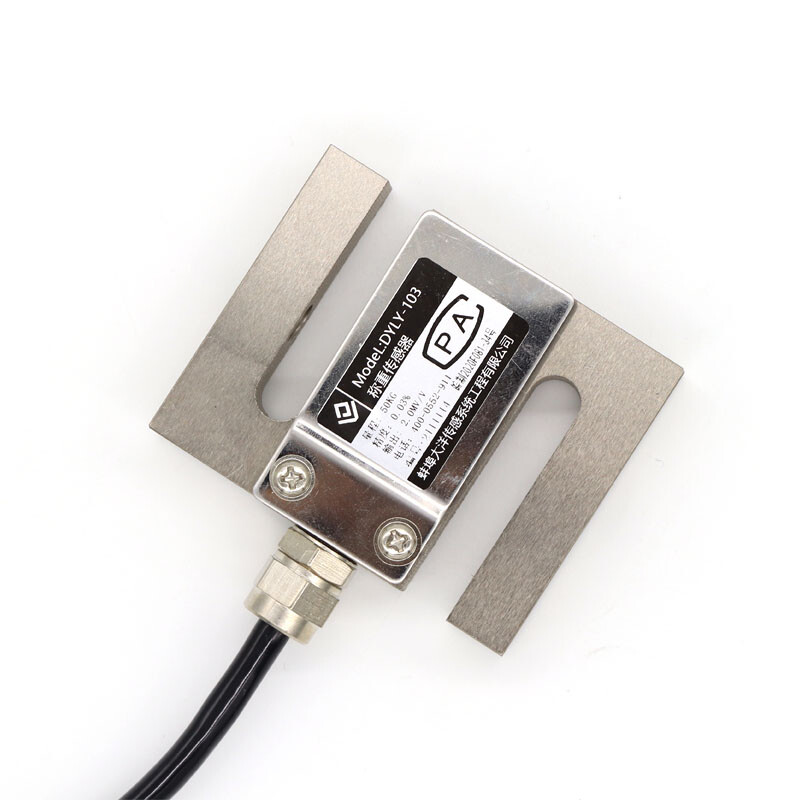

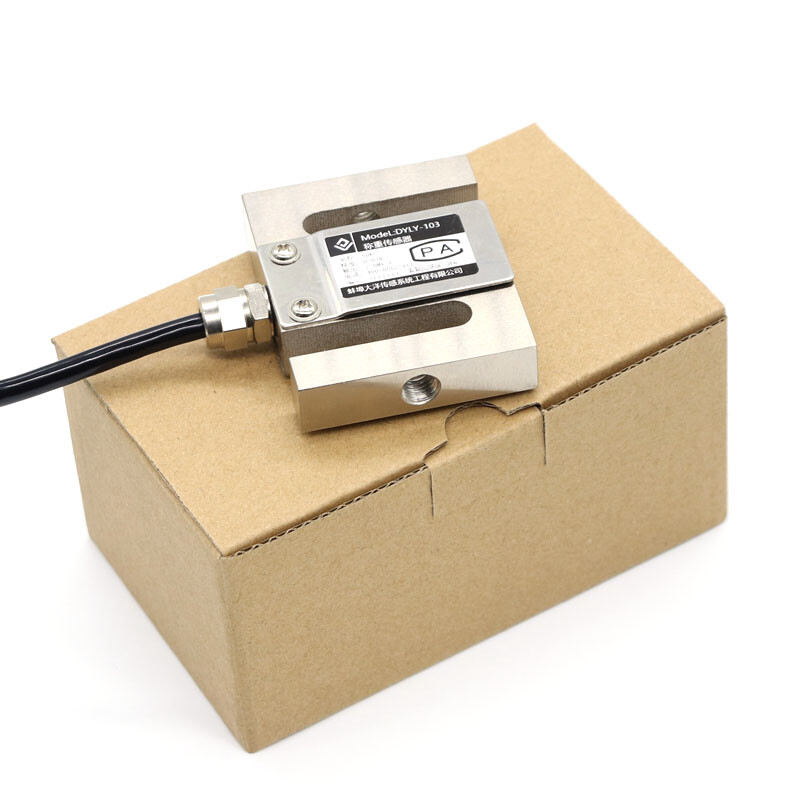

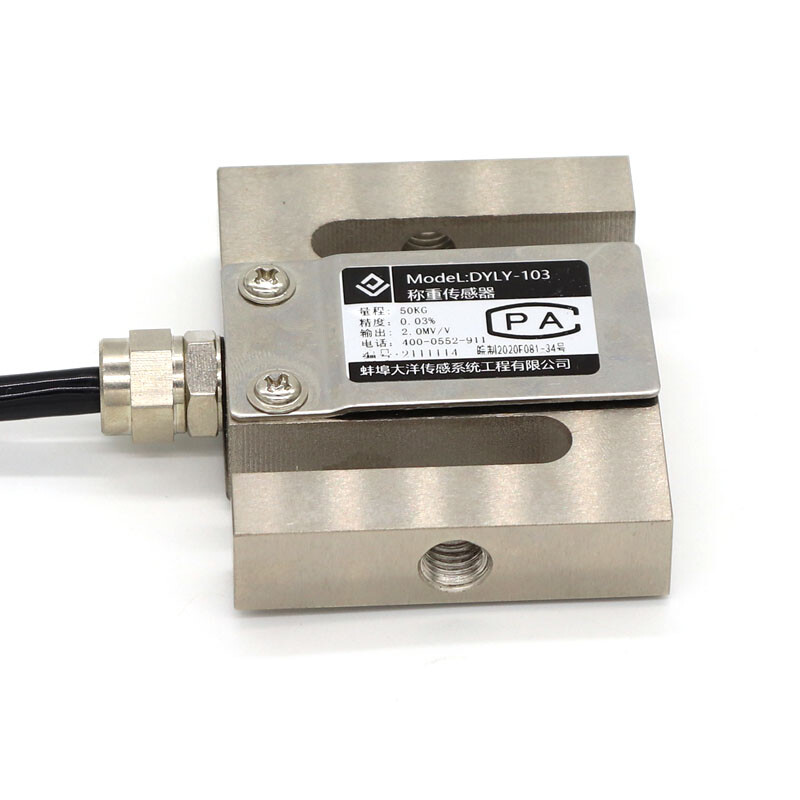

0-50kg S-type tensile force load cell weight force measurement module Sensor

0-50kg S-type tensile force load cell weight force measurement module Sensor

USD 56.00 USD

SKU: jRoBLuF1

Brand: Unbranded

GTIN: Does not apply

Condition: New

Tags: -20-80°C ±1%F.S ≥5000MΩ/100VDC 0-50 MΩ 0-50KG 0.03%F.S 0.05%F.S 0.05%F.S./10℃ 150 2.0mV/V 200 350Ω 5-15v Alloysteel Unbranded

Categories: Cleaning & Janitorial Supplies

Specifications

Brand	Unbranded
Size	0-50KG
Material	Alloysteel
Operating Temperature Range	-20-80°C
Rated Output	2.0mV/V
Impedance	350Ω
Zero Balance	±1%F.S.
Insulation	≥5000MΩ/100VDC
Non-linearity	0.05%F.S
Recommended Excitation	5-15V
Hysteresis	0.05%F.S
Repeatability	0.03%F.S.
Safe Load Limit	150%
Creep(30min)	0.05%F.S.
Ultimate Load Limit	200%
Temp Effect On Output	0.05%F.S./10℃

The sensor is a high-precision test component,easy to install. With design of anti-pressure bi-directional bearing, have high precision and good stability.The design of cover plate, fully protect the sensor chip, use nut fixed interface, avoid strong drag to cause the interface to fall off.

0-50kg S-type tensile force load cell weight force measurement module Sensor

Specifications
