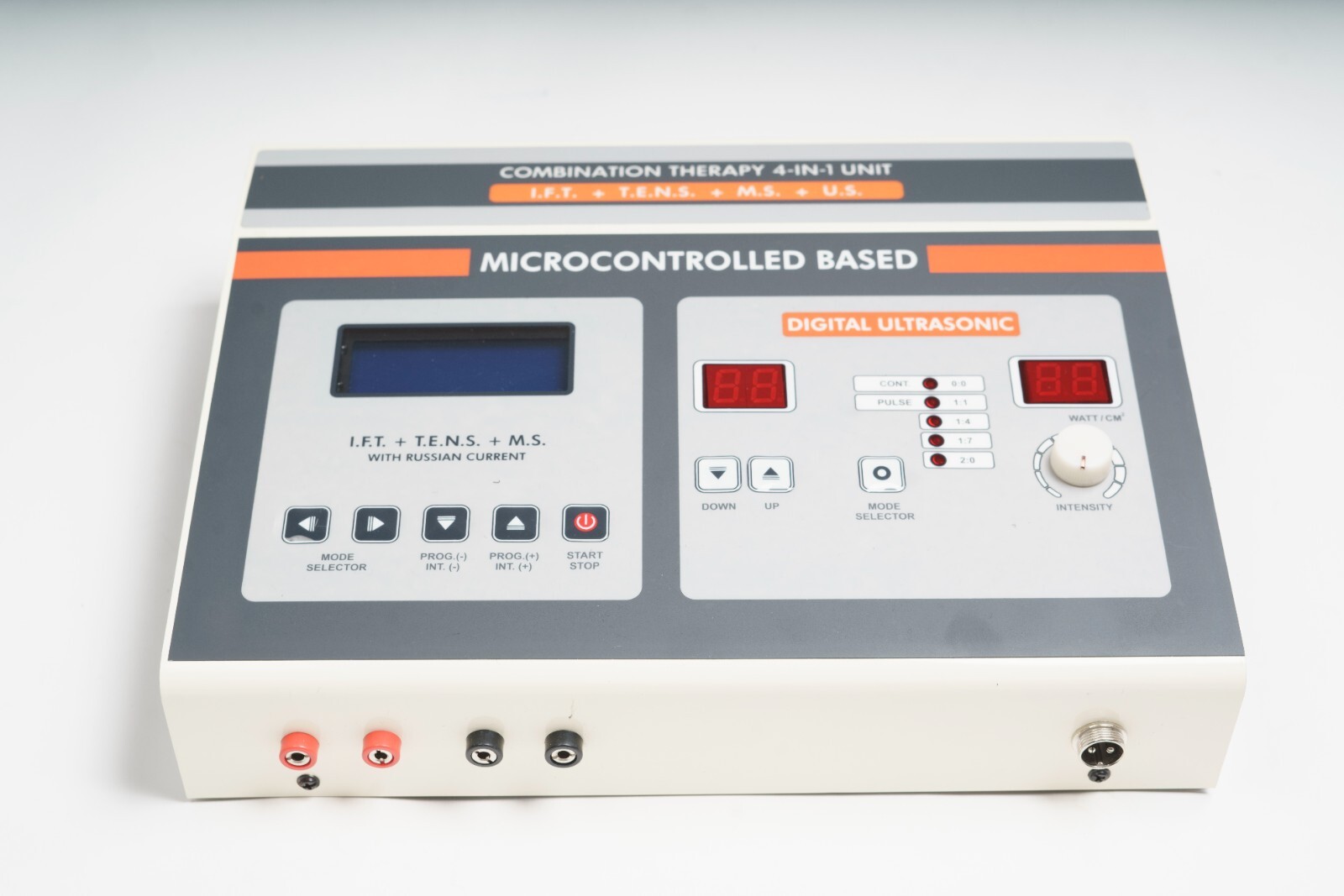

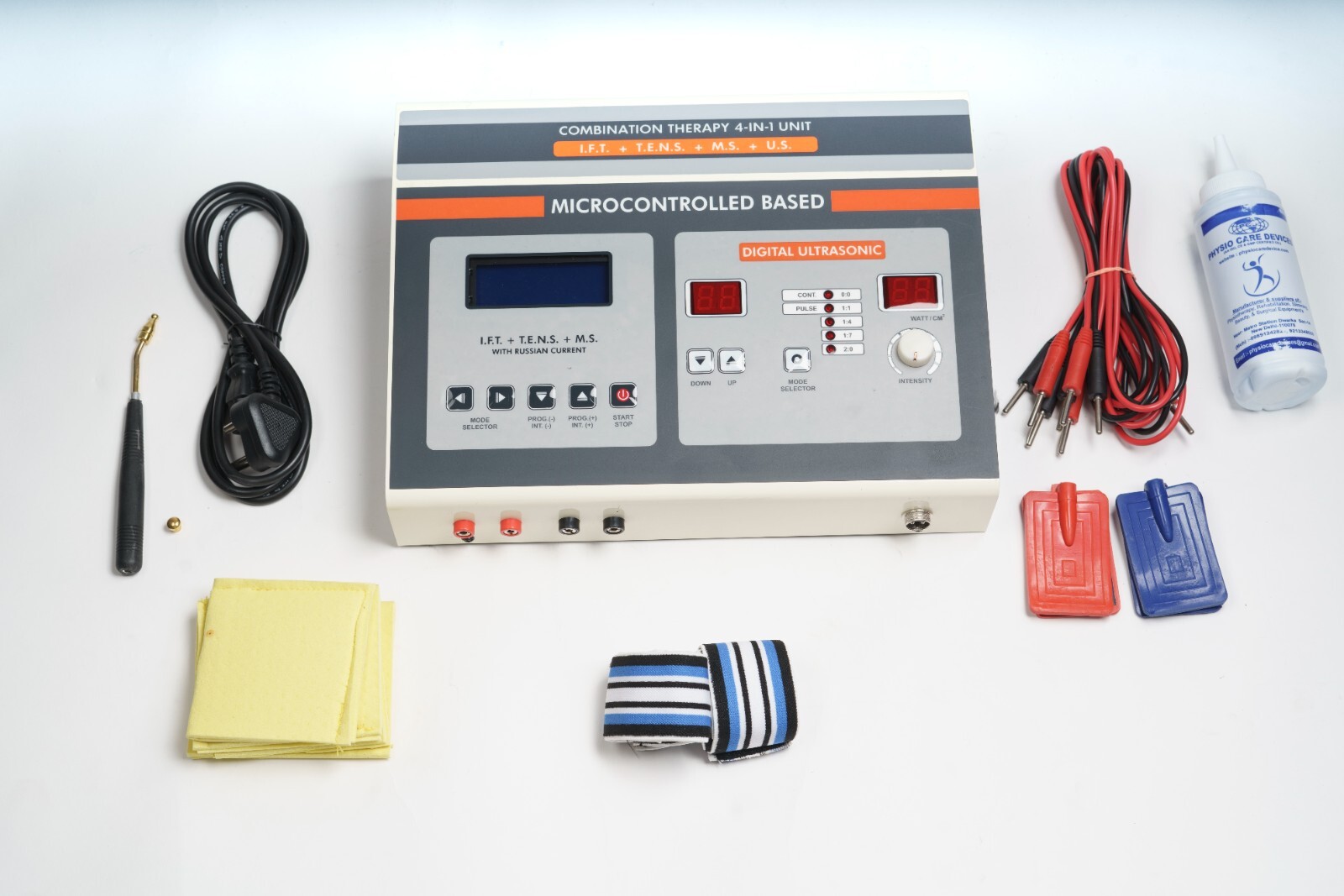

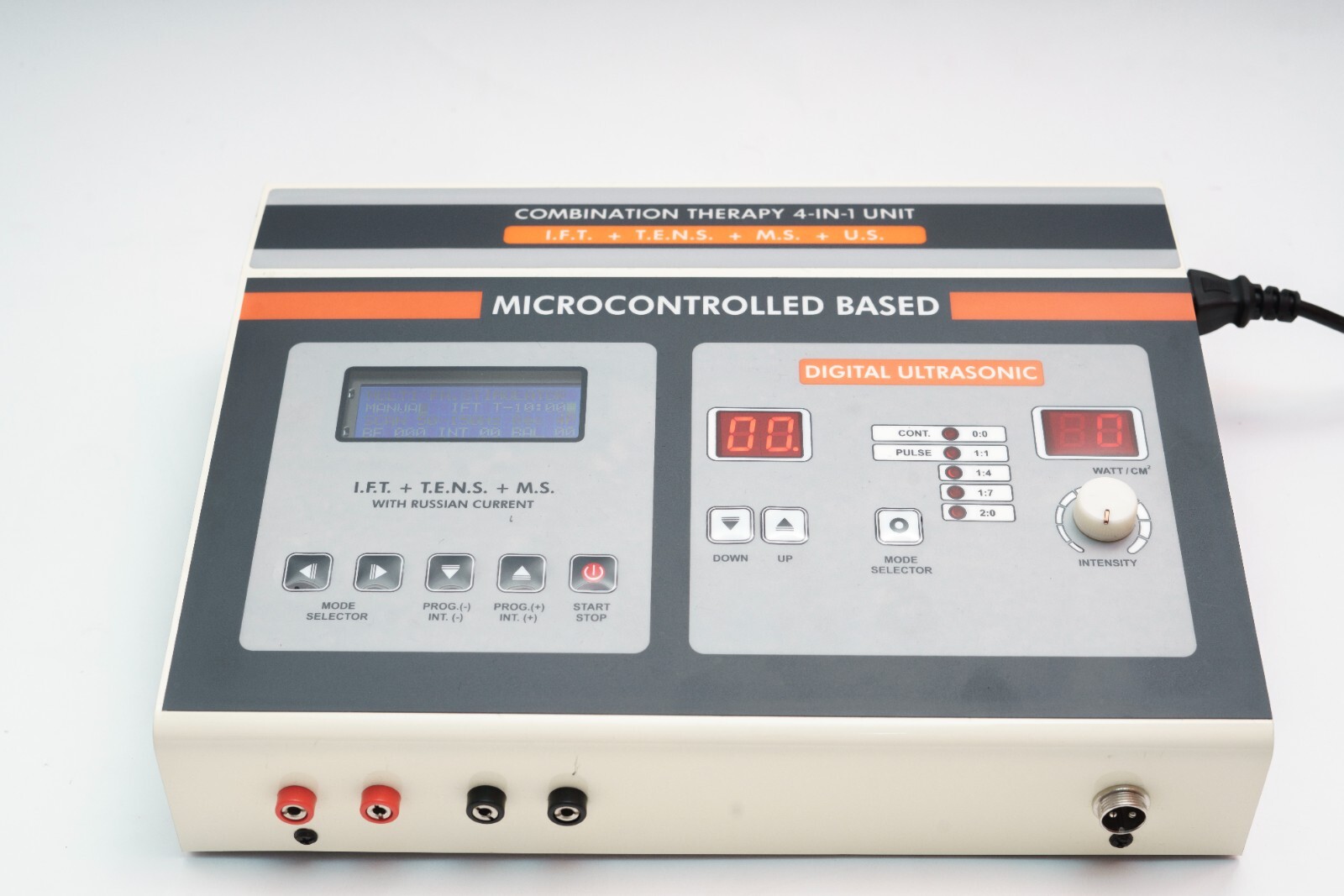

4 in 1 Combination Electrotherapy Four in one IFT + TENS +MS + Ultrasound 1MHz
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | Unbranded |
| Unit Type | Unit |
| Model | PCD-124 |
| Country/Region Of Manufacture | India |
This 4 in 1 Combination Electrotherapy unit is a versatile and powerful tool for physical medicine and rehabilitation. With its ability to provide IFT, TENS, MS, and ultrasound therapy, it is perfect for treating a wide range of conditions. The unit is manufactured in India and comes with a model number of PCD-124. The unit quantity is one and it is intended for use in physical medicine and rehabilitation. This unit is ideal for healthcare, lab, and dental settings, as well as for business and industrial use. Get the most out of your therapy sessions with this four in one IFT, TENS, MS, and ultrasound therapy unit. IFT +TENS+ MS features Ø 125 pre-program with protocols & Manual operating system ( 70 pre-program for ift ,30 pre-program for TENS , & 25 program for MS ) Ø Therapy Mode: IFT ( 4 P , 2 P , 4 PV , Russian current) , TENS (Cont. ,Burst, PWM & Sweep ), MS (Galvanic, Int. Galvanic, Faradic,& Surged Faradic ) Ø Multi vector scan : 2PL Linear 45 °,4 PL Linear 90 ° Ø Spectrum pattern : Triangular , Trapezoidal ,Square Ø Beat frq : 0- 150cont , 0-10 scan , 80-150 scan & 0-150 scan for ift Ø Carrier frq : 2 khz & 4 khz, 2.5 khz For ift Ø Low Frq : 2,40, 100,150 for tens Ø Treatment Duration:- 1 - 30 min in 1 min increments Alarms Audio Alarm at the end of Treatment with auto cut off Ø Micro computer controlled based with backlight 16×2 alpha numeric LCD Display of timer ,therapy mode ,carrier frequency makes, Separate display for both channel out put amplitude, Beat frq ,TENS & MS therapy mode Ø Amplitude balance controlled :- To equilise 2 channel current Ø Amplitude controlled :- 0 to 99 ma (peak to peak varible ) Ultrasound features Ø Therapy mode : Continuous & Pulsed Ø Continuous Mode Output :- 3.5 w/cm2 maximum Ø Pulsed Mode Output :- 2.2 w/cm2 maximum Ø Output Frequency:- 1 MHz ± 2% Ø Pulse ratio :- 1:2, 1:4, 1:7, & 2:2 Ø Display : seven segment digital display TECHNICAL SPECIFICATIONS Ø Micro computer controlled based with backlight 16×2 alpha numeric LCD Display of timer ,therapy mode ,carrier frequency makes, Separate display for both channel out put amplitude, Beat frq ,TENS & MS therapy mode & digital display for timer & output Ø Treatment Duration:- 1 - 60 min in 1 min increments Audio Alarm at the end of therapy with auto cut off Ø Input Power:- 220 -240 V ~; 50/60 Hz STANDARD ACCESSORIES Ø Main Unit : 01 No. Ø Ift carbon electrode : 1 pair red & 1pair blue Ø Ift out put lead : 2 red wire & 2 black wire Ø Fixing elastic belts: 02 set. ( each set three different size of belt small, medium ,& large ) Ø Pencil probe :1 no with two pointed ball for different size Ø Ultrasonic applicator : 1 no Ø Ultrasonic out put cable : 1 no Ø Carry bag : 1 no Power cable: 01 No.
