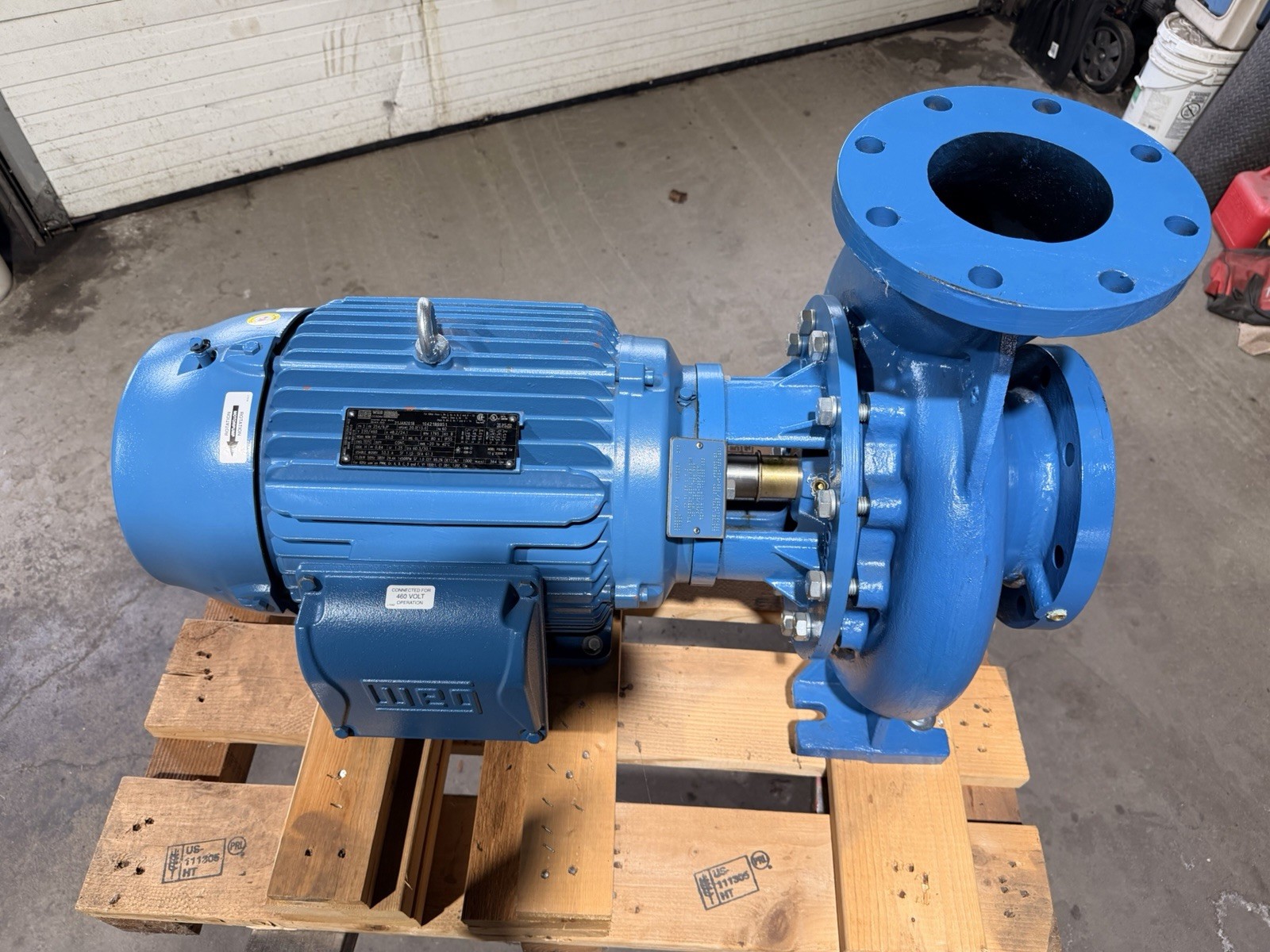

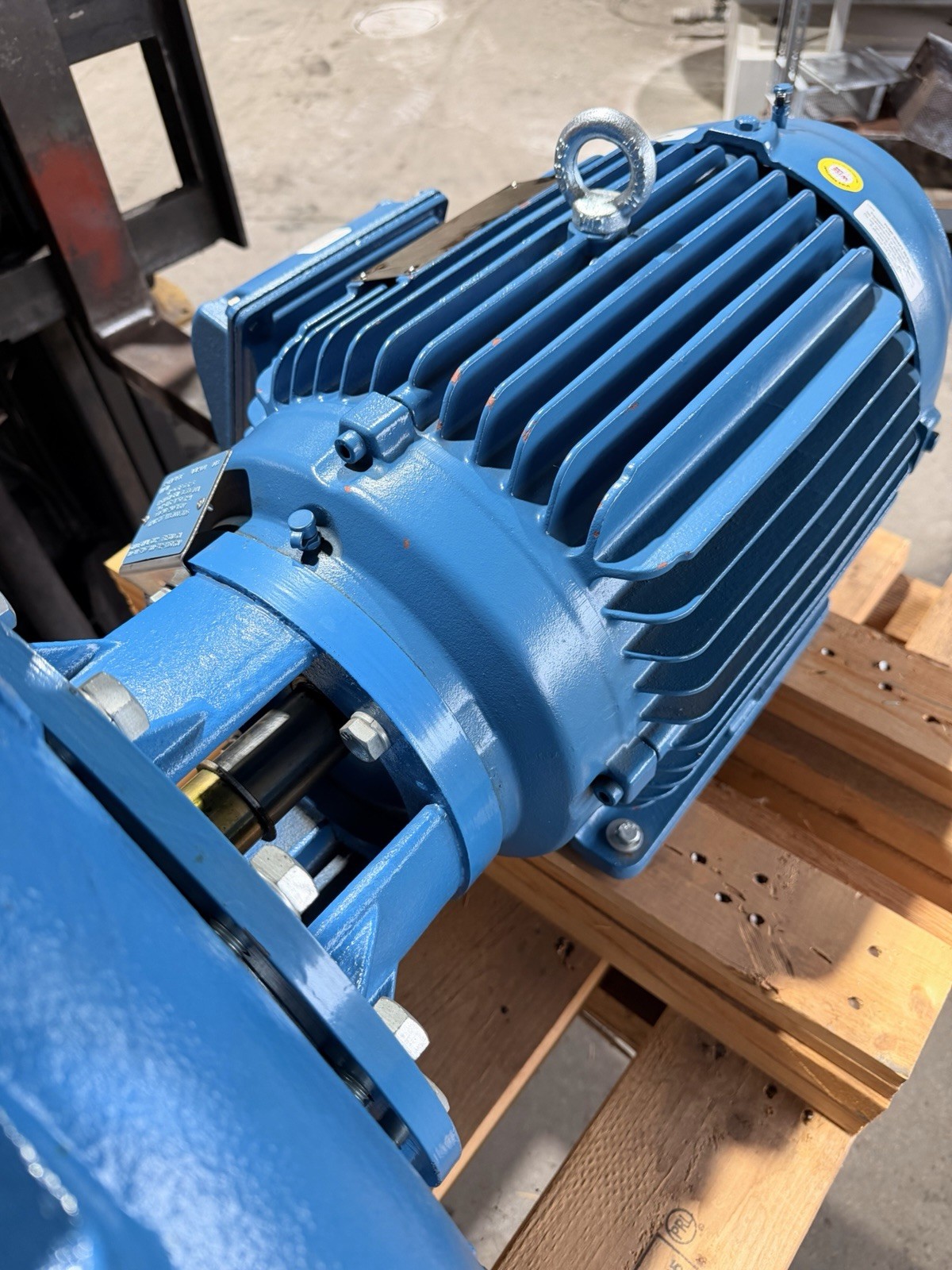

Wilo/Scot Centrifugal Pump 96 SF 6×5 Flanged 20HP WEG TEFC 1750 RPM
USD 8000.00 USD
Specifications
| Brand | Scot/Wilo |
| Power Source | Electric |
| Outlet Diameter | 5 in |
| Inlet Diameter | 6 in |
| Pump Housing Material | Cast Iron |
| Supply Voltage | 460 V |
| Rated Power | 20 hp |
| Country Of Origin | United States |

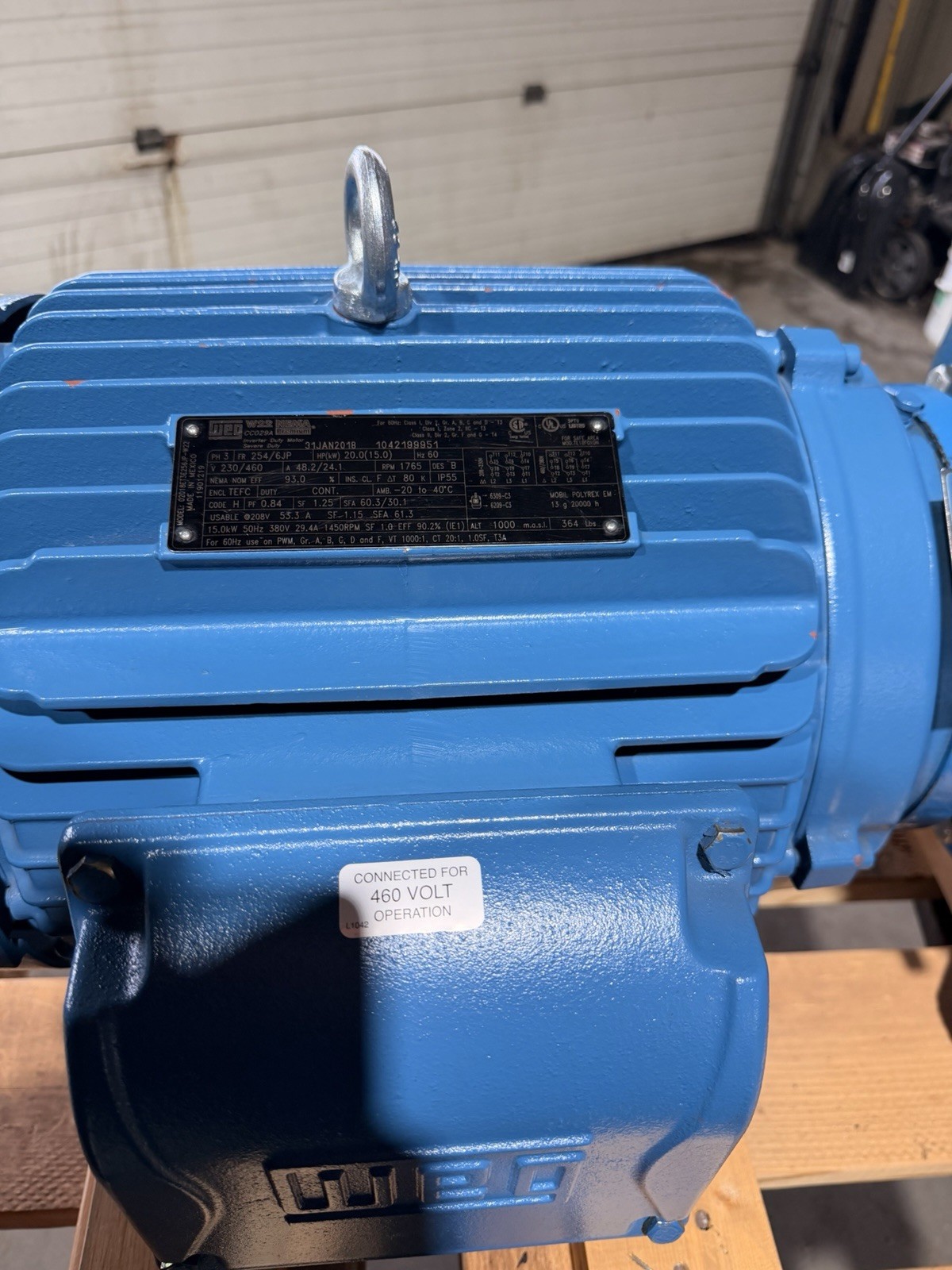

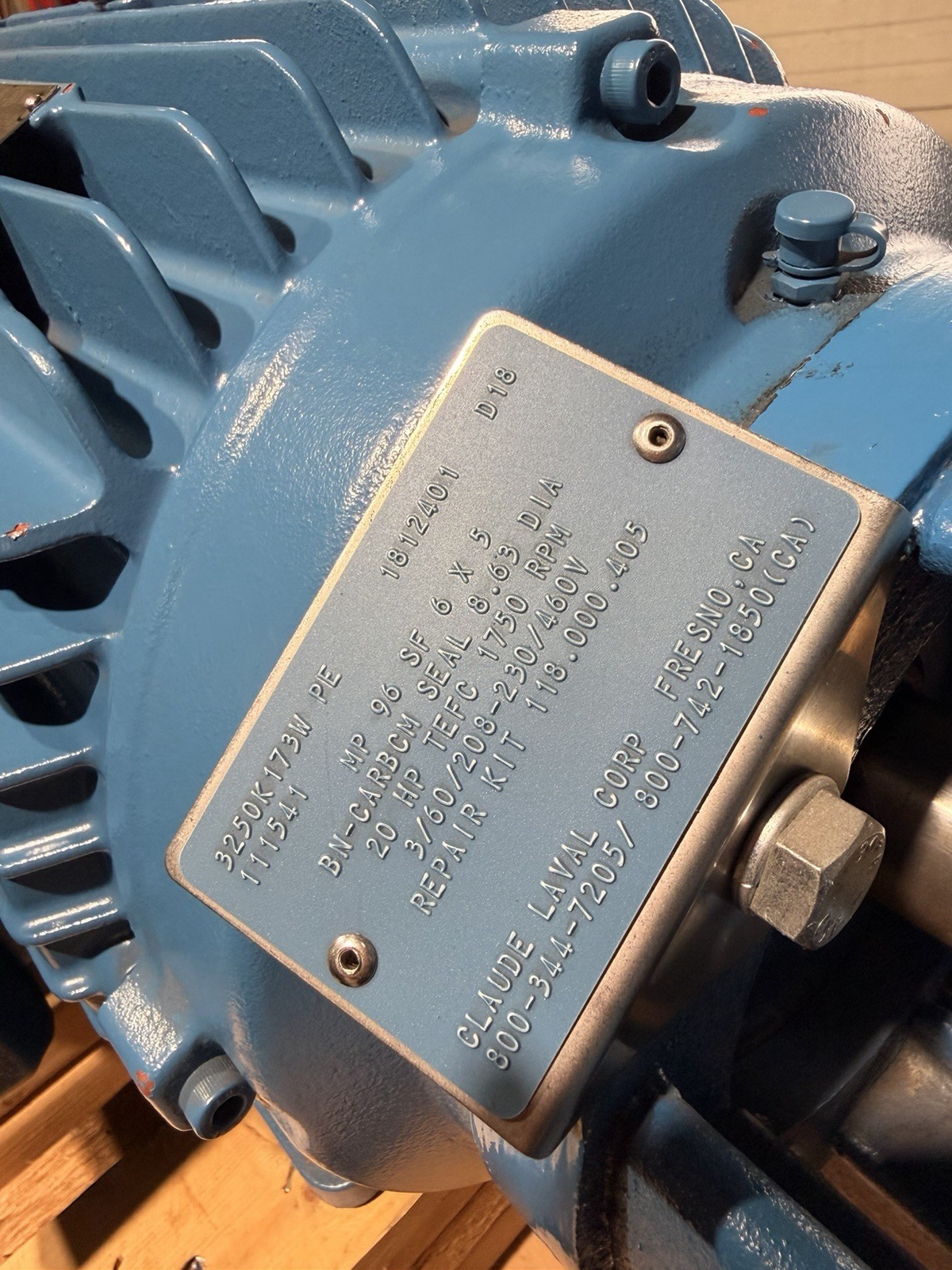

Full Nameplate Specifications: • Pump: Scot 96 SF • 6” x 5” Flanged • Impeller Dia. 8.63” • D18 • Motor: WEG 20 HP TEFC • 1750 RPM (nameplate 1765) • 3 Phase • 208-230/460 V (currently wired for 460 V operation) • Frame 254/6JP • NEMA Premium Efficient • Seal: Type 21 Buna-N Carbon / Ceramic (BN-CARB/CM) • Repair Kit Number: 118.000.405 (exact OEM kit) • Motor plate numbers: 3250K173W / 1812401 • Originally packaged by Claude Laval Corp (now LAKOS Filtration Solutions) – classic LAKOS blue paint https://wilo.com/scot/en_us/Products/Industrial/MotorPumps%E2%84%A2/Classic-Cast-Iron-MotorPumps%E2%84%A2/Pump-96-1750.html
Related Items
1/16″ Steel Plate Round Circle Disc 12″ Diameter A36 Steel (.063″)
Pallet Jack Battery Charger w/ 175A Rating SB175 Connector 24Volt Floor Scrubber
(2 pack) Pen+Gear Copy Paper, 8.5″ x 11″, 20 lb, White, 500 Sheets=Total 1,000

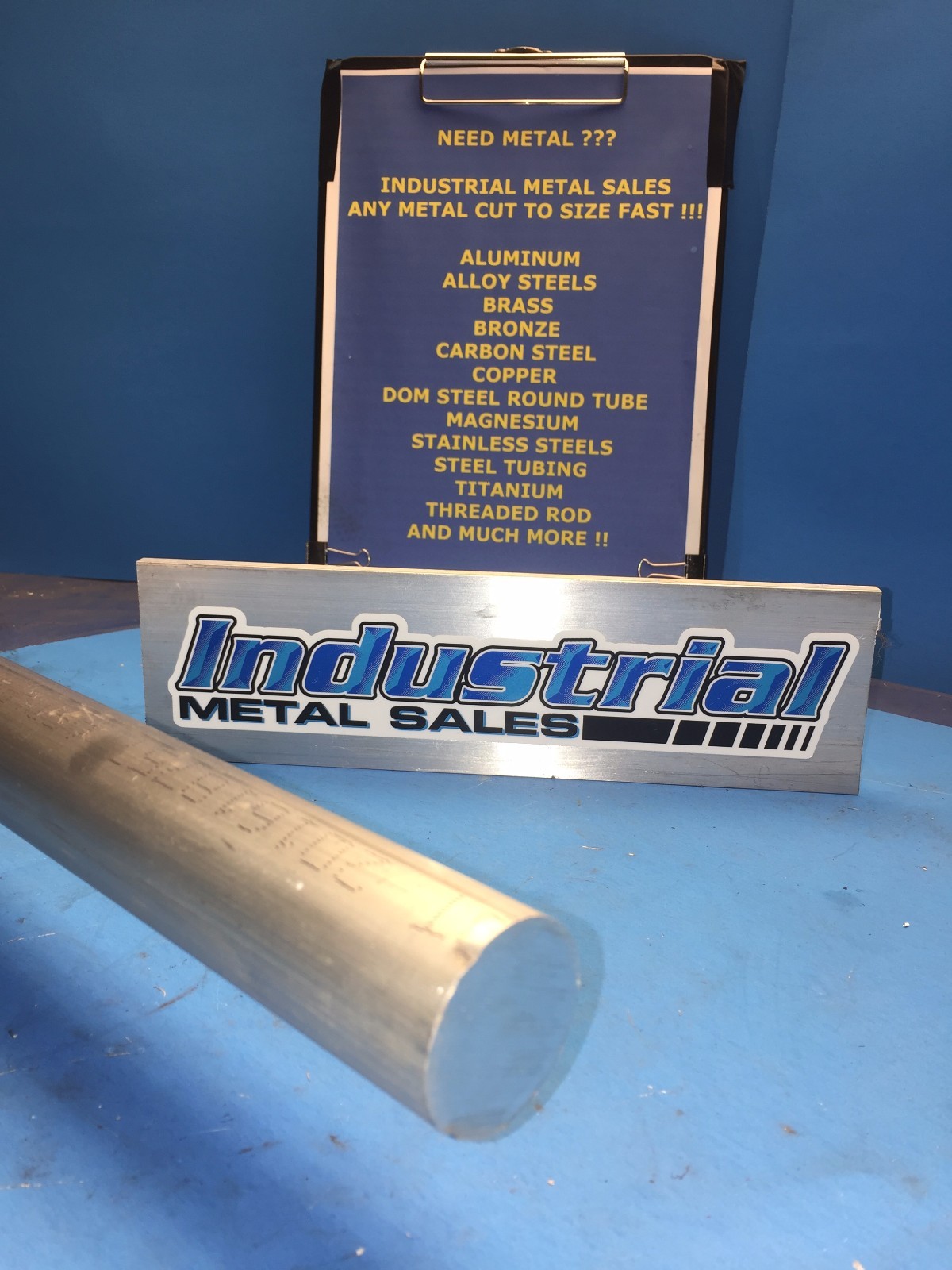

1-1/4″ Diameter x 12″-Long 6061 T6511 Aluminum Round Bar– 1.250″ Diameter Rod
Abbott I-Stat 1 300W With Battery *Software is expired/expiring 2020/2021

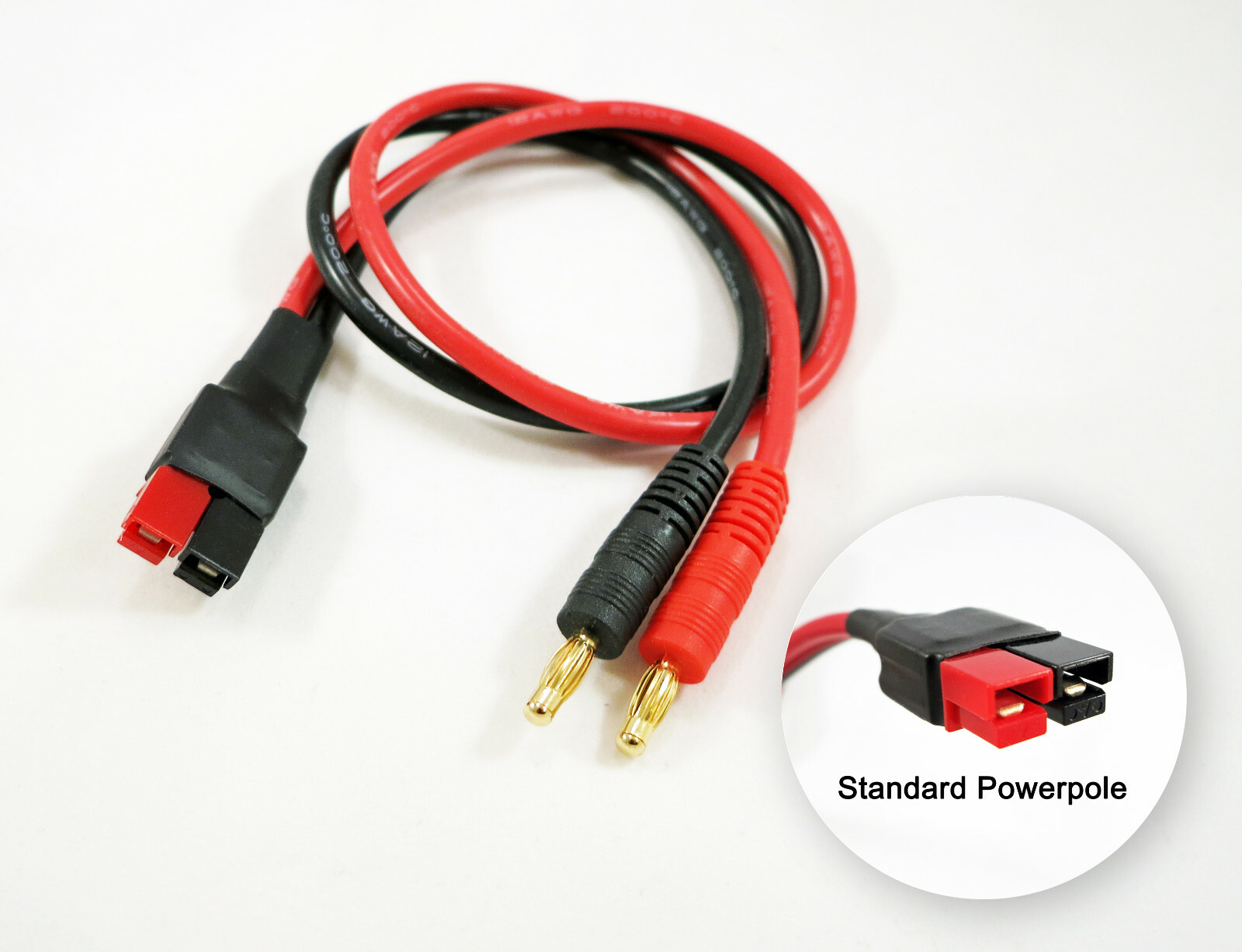

4mm Banana Post Cable fits ANDERSON POWERPOLE Power Supply Cord Plug Connector
