White-Rodgers 49M11-843 SureSwitch Multi-Volt Contactor 40 Amps 1 & 2 Pole
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| UPC | 786710561757 |
| Model Number | 49M11-843 |
| Manufacturer | Emerson |
| Product Type | Contactor |
| Poles | 1.5 |
| MPN | 49M11843 |
| Item Length | 3.88 in |
| Compatible Product | Central Air Conditioner |
| Voltage | 240 V |
| Item Width | 2.75 in |
| Compatible Brand | For Cutler-Hammer |
| Compatible Model | 49P11-843 |
| Brand | Emerson |
| Type | Pole Contactor |
| Model | 49M11-843 |

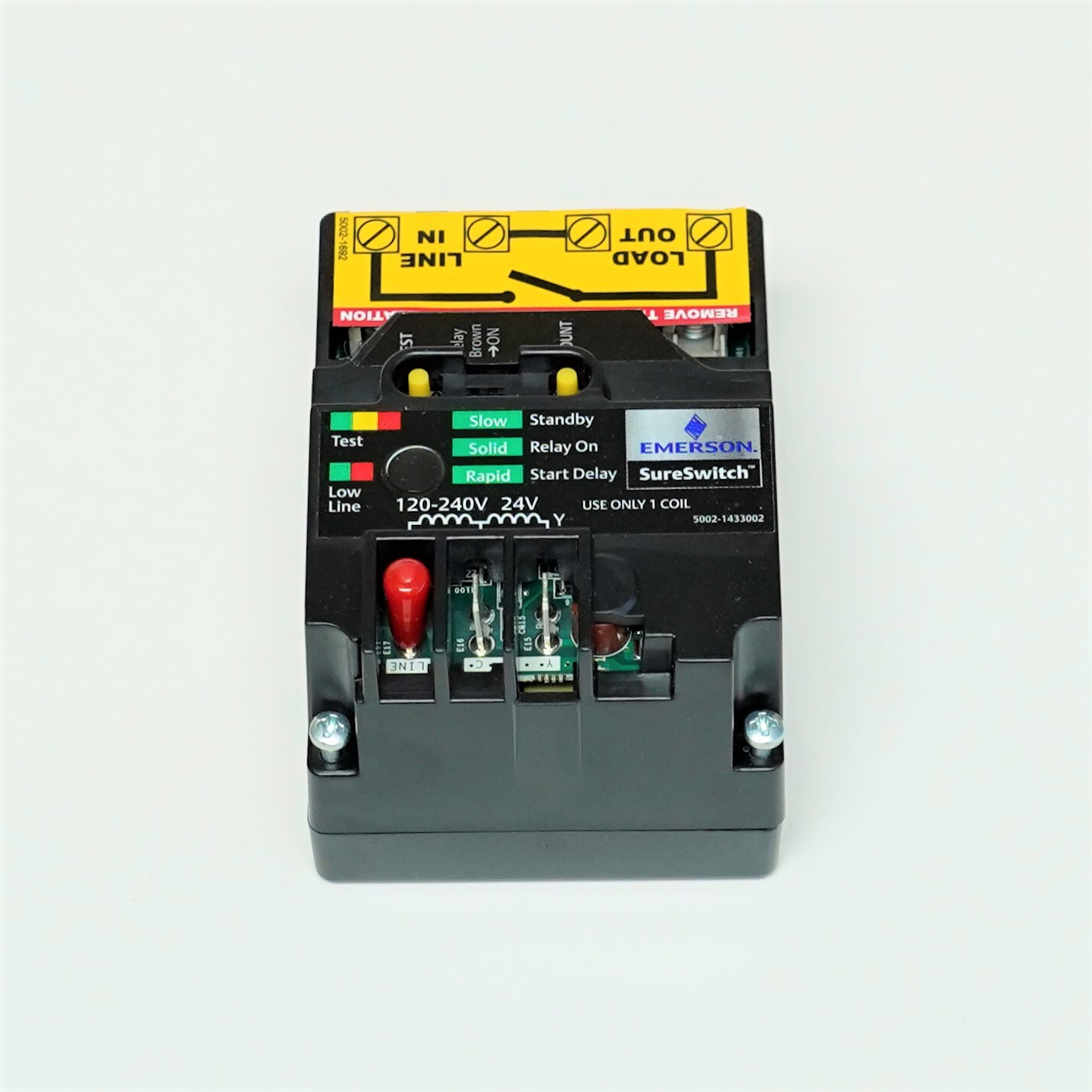

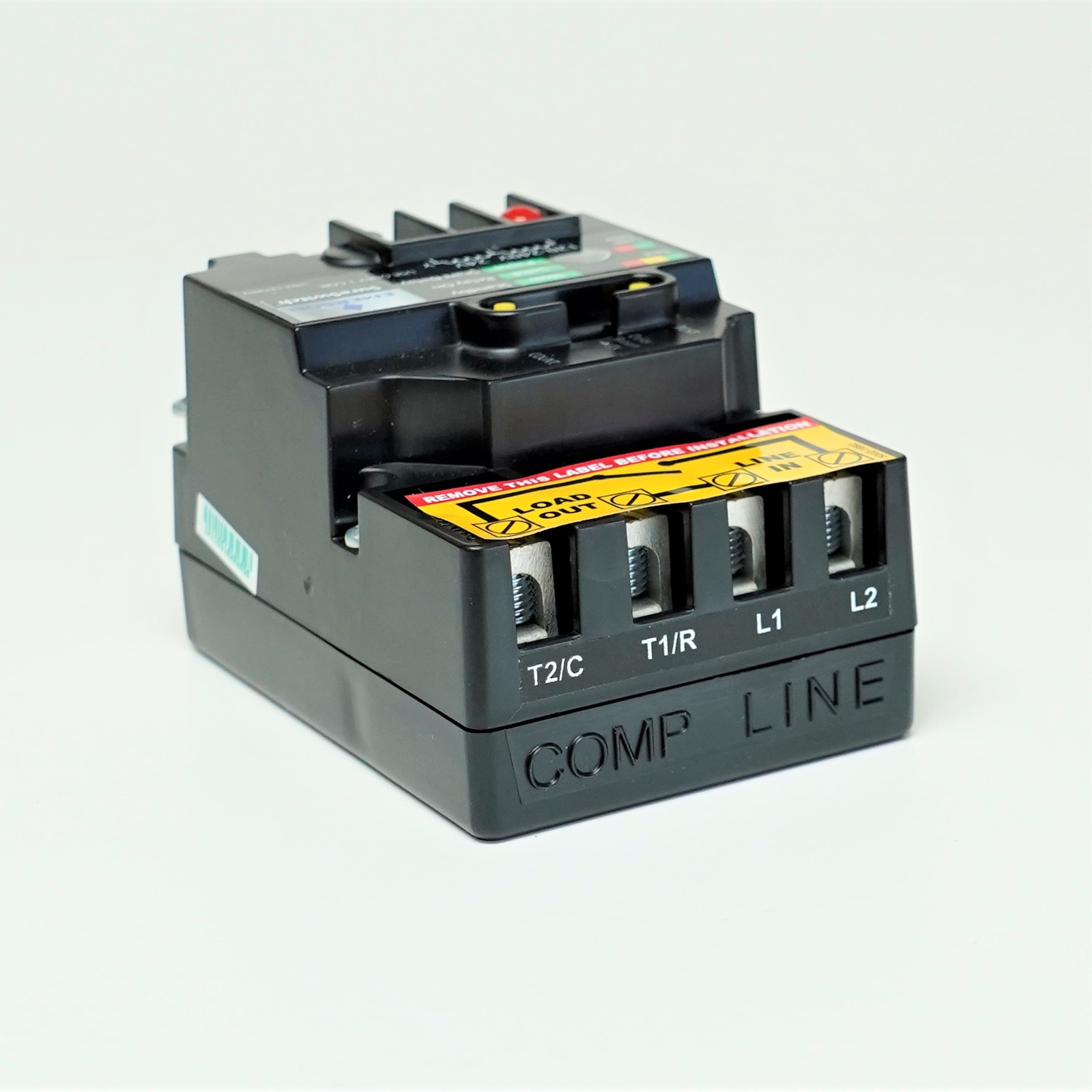

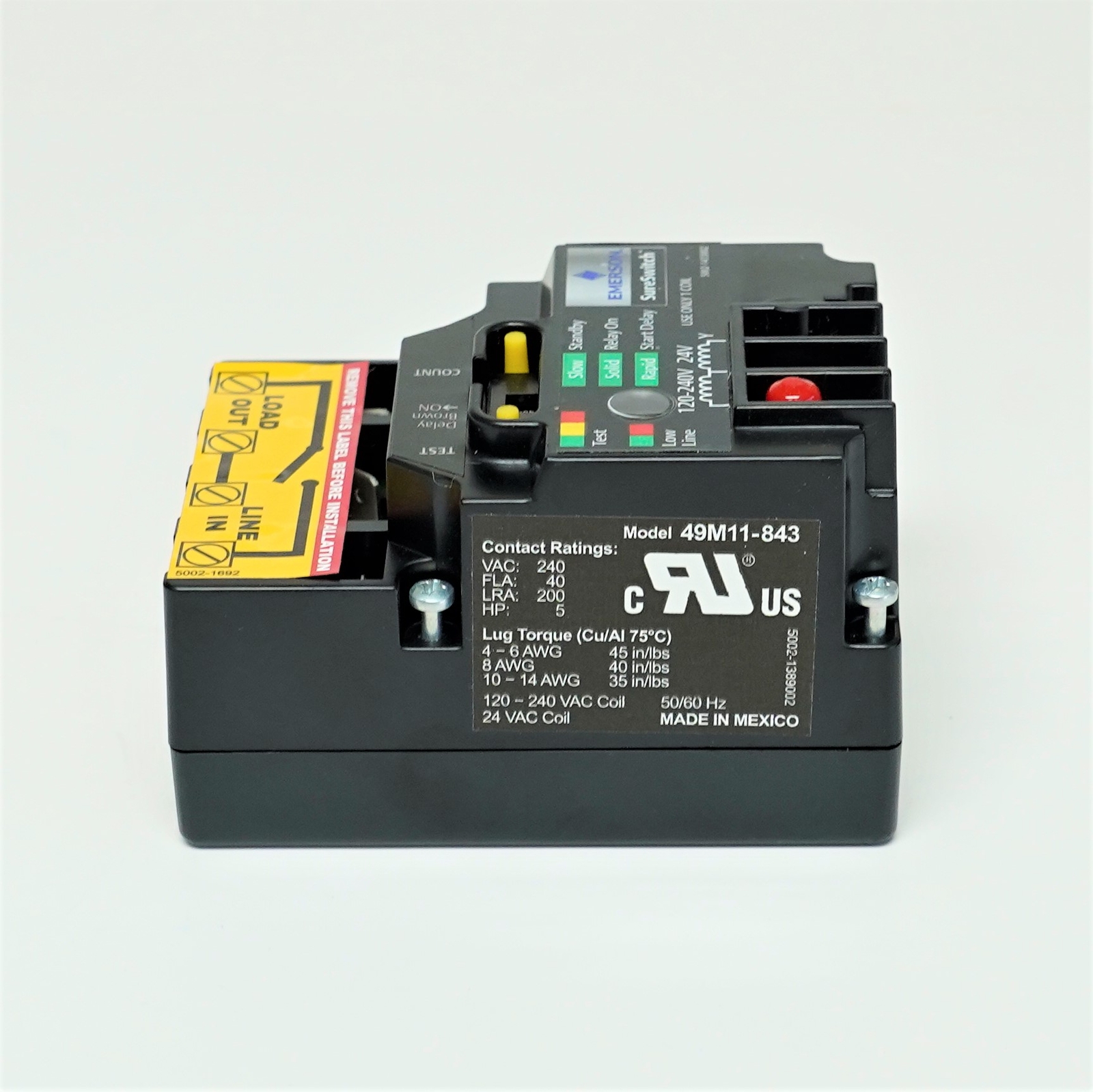

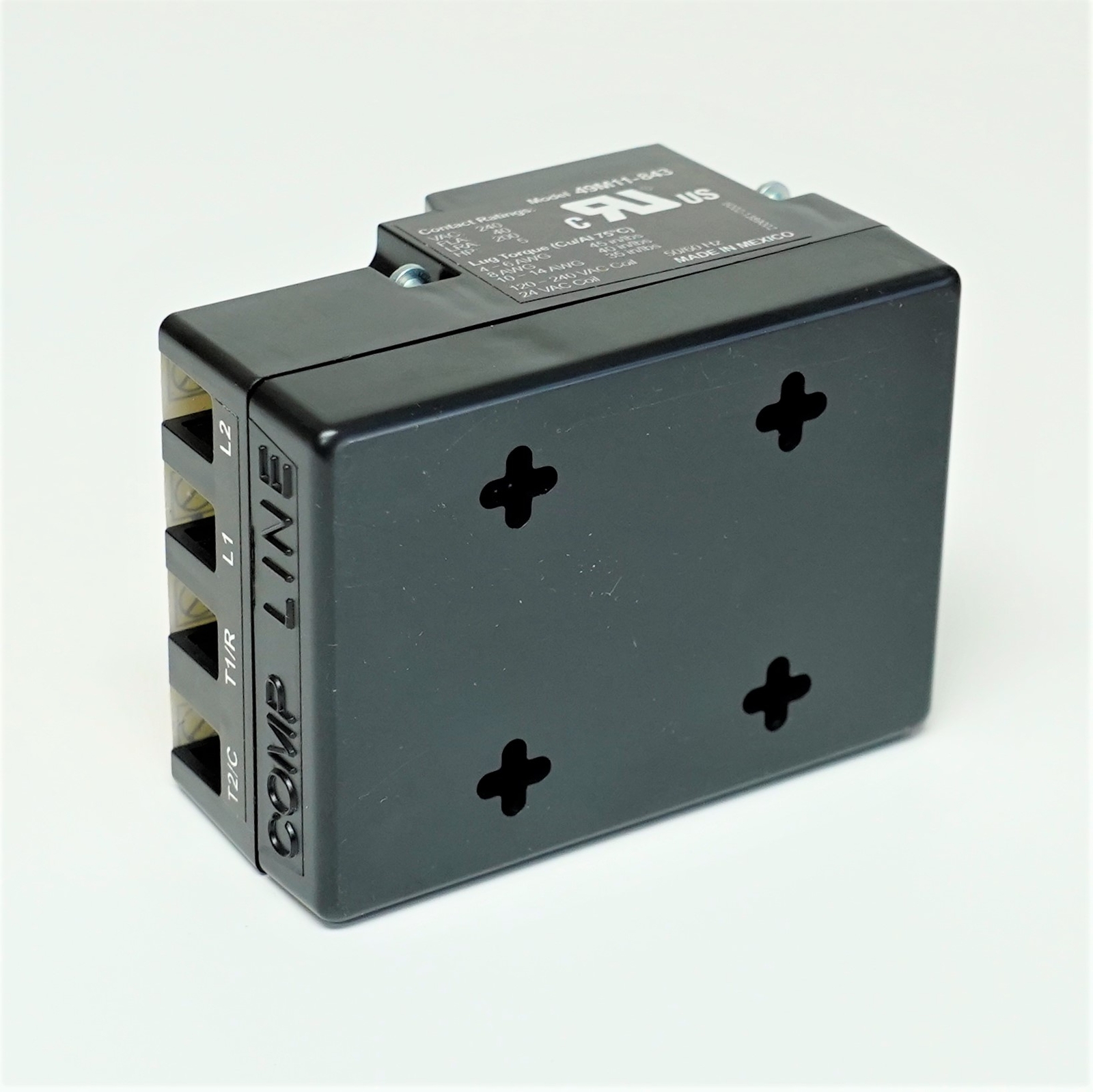

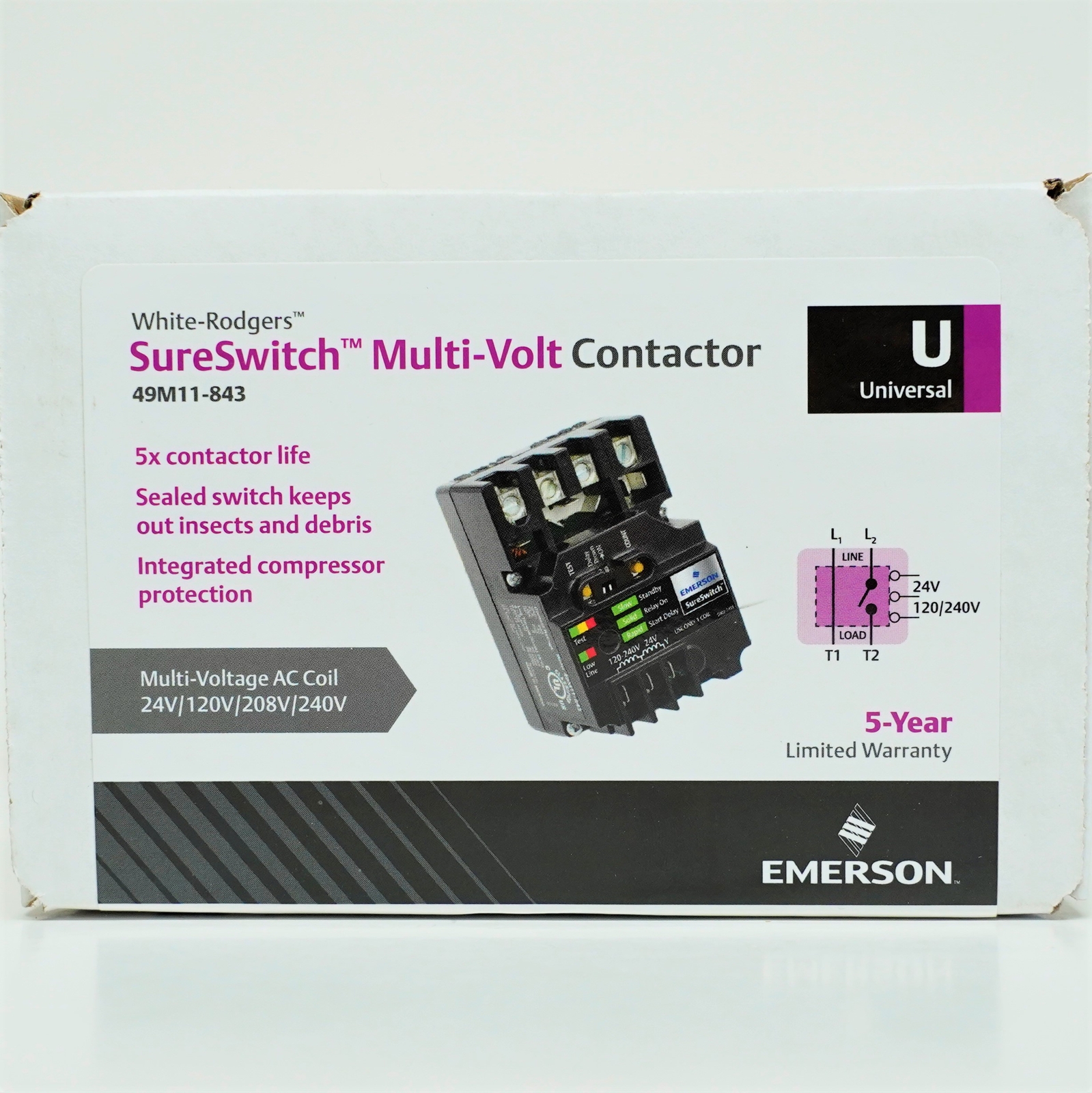

White-Rodgers 49M11-843 SureSwitch Multi-Volt Contactor 40 Amps 1 & 2 Pole Emerson White-Rodgers part number 49M11-843SureSwitch Multi-Volt Universal Contactor Universal electronic upgrade for definite purpose contactors for air conditioning and refrigeration, with 5x contactor life and completely sealed to keep out insects and debris SureSwitch is an electronically controlled relay that can be used to replace single and two pole contactors commonly used in air conditioners, heat pumps and other applications. A patented switching algorithm reduces arcing between contact, which nearly eliminates pitting and welding for a longer life. The switching mechanism is sealed to prevent intrusion from insects and other debris. Replacement for 49P11-843 FEATURESMulti-volt coil replaces all common coil voltages5x traditional contactor lifeTotally sealed switch keeps out ants, pests and debrisMicroprocessor control inhibits arcing that cause welding and pittingLine voltage brownout protection and short cycle timer provide compressor protectionHeavy-duty lug connectorsZero chatter latching relayTri-color LED displays5-year limited warrantyFour-hole mounting matches mechanical contactorsCompressor test and cycle count by pushbutton SPECIFICATIONSLine Voltage Input: 120/208/240 VAC, 50/60 HzY-C Control (Coil) Voltage: 24 VAC, 50/60 HzLine-C Control (Coil) Voltage: 120/208/240VAC, 50/60 HzFull Load Amperes: 40ALocked Rotor Amperes: 200A1 or 1.5 PolesAnti-Short-Cycle Delay: 0s or 180s (selectable) at 60 Hz, 0s or 216s (selectable) at 50 HzCompressor Test: 5s at 60 Hz, 6s at 50 HzOperating Temperature Range: -40 to 158 degrees F (-40 to 70 C)Coil Terminals: 1/4Ã in male QCÃs accepting #12-24 AWG wireDimensions: 2.75 in W X 2.38 in H X 3.88 in LUL Recognized to: UL60730-1 Product Details BrandEmersonColorBlackManufacturerEmersonProduct TypeContactorMpn49M11-843 Emerson White-Rodgers part number 49M11-843SureSwitch Multi-Volt Universal Contactor (49P11-843)Universal electronic upgrade for single and two pole definite purpose contactors120/208/240 VAC or 24 VAC at 50/60 Hz40 FLA, 200 LRA, 1 or 2 Poles Check out my other items. -Powered by
