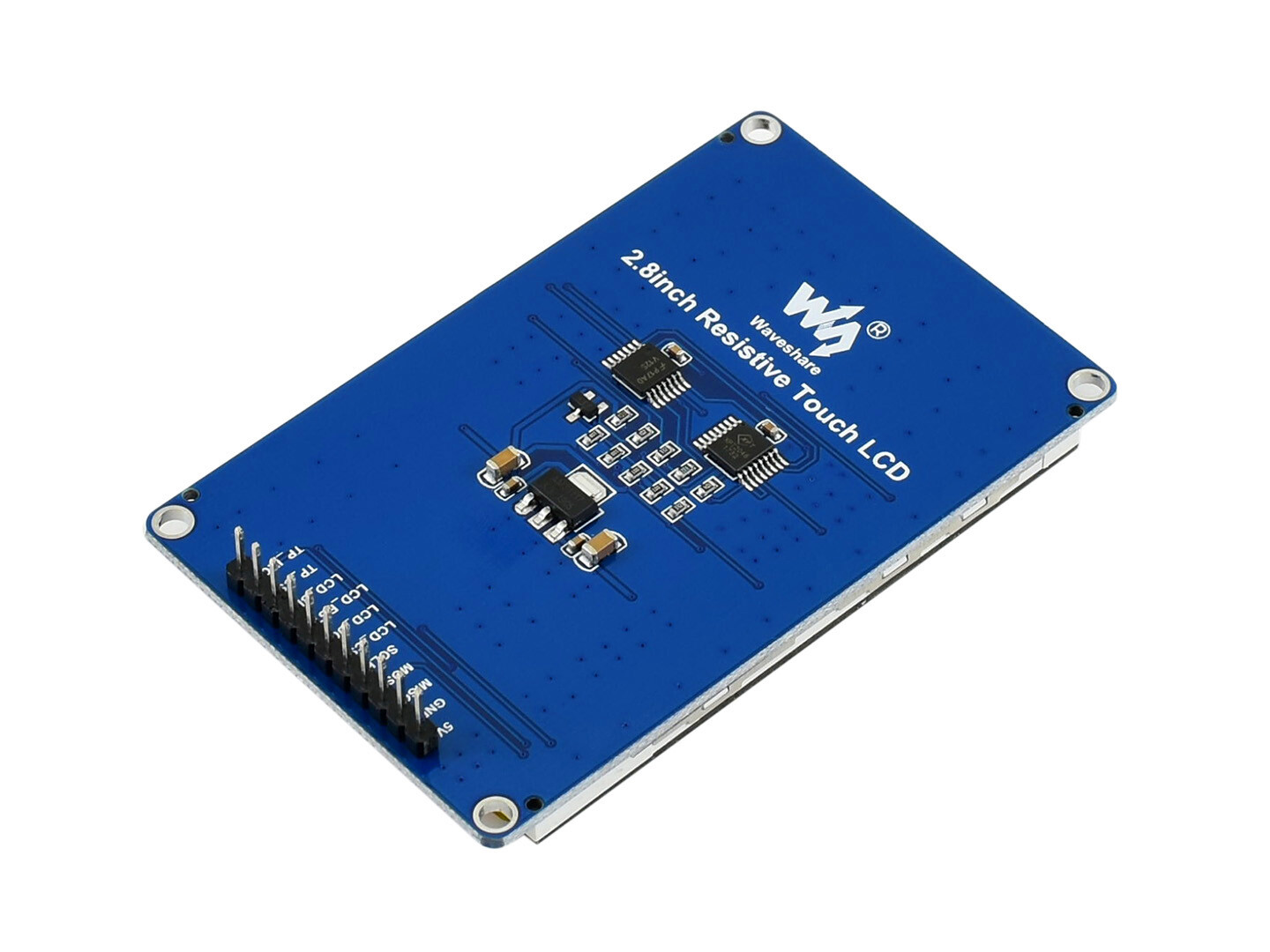

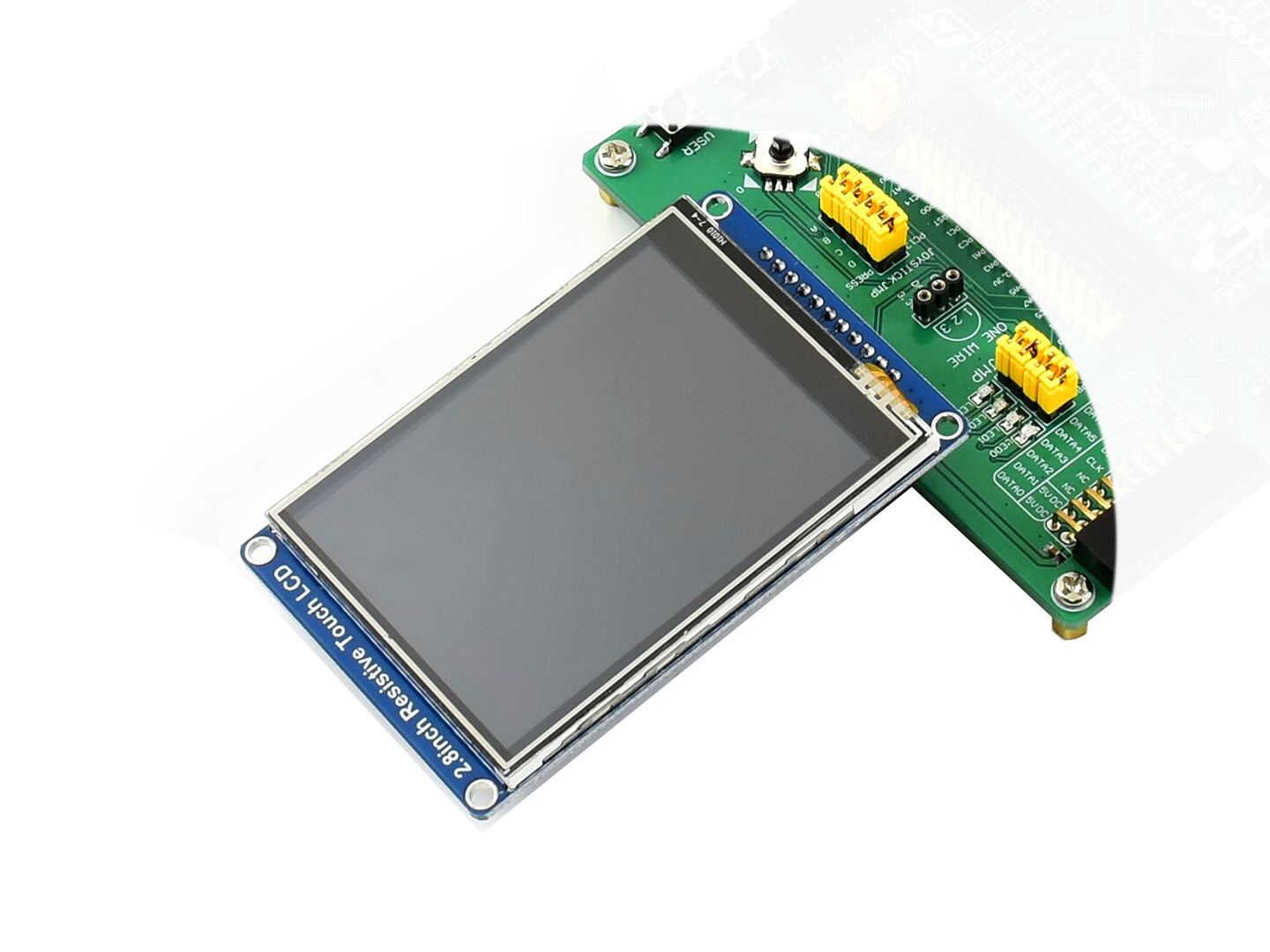

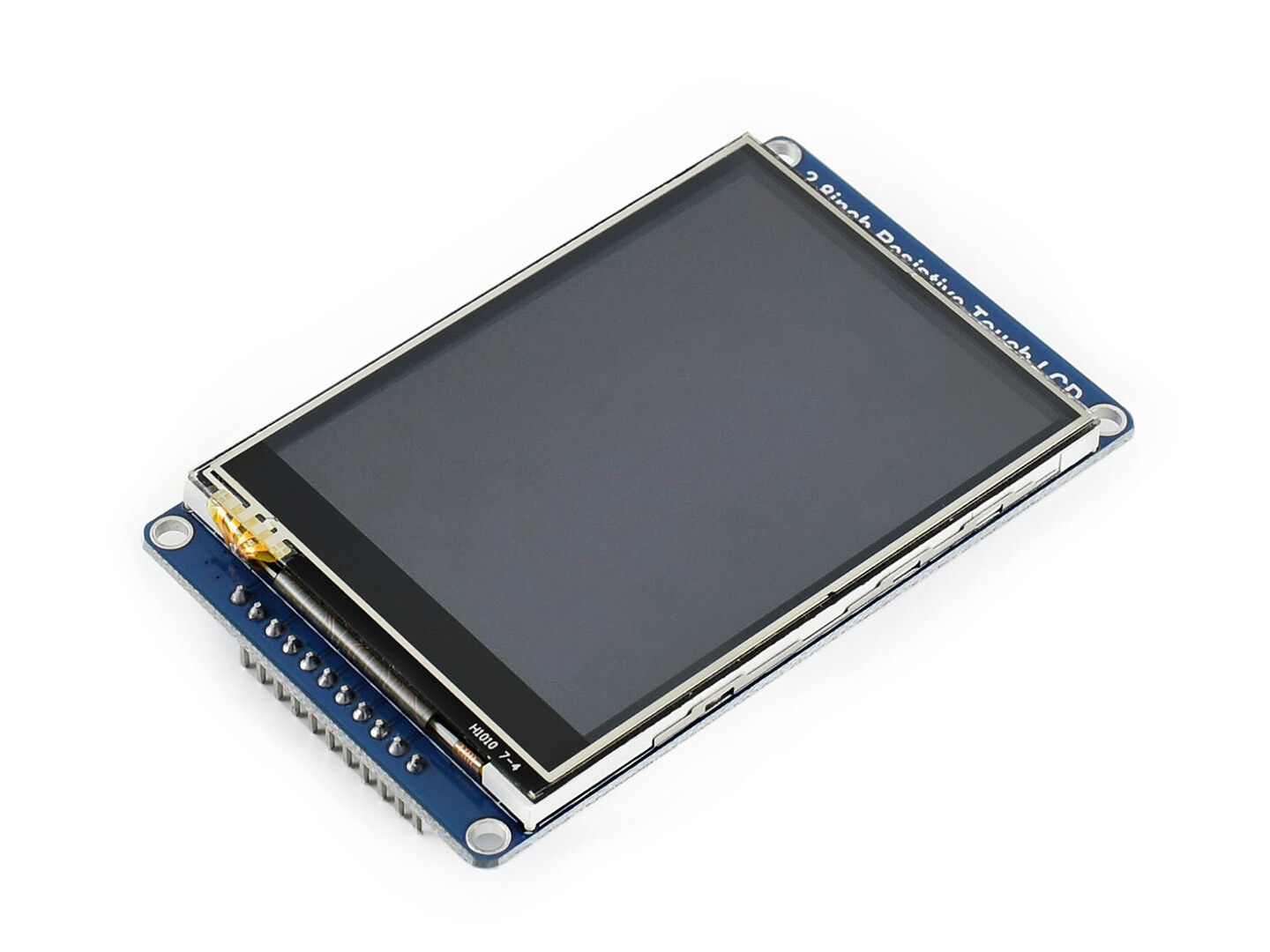

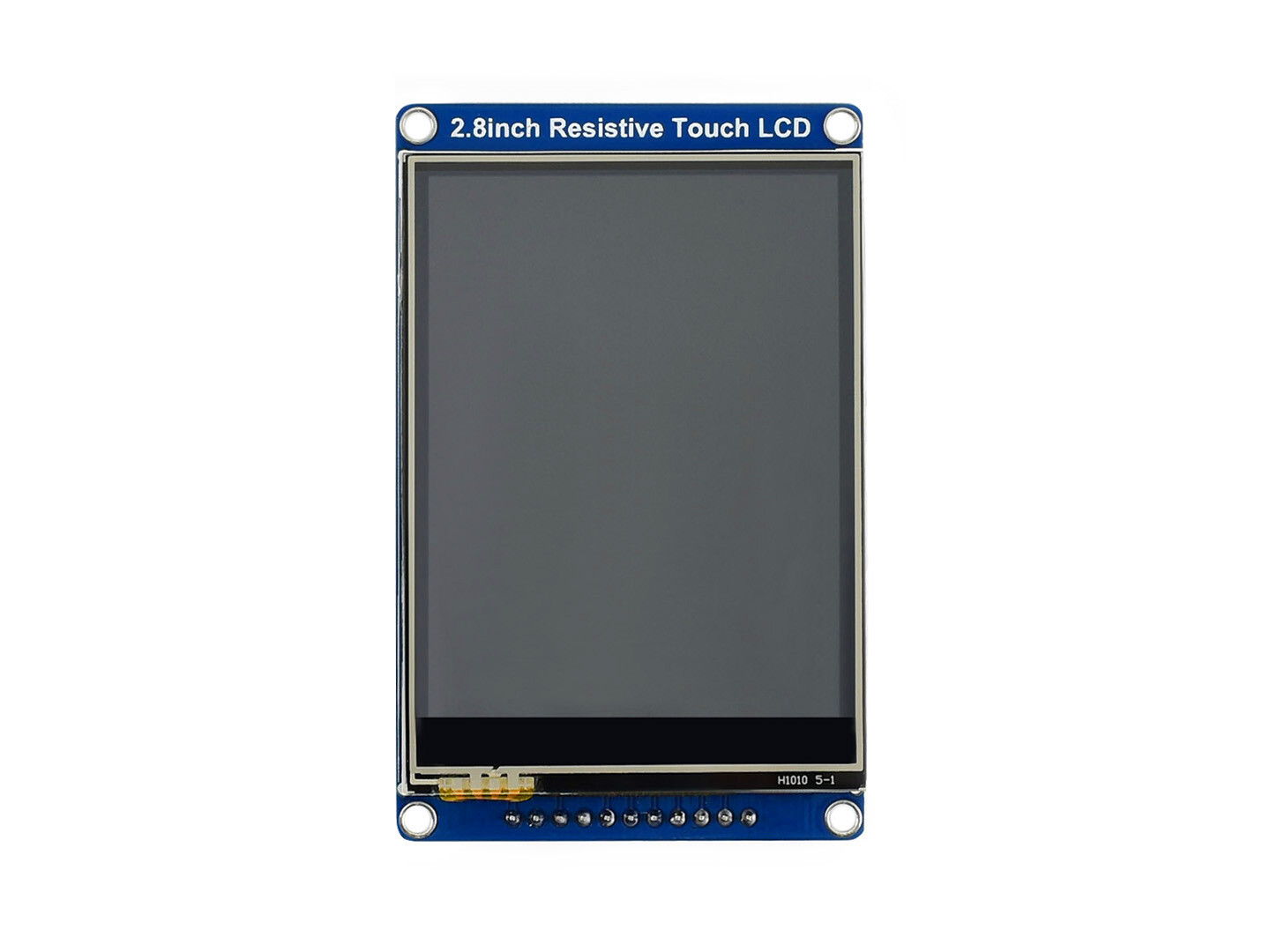

Waveshare 2.8inch 320×240 Pixels IPS LCD Resistive Touch SPI Interface
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | Waveshare |
| Resolution | 320×240 |

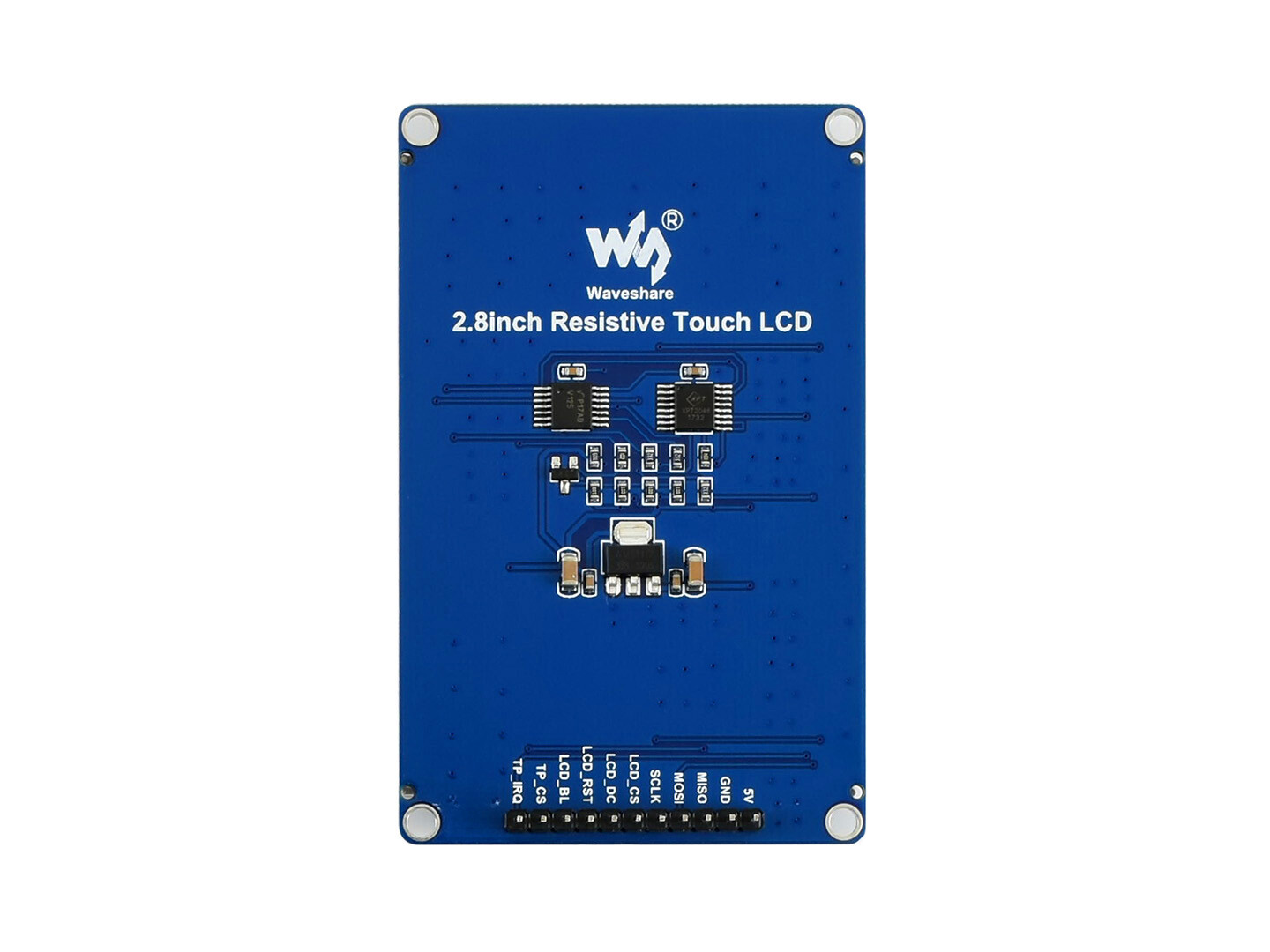

This auction is for 2.8inch Resistive Touch LCD 2.8inch 320×240 Pixels IPS LCD, Resistive Touch, SPI Interface Overview This is a multicolor graphic IPS LCD display, 2.8inch diagonal, 320×240 pixels, with resistive touch screen. Features Onboard touch controller, smoother touch experience than solutions that directly use AD pins for touching SPI interface, requires a few pins Programmable backlight control, power saving Comes with development resources and manual (examples for STM32/AVR/PIC) Key Parameters Driver HX8347D Touch Controller XPT2046 LCD Type IPS Communication Interface SPI Display Colors RGB, 65K colors Resolution 320 × 240 Backlight LED Display Size (mm) 57.6mm × 43.2mm Outline Dimensions 79.9mm × 50.8mm Touch Type 4-wire resistive Power Supply Voltage 5V Logic Level 3.3V Interface Definition SYMBOL DESCRIPTION 5V Power supply (5V input) GND Ground MISO SPI data output MOSI SPI data input SCLK SPI clock LCD_CS LCD chip select LCD_DC LCD data/command selection LCD_RST LCD reset LCD_BL LCD backlight control TP_CS Touch panel chip select TP_IRQ Touch panel interrupt External Dimension Development Resources Wiki : www.waveshare.com/wiki/2.8inch_Resistive_Touch_LCD Package Contains 2.8inch Resistive Touch LCD x1 1
