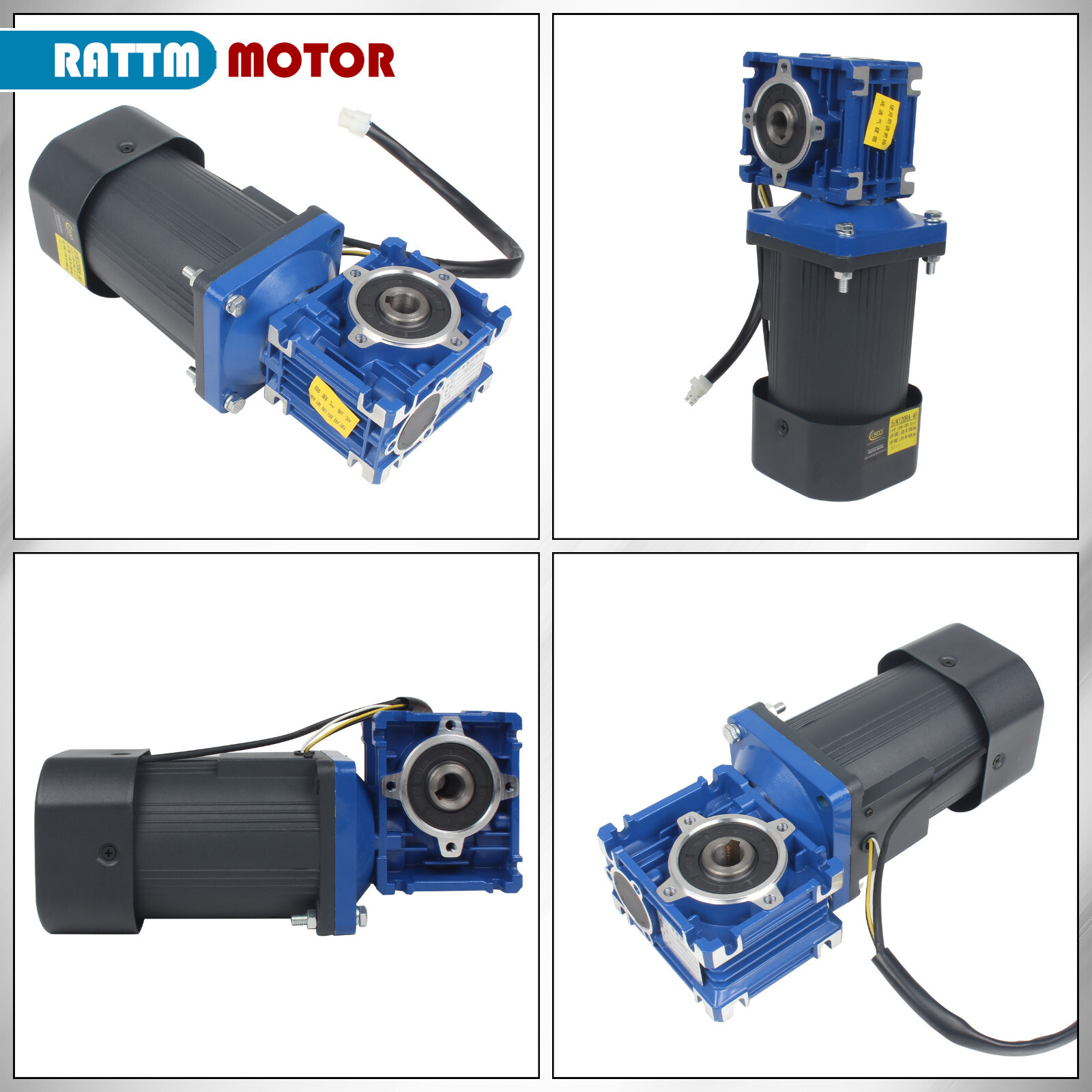

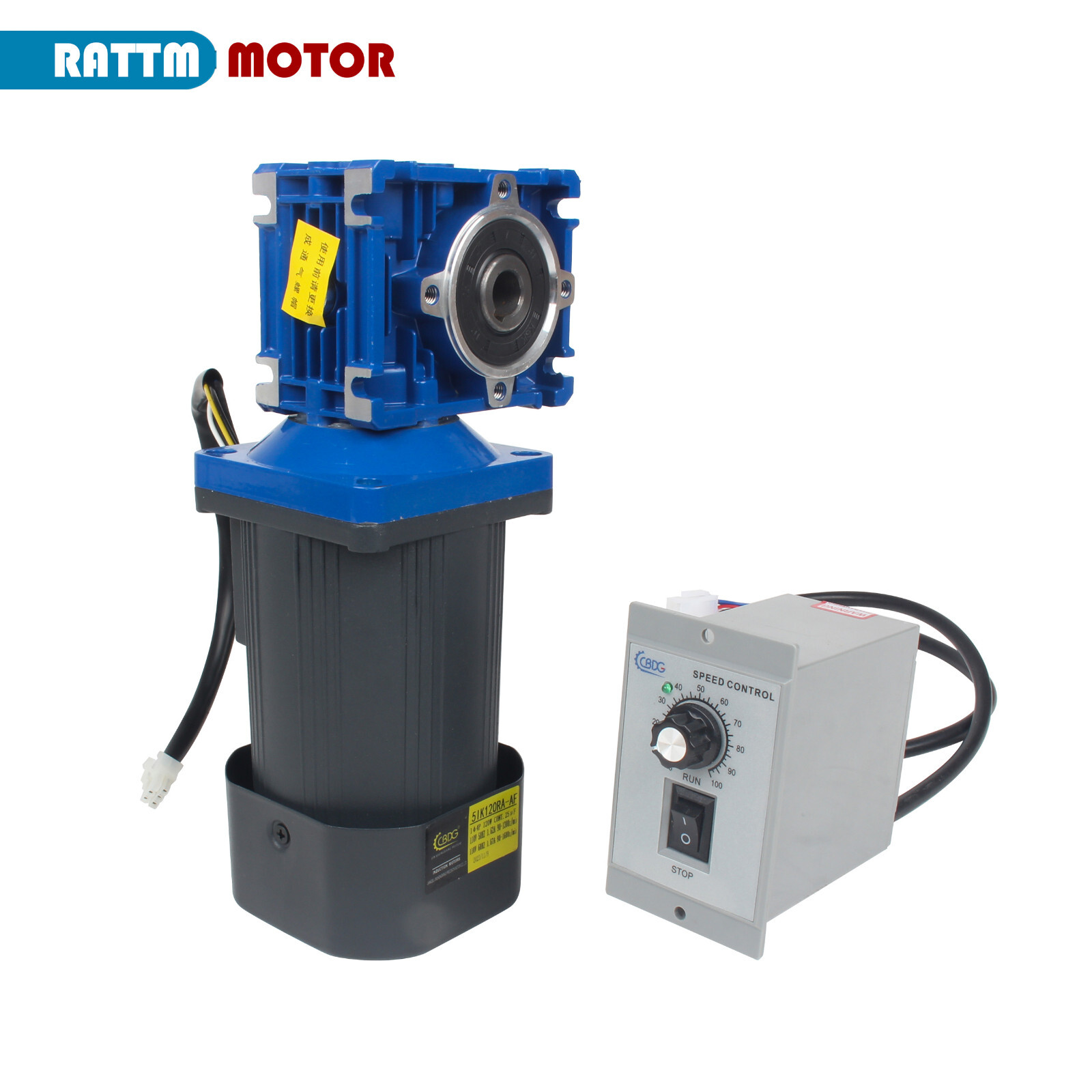

〖US〗120W AC Adjustable Variable Gear Motor 110V NMRV30 1600RPM w/ Speed Governor
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | RATTMMOTOR |
| Output Shaft Diameter | 14mm/0.55in |
| MPN | Does not apply |
| Power | 120W |
| Rated Voltage | 110V AC |

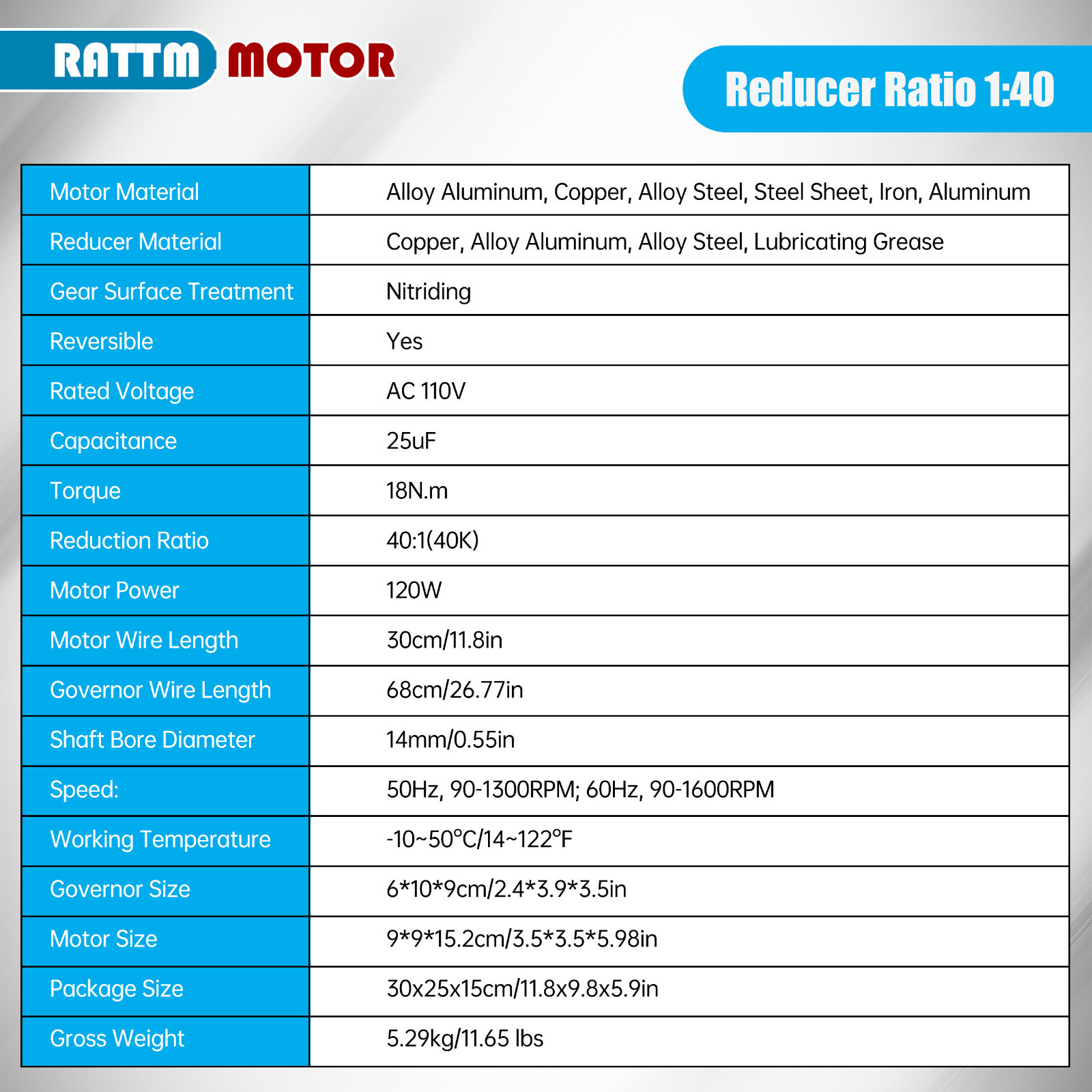

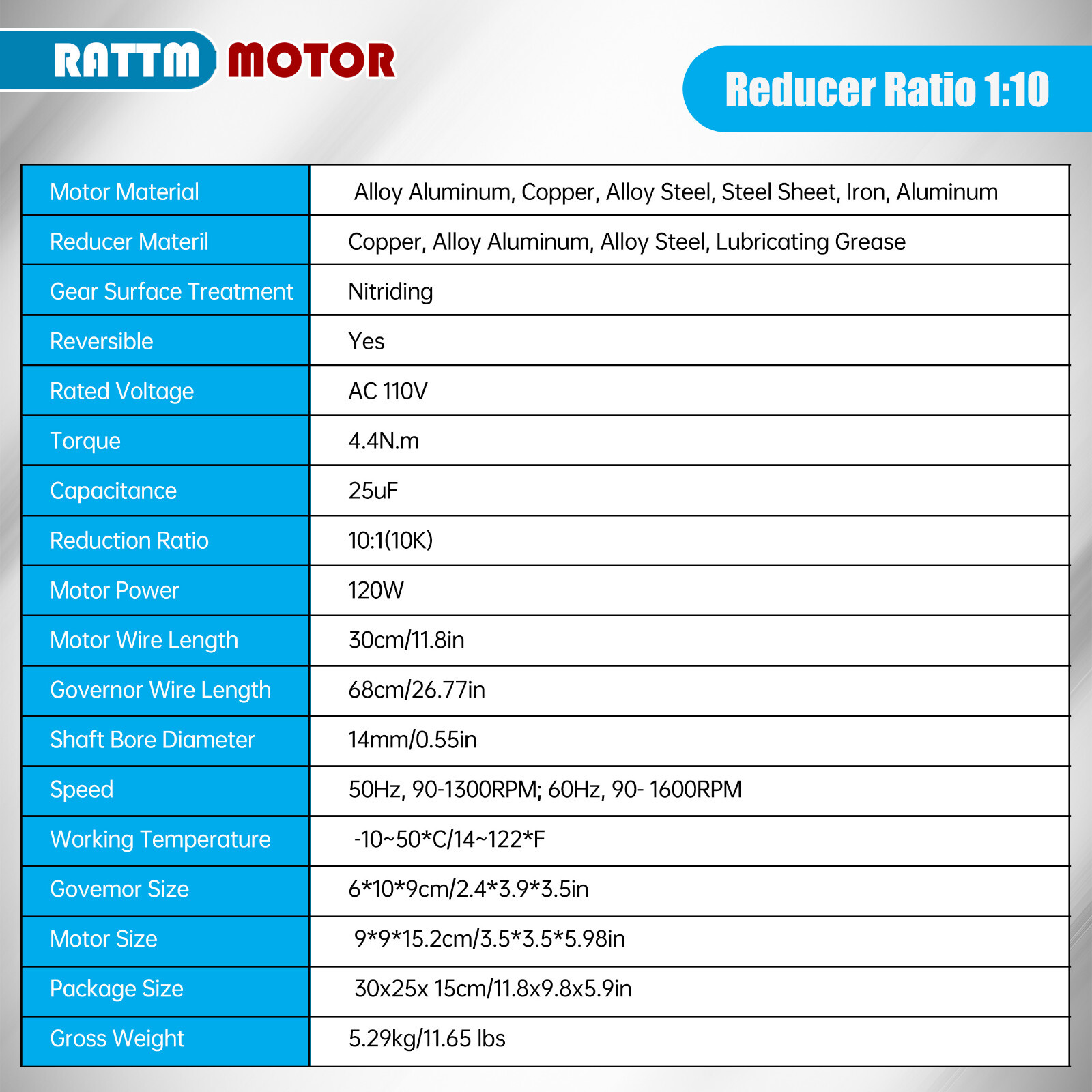

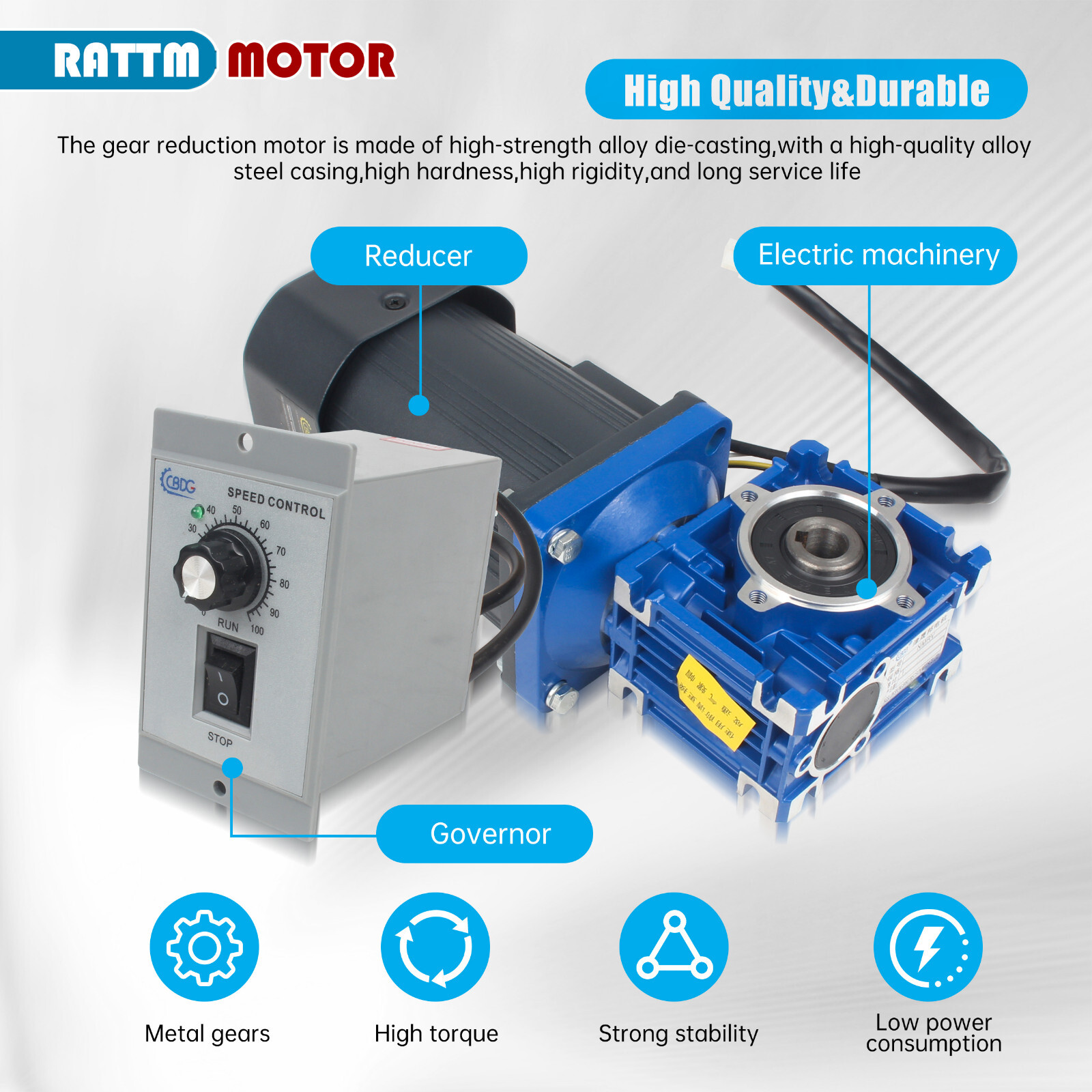

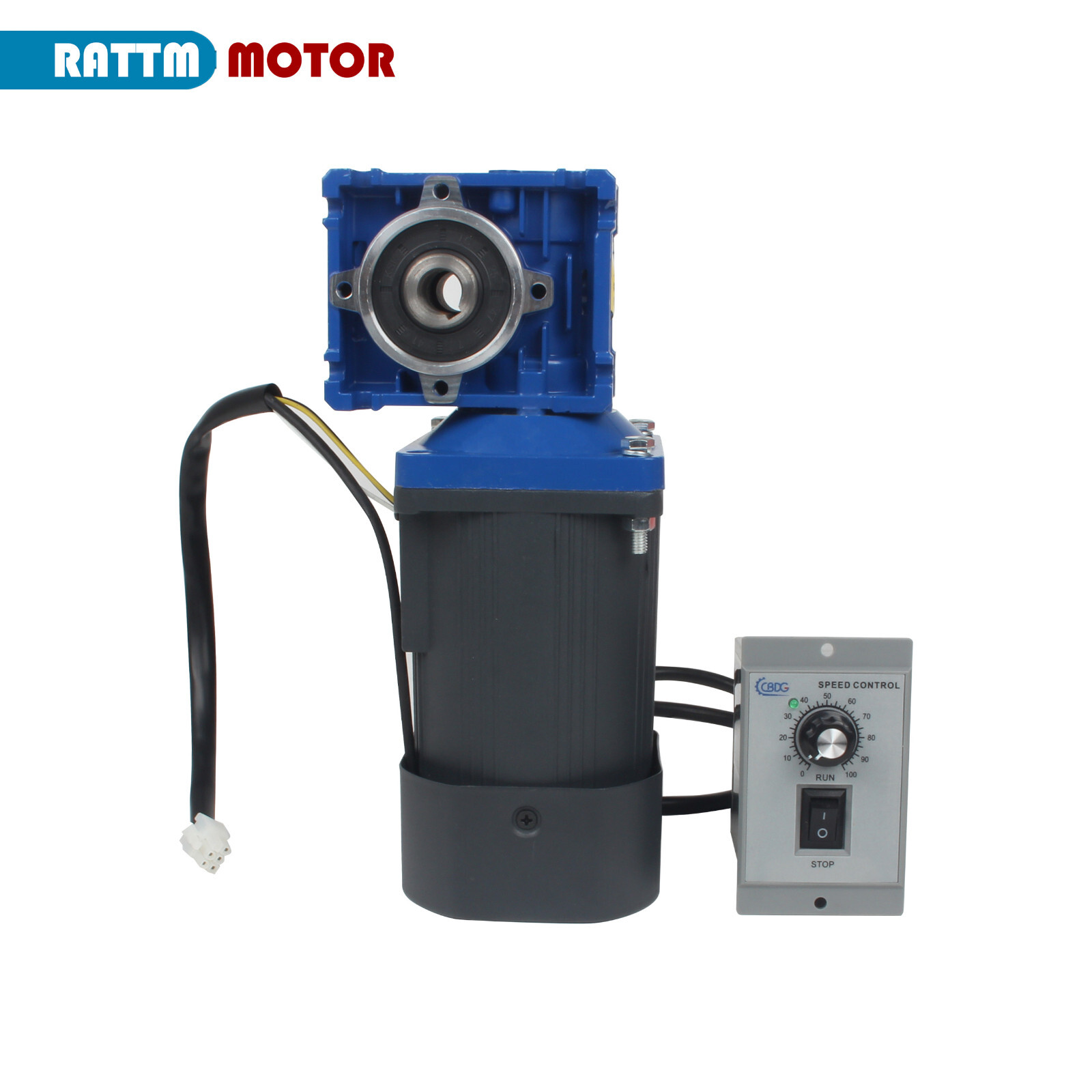

〖US〗120W AC Adjustable Variable Gear Motor 110V NMRV30 1600RPM w/ Speed Governor 【USA Stock & Fast Shipping】Good News:New items have arrived our USA Warehouse,welcome you to purchase. Package included:1x 120W speed adjustable motor 110V1x Speed Governor Controller1x NMRV30 Worm gearbox reducer ratio 10:1Power120WVoltage110VACSpeed50Hz, 90-1300RPM; 60Hz, 90-1600RPMReduction ratio10:1(10K)Torque4.4N.mMotor MaterialAlloy Aluminum, Copper, Alloy Steel, Steel Sheet, Iron, AluminumReducer MaterialCopper, Alloy Aluminum, Alloy Steel, Lubricating GreaseShaft Bore Diameter14mm/0.55inMotor Wire Length30cm/11.8inGovernor Wire Length68cm/26.77in Package included:1x 120W speed adjustable motor 110V1x NMRV30 Worm gearbox reducer ratio 40:11x Speed Governor ControllerPower120WVoltage110VACSpeed50Hz, 90-1300RPM; 60Hz, 90-1600RPMReduction ratio40:1(10K)Torque18N.mMotor MaterialAlloy Aluminum, Copper, Alloy Steel, Steel Sheet, Iron, AluminumReducer MaterialCopper, Alloy Aluminum, Alloy Steel, Lubricating GreaseShaft Bore Diameter14mm/0.55inMotor Wire Length30cm/11.8inGovernor Wire Length68cm/26.77in ApplicationsWidely used in industrial machinery, packaging industry, printing, textile, dyeing, robotics, chemical industry, food industry and other engineering machinery, as well as advertising, office, petrochemical, instrumentation, stage lighting, transmission, automated warehouses and other equipment.Matters needing attention A. Please follow the original wiring method and do not make any arbitrary modifications. B. When using, please adjust the external speed knob to 0 first to avoid generating instantaneous high current and causing damage. C. This product series adopts generator feedback voltage control. If other motors are used, the feedback voltage of the generator needs to be adjusted. D. To change the direction of motor operation, simply replace the jumper on the back of the controller and the wiring base.1).If COM and CW are short circuited, the motor will rotate clockwise. 2).If COM and CCW are short circuited,the motor will operate in reverse and the timer will rotate. When changing direction, it is necessary to wait for the motor to stop running before operating. E. Action switch only used to suppresses the action or stop of the motor, it is not used in the middle section of the power supply F. Please turn off the power if not in use for a long time. Return&Refund 1.Any reason required for all refund.Item must be in it's original condition and no physical damage,buyer responsible for all shipping cost.2.When you have the parcel,and not satisfied the goods or it is other problem like as broken,pls tell us the detail reason and provide the photos,we will help you to solve any problems. Contact 1.If you are not satisfied, please contact us to resolve any issues. Please do NOT leave negative feedback without asking for help. We work hard to make sure EVERY CUSTOMER 100% satisfaction.2.For any inquiries,issues or assistanceplease contact us via eBay or leave your mail address.3.All emails will be answered within 1-2 working days.If you do not receive our reply,please kindly re-send your email and we will reply to you as soon as possible.
