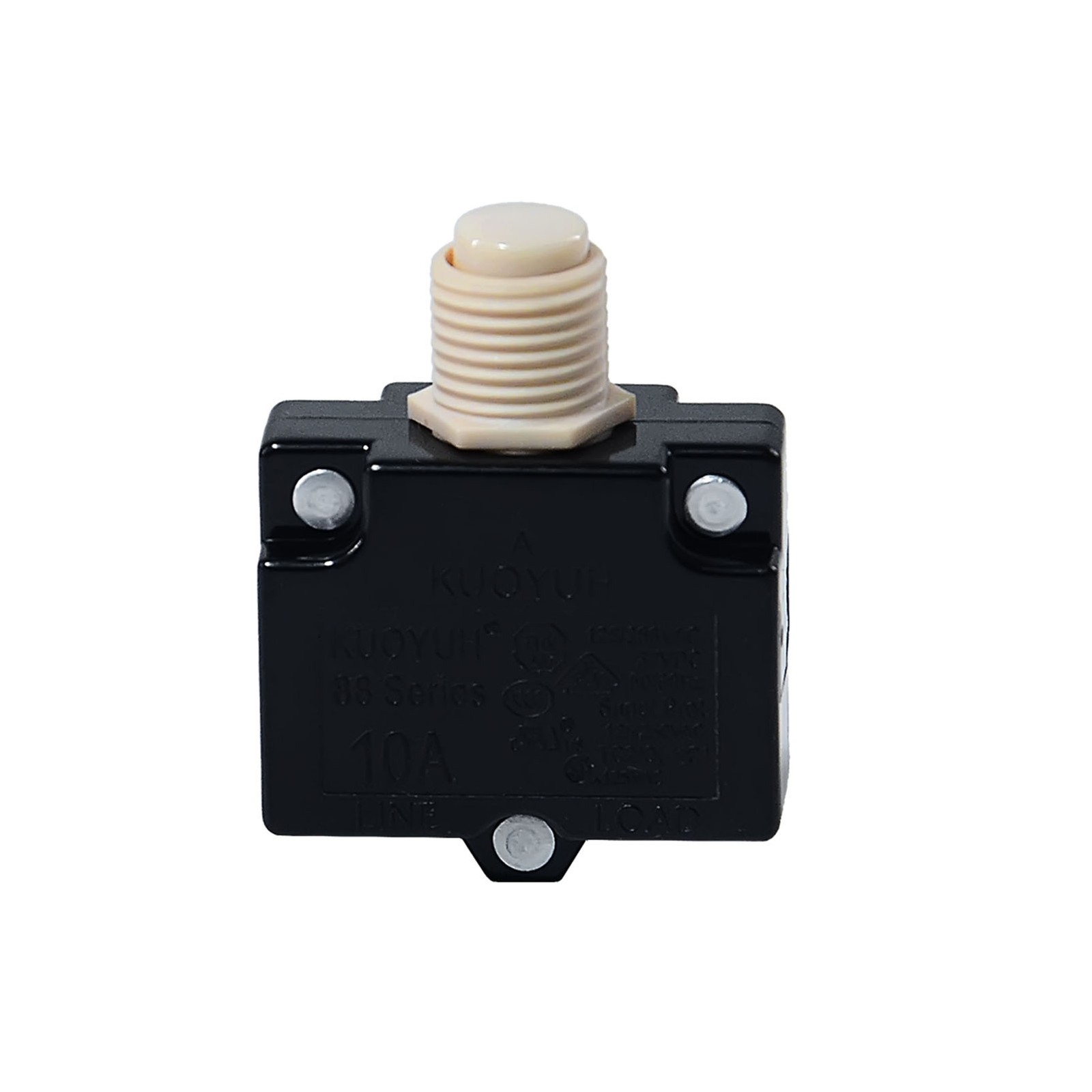

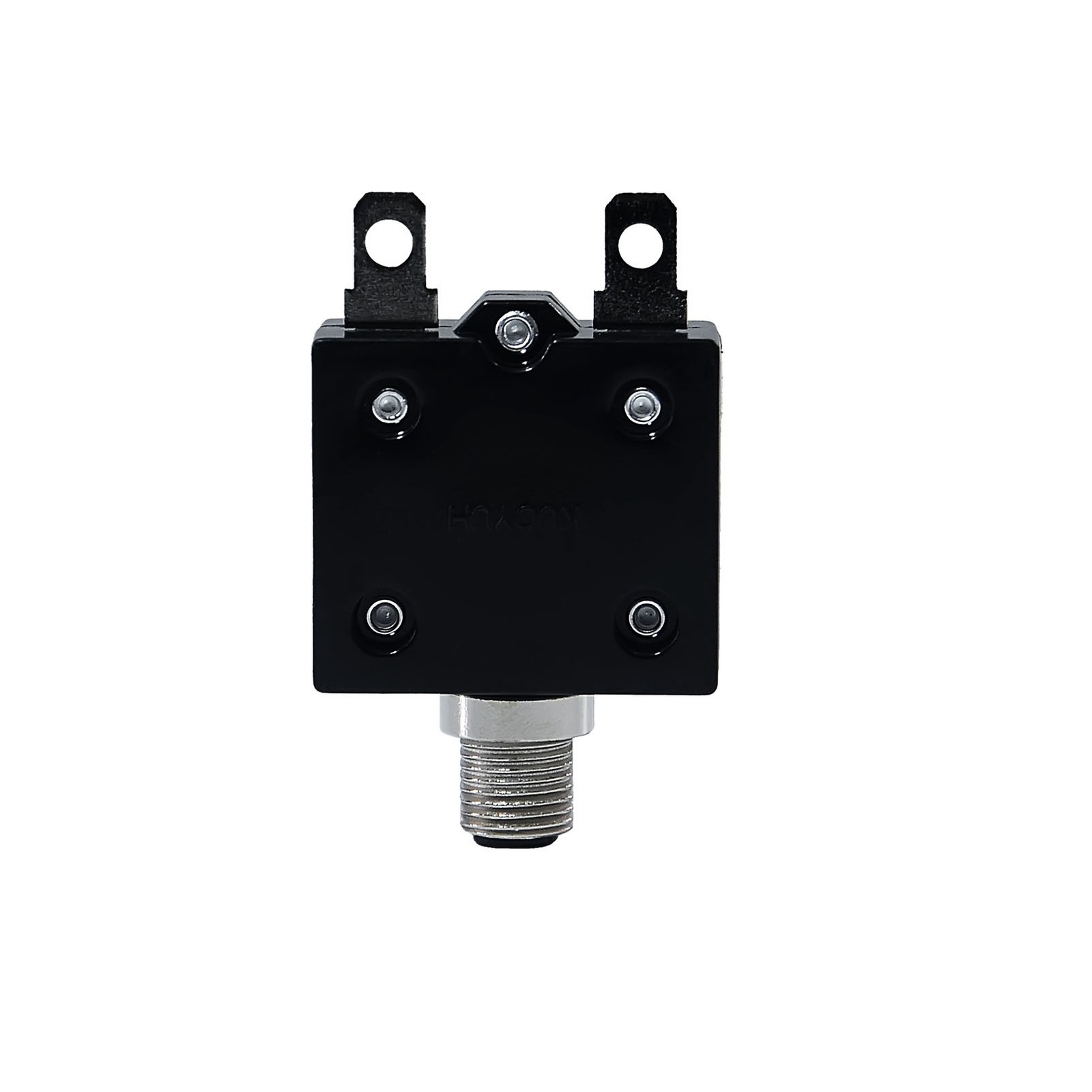

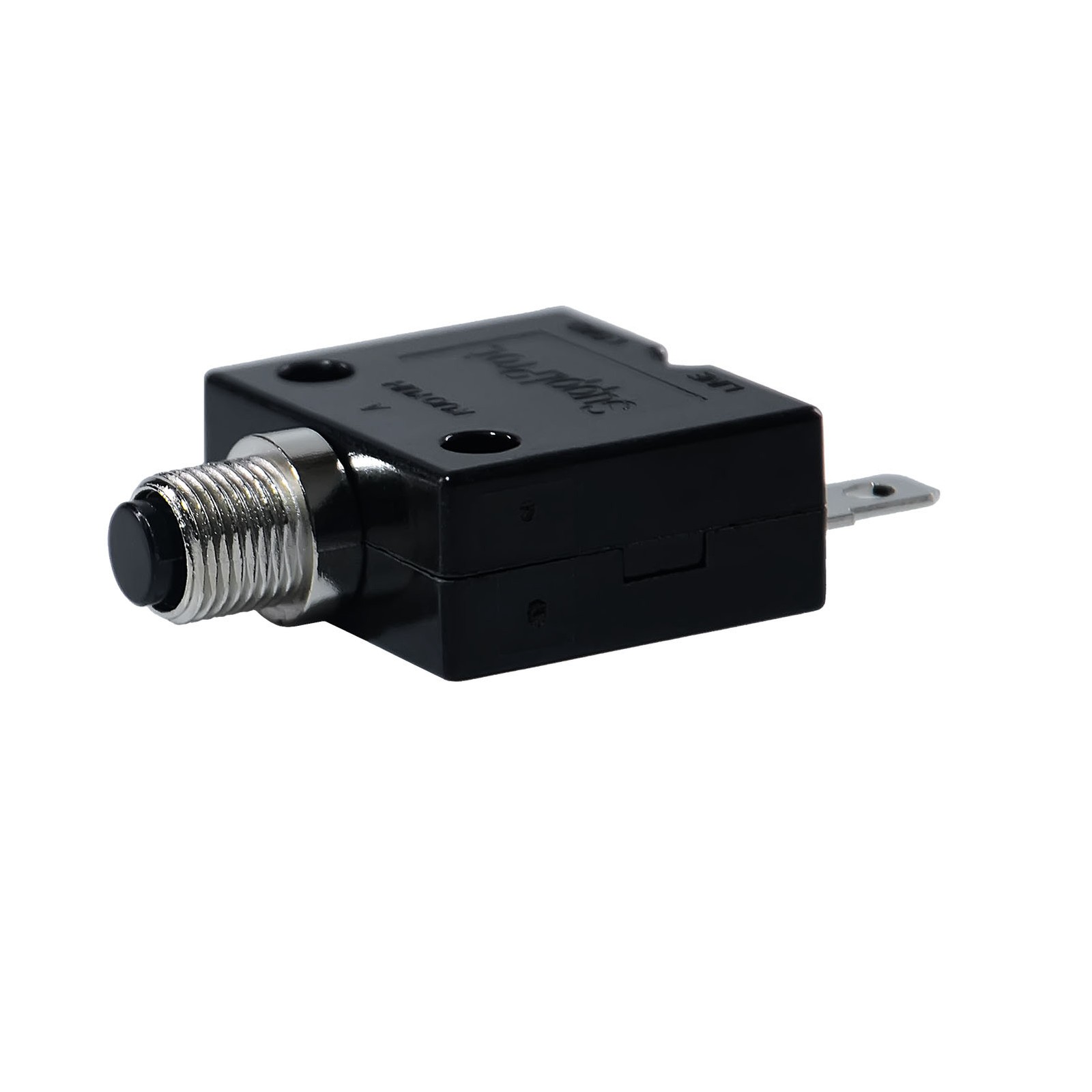

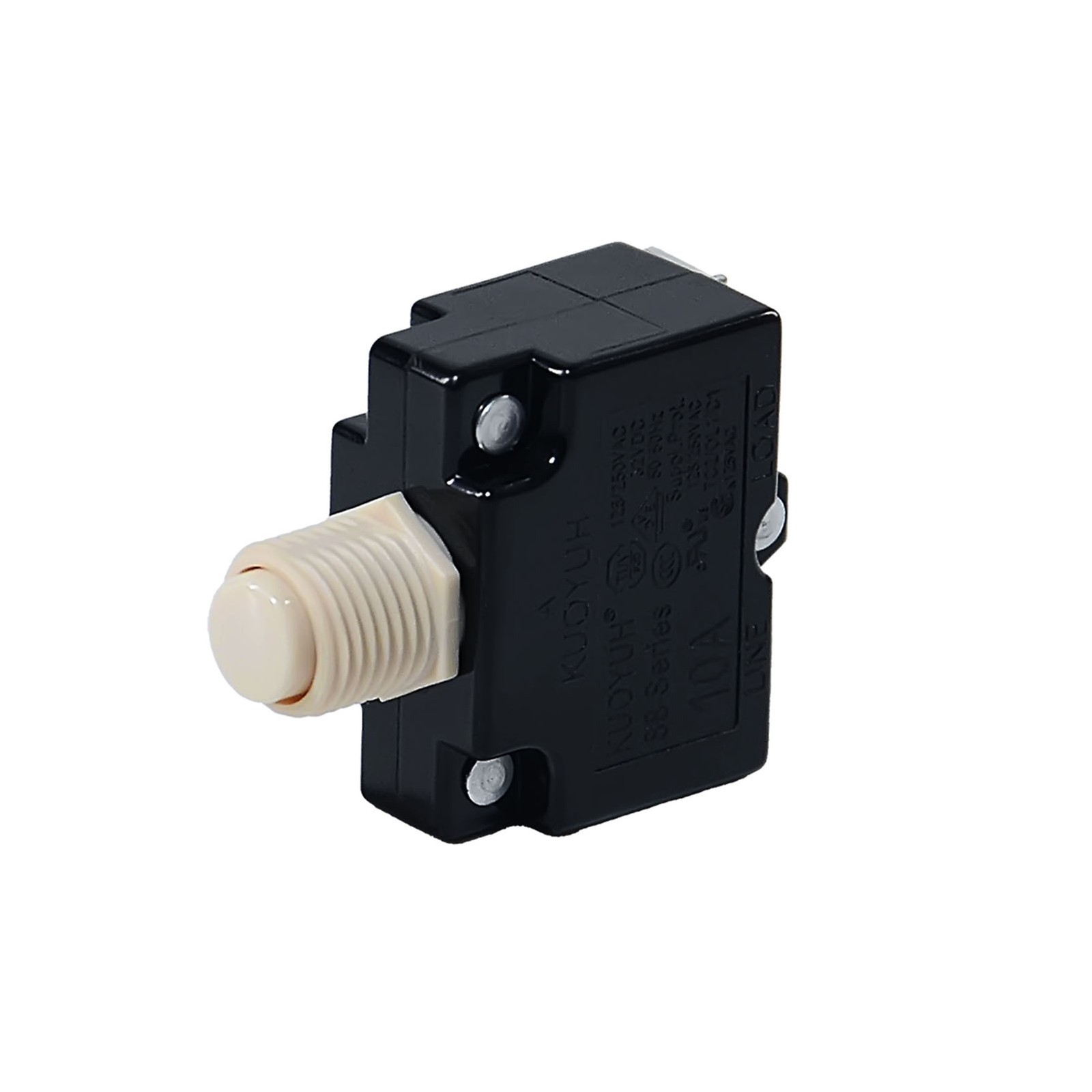

Universal 10 Amp Push Button Thermal Circuit Breaker 12-50V DC 125-250V Volt
USD 5.99 USD
Specifications
| Voltage Rating (AC) | 125/250 VAC |
| Voltage Rating | 50V DC, 250V AC |
| Reset Actuator Type | Button |
| Current Rating | 10AMP |
| Voltage Rating (DC) | 50 VDC |
| Brand | Jaxvio |

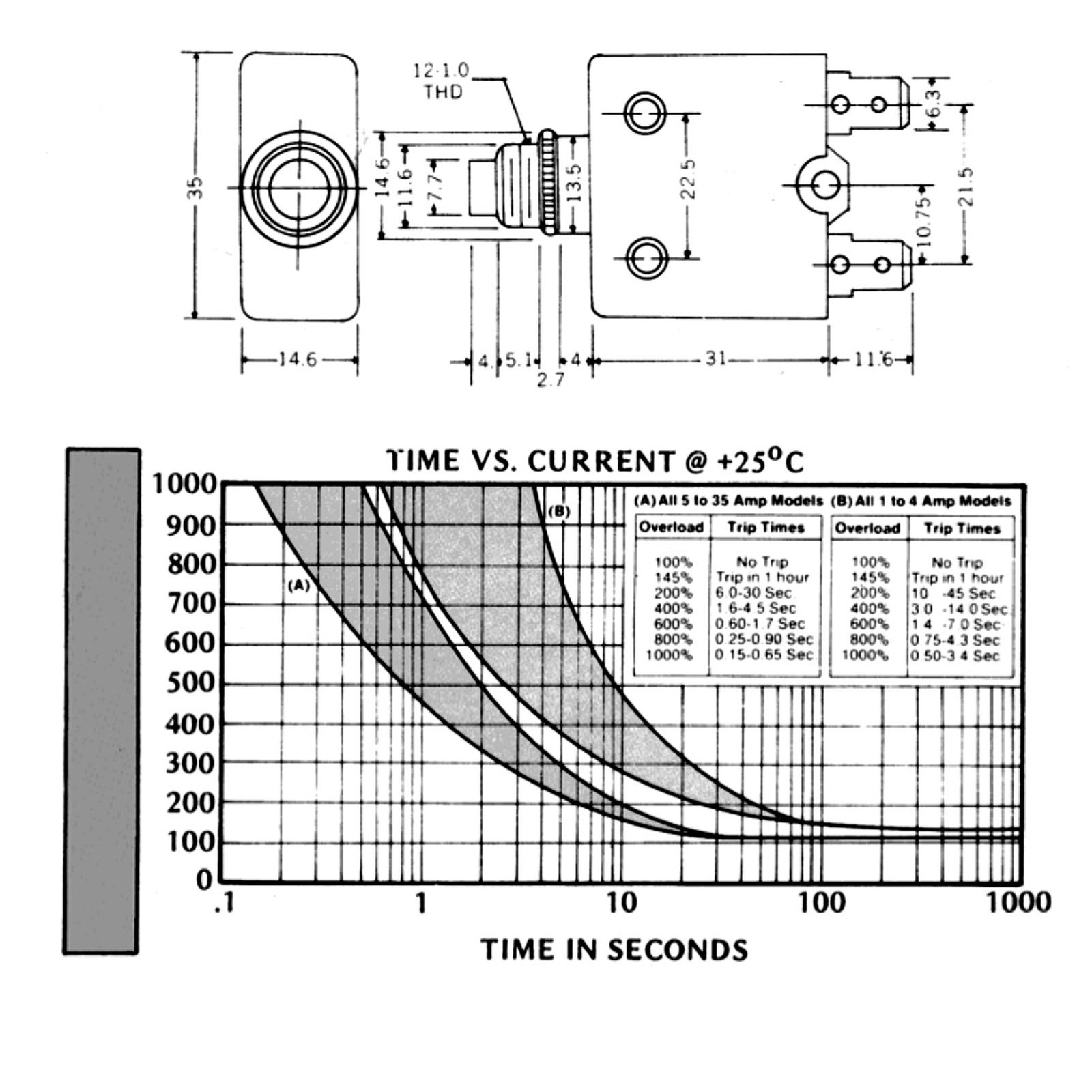

This is a brand new 10 Amp push button thermal circuit breaker. This breaker features a reset button which pops out when tripped and button cannot be manually pulled out to disconnect the circuit. Also, thermal breakers do not trip instantly, there is a delay based on the amount of overload. - Overload Trip Time - 100% - No trip 145% - within 1 hour 200% - 6 to 30 seconds 400% - 1.6 to 4.5 seconds 600% - 0.60 to 1.7 seconds 800% - 0.25 to 0.90 seconds 1000% - 0.15 to 0.65 seconds.
