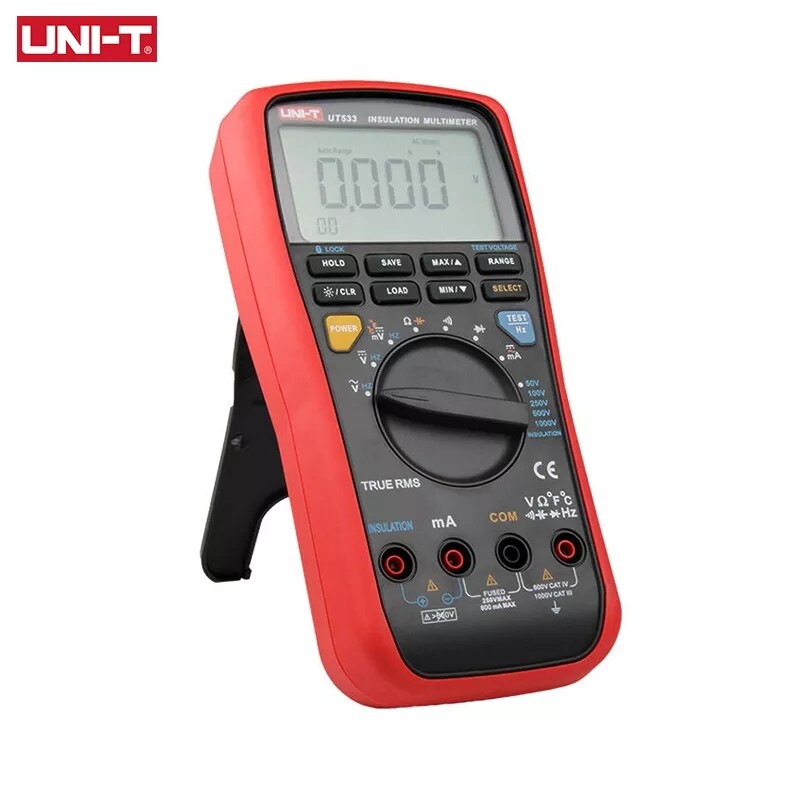

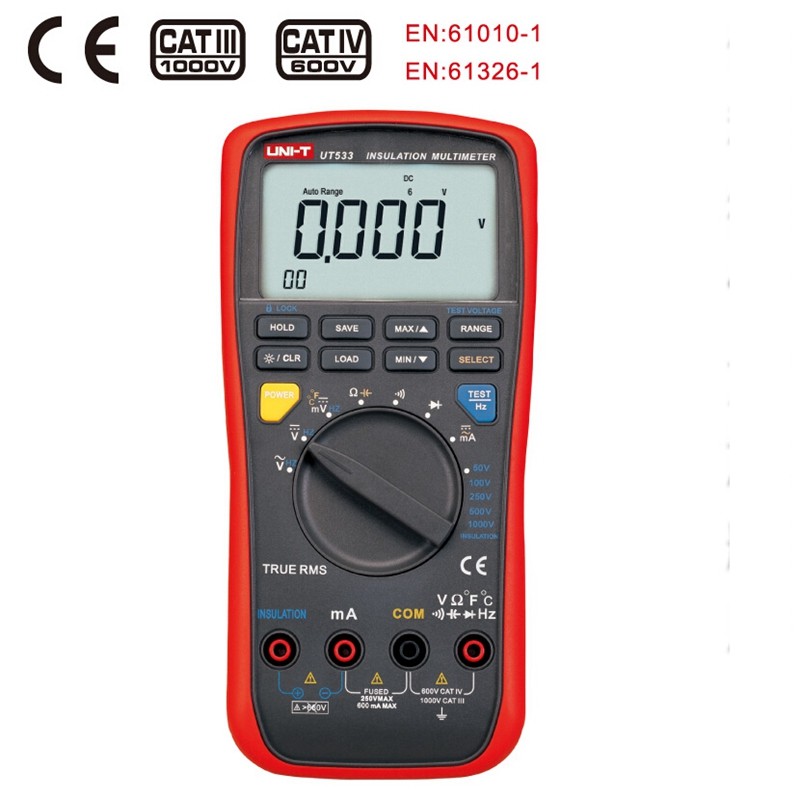

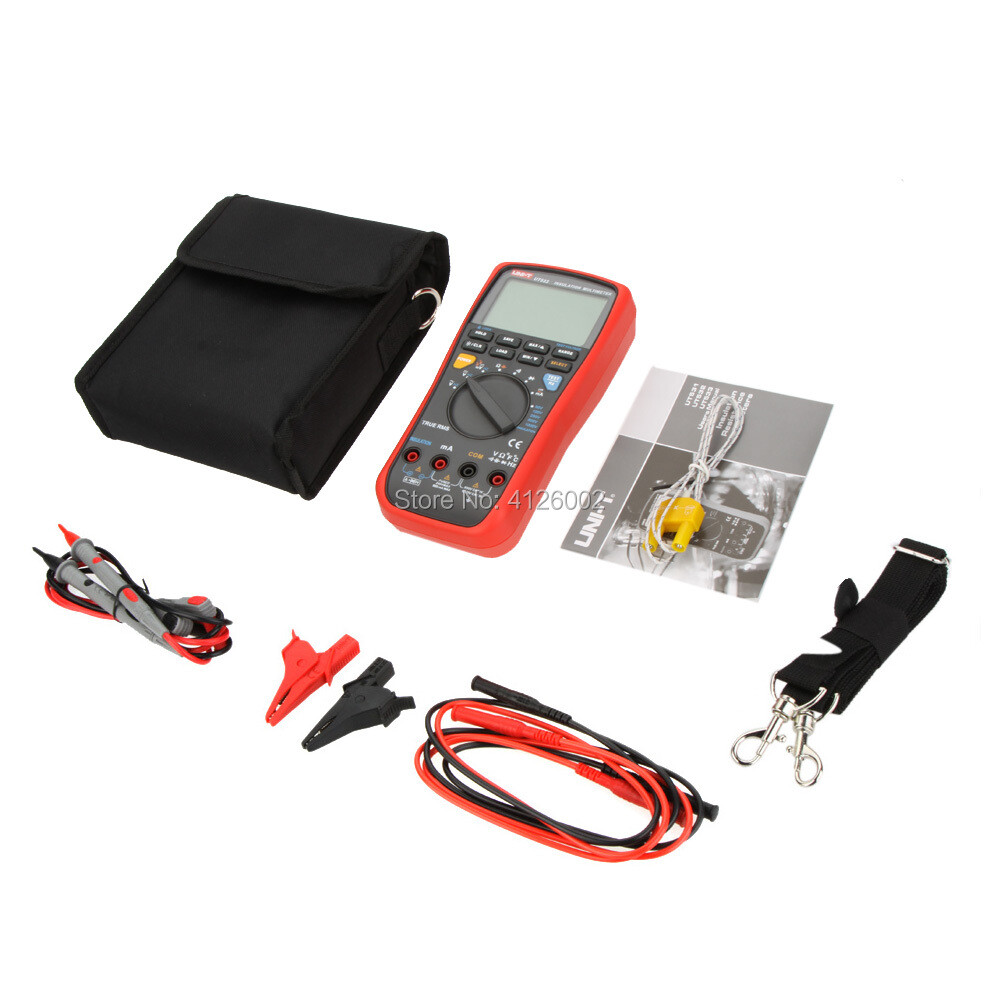

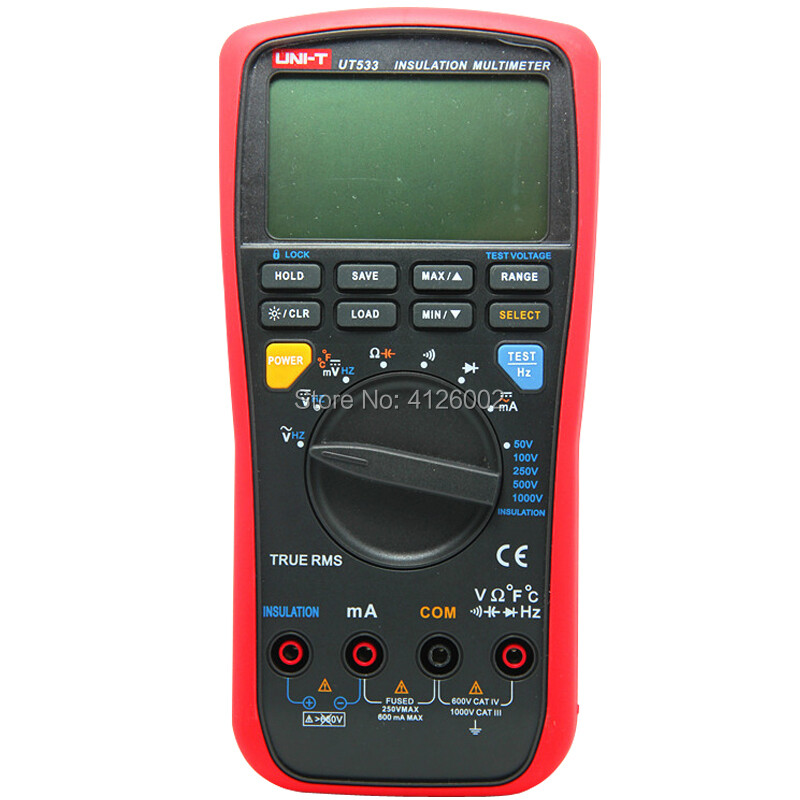

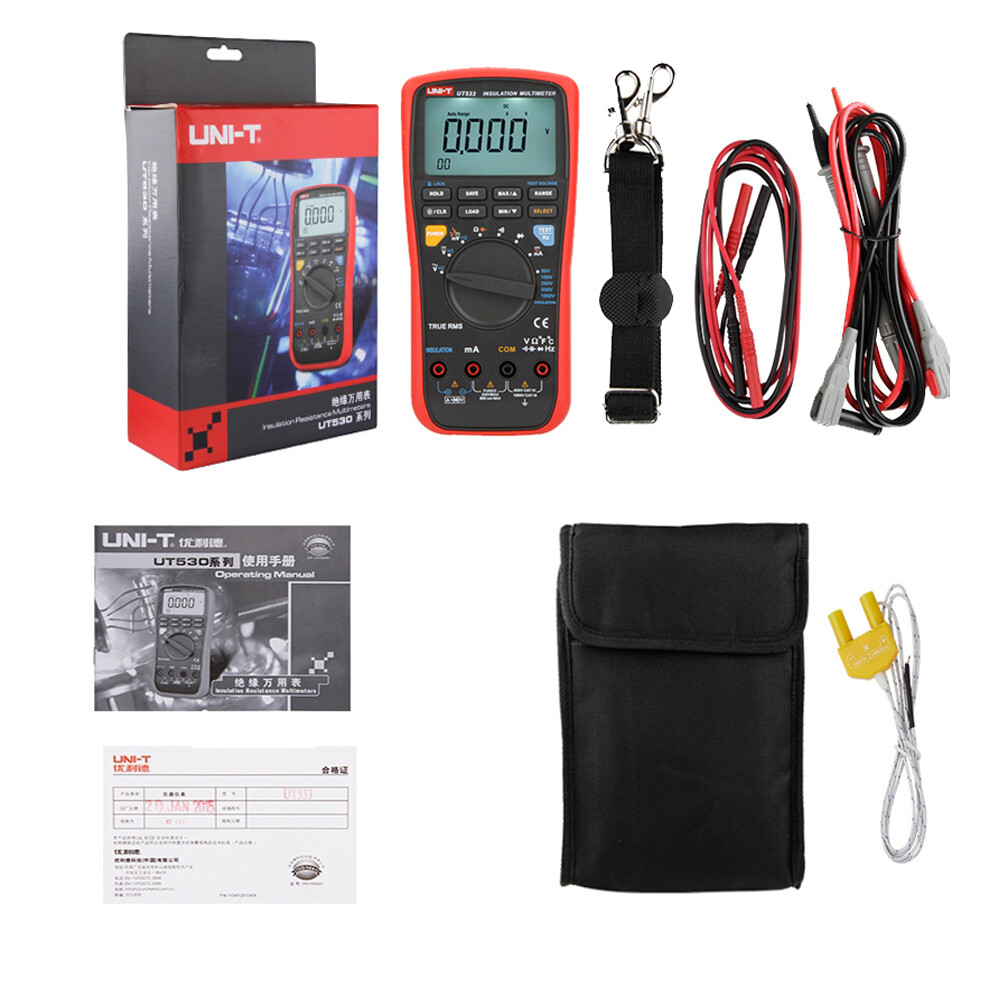

UNI-T UT533 Megger Digtal Multimeter Insulation Resistance Tester True RMS 2.0GΩ
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Maximum Input Voltage | 1000V |
| Number Of Counts | 5999 |
| MPN | Does Not Apply |
| Measurement Category | CAT III 1000V |
| Brand | Unit |
| Form Factor | Handheld |
| Current Range | 60mA/600mA |
| Test/Measurement Functions | AC Current |
| AC Voltage Range | 6V/60V/600V/1000V |
| Features | Low battery indication |
| Country/Region Of Manufacture | China |
| Display | Digital |

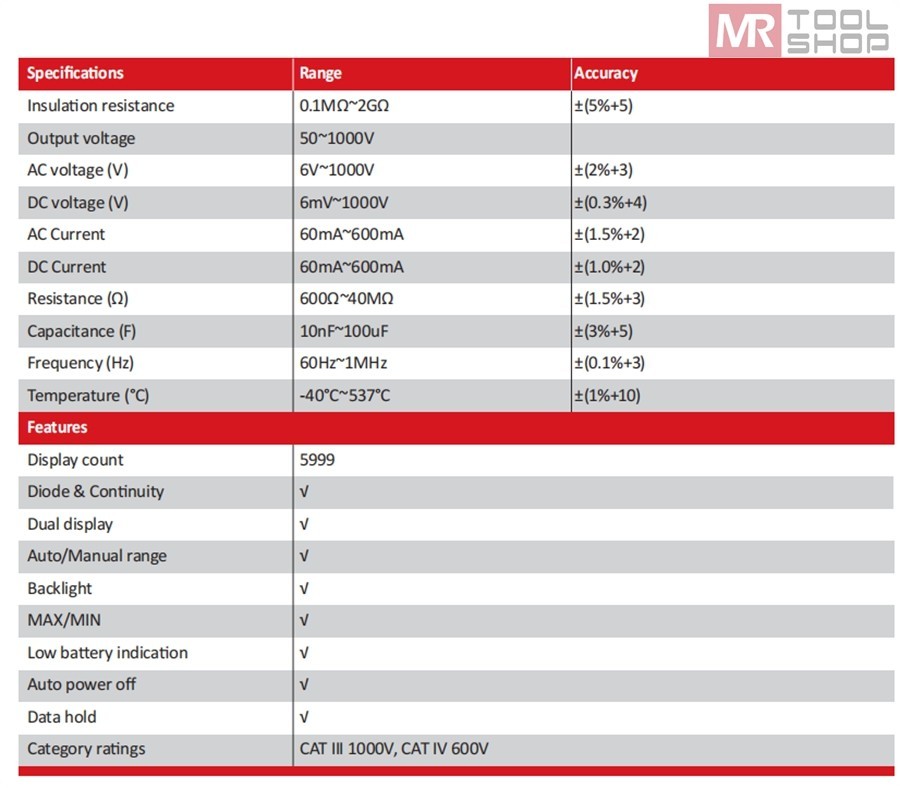

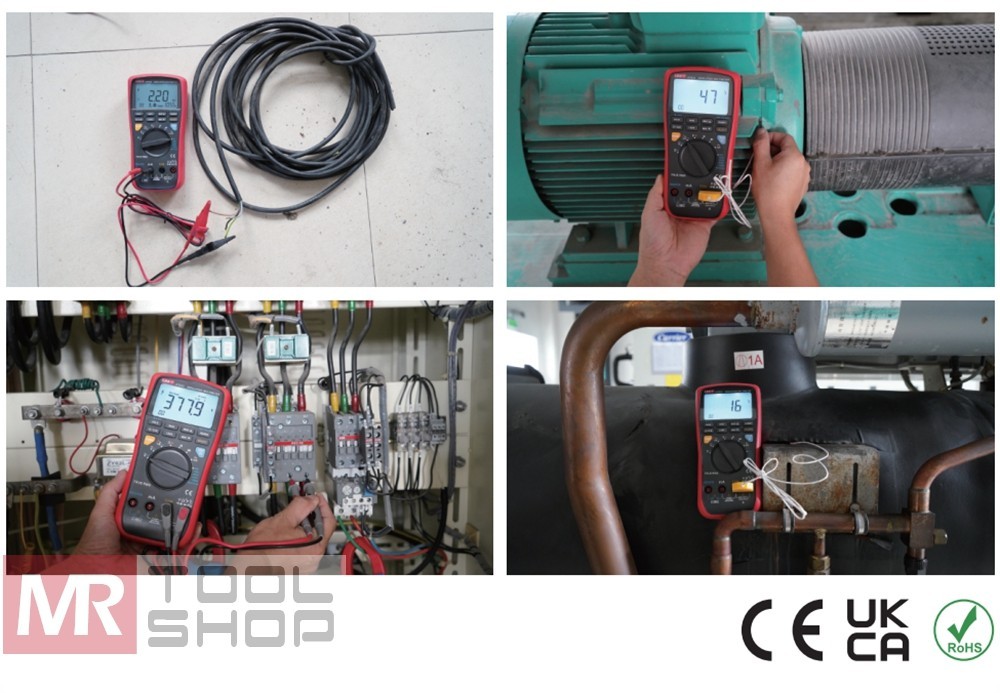

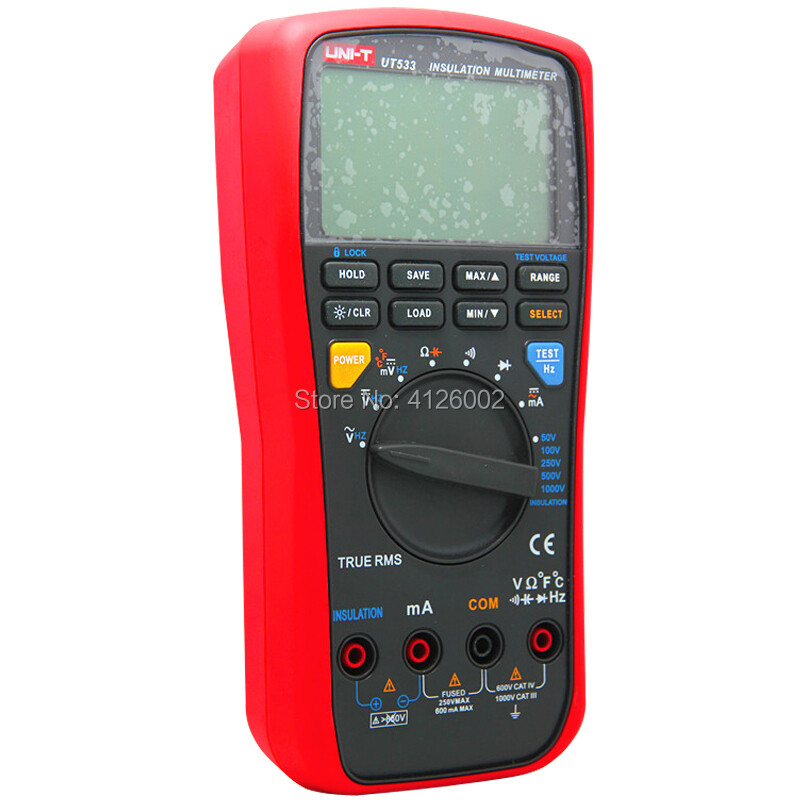

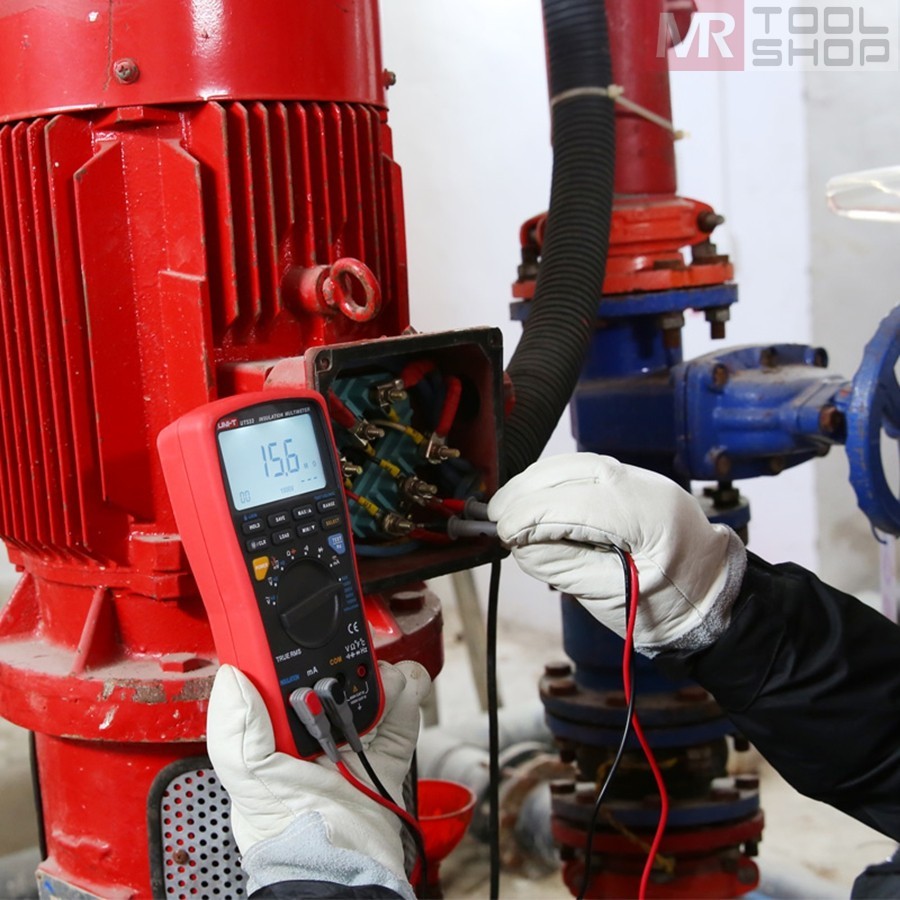

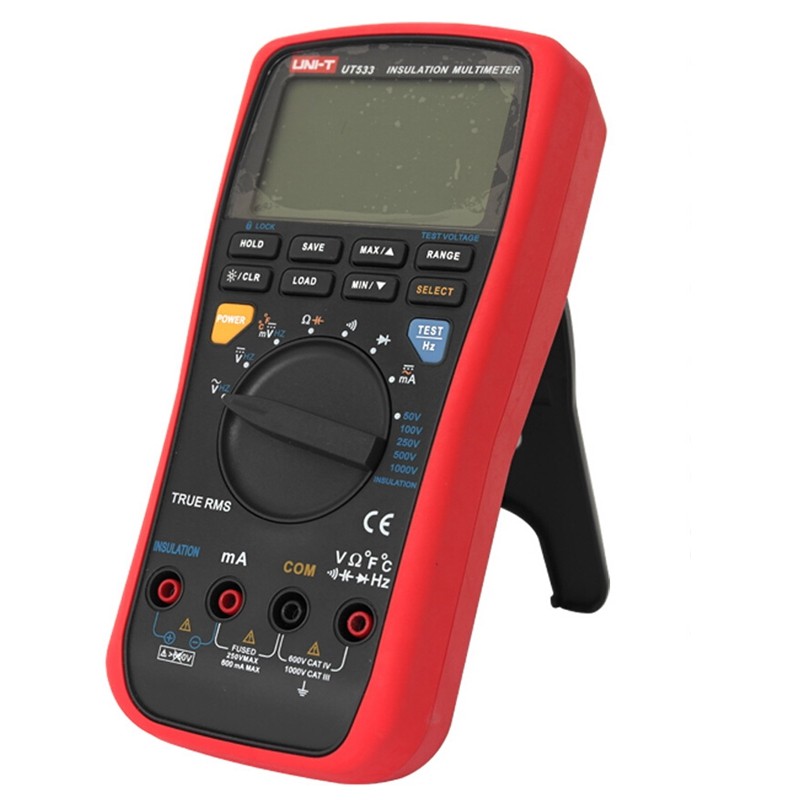

UNI-T UT533 True RMS Insulation Resistance Tester Digital Multimeter Auto Range AC DC ohm Megohmmeter Voltmeter Capacitance Test UT530 series can be used as a full functional digital multimeter and a digital insulation tester. Some of its features are: power supplied by batteries, true RMS, 99-group stored data available, 0.09% basic accuracy and max 5999 display count. It is applicable to test all kinds of precision tools (like cable, motor, and transformer). Specifications SpecificationsRangeBest Accuracy ModelUT533 Insulation Resistance(Ω)Test Voltage50V/100V/500V/1000V/2500V0%～10% 50V0.1MΩ~50.0MΩ±(3%+5) 100V0.1MΩ~100.0MΩ±(3%+5) 250V0.2MΩ~99.9MΩ±(3%+5) 100MΩ~250MΩ±(3%+5) 500V0.5MΩ~99.9MΩ±(3%+5) 100MΩ~500MΩ±(3%+5) 1000V4.0MΩ~99.9MΩ±(3%+5) 100MΩ~999MΩ±(3%+5) 1.00GΩ~2.00GΩ±(5%+5) Short-Circuit Current<2mA√ Multimeter Specifications DC Voltage (V)60mV/600mV/6V/60V/600V/1000V±(0.09%+6) AC Voltage（50Hz~1KHz）6V/60V/600V/1000V±(1%+3) DC Current (A)60mA/600mA±(1.0%+2) AC Current（50Hz~1KHz）60mA/600mA±(1.5%+2) Resistance (Ω)600Ω/6kΩ/60kΩ/600kΩ/6MΩ/40MΩ±(0.9%+2) Capacitance (F)10nF/100nF/1μF/10μF/100μF±(3%+5) Frequency (Hz)60Hz/600Hz/6kHz/60kHz/600kHz/1MHz±(0.1%+3) Temperature (°C)-40°C ～ 537°C±(1%+10) Temperature (°F)-40°F～998°F±(1%+18) Features Display Count6000 Auto Range√ True RMS√ Diode√ Auto Power Off√ Continuity Buzzer√ Low Battery Indication√ Data Hold√ MAX/MIN√ Data Logging99 LCD Backlight√ Full Icon Display√ General Characteristic Power1.5V Alkaline Batteries (LR6)×6 (Not included for air shipping) LCD Size81mm X 46mm Product ColorRed and Grey Product Net Weight505g Product Size96.7mm X 202.8mm X46 mm Standard Accessories Test Lead, Alligator Clip, Point Contact Temperature Probe, Carrying Bag Standard Individual PackingGift Box, English Manual Standard Quantity Per Carton20 pcs Certifications CE ROHS Standard Carton Gross Weight12Kg Shipping: We will ship all items within 1-3 working days upon receipt of payment,our goal is: send faster and been received earlier . Standard Shipping: To USA,UK and Australia by ePacket,need 7-12 working days. Expedited/Standard Int'l Shipping by Fedex,DHL,TNT and EMS courier: To USA,need 3-6 business days,To other countries,need 4-8 business days normally.But sometimes int'l delivery is highly depended on the courier company and local customs/duties. Import duties and taxes are not included in the item price or shipping charges.These charges are the buyer responsibility. Warranty&Return Policy: We encourage all customers to communicate with us through eBay messages. If you have any questions or comments whatsoever regarding our products or listing, we are waiting to hear from you A 1 year warranty is offered for this product.If the product malfunctioned under proper usage per instructions manual within the warranty period, please contact us to obtain shipping instructions and send it back at your shipping costs. 30 days evaluation and investigation takes placed after receiving your return item.A brand new replacement unit will be sent to you at our shipping costs if it meets our warranty On Sep-03-18 at 06:55:11 PDT, seller added the following information:
