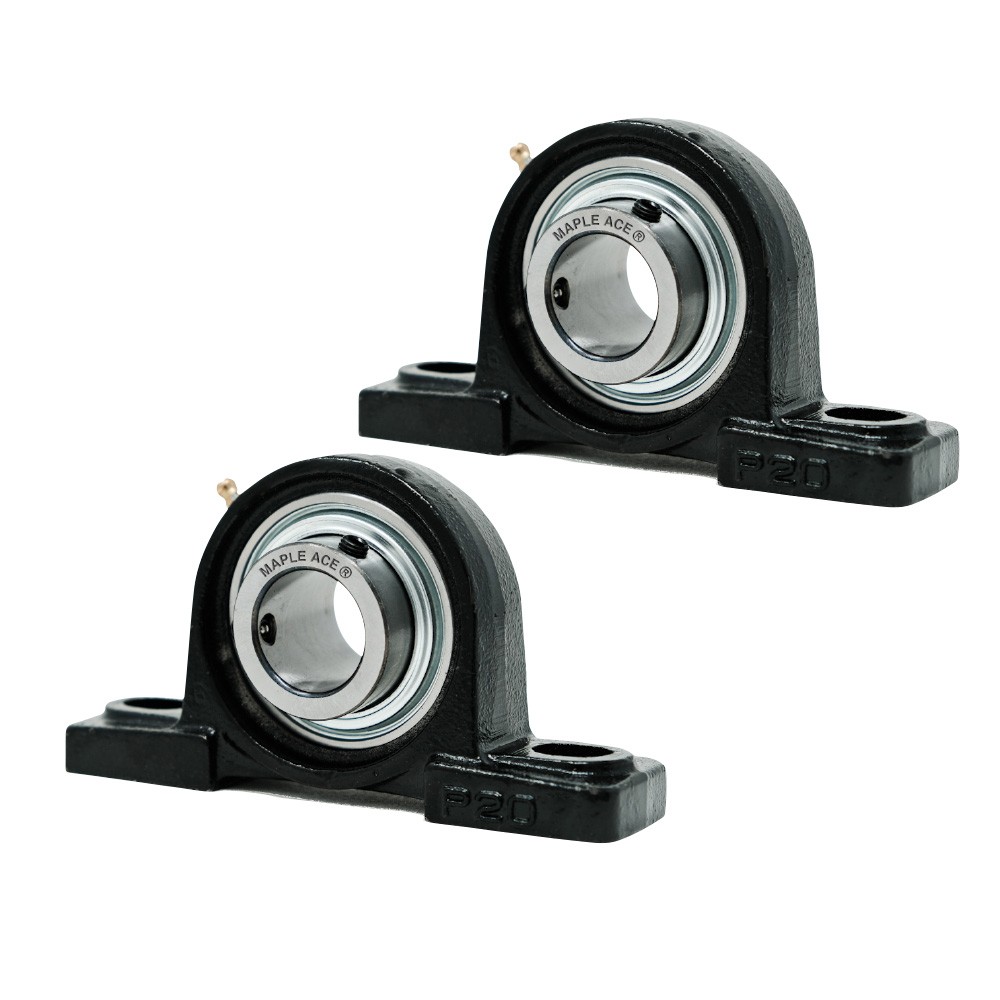

UCP204-12 Pillow Block Bearing 3/4″ Bore, 2-Bolt Self-Aligning, 3 Lips Seal Qty2
USD 19.95 USD

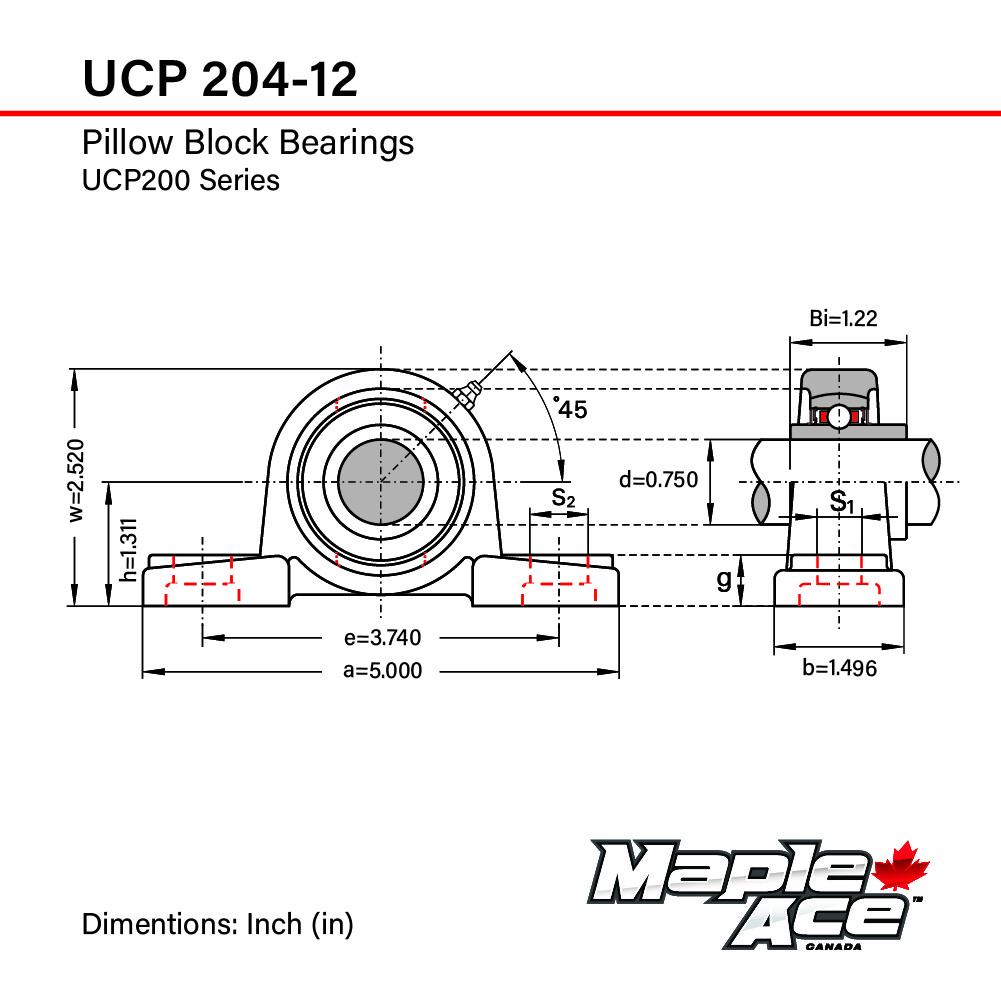

Specifications
| Brand | MAPLE ACE |
| MPN | UCP204-12R3 |
| Type | Pillow Block Bearing |
| Bore Diameter | 0.75 inches |
| Bearing Insert Type | Pillow Block Bearing |
| Material | Gcr15 |
| Model | UCP204-12R3 |
| Lubrication | Grease |
| Dynamic Load Rating Cr | 12700 N |
| Limiting Speed | 8500 r/min |
| Rolling Element Indicator | Ball |
| Static Load Rating Cor | 6550 N |
| UPC | 841339031361 |

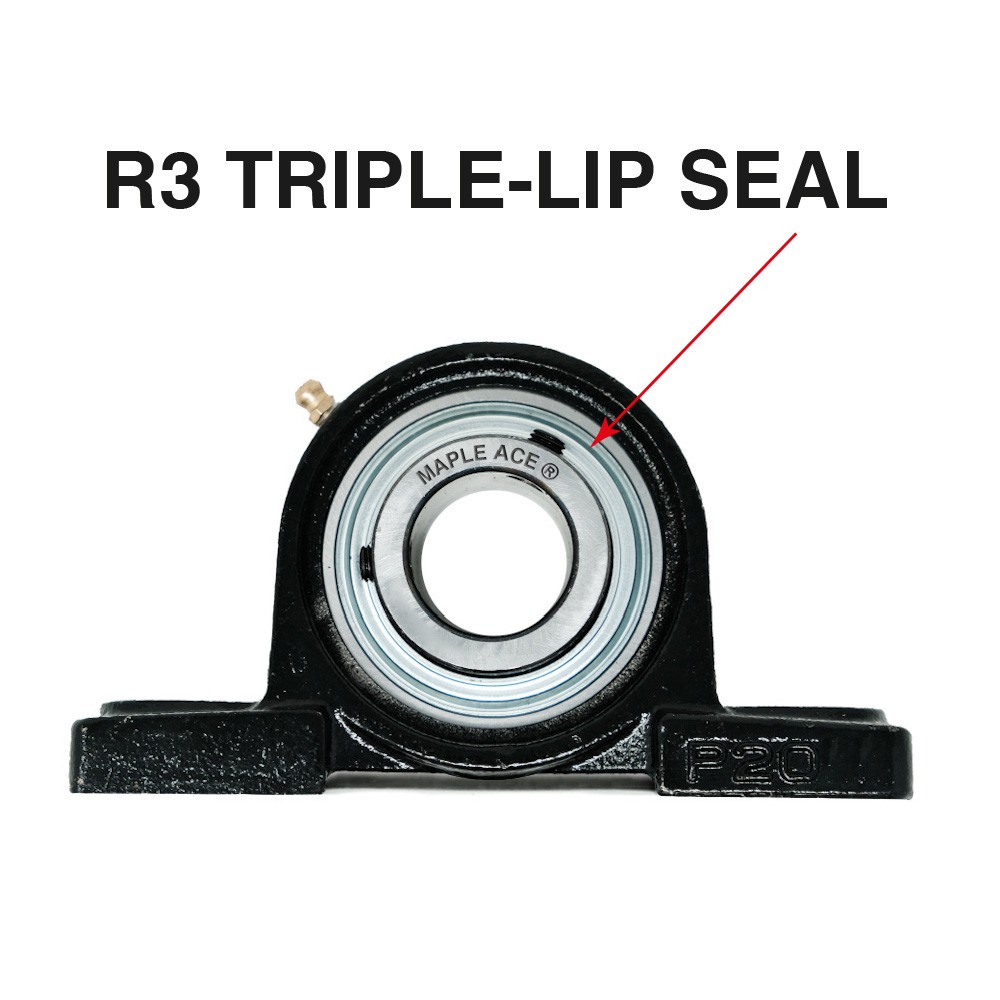

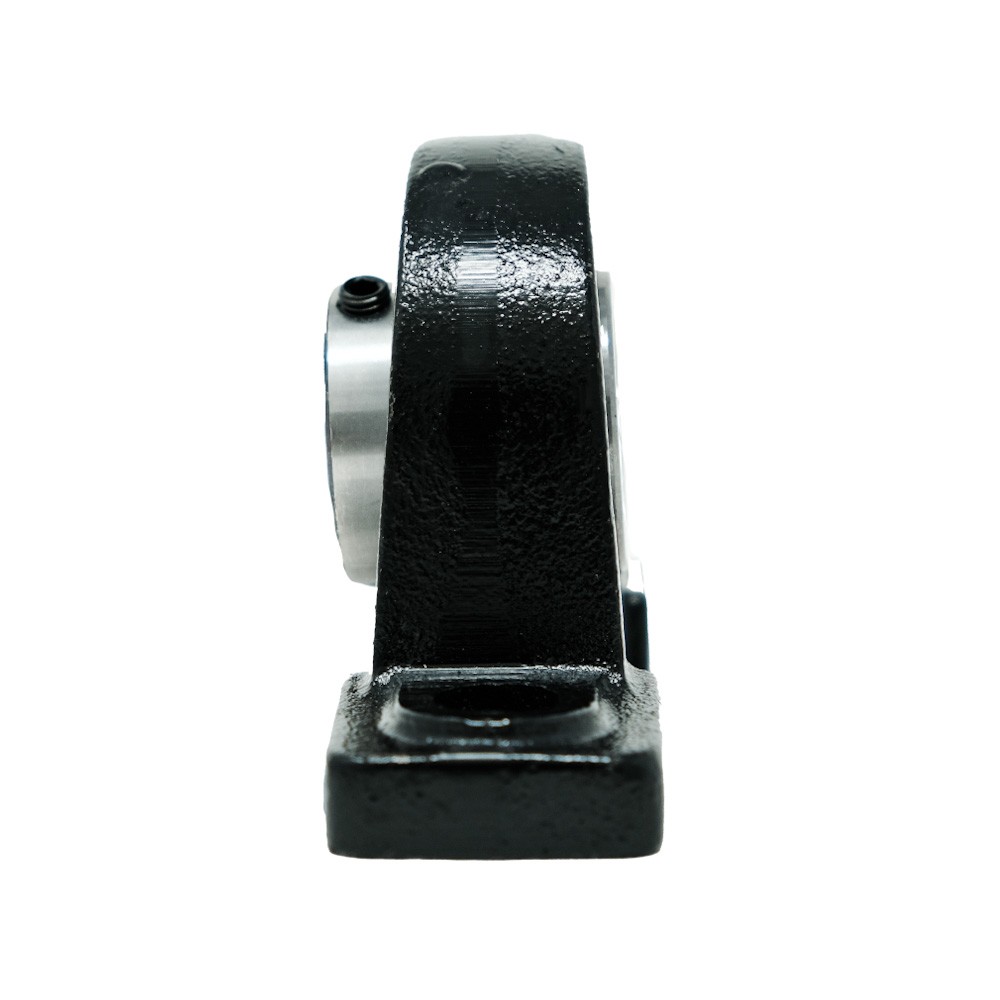

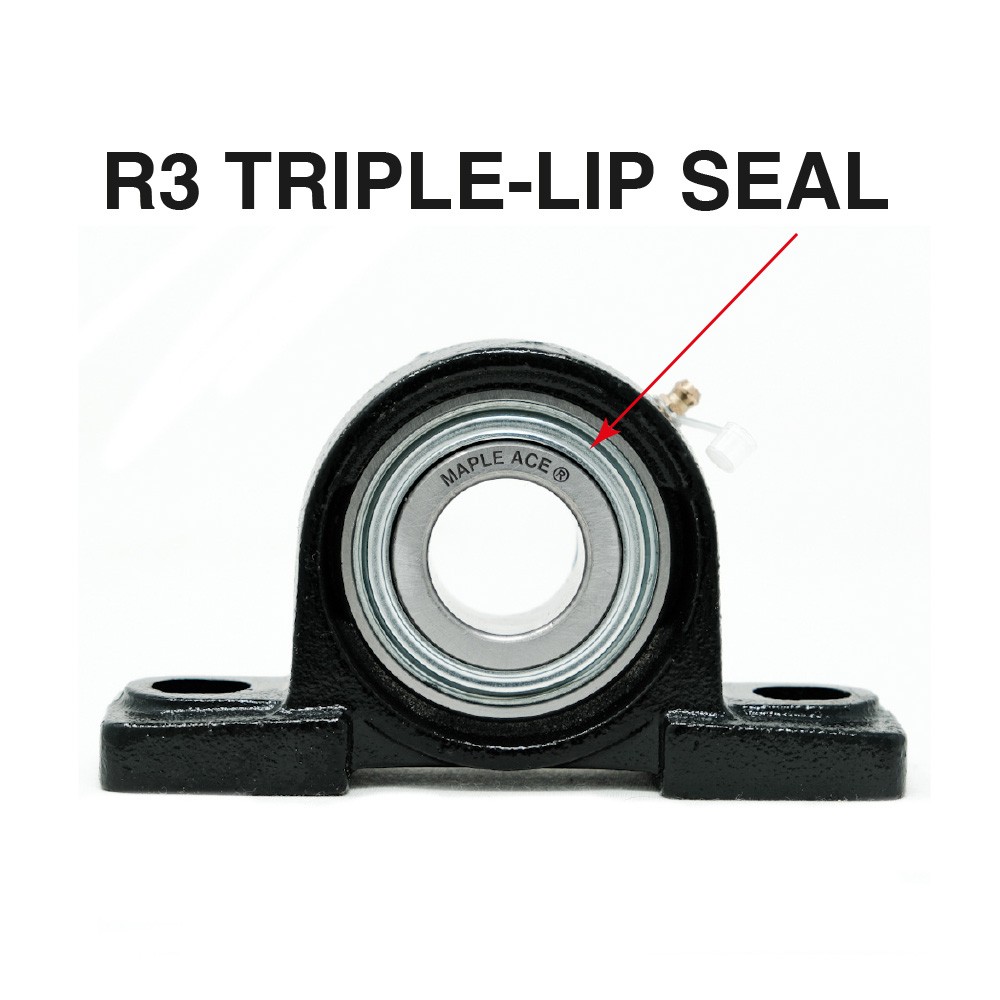

This UCP PILLOW BLOCK MOUNTED BEARING consists of an INSERT BEARING and a CAST IRON housing. The INSERT BEARING has Triple-Lip Seal: Unmatched protection in highly contaminated environments. Ensures significant bearing lifespan in severe dust, sand, slurry, and water. Bearing is Pre-Lubricated with High-Quality Grease, ideal for use in High and Low-temperature settings. Has a Set Screw Lock on its surface for securing the shaft. The PILLOW BLOCK can be mounted on levelled surfaces using the Two Bolt Holes. Grease Fitting Offset on top to Relubricate the bearing.
