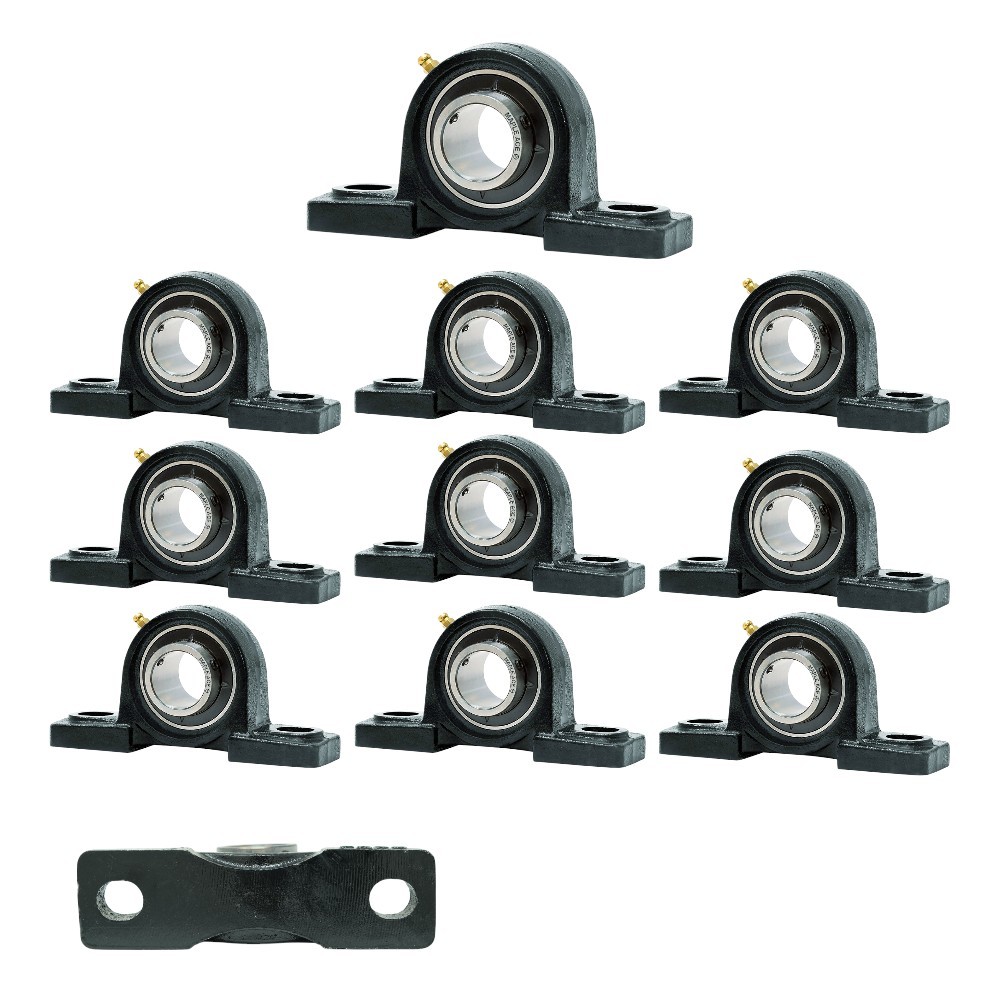

UCP204-12 Pillow Block Bearing 3/4″ Bore, 2-Bolt, Self-Aligning Solid Base Qty10
UCP204-12 Pillow Block Bearing 3/4″ Bore, 2-Bolt, Self-Aligning Solid Base Qty10 UCP204-12 Pillow Block Bearing 3/4″ Bore, 2-Bolt, Self-Aligning Solid Base Qty10 UCP204-12 Pillow Block Bearing 3/4″ Bore, 2-Bolt, Self-Aligning Solid Base Qty10

UCP204-12 Pillow Block Bearing 3/4″ Bore, 2-Bolt, Self-Aligning Solid Base Qty10

USD 60.95 USD
SKU: 44QlXRF4
Brand: MAPLE ACE
MPN: UCP204-12
GTIN: 841339032795
Condition: New
Tags: 0 75 inches 12700 N 4 3/4 inches 6550 N 841339032795 8500 r/min Ball Gcr15 Grease MAPLE ACE Pillow Block Bearing Two Metal Shields (ZZ) UCP204-12
Categories: Heavy Equipment, Parts & Attachments

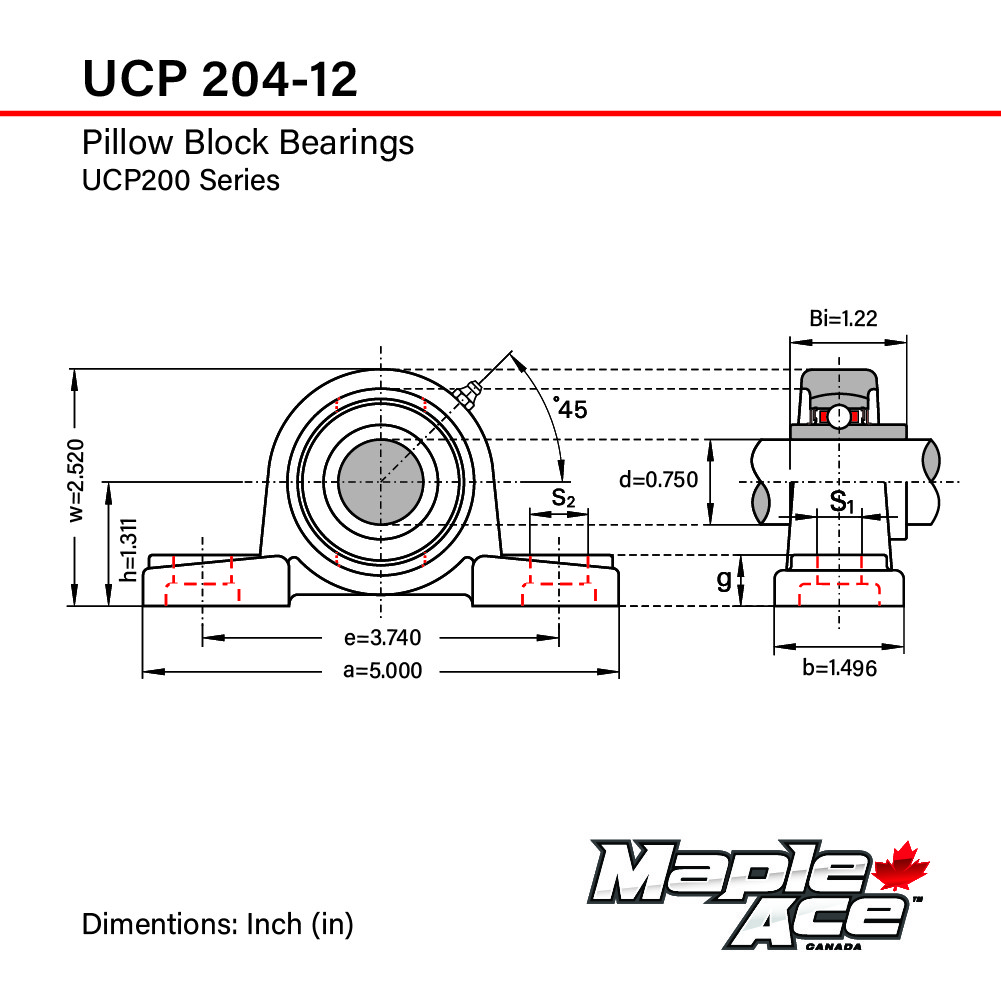

Specifications

BrandMAPLE ACE
MPNUCP204-12
TypePillow Block Bearing
Bore Diameter0.75 inches
Bearing Insert TypePillow Block Bearing
MaterialGcr15
ModelUCP204-12
LubricationGrease
Dynamic Load Rating Cr12700 N
Limiting Speed8500 r/min
Rolling Element IndicatorBall
Static Load Rating Cor6550 N
ClosuresTwo Metal Shields (ZZ)
UPC841339032795

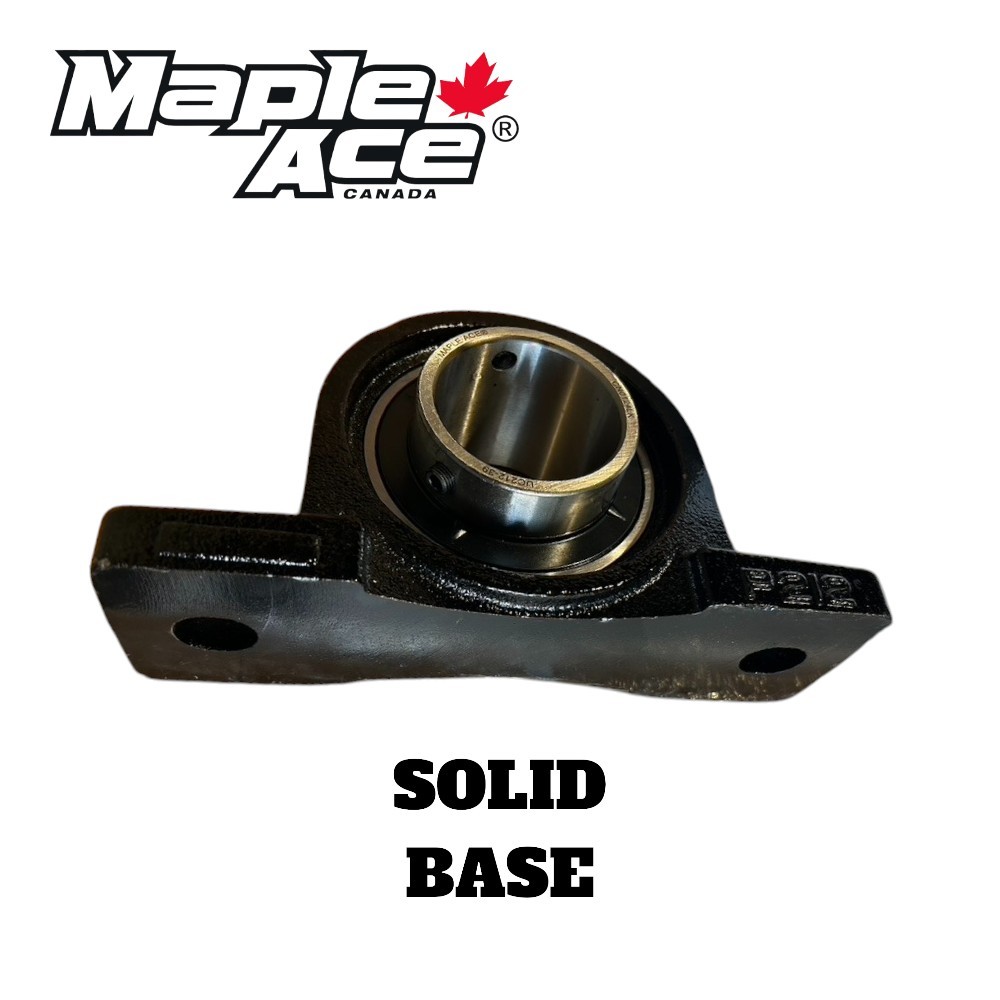

This UCP PILLOW BLOCK MOUNTED BEARING consists of an INSERT BEARING and a CAST IRON housing. The PILLOW BLOCK can be mounted on levelled surfaces using the Two Bolt Holes. Grease Fitting Offset on top, to Relubricate the bearing. The INSERT BEARING has Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination. Bearing is Pre-Lubricated with High-Quality Grease ideal for use in High and Low-temperature settings. Has a Set Screw Lock on its surface, for securing the shaft.
