TSUBAKI 50B14FP SingleStrandSprocket,5/8in,7/8in,Single 20UF57

Specifications

Single Strand Sprocket, Bore Diameter 7/8 in, For Chain Pitch 5/8 in, For Number of Strands Single, Hub Type One Side, Material Steel, Maximum Bore Diameter 7/8 in, Number of Teeth 14, Outside Diameter 3.11 in, Pitch Diameter 2.809 in, Bore Type Fixed, Chain Number 50, Finish Black Oxide, For Pitch Type Single Pitch, Hub Diameter 2 1/8 in, Hub Projection 0.657 in, Includes Set Screws, Keyway Yes, Keyway Depth 3/32 in, Keyway Width 3/16 in, Length through Bore 1 in, Material Grade 1045 ANSI standard sprocket for use with standard roller chain. Constructed of high-carbon and heat-treated steel alloy. Standard keyway and 2 setscrews included.

Related Items

6 1/2 in x 4 7/8 in x 2 5/8 in Inside H, Literature Mailer, White, Corrugate,

Boston Gear F71815B5G Right Angle Gear Reducer 56c 5/8in 7/8in 0.91hp 15:1

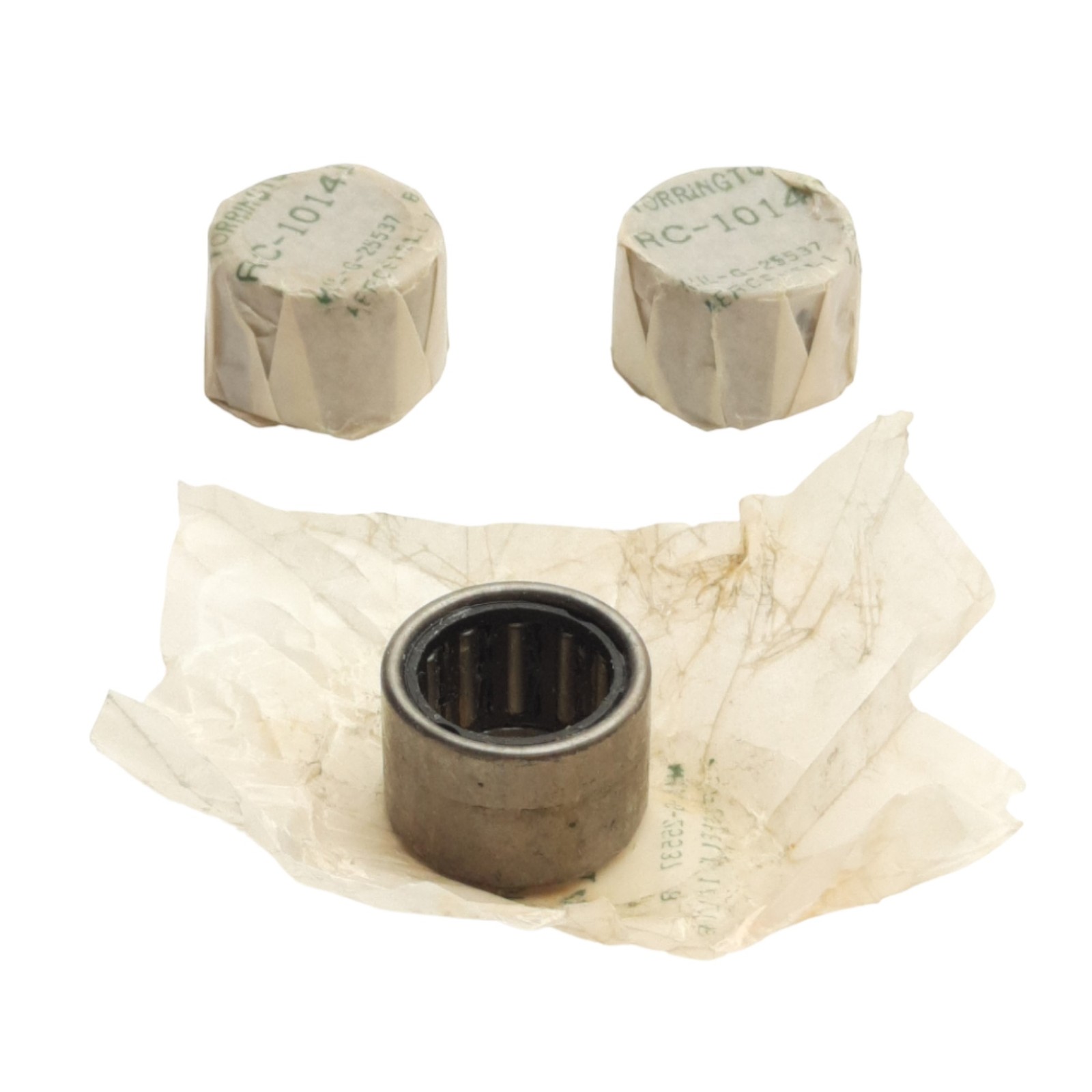

Lot of 3 Torrington RC-101410 Needle Roller Bearings 5/8in ID x 7/8in OD

3/8-16 Hex Head Bolts Zinc All Lengths 1/2In 5/8In 3/4In 7/8In 1In up to 12 Inch

Hub City 214 0230-02568 Right Angle Gear Reducer 5/8in 7/8in 15:1

7 Pk of 2 Brass Miniature Decorative Hinge 5/8 In. x 1-7/8 In. National N211-433

True 810878 Gasket,25 5/8 In. X 25 7/8 In.

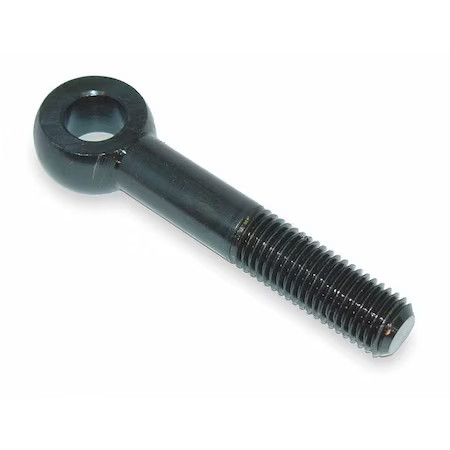

Te-Co 42950 Eye Bolt With Shoulder, 5/8″-11, 3-7/8 In Shank, 5/8 In Id, Steel,
