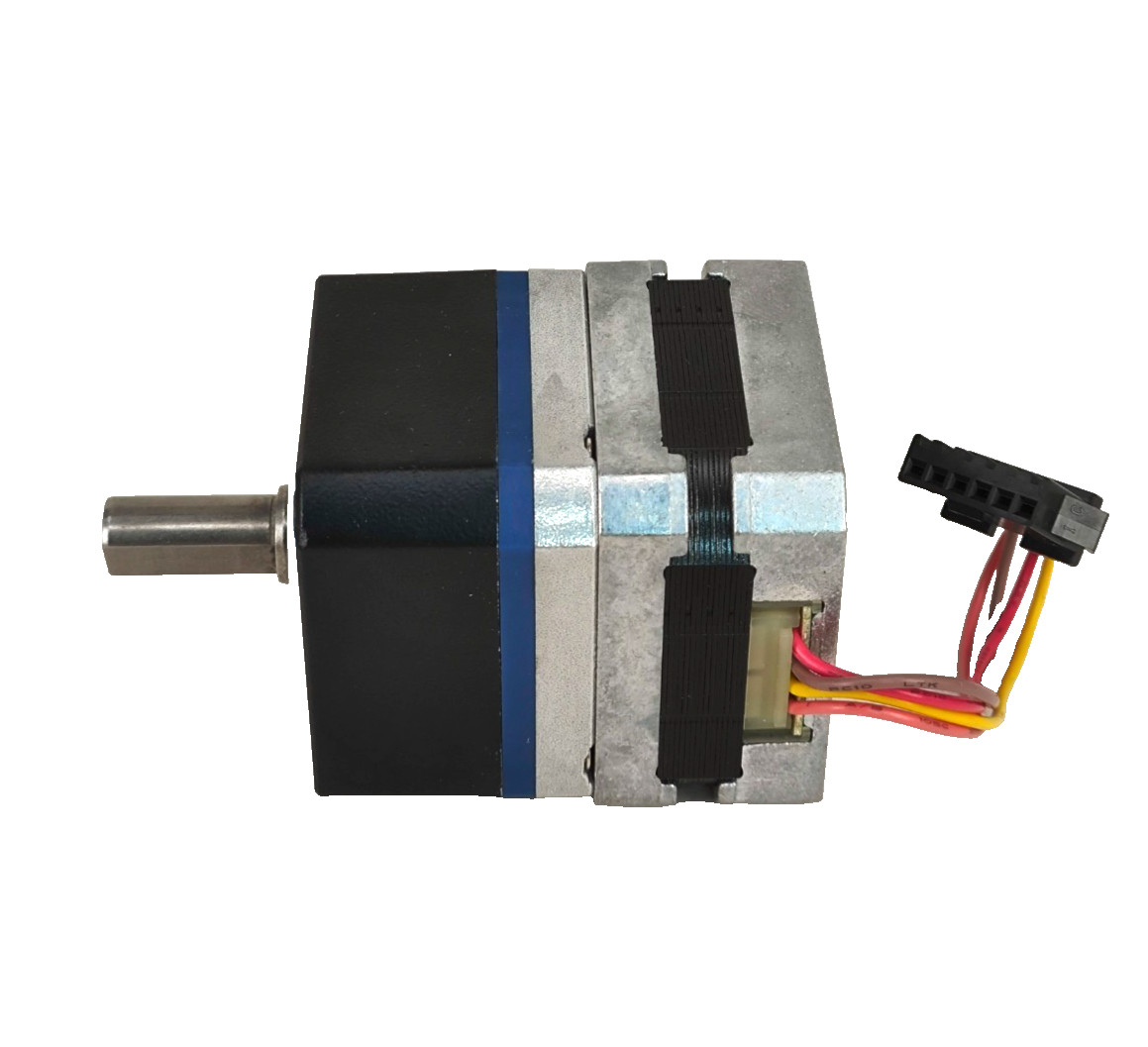

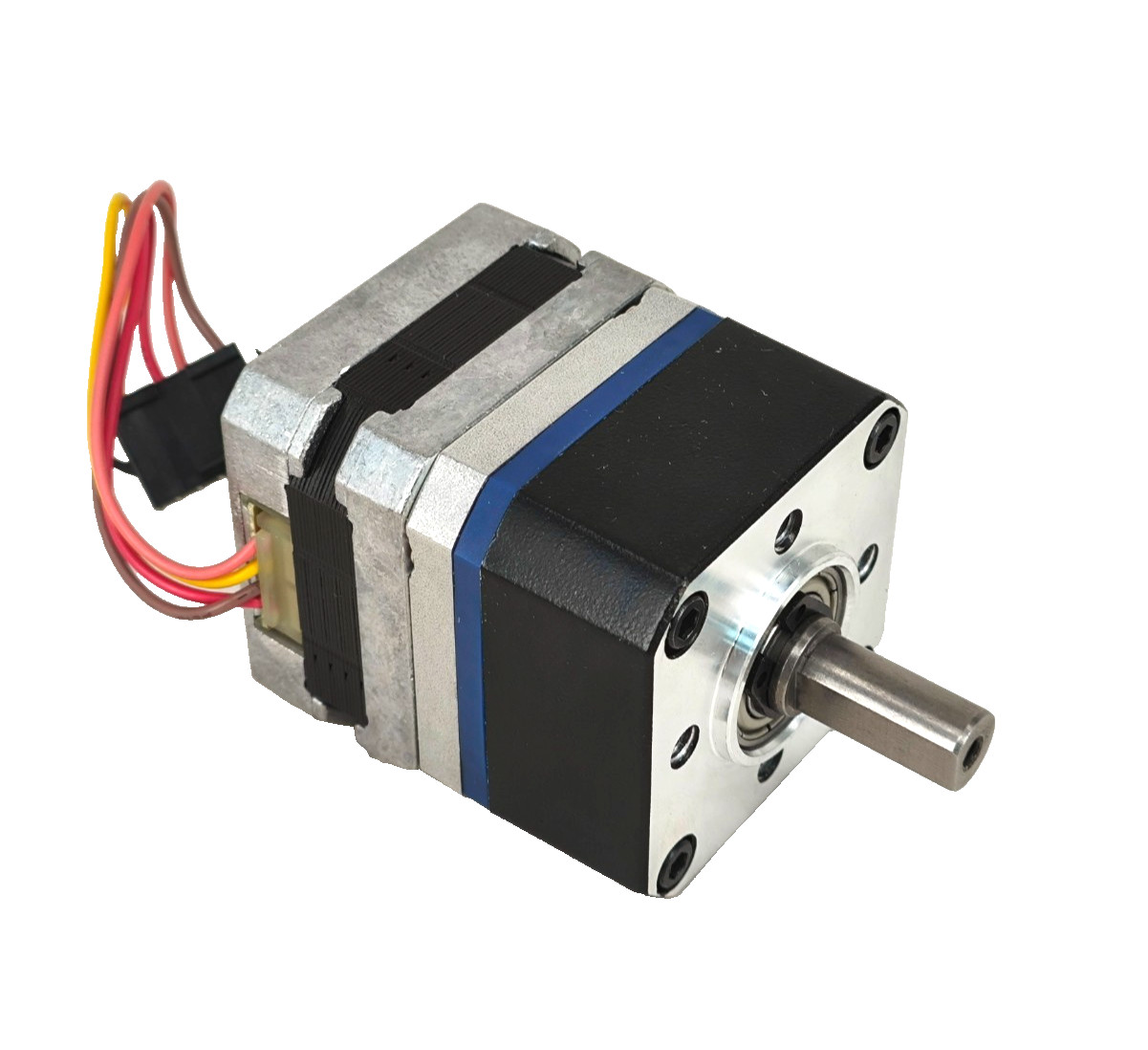

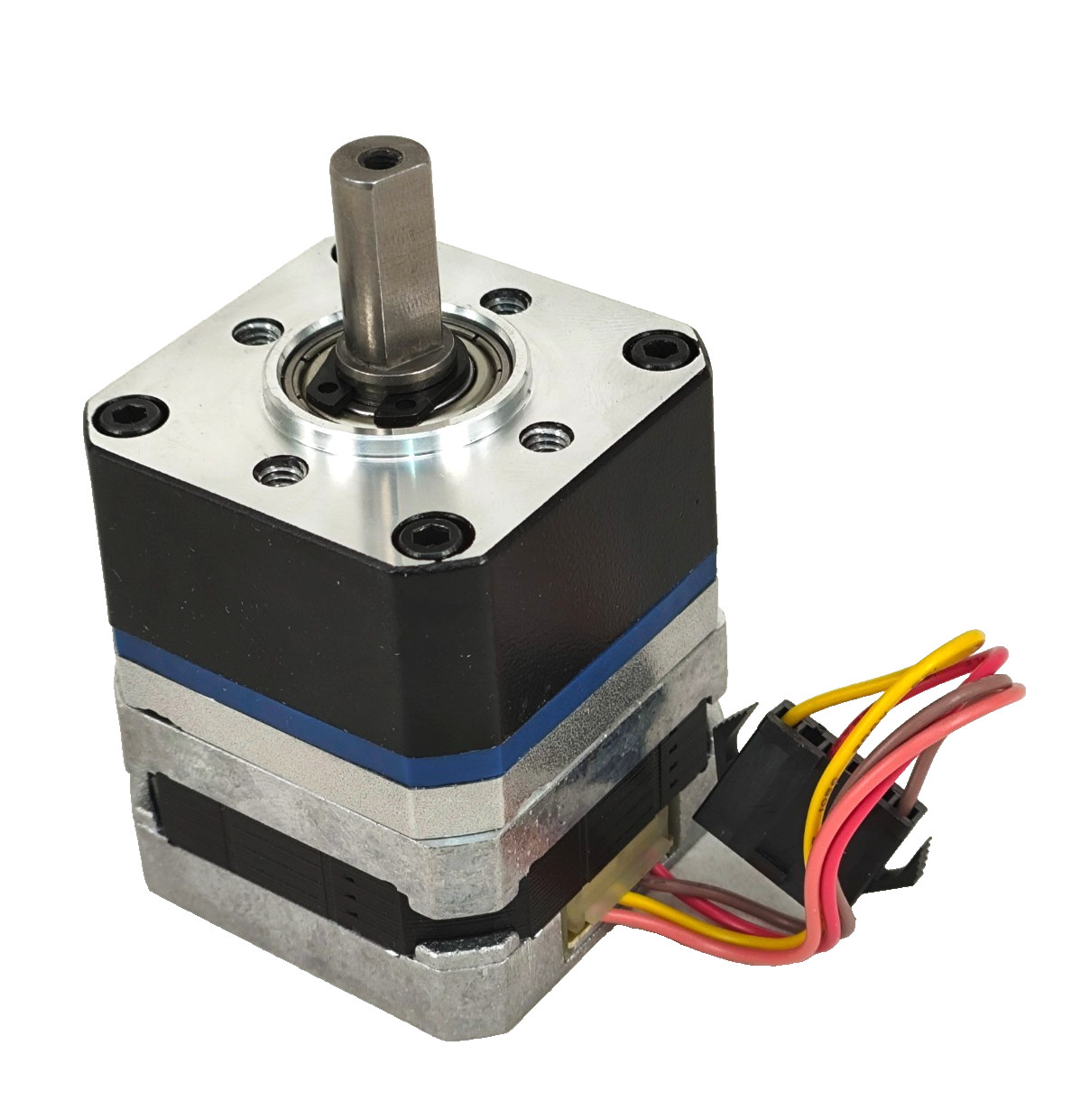

TS42 Cycloidal Reducer Nema17 Stepper Motor Ratio 15:1 Lenght 49mm Low Backlash
TS42 Cycloidal Reducer Nema17 Stepper Motor Ratio 15:1 Lenght 49mm Low Backlash TS42 Cycloidal Reducer Nema17 Stepper Motor Ratio 15:1 Lenght 49mm Low Backlash TS42 Cycloidal Reducer Nema17 Stepper Motor Ratio 15:1 Lenght 49mm Low Backlash TS42 Cycloidal Reducer Nema17 Stepper Motor Ratio 15:1 Lenght 49mm Low Backlash

TS42 Cycloidal Reducer Nema17 Stepper Motor Ratio 15:1 Lenght 49mm Low Backlash

USD 39.90 USD
SKU: 1n9wAjIz
Brand: Unbranded
MPN: TS4215M2N
Condition: New
Tags: 1.0A 1.68 Nm 1.8° (200 Steps) 151 2.3 ohm±10% 24 V 4-Wire Bipolar 8mm B (Max 266°F) Ca. 290g Ca. 3 arcmin China Not NEMA Rated Not Rated Solid Shaft TS4215M2N Unbranded Unit
Categories: Testers & Calibrators

Specifications

Country Of OriginChina
Full Step Angle1.8° (200 Steps)
Full Load Amps1.0A
BacklashCa. 3 arcmin
Rated Current Per Phase1.0A
Shaft TypeSolid Shaft
Shaft Diameter8mm
MPNTS4215M2N
Insulation ClassB (Max 266°F)
WeightCa. 290g
Holding Torque1.68 Nm
BrandUnbranded
Unit TypeUnit
IP RatingNot Rated
Resistance Per Phase2.3 ohm±10%
Nominal Rated Input Voltage24 V
Ratio15:1
Wiring Configuration4-Wire Bipolar

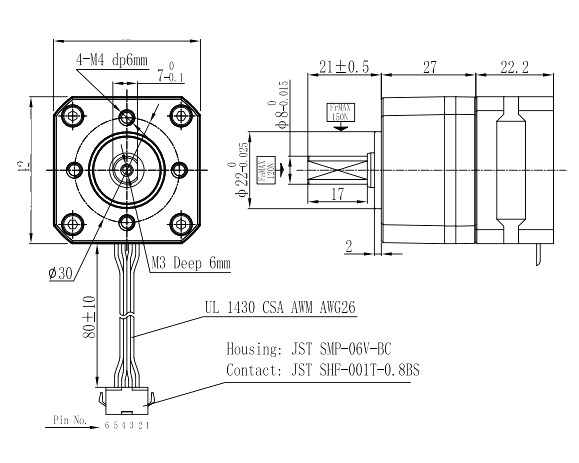

Size： NEMA17 42 42 49 mm. Backlash : ≤ 3 Arcmin. Step Angle ： 1.8º. Ratio : 15:1. >High Transmission Efficiency. Noise : ≤ 40 dB. 11: Lubrication : Life Grease. High Precision.
