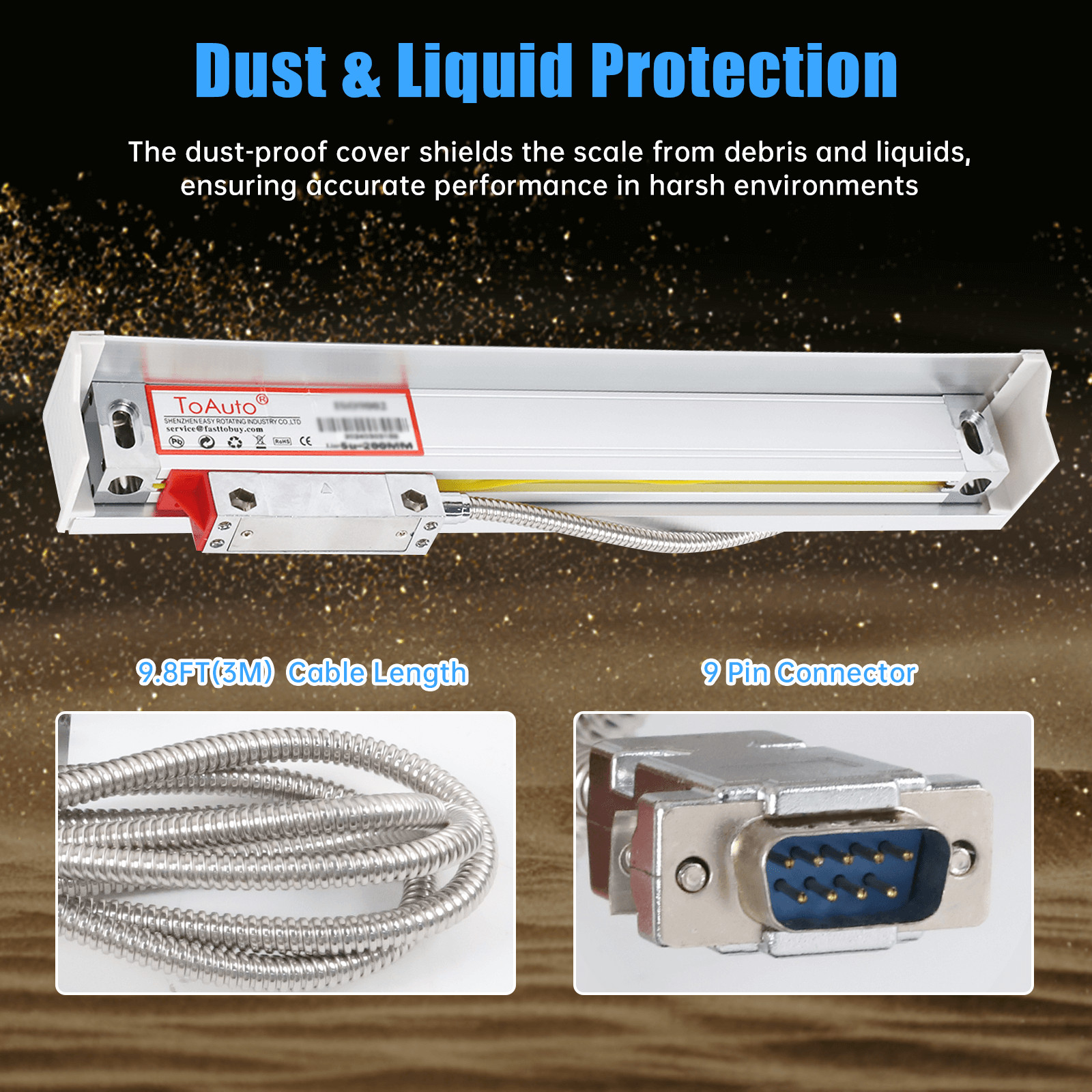

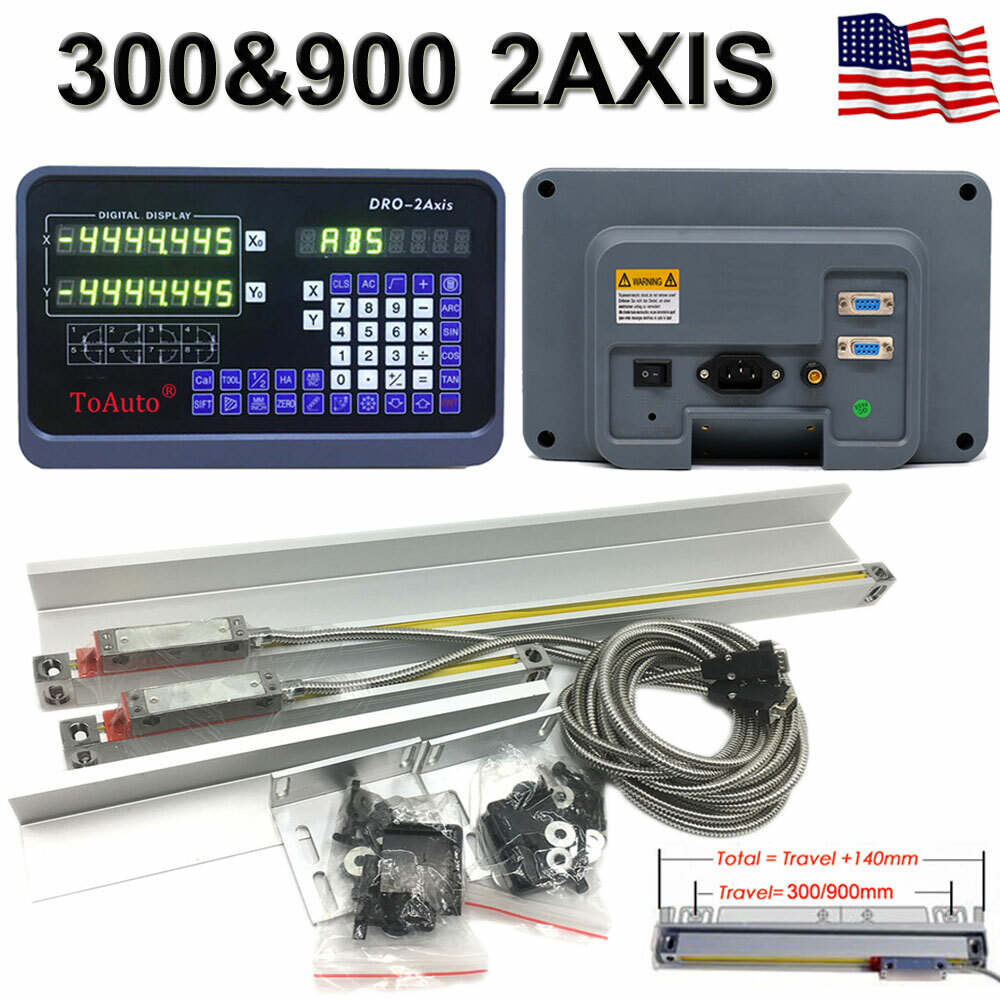

ToAuto Digital Readout 12″& 36″ Linear Scale with 2 Axis DRO for Bridgeport Mill
Specifications
| Country Of Origin | China |
| Brand | ToAuto |
| Type | Digital Readout |
| Axis | 2Axis |
| Compatible Equipment Type | Lathe |
| Model | DRO-2Axis 300&900 |
| Power Consumption: | 15VA |

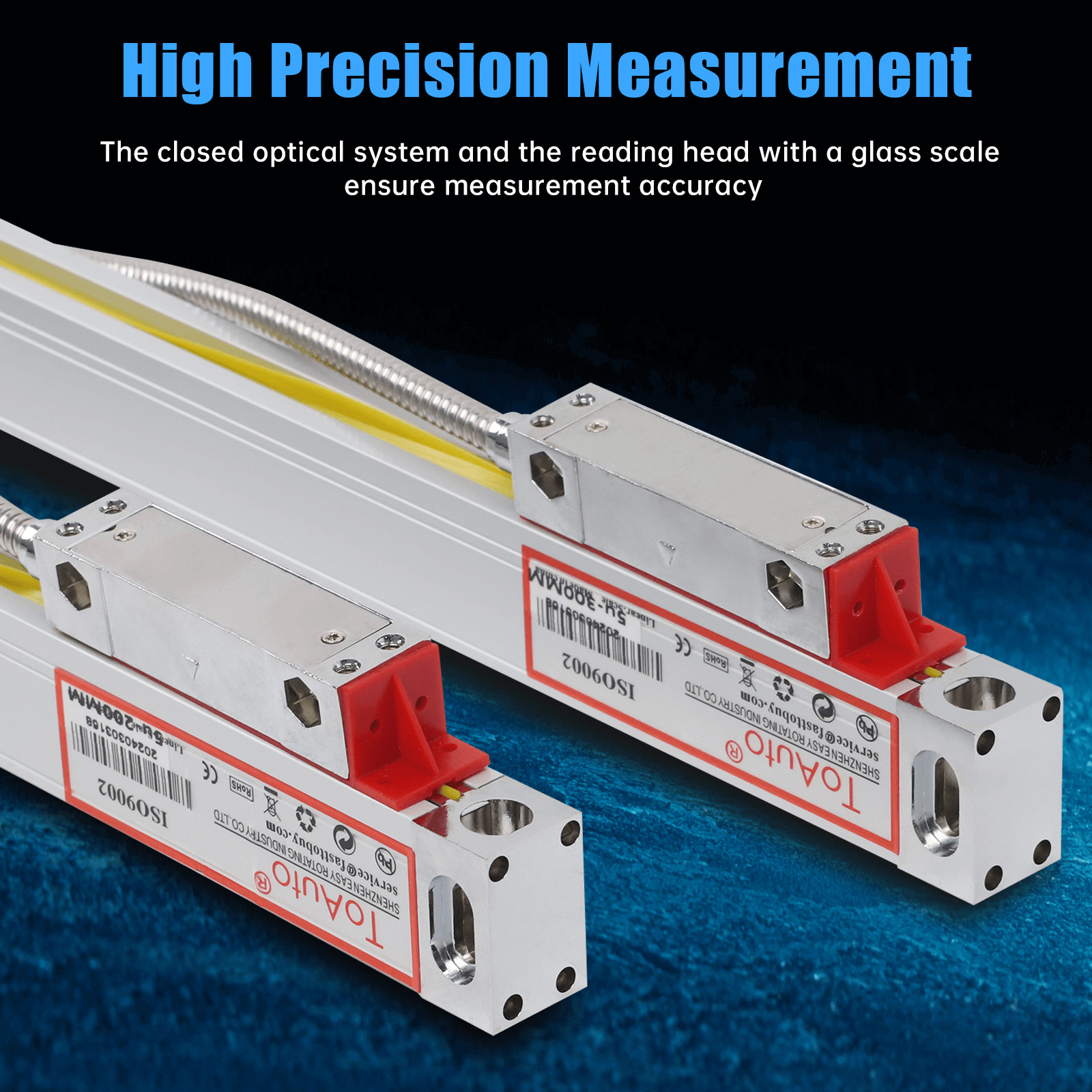

| Scale | Optical |
| Length Resolution: | 5µm |
| Length | 300&900mm |
| X-Axis Travel Bed | 10'' - 15'' |
| Y-Axis Travel Bed | 36'' - 40'' |
| Function | Milling |
| Machine Type | Milling Machine |
| Control | CNC |
| Voltage | 110 V |
| California Prop 65 Warning | IP65 |
| Custom Bundle | Yes |

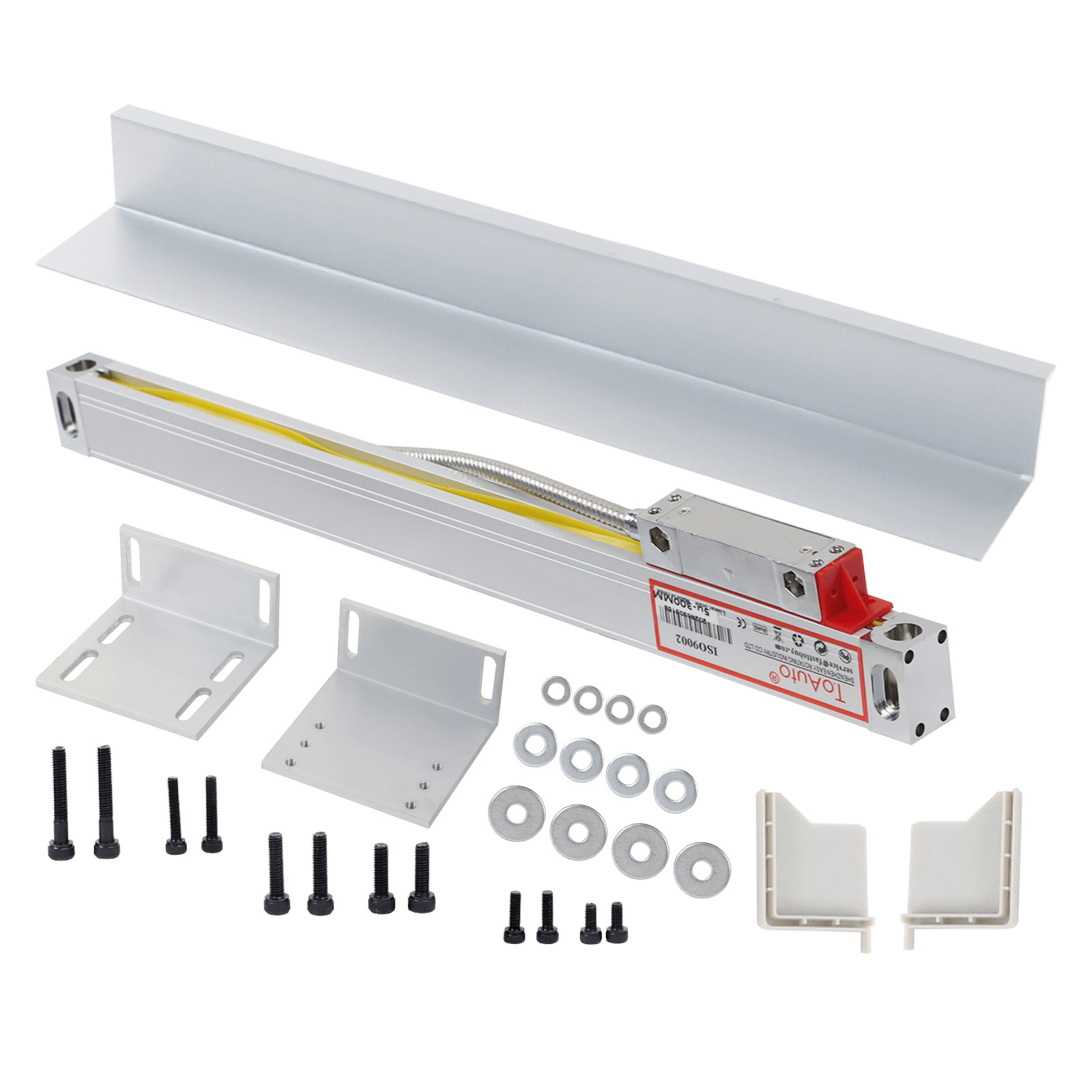

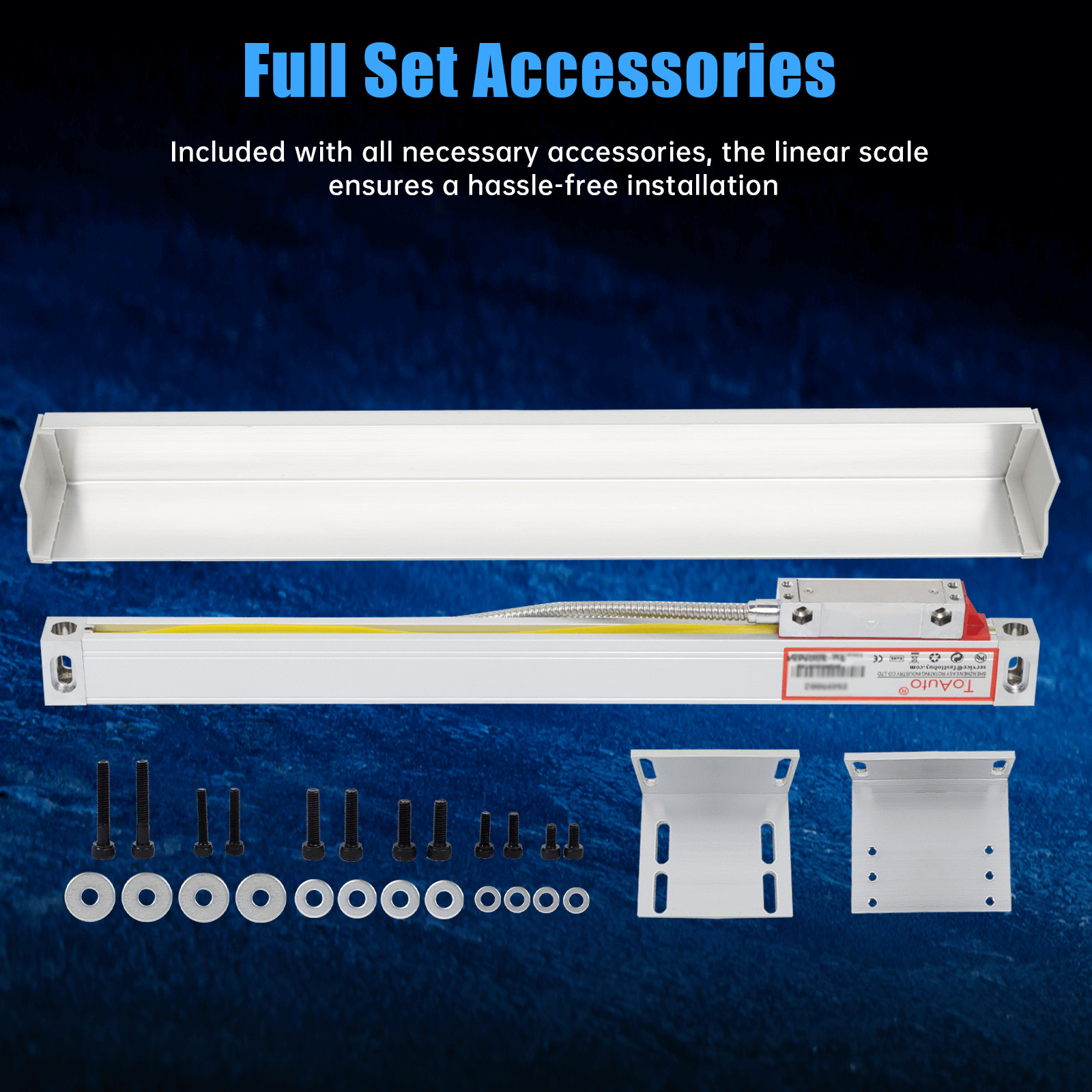

Function : AC80V~260V,50~60Hz,US/UK/AU/EU plug Power consumption: 15VA Operating temperature: 0~45℃ Storage temperature: -30~70℃ Relative humidity: Less than 90% Readout input signal: TTL square wave Input signal frequency: Less than 5M Hz Resolution : 5µm (0.005mm/0.0002") Min resolution of DRO angle :0.0001/pulse DRO Dimensions: 11.6"X6.7"X2.56" Linear Scale Interface: DB9(RS232) SDM 200 sets memory, power-off memory for 10years , circumference drilling, oblique line drilling, 1/2 centering PCD function R function Smooth R function The simple R function Chambering (applicable to: Milling machine,Boring machine) Tool conpensation (for lathe) Machining of oblique plane Calculator Package Included : 1pc 2Axis DRO 2pc Linear Scale 300+900MM (12" & 36") 1set Accessoies 1pc User Manual.
