TOAUTO 10» 40» Linear Scale 2 Axis DRO Display 5um Digital Readout US Stock
Specifications
| Brand | ToAuto |
| Type | Digital Readout |
| Axis | 2Axis |
| Compatible Equipment Type | Lathe |
| Model | DRO-2Axis 250&1000 |
| Power Consumption: | 15VA |
| Scale | Optical |
| Length Resolution: | 5µm |
| Length | 250&1000mm |
| X-Axis Travel Bed | 10" |
| Y-Axis Travel Bed | 40" |
| Machine Type | Milling Machine |
| Function | Milling |
| Control | CNC |
| Country Of Origin | China |

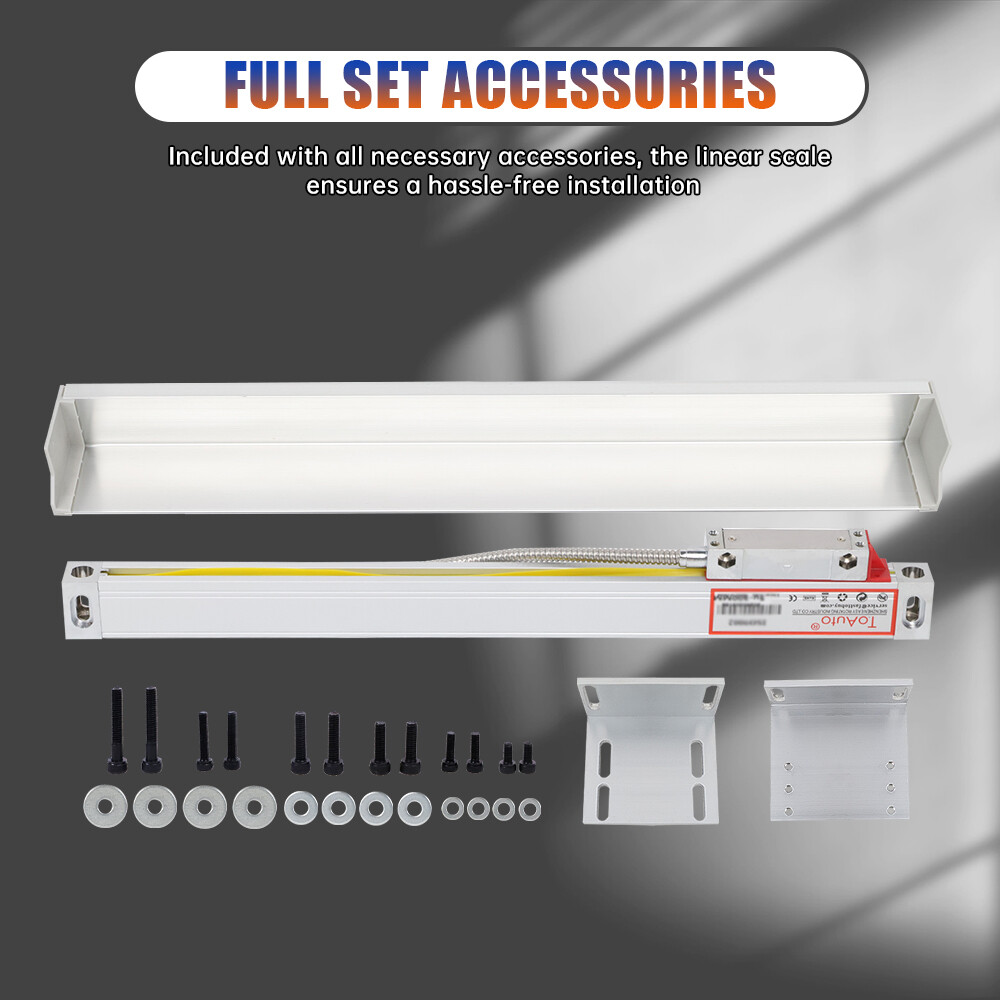

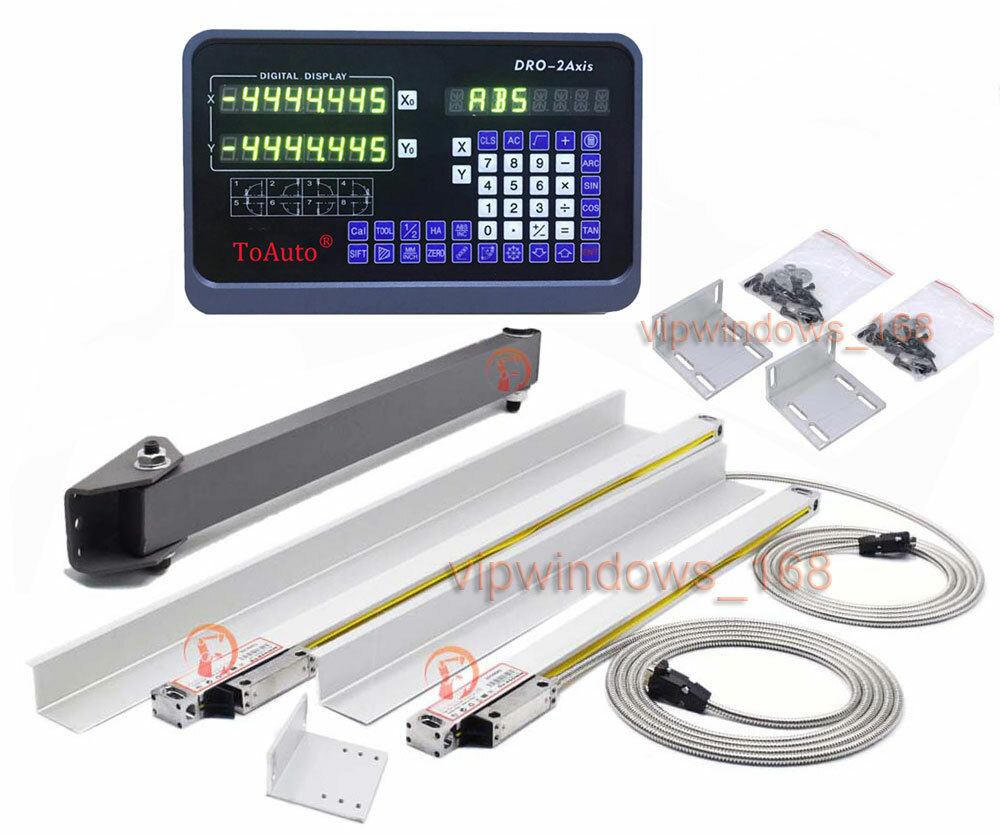

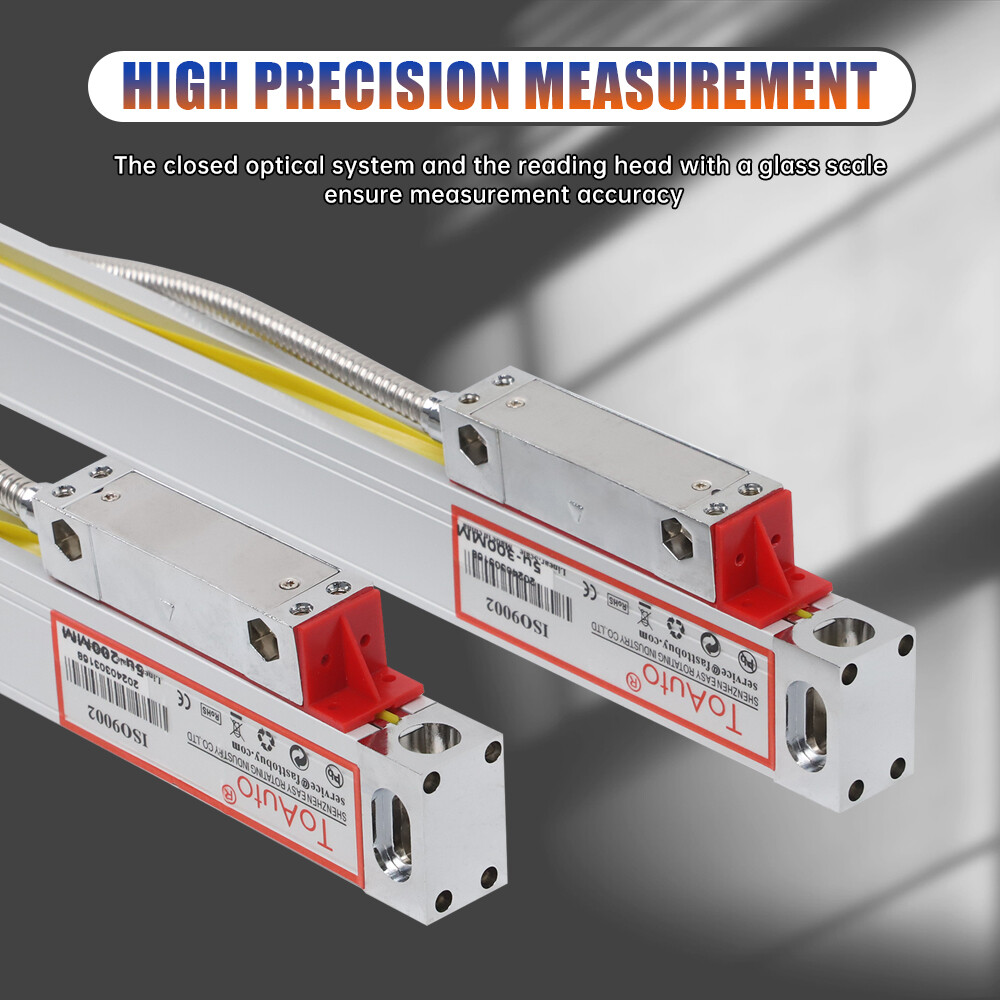

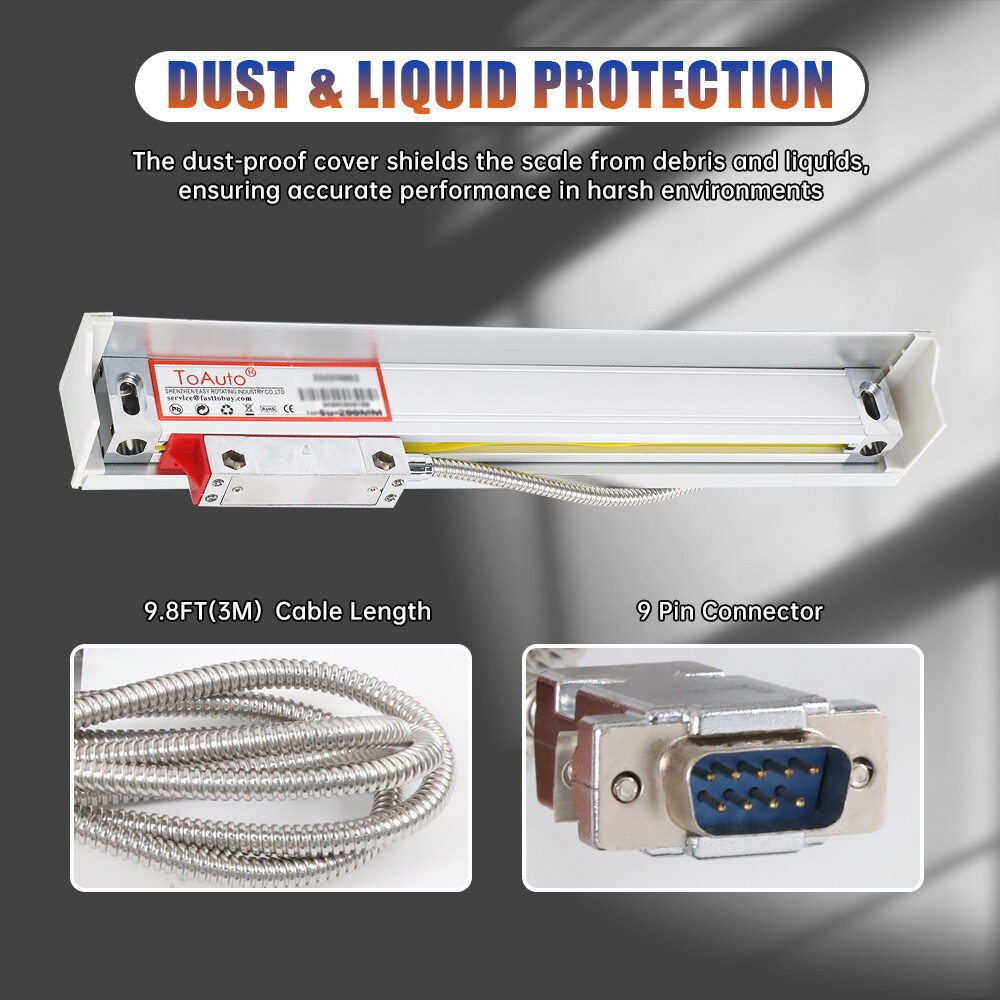

ToAuto 10'' 40'' 2 Axis DRO Kit Digital Readout Linear Scale 250mm & 1000mm(10 in x 40 in) 5um Precision for Mill Lathe,US Stock Features : Supply Voltage range: AC 80V~220V; 50~60Hz Power consumption: 15VA Operating temperatur: 0~45 degree centigrade Storage temperatur: -30~70 degree centigrade Relative humidit: Less than 90% Readout allowable input signal: TTL square wave Allowable input signal frequency: Less than 5M Hz Max resolution of digital display length : 5µm (0.005mm/0.0002") Min resolution of digital display angle : 0.0001/pulse Cable length: 3-meter Dimensions: 283*178*70mm (11.2"*7"*2.8") Linear Scale communicate: DB9(RS232) Display language: English Backup data for power fail: power off Memory by E2PROM for ten years Lifetime: five million times.
