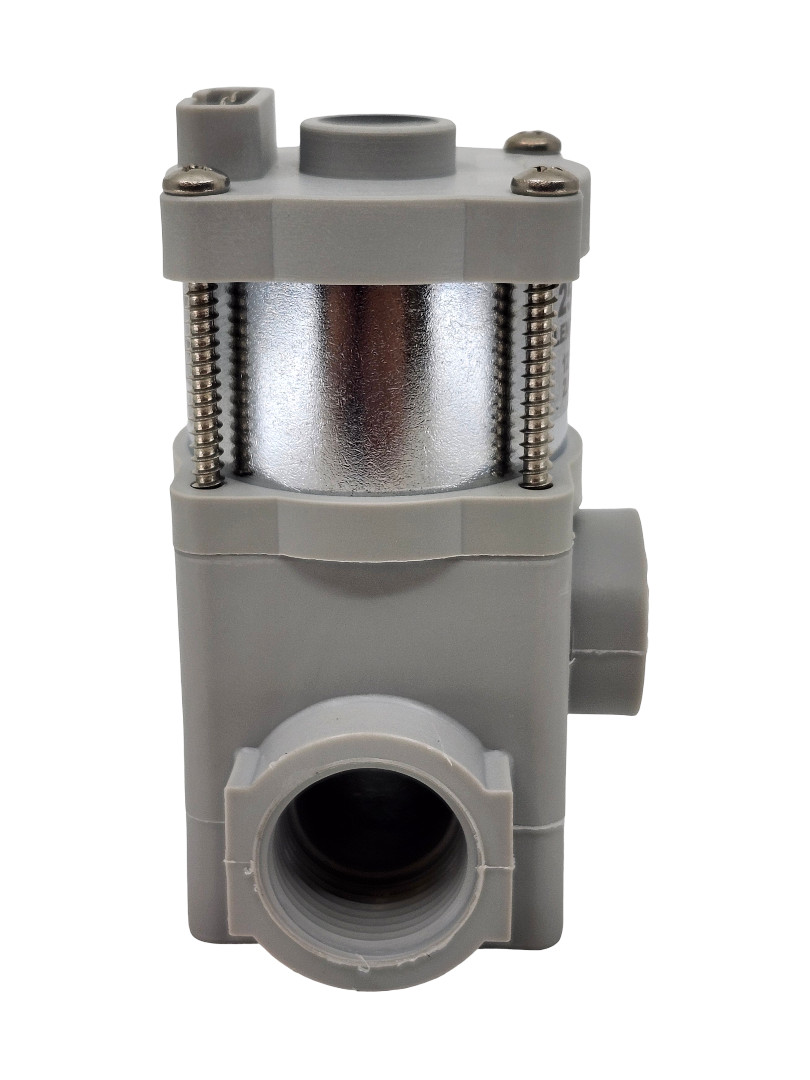

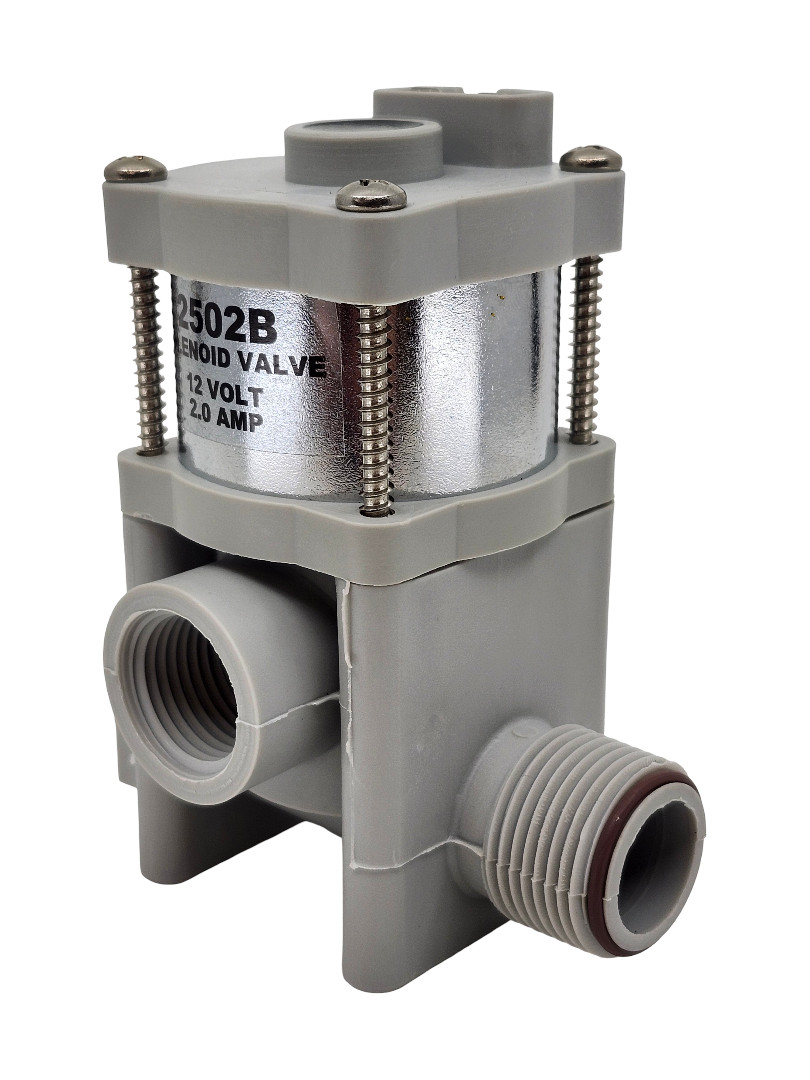

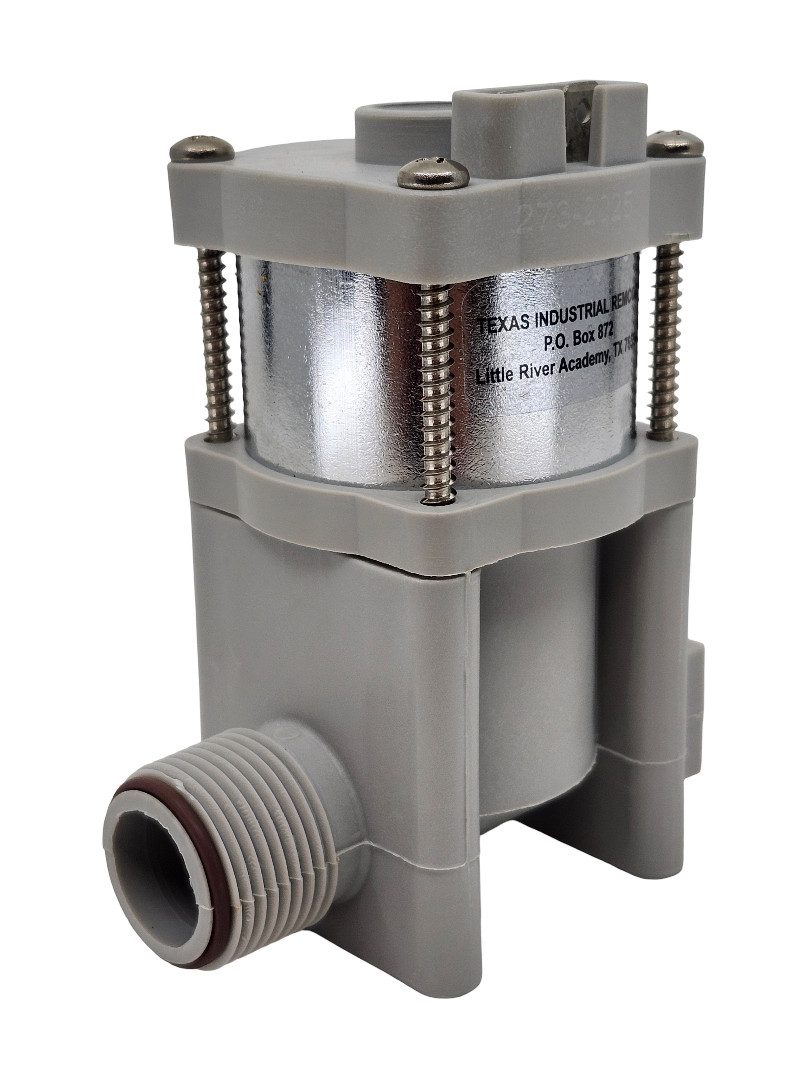

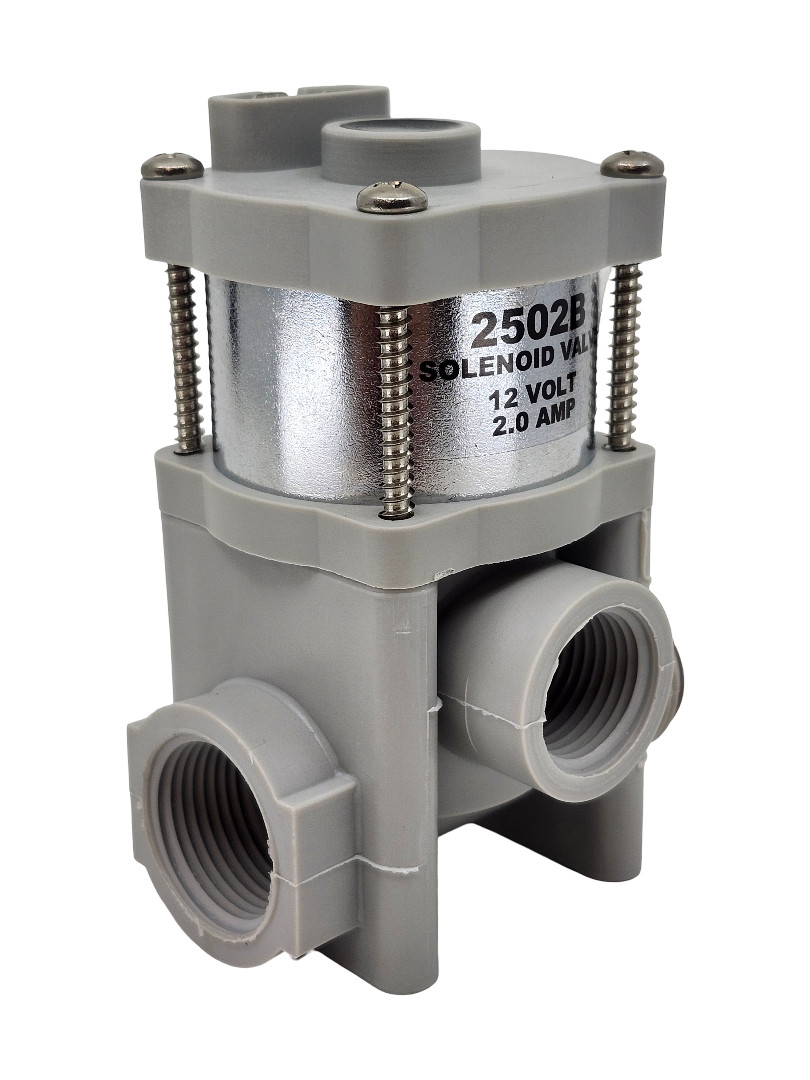

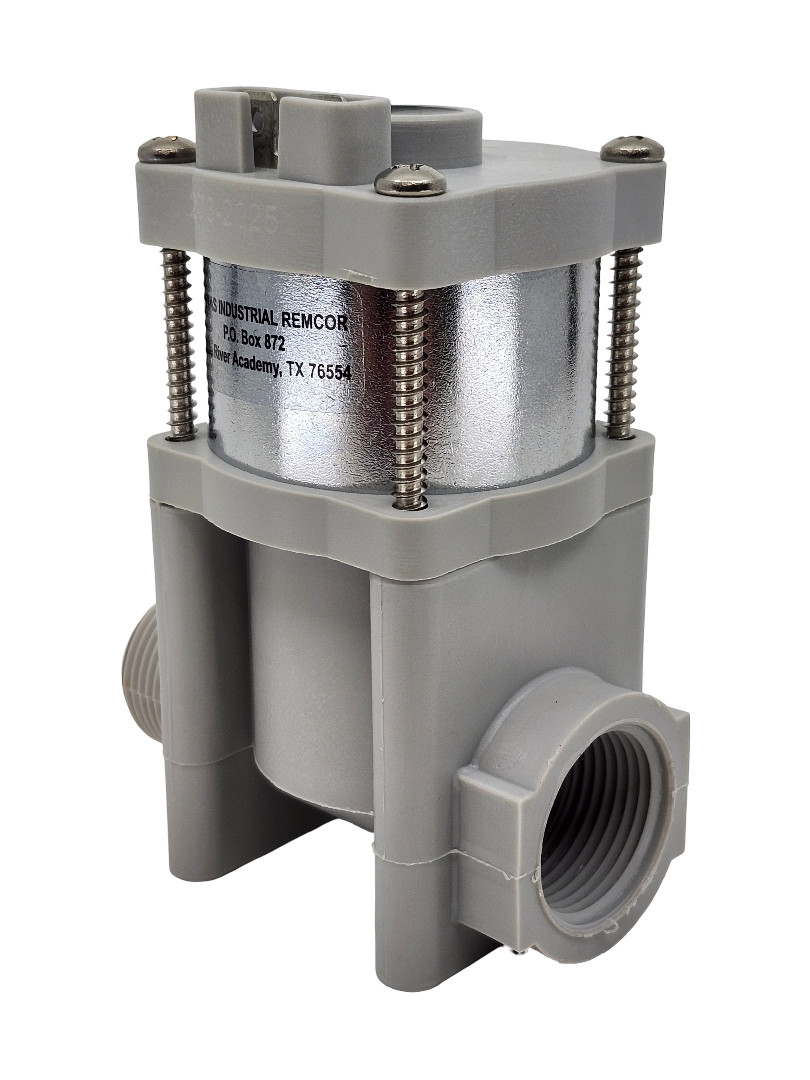

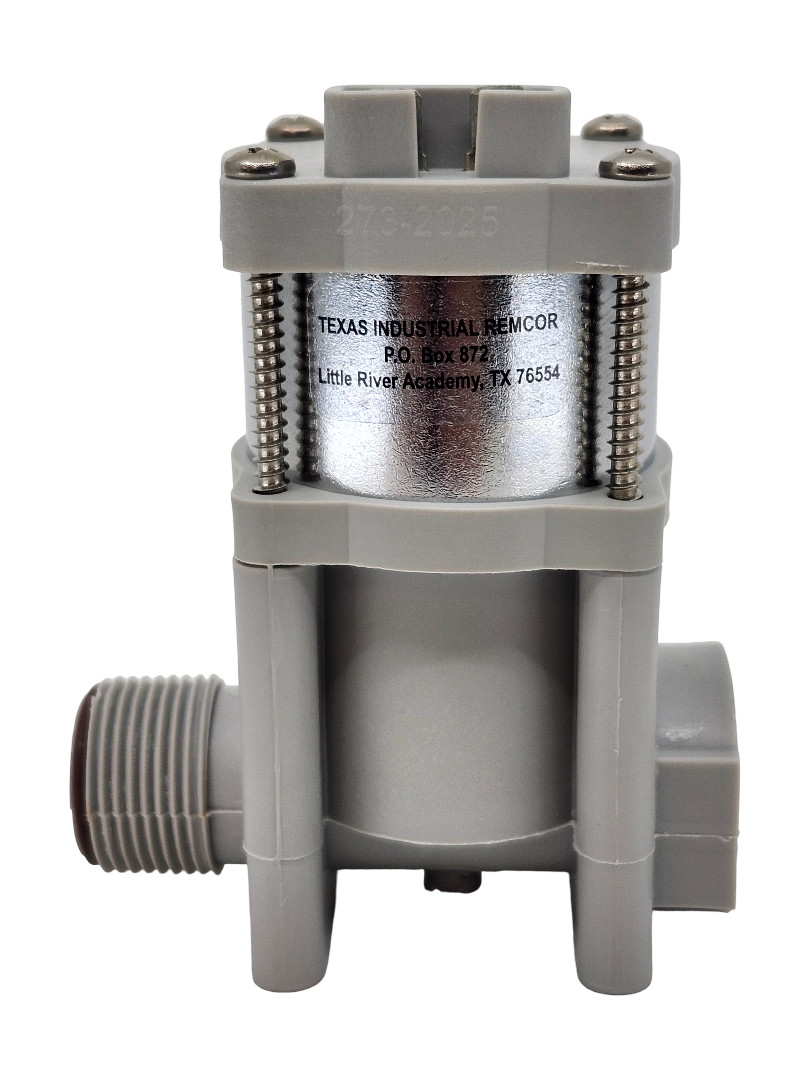

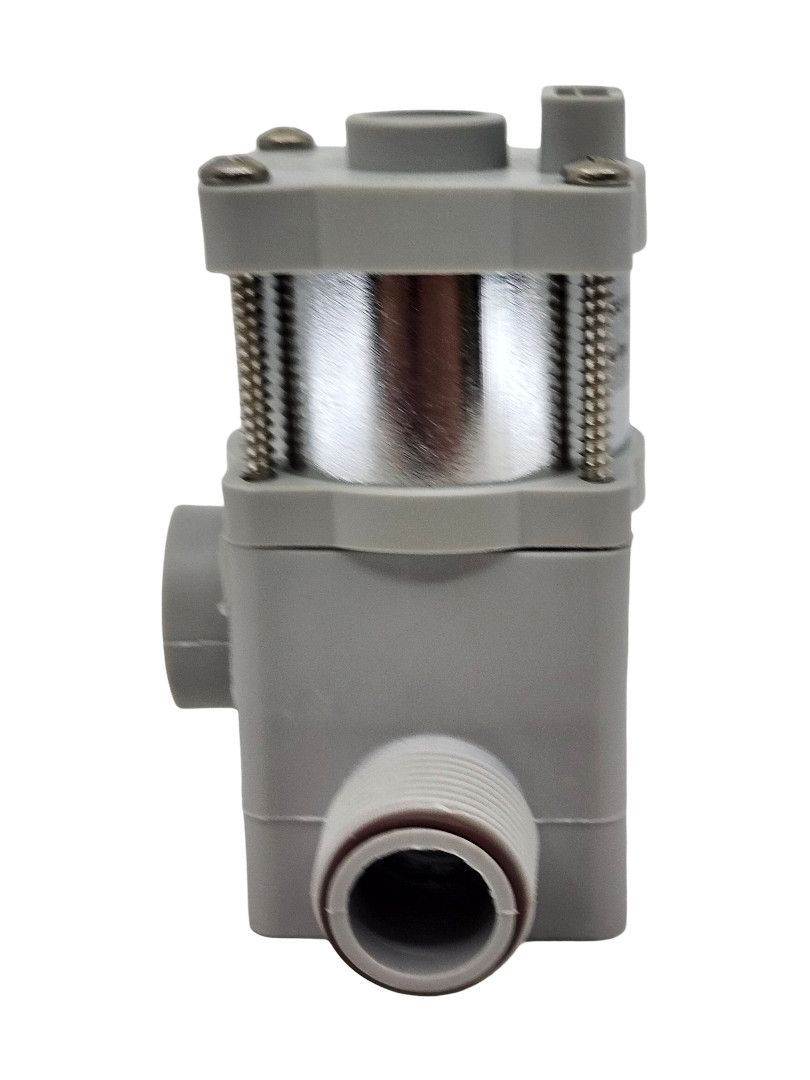

Texas Remcor 2 Way Direct Operating Solenoid Valve 8 GPM Male Spade – SV.2502B.1

Specifications

Texas Remcor 2 Way Direct Operating Solenoid Valve 8 GPM Male Spade - SV.2502B.1 Specs: Weight: 1.5 lbs Dimensions: 8 × 6 × 6 cm Valve Type: 2-Way Direct Operating Flow Type: High Flow Output: 0-8 GPM Maximum Pressure: 175 PSI Power Connection Type: Spade .25" Male Tabs Voltage: 12 Volt D.C. Pressure Drop: 5 PSI at 8 GPM STD. Current Draw: 2 AMPs CV Rating: 3.6 Valve Housing: Glass-Filled Nylon 6/6 Wetted Metal Parts: 430F SS Coil: Standard Diaphragm/ Seat/ Seals - Viton Inlets: .75" NPT Female Bypass Outlets: .75" NPT Male Bypass ' .5" NPT Female Boom Manifold: Manifold Stackable
