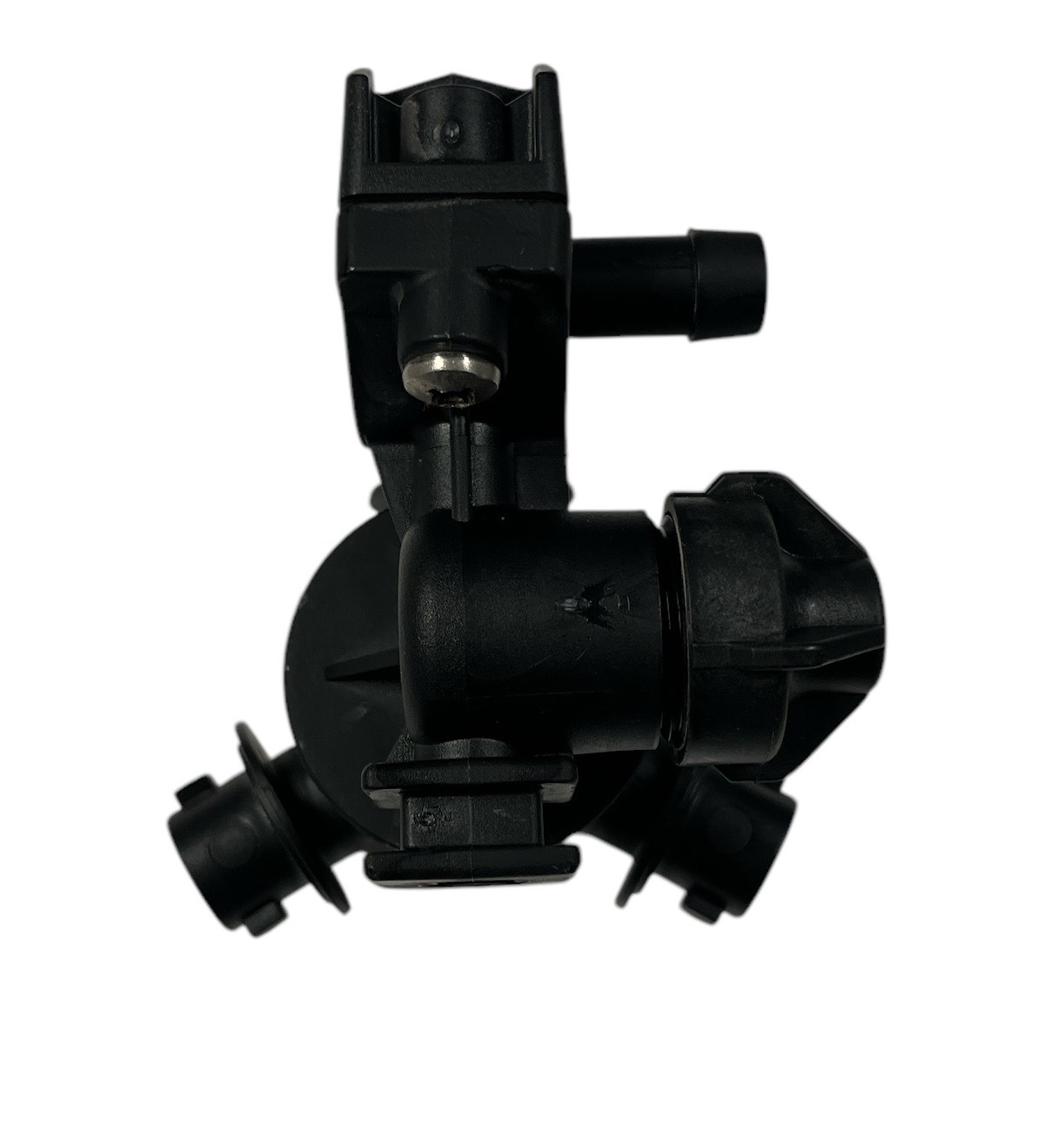

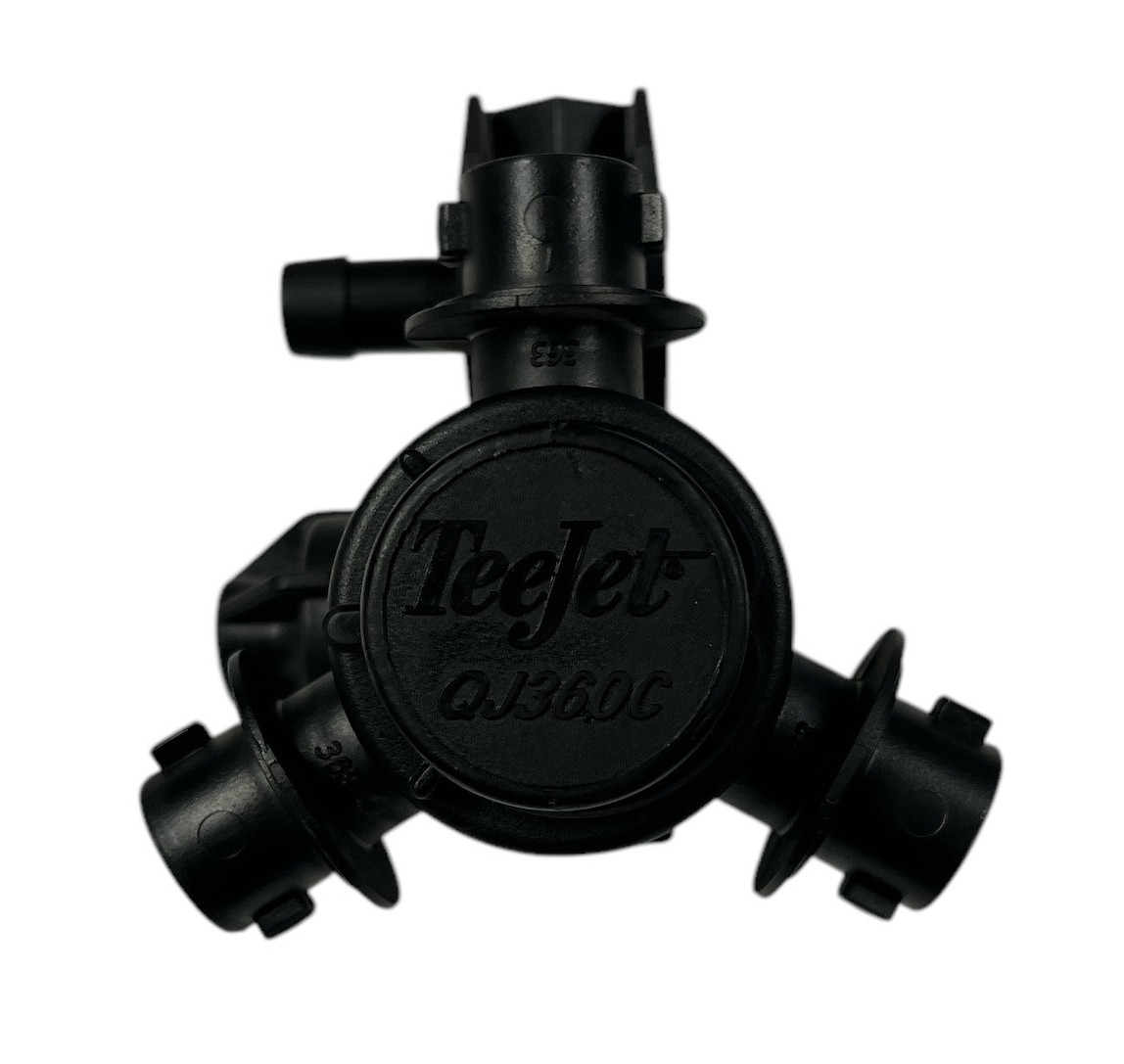

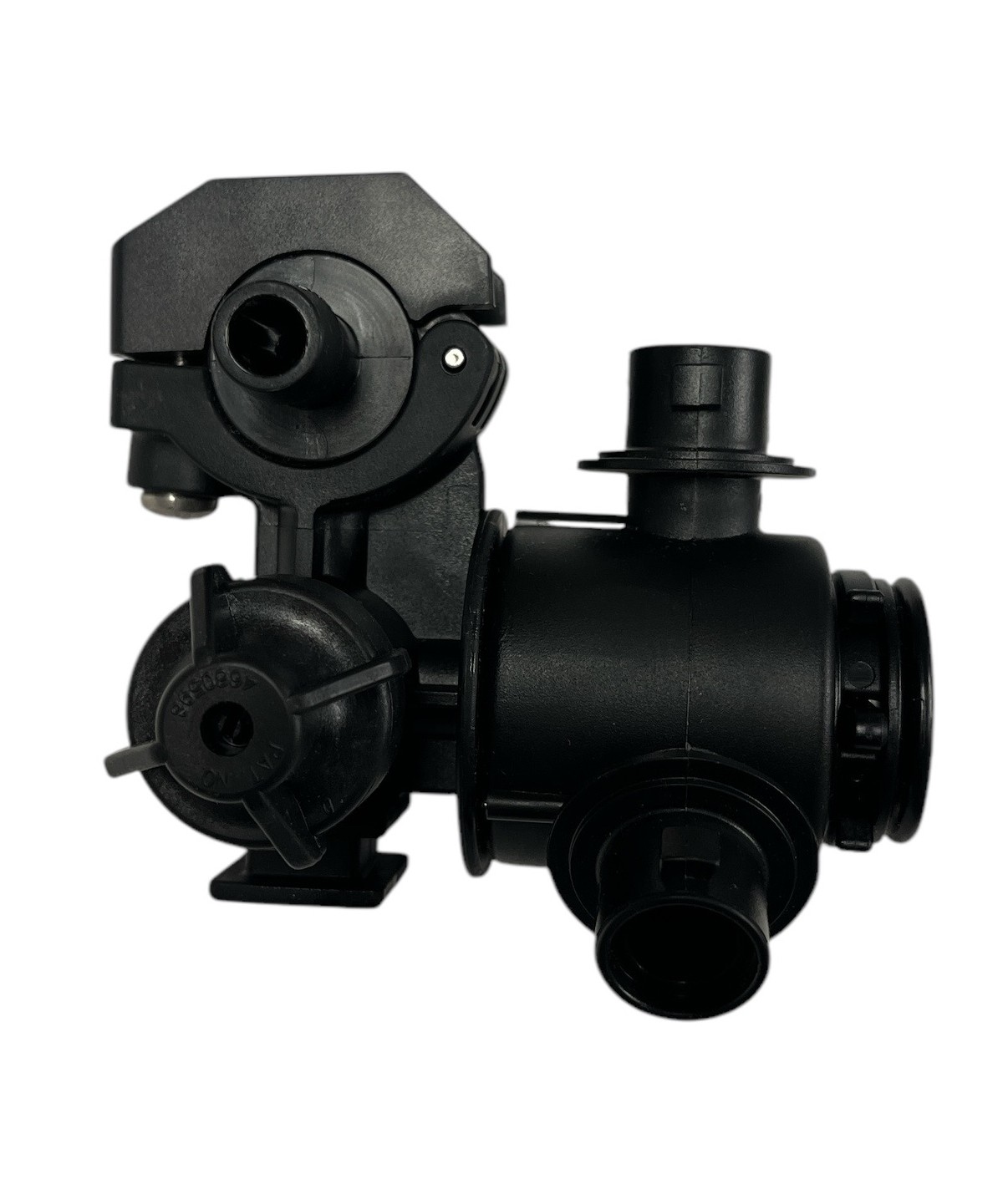

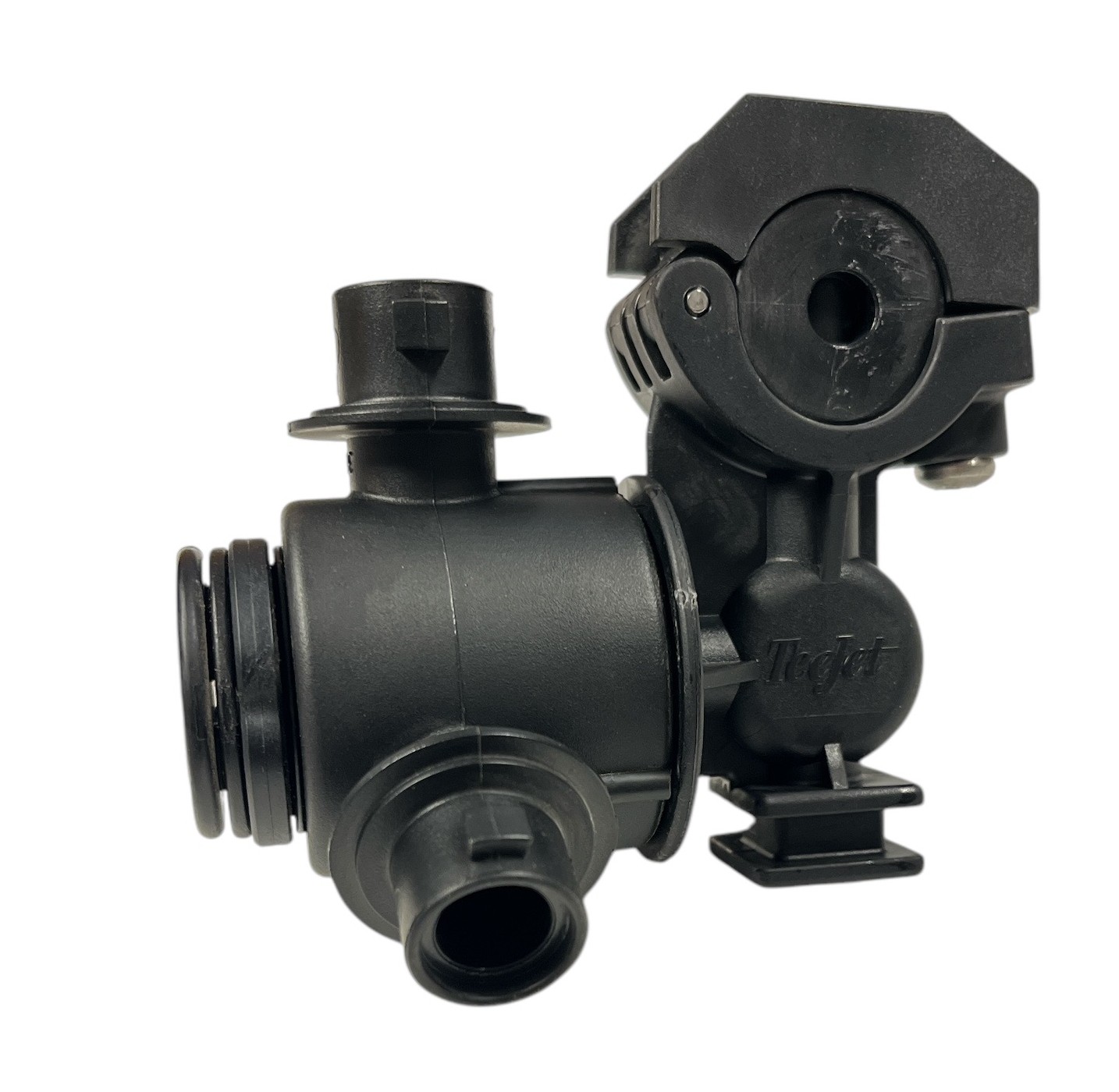

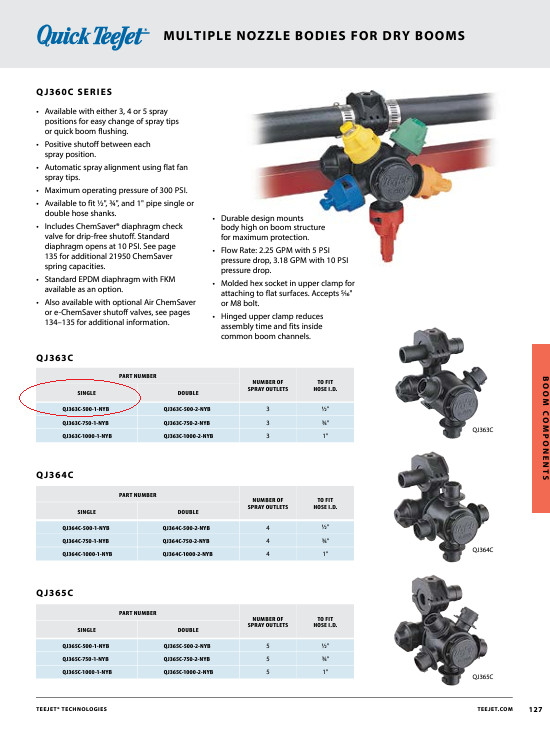

TeeJet Dry Boom Nozzle Body 3-Outlet Single Hose Shank, 1/2″ – QJ363C-500-1-NYB

Specifications

TeeJet Dry Boom Nozzle Body 3-Outlet Single Hose Shank, 1/2" - QJ363C-500-1-NYB Fits 1/2" Hose ID, 3 Spray Outlets, Single Hose Shank Positive shutoff between each spray position. Automatic spray alignment using flat fan spray tips. Maximum operating pressure of 300 PSI Flow Rate: 2.25 GPM with 5 PSI pressure drop, 3.18 GPM with 10 PSI pressure drop. Includes ChemSaver diaphragm check valve for drip-free shutoff. Standard diaphragm opens at 10 PSI. Standard EPDM diaphragm Durable design mounts body high on boom structure for maximum protection. Molded hex socket in upper clamp for attaching to flat surfaces. Accepts 5/16" or M8 bolt. Hinged upper clamp reduces assembly time and fits inside common boom channels.

Related Items

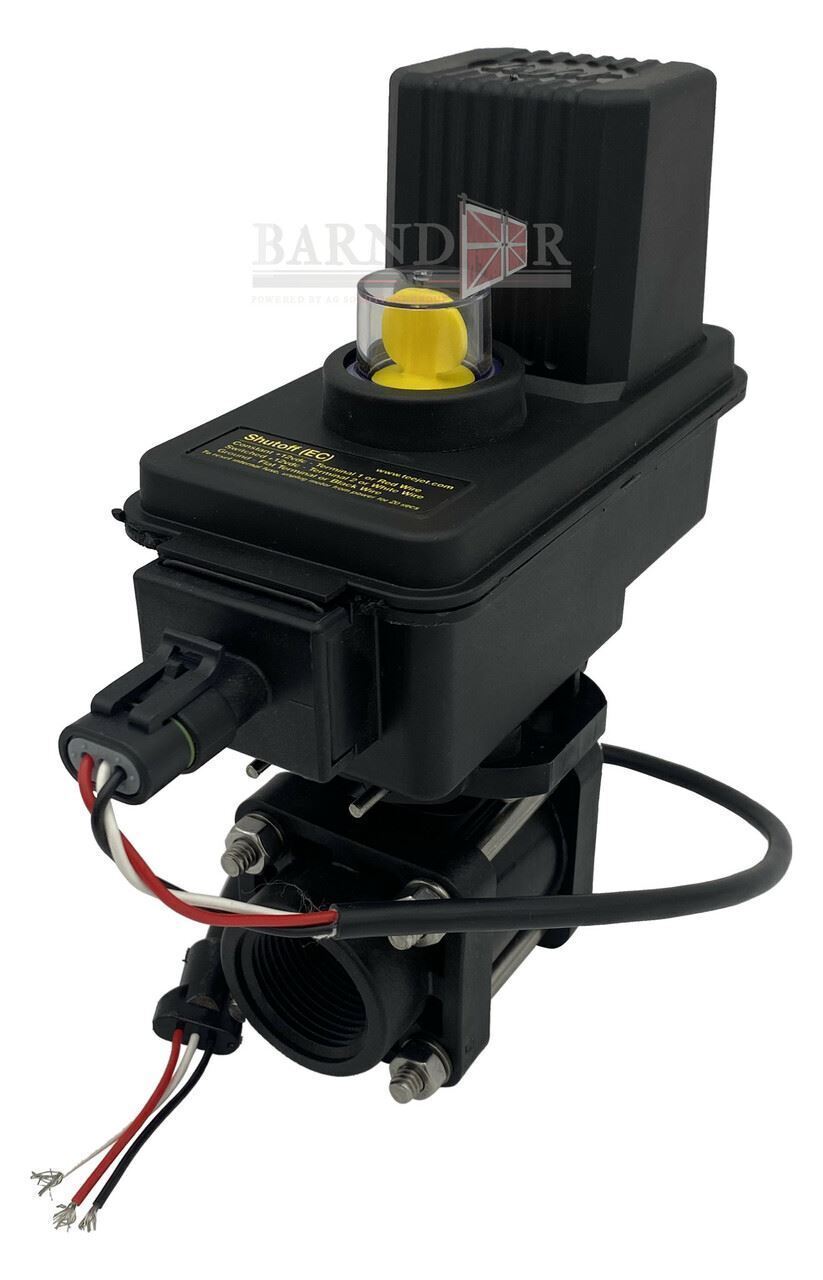

TeeJet 1″ 344 Series Electric Shutoff Valve | 344BEC-24-C

SMART Handheld 1200W Nano Sprayer Disinfection Fogger Gun Machine Sanitization

AIXR11003VP TeeJet Nozzle Air Induction XR Flat Spray Tip, Blue

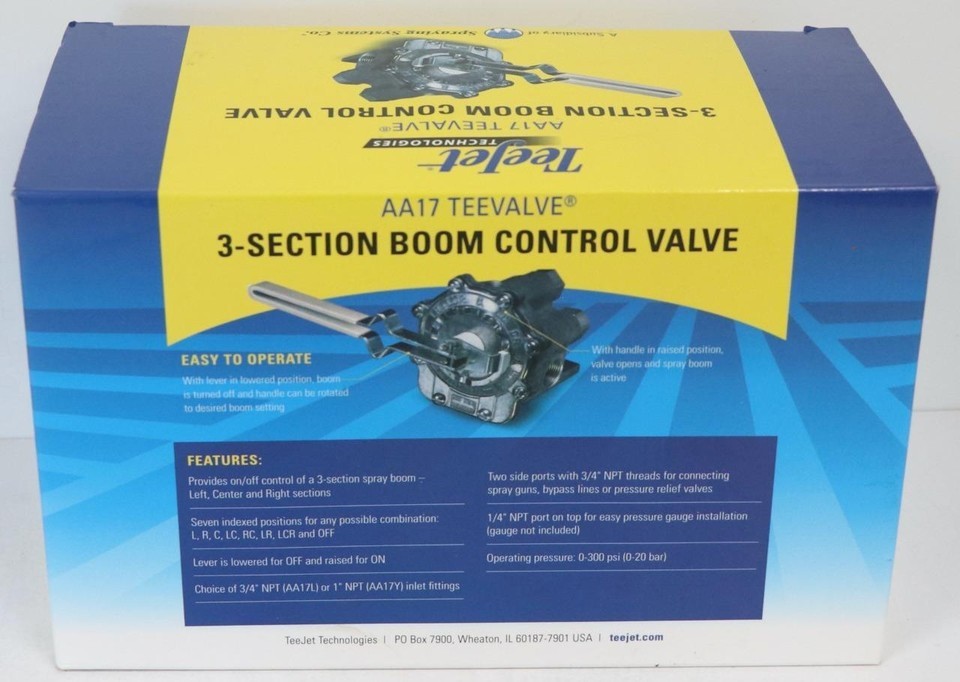

TeeJet AA17L TEEVALVE 3 Section Boom Controller Valve 3/4″ Inlet MAKE AN OFFER
