TE Convulex Mil-Spec Conduit Tubing Crosslinked ETFE I.D. 4.6mm PICK YOUR LENGTH
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | Raychem |
| Conduit Type | Flexible Armored Cable |
| Material | XL-ETFE |
| Color | Black |
| MPN | HCTE-0187-0-SP 200 |
| IP Rating | IP69k |
| Maximum Operating Temperature | 200*C |
| Item Diameter | 4.6mm ID |
| Resistance Properties | All |
| Country/Region Of Manufacture | United States |
| Unit Quantity | ft. |
| Sheath Color | White |
| Length Type | Reel |

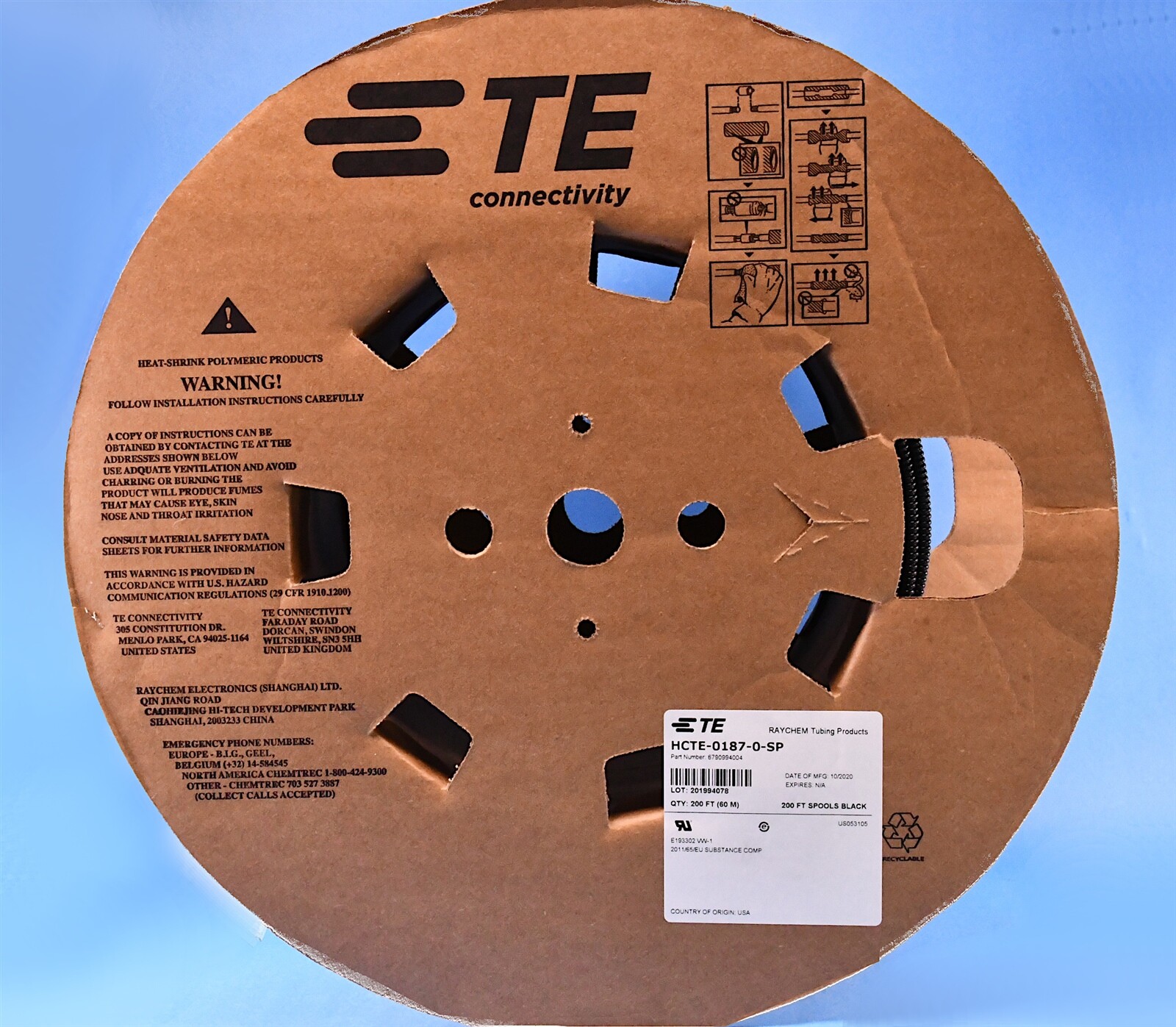

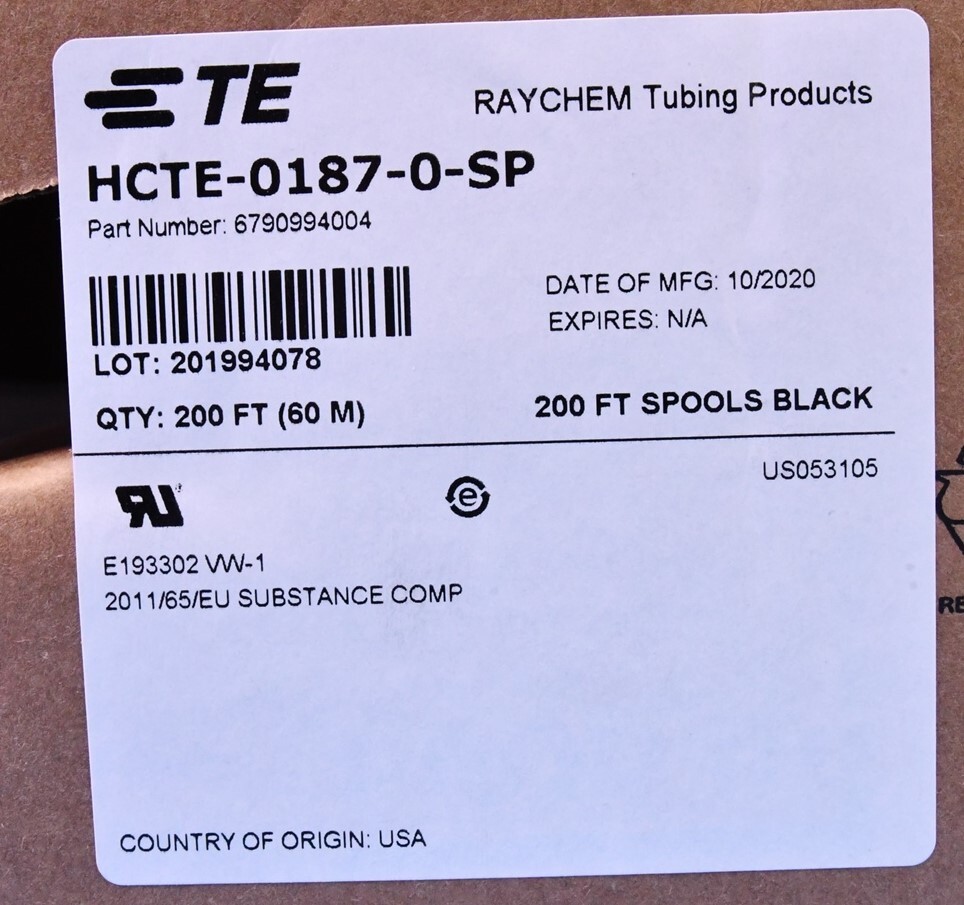

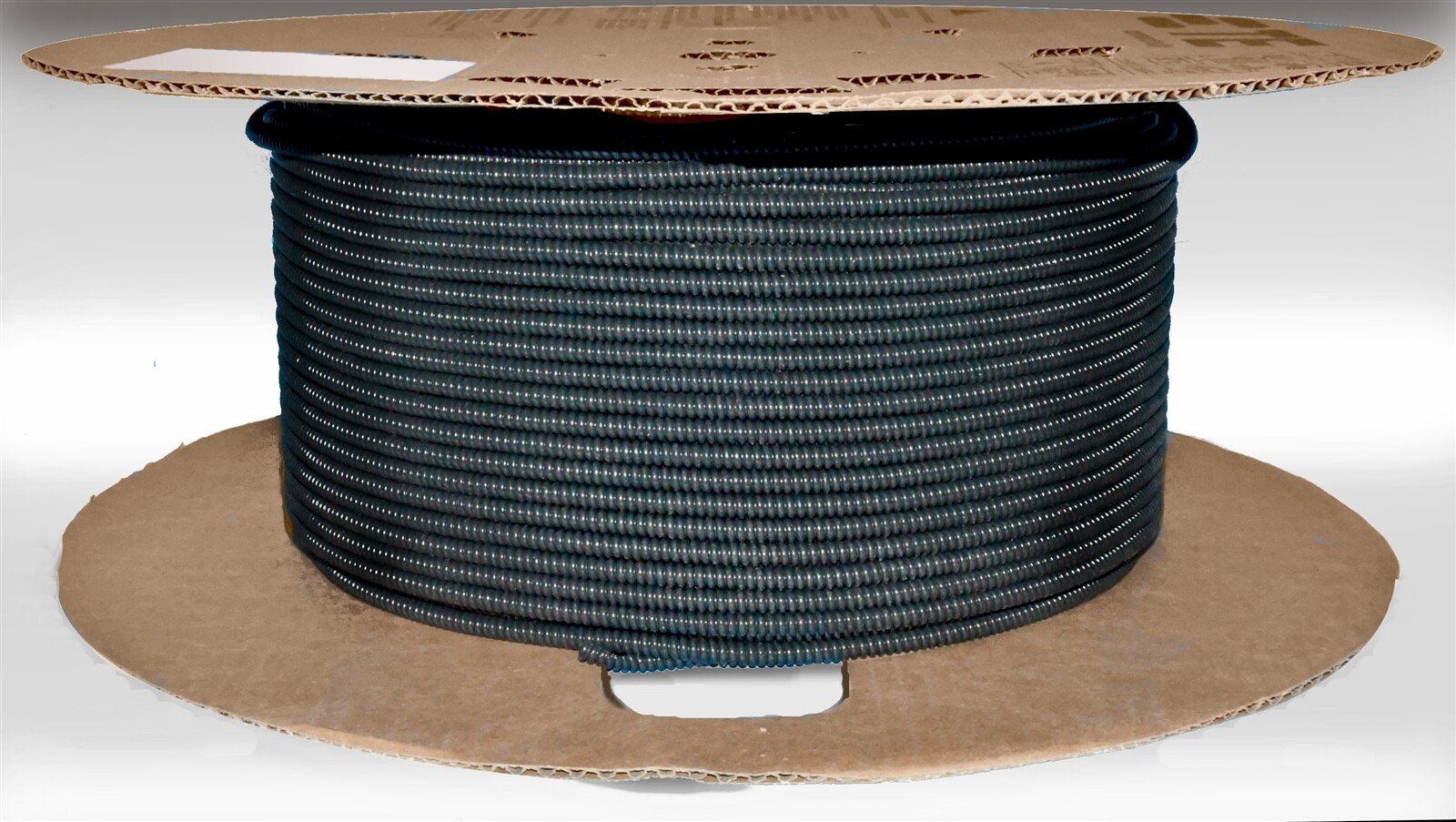

This is a Brand New Spool of Raychem 200 ft TE Convulex Conduit Tubing that you can select your desired length from the dropdown menu, in units of 10 feet, up to 100 feet of conduit. Construction is of crosslinked Fluoropolymer with an I.D. = 4.6mm. Crosslinked floropolymer (XL-ETFE) makes this conduit literally fireproof. It's non-combustible nor is it flammable under any temperature; the product will char under a fire scenario, meaning any shorted wires inside the conduit may arc or glow red, but never induce a fire. This is a mil-spec item used mainly for aircraft avionics and other damage control-sensitive applications in aircraft.P/N: HCTE-0187-0-SP 200. Raychem P/N: 6790994004Applications:Used as a conduit to provide mechanical protection for electrical wiring systems in applications requiring flexibility, high-temperature performance and good resistance to a variety of fluids. Widely used in the military and commercial aerospace industries.Can be used in conjunction with other Raychem brand components to form an integrated harnessing system. Installation:It is recommended that no more than 70% of the internal area (“fill factor”) of the HCTE conduit be occupied by wires in any application.Manufacturer: TE Connectivity RoHS: Details Product: Tubing Type: Flexible, Convoluted Material: Ethylene Tetrafluoroethylene (ETFE) Inside Diameter: 4.76 mm Length: 1 ft Color: Black Brand: TE Connectivity / Raychem Features: Flexible plastic and metal tubings Packaging: Spool Product Type: Conduit & Tubing Series: HCTE 200 Subcategory: Wire & Cable Management Part # Aliases: 6790994004 Unit Weight: 0.630134 oz Product Type FeaturesConvoluted Tubing Product Type: ConduitBody FeaturesPrimary Product Material: Crosslinked FluoropolymerColor: BlackDimensionsInside Diameter Range: 4.6mm[0.181in]Usage ConditionsFluid Resistance Type: Chemicals/Solvents, De-Icing Fluid, Diesel Fuel, Hydraulic Fluid, Jet Fuel, Lubricating Oil, WaterOperating Temperature Range(°C): (-55) to 200High Temperature Compatible: YesOperation/ApplicationEmission Free: YesIndustry Standards:Government Qualified: NoCSA Certified: No Master Cross Reference Data (MCRD) - shows alternate part numbers for a national stock number NSNDescriptionMCRL Information Part and Contact Information 5975014367726CONDUIT,NONMETALLIC,FLEXIBLEINC: 29529HMIC: PESDC: AENAC:Cancelled By: Part # MCRLInformation CAGE CodePhoneFax Company NameAddress 9950/5581 ISC: 5RNVC: 9RNCC: 5DAC: 4 K06620131 343 56560131 343 5416 LEONARDO MW LTD2 CREWE ROAD NORTHEdinburgh LOTHIAN EH5 2XS 9950/5581 ISC: 5RNVC: 2RNCC: 5DAC: 5 U6682 LEONARDO MW LTD HCTE ISC: 5RNVC: 1RNCC: 5DAC: 4 K1010 TE CONNECTIVITY LIMITED HCTE-0187 ISC: 5RNVC: 2RNCC: 5DAC: 4 K1010 TE CONNECTIVITY LIMITED HCTE-0187-0 ISC: 5RNVC: 2RNCC: 5DAC: 4 0609080080604807179867179 TE CONNECTIVITY CORPORATION DBA RAYCHEM PRODUCT DIVISION501 OAKSIDE AVE SIDERedwood City CA 94063-3800 HCTE-0187-0-SP ISC: 5RNVC: 2RNCC: 3DAC: 4 0609080080604807179867179 TE CONNECTIVITY CORPORATION DBA RAYCHEM PRODUCT DIVISION501 OAKSIDE AVE SIDERedwood City CA 94063-3800 Management Data - US Gov't supply management data (costs, storage, etc.) NSNItem Name Management Data 5975-014367726CONDUIT,NONMETALLIC,FLEXIBLE PMIC Criticality ADPE ESDC HMIC DEML A X 0 A P A S / A SOS AAC QUP UI UnitPrice SLC CIIC RepCode MgmtCtrl PhraseData DS SMS J 1 FT $13.09 0 U ------- GP SMS J 1 FT $13.09 0 U ------- DN SMS J 1 FT $13.09 0 U 9B----- Total Parts will guarantee you're totally happy with your purchase! 14 Day Return Policy if merchandise is in unused condition.We promise to ship your merchandise fast!We promise to send you tracking information immediately when shipped!We promise to respond to your questions and concerns!If you have any questions, concerns or suggestions please contact us through the eBay messaging system.Please take a moment to see our current specials on eBay our other eBay listings. Powered by SixBit's eCommerce Solution
