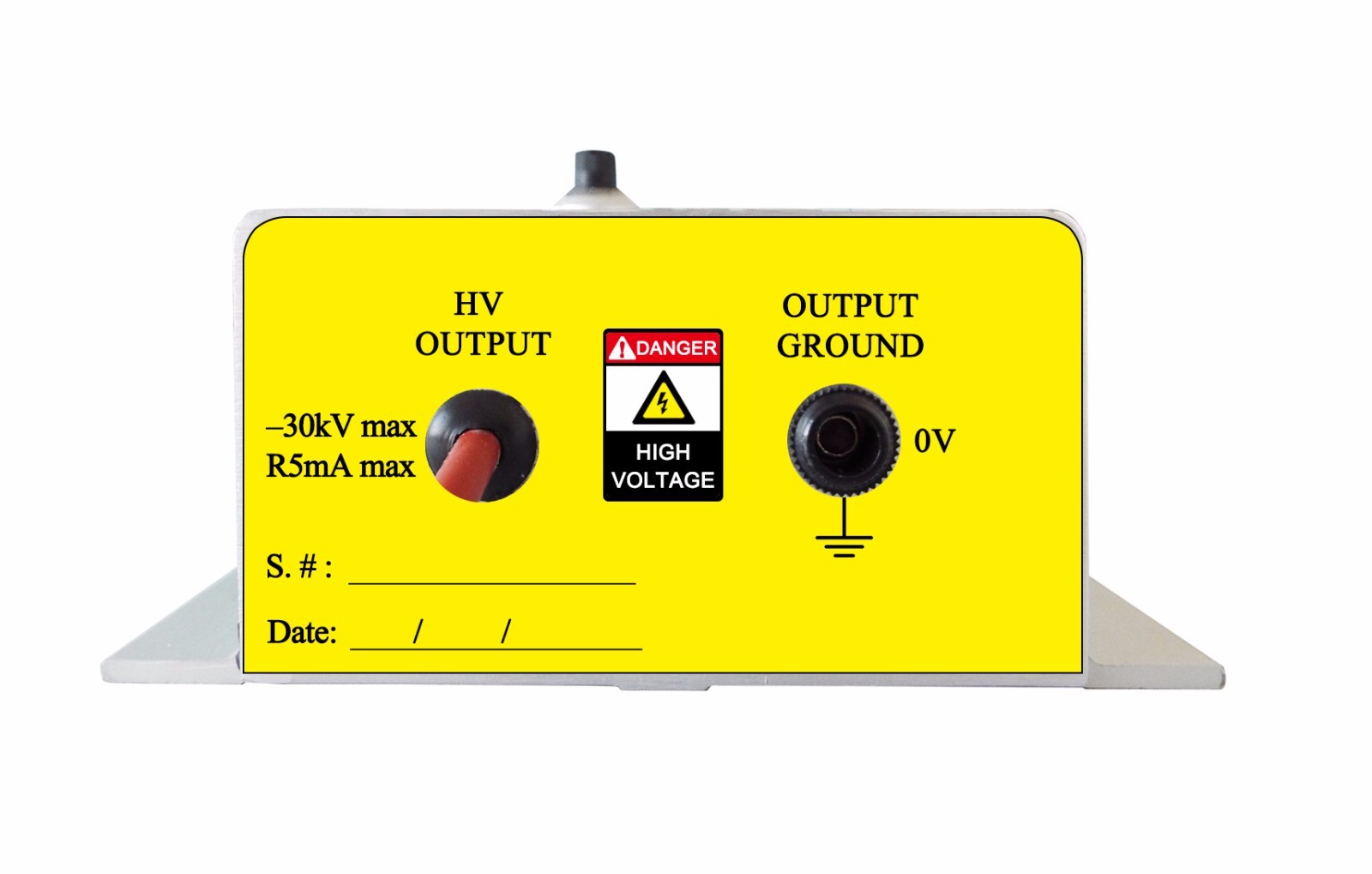

Supply N30KV 0.5mA output High Voltage Power Supply Digital display
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Maximum Voltage Output | -30KV |
| Maximum Current Output | 0.5mA |
| MPN | AHVACN30KVR5MABT |
| Brand | Analog Technologies |

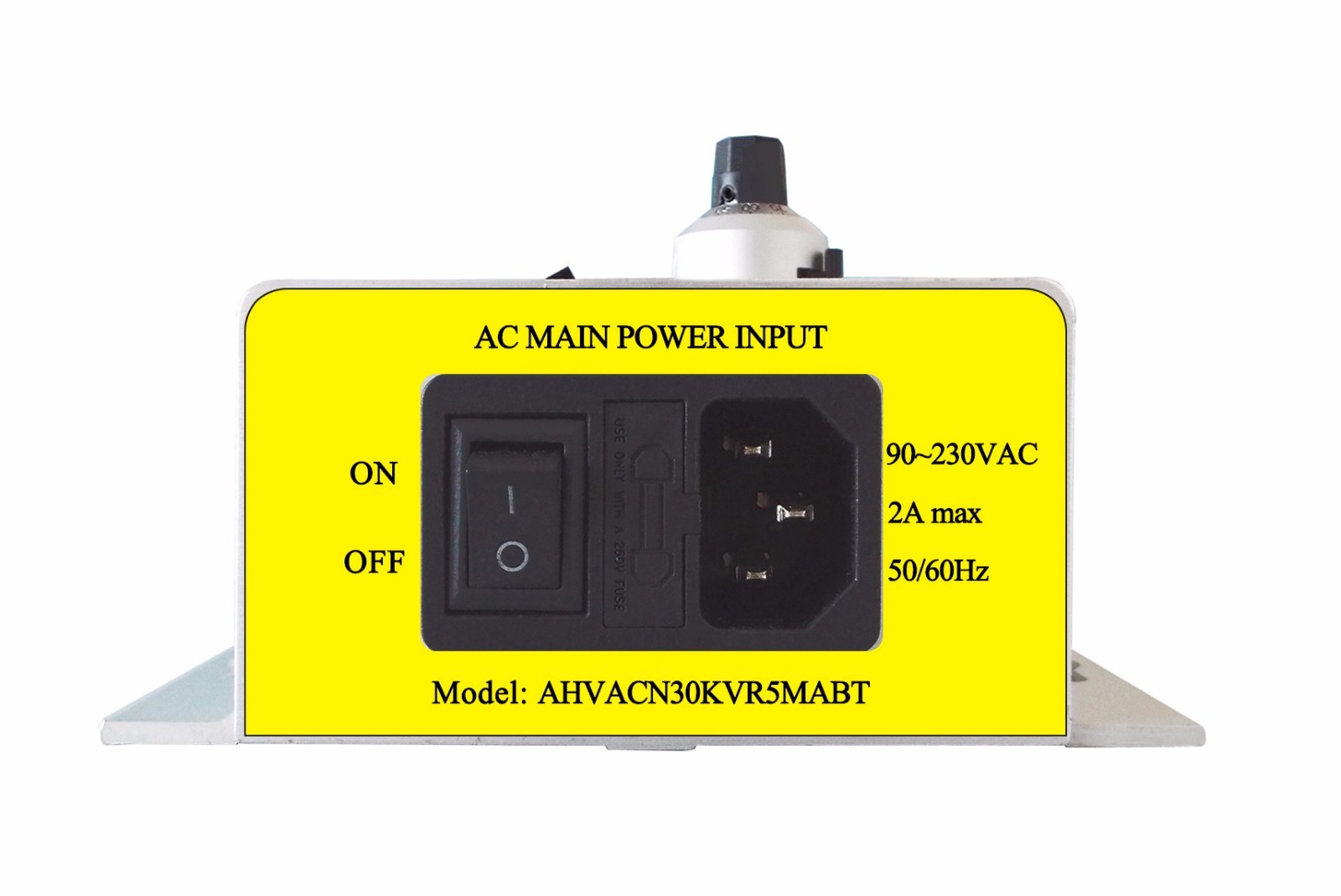

FAST and SAFE shipping from our office in San Jose, California with shipping time and tracking #Two notices will be sent to you by email: 1. Payment received. 2. Order status: shipping time and tracking #. FEATURESHigh precisionHigh efficiencyHigh output voltage stability Linear modulation of output voltage Low cost Overcurrent protection Short circuit protectionDigital display for output voltage DESCRIPTIONConnect AC 90~230V input, and then power on. When the potentiometer is in “0”, open the high voltage switch, and then adjust the potentiometer clockwise. Observe the digital display readings, and high voltage power supply output voltage = the reading × 100V. When the required voltage is achieved, then rotate the potentiometer lock clockwise to lock the potentiometer. This prevents the output voltage changes caused by rotating the potentiometer by accident. High voltage connection wire is used for high voltage output. APPLICATIONS AHVACN30KVR5MABT, is designed for achieving AC-DC conversion from AC voltage to high DC voltage. High voltage power supply is widely used in industrial measurement and control, energy spectrum analysis, and medical equipment such as: X-ray machine, vacuum/plasma processing, semiconductor fabrication equipment, analytical instrumentation, medical diagnostic and therapeutic systems, test equipment, and research and academic applications, etc.SPECIFICATIONSTA = 25°C, unless otherwise noted Parameter Symbol Condition Min. Typ. Max. Unit/Note AC Input Voltage VVPS 90 110 230 VAC Quiescent Input Current IINQQ IOUT = 0mA 140 150 160 mA Full Load Input Current IINFLD IOUT = 0.5mA 350 400 450 mA Input Voltage Regulation Ratio DVOUT/DVVPS VVPS = 90V ~ 230V 0.05 % Output Voltage VOUT IOUT = 0 ~ 0.5mA 0 -30 000 V Maximum Output Current IOUTMAX VPS = 90V ~ 230V 0.5 mA Load 60 MΩ Potentiometer Adjustment 10K potentiometer Output Modulation Linearity <0.1 % Load Regulation Rate IOUT = 0 ~ 0.5mA ≤0.05 % Instantaneous Short Circuit Current ISC <0.1 mA Full Load Efficiency η ≥70 % Temperature Coefficient TCVO −20 ~ 50°C <0.01 %/°C Time Drift Short Time Drift <0.05 %/ min Long Time Drift <0.05 %/h Output Voltage Temperature Stability −20 ~ 50°C <±0.05 % Operating Temperature Range Topr −20 55 °C Storage Temperature Range Tstg −20 80 °C External Dimensions 210×120×50 mm Weight 1192 g 2.63 lbs 42.05 Oz I. PAYMENTWe accept PayPal and all major credit cards, including Visa, Master Card,, American Express, Discover, etc. II. SHIPPING We ship by USPS, UPS or FedEx whichever costs the least or per customers' requests. III. RETURN/EXCHANGE Return Policy:1. There is a 5% or 15% restocking fee for unopened or opened items respectively.2. Items with marks or alternated cannot be returned because we cannot resell them.3. Items should be returned with original packaging materials and accessories. 4. Please put a note inside the package indicating your eBay user name, purchase date, and the reasons for returning.5. Buyers pay for shipping the items back and the original shipping fee to the buyer will be deducted from the refund. IV.CUSTOMER SERVICEWe have full time staff answering phone calls for technical and sales related question from 8am to 5pm AEST and reply eBay or email messages within 1 day. Please feel free to send us messages, we are all ears. About this instrument: our company, Analog Technologies, Inc., has been designing and developing analog electronic products for 24 years. This High Voltage Power Supply has been used and highly recommended by our electrical engineers. Its user manual can be found online or downloaded from our company's website. That's why we are selling it here with the confidence that you will like it as well. Only if you are happy with our products and services then we will be happy.About us: Our company, Analog Technologies, Inc., was started as an R&D firm in January 7, 1997, in Novi, Michigan, a small town 25 miles from Detroit. After 24 years hard working, we have established branches in San Jose, California, USA; Sydney, Australia; and Anshan, Liaoning, P.R. China. We have 3 departments: R&D, Production and Trading. The products sold on eBay are either produced by our own Production Department or our sub-contractor companies. If you have any questions and/or suggestions, please contact us. Our goal is to make our customers happy and grow our company to a bigger one.
