Submersible Pump, Deep Well, 4″, 3HP/230V, 625′, all S.S. Hallmark Industries
Specifications
| Restocking Fee | 20% |
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Model | SS.MA0431X-18AEXT |
| Actual Rated Input Voltage | 220 (230) |
| AC Phase | Single Phase |
| MPN | Does Not Apply |
| Nominal Rated Input Voltage | 230 V |
| Base RPM | 3450 |

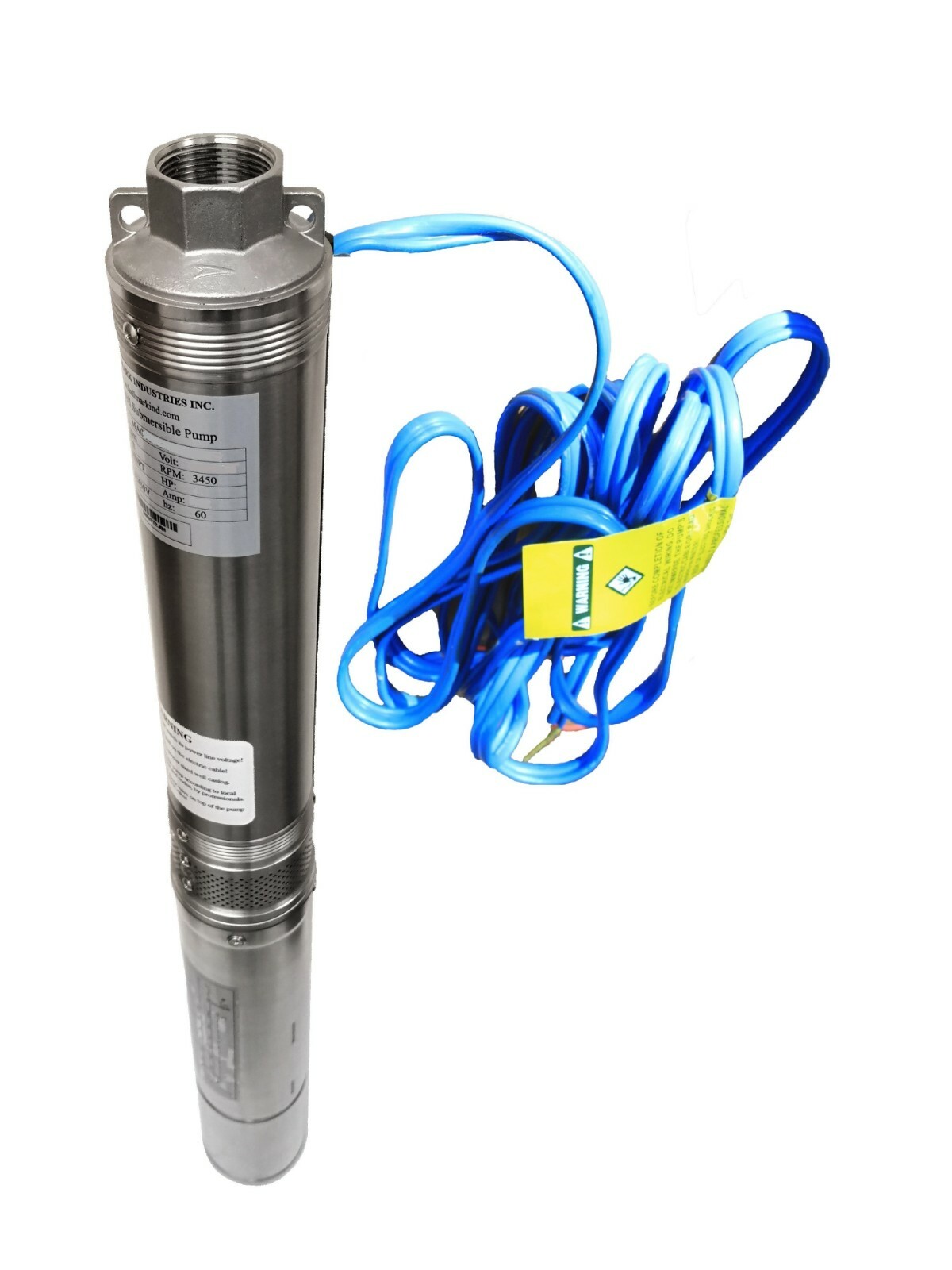

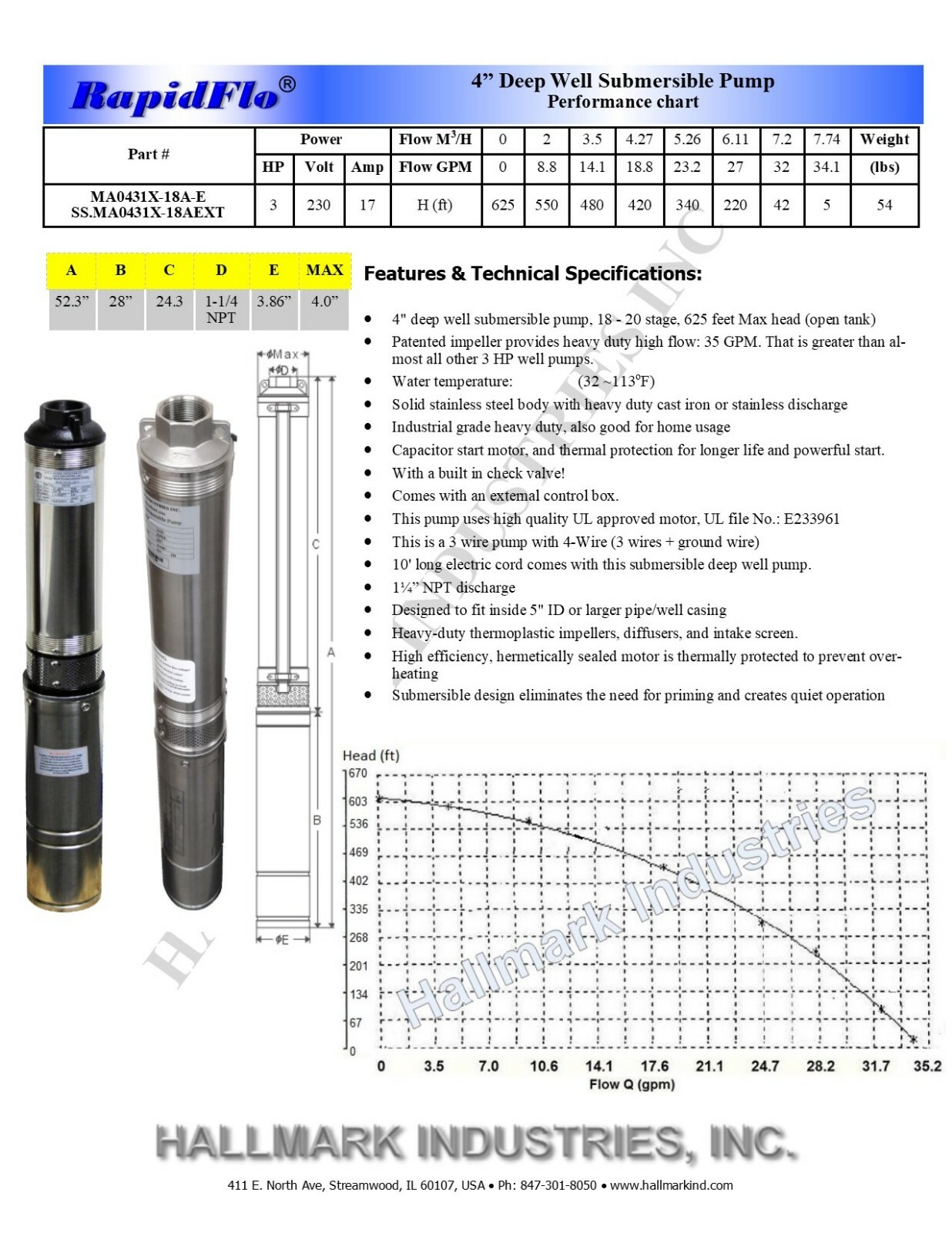

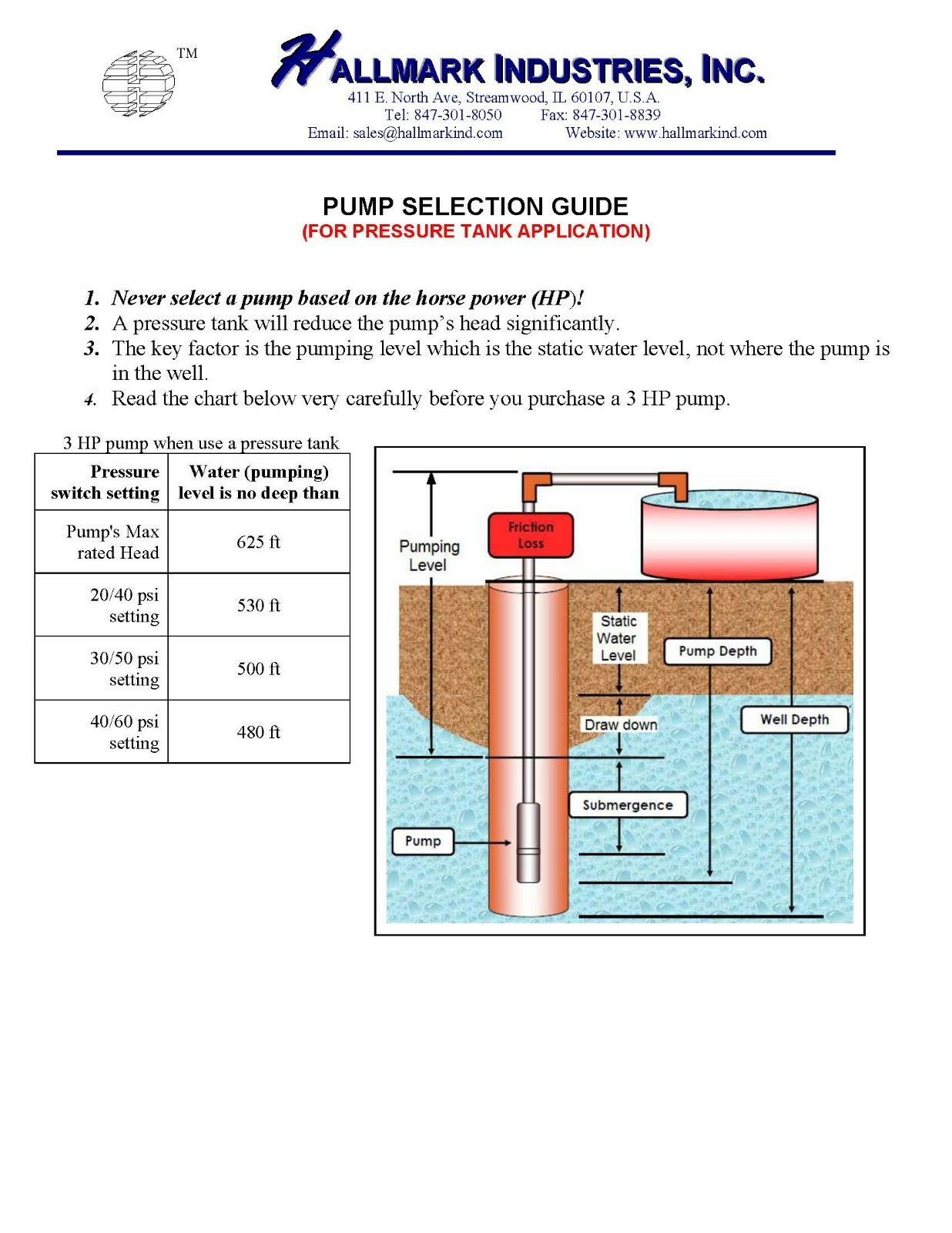

We are the only authorized seller of Hallmark Industries' products on eBay.Hallmark Industries Inc is the leading brand of water pumps for household and industrial applications.Based in Chicago IL, all customer services and warranty will be handled in the U.S. 625 Feet MAX Head, 35 GPM Max, Stainless Steel Deep Well Submersible Pump, 3HP 230V 35 gpm is the max at 1' head. The deeper the well water is, the less gpm! Check the flow chart! Features & Technical Specifications:4" deep well submersible pump, with external control box. This pump fits a 5" or bigger well casing.220V, 3HP, 17 Amps, 1 phase, 60 hz, 625 feet max head, 35 gpm Max, mid intake. 625' head is to an open tank. Please read for using pressure tanks.Patented impeller design provides extended pump life and heavy flow under the severe circumstances.This pump has a much longer pump life than the all-plastic-bottom-suction pump.All stainless steel body and exterior to prevent rust Industrial grade heavy duty, also good for home usage. 3 HP capacitor start, and thermal protection switch, for longer life and powerful start. Comes with an external control box. Shipped with pump and motor separated. Assembly may require.This pump uses high quality UL approved motor, UL file No.: E233961 This is a 3 wire pump with 4 wires (3 wires + ground wire) This pump comes in 2 sections to prevent shipping damages. User assembly is required.10' long electric cord, installation tape & electric tape kits are all included.1-1/4” NPT discharge. Heavy-duty thermoplastic impellers, diffusers, and intake screen.High efficiency, hermetically sealed motor is thermally protected to prevent overheating, and uses less energy. Submersible design eliminates the need for priming and creates quiet operationInstallation user's manual, and tape kit are included. Free technical support available during your installation.For using a pressure tank - Max water level VS. pressure switch settings: Pressure switch set @ 20/40 psiPressure switch set @ 30/50 psi Pressure switch set @ 40/60 psi530 feet (max static water level)500 feet (max static water level)470 feet (max static water level)Condition: NewReturn Policy: 30 day return policy (The longest on eBay).Shipping: Please use your commercial shipping address for faster delivery. This item ships in less than 1 business day.Warranty: 1 year manufacturer's warranty
