STEPPERONLINE Nema 34 6.5Nm 920oz.in Closed Loop Stepper Motor 6A & Driver Kit
STEPPERONLINE Nema 34 6.5Nm 920oz.in Closed Loop Stepper Motor 6A & Driver Kit STEPPERONLINE Nema 34 6.5Nm 920oz.in Closed Loop Stepper Motor 6A & Driver Kit STEPPERONLINE Nema 34 6.5Nm 920oz.in Closed Loop Stepper Motor 6A & Driver Kit STEPPERONLINE Nema 34 6.5Nm 920oz.in Closed Loop Stepper Motor 6A & Driver Kit

STEPPERONLINE Nema 34 6.5Nm 920oz.in Closed Loop Stepper Motor 6A & Driver Kit

USD 99.00 USD
SKU: 9n35f0Id
Brand: StepperOnline
MPN: 1-CL86Y-S65-1M5
GTIN: 742803041711
Condition: New
Tags: 0.43ohms ± 10% 0742803041711 1-CL86Y-S65-1M5 1.8° (200 Steps) 1000PPR(4000CPR) 14mm/0.55in 2.6mH ± 20%(1KHz) 24 - 80AC / 36 - 110DC 25mm / 0.98in 4-Wire Bipolar 6.5Nm(920.48oz.in) 742803041711 China KeyWay Optical Incremental STEPPERONLINE Universal With 1M5 cables
Categories: Testers & Calibrators

Specifications

BrandStepperOnline
Current TypeUniversal
Shaft TypeKeyway
Wiring Configuration4-Wire Bipolar
Shaft Diameter14mm / 0.55in
Full Step Angle1.8° (200 Steps)
MPN1-CL86Y-S65-1M5
Actual Rated Input Voltage24 - 80AC / 36 - 110DC
Holding Torque6.5Nm(920.48oz.in)
Resistance Per Phase0.43ohms ± 10%
Country Of OriginChina
UPC742803041711
EAN0742803041711
Inductance2.6mH ± 20%(1KHz)
Encoder TypeOptical Incremental
Encoder Resolution1000PPR(4000CPR)
Cable Length(mm)With 1M5 cables
Keyway Shaft Length25mm / 0.98in

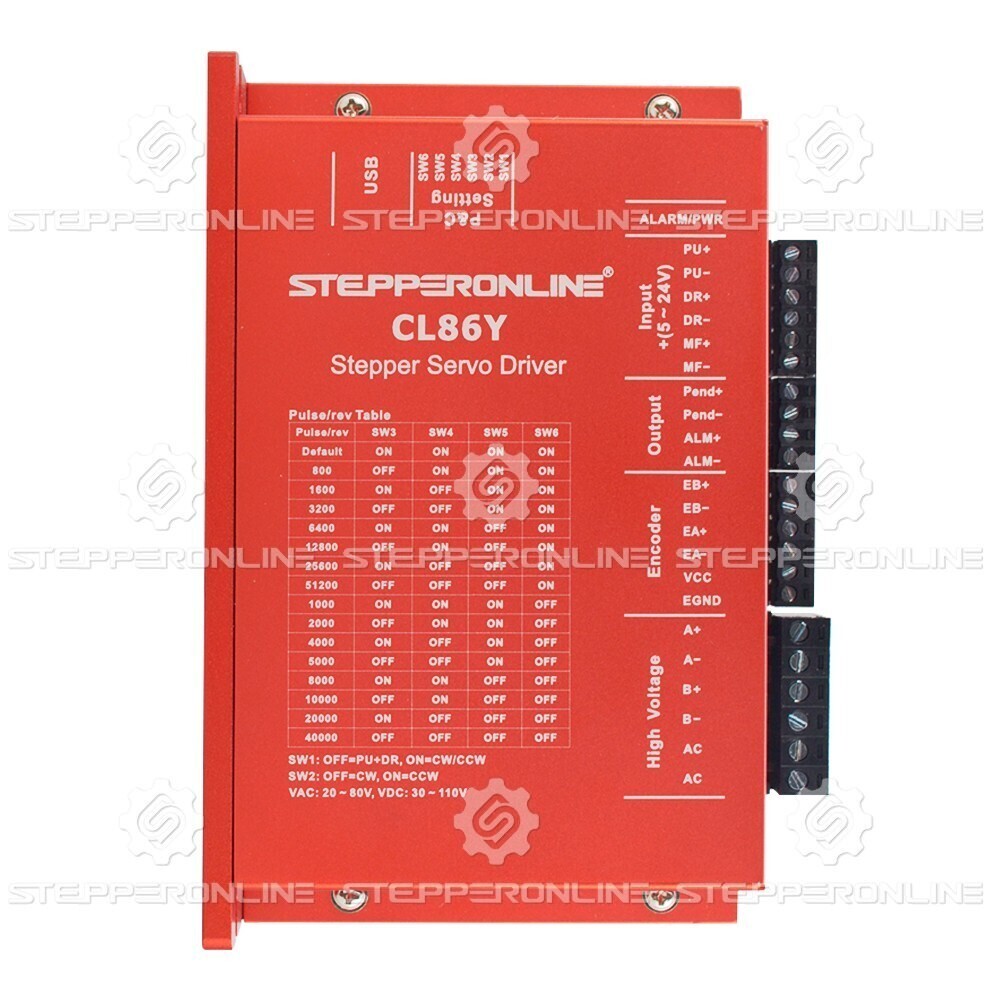

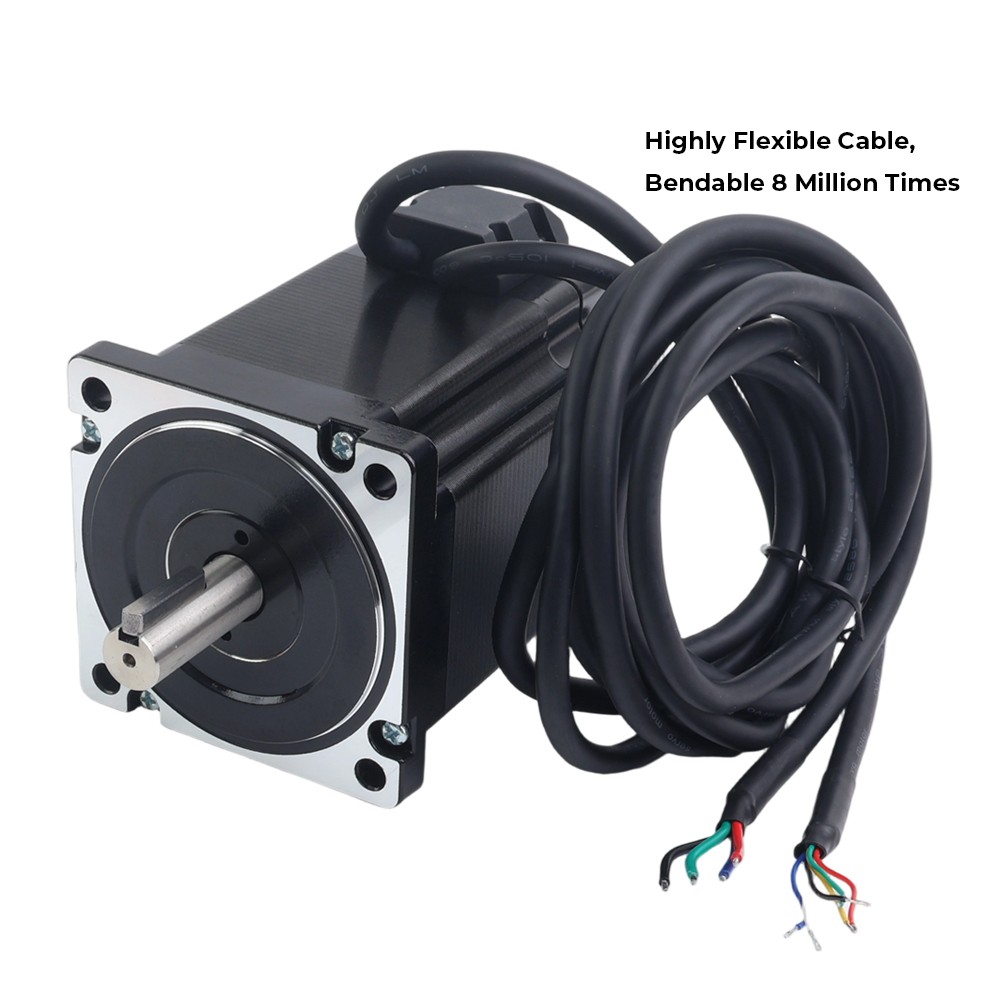

1 x Y Series Closed Loop Stepper Driver 0-8.5A 20-80VAC/30-110VDC for Nema 34 Stepper Motor. 1 x S Series Nema 34 Closed Loop Stepper Motor 6.50Nm(920.48oz.in) Encoder 1000PPR(4000CPR). Motor Type: Bipolar Stepper.
