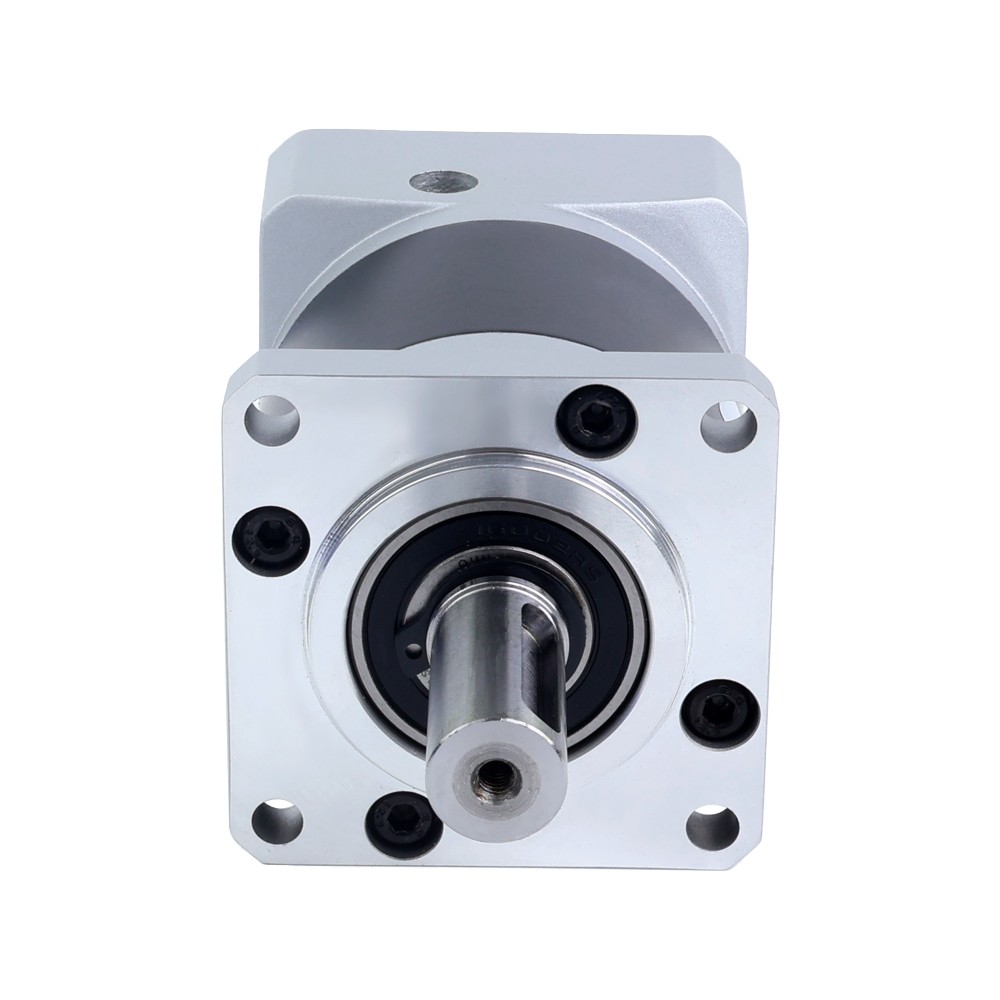

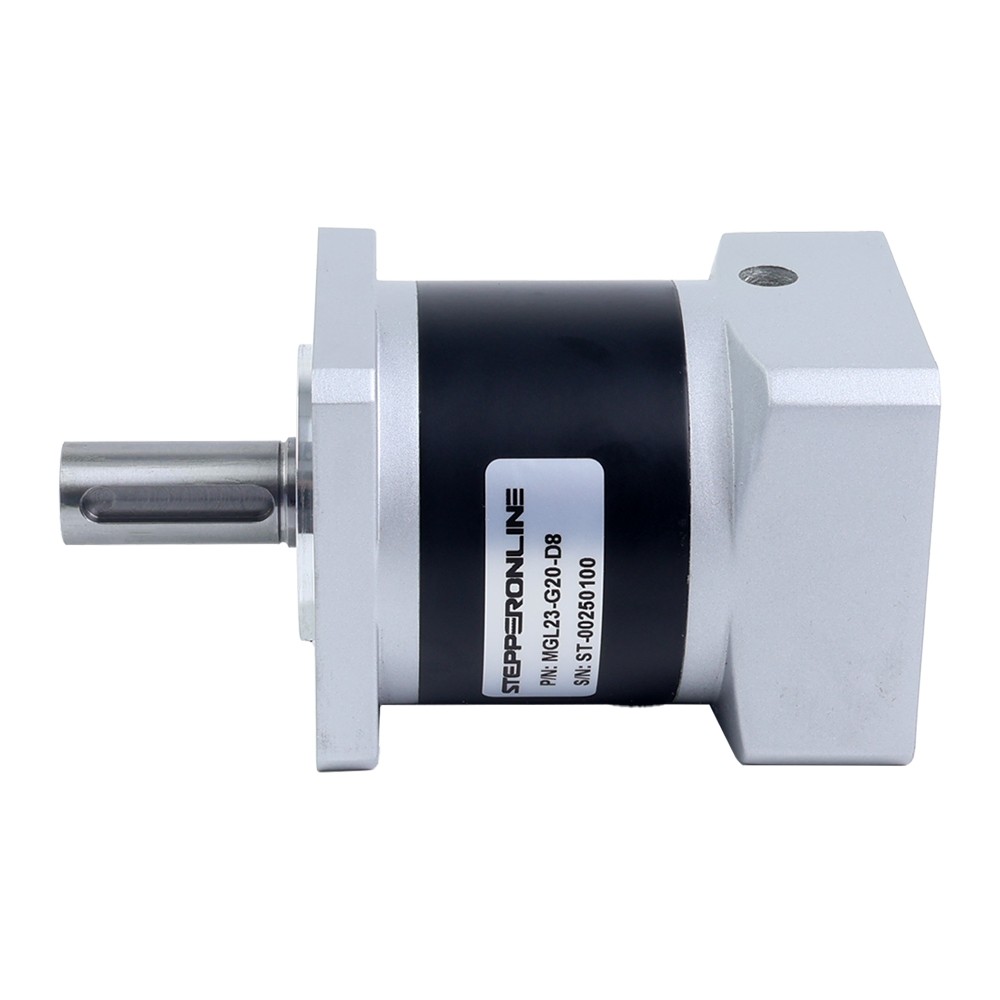

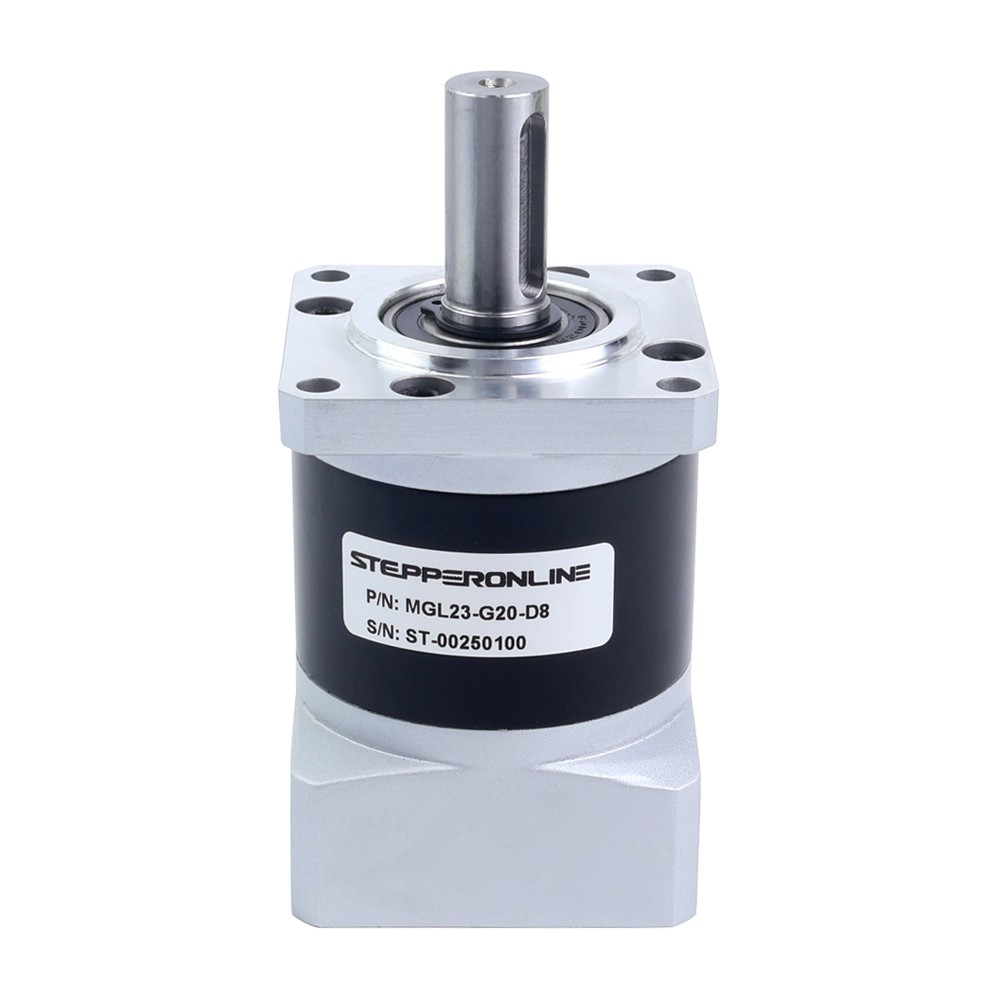

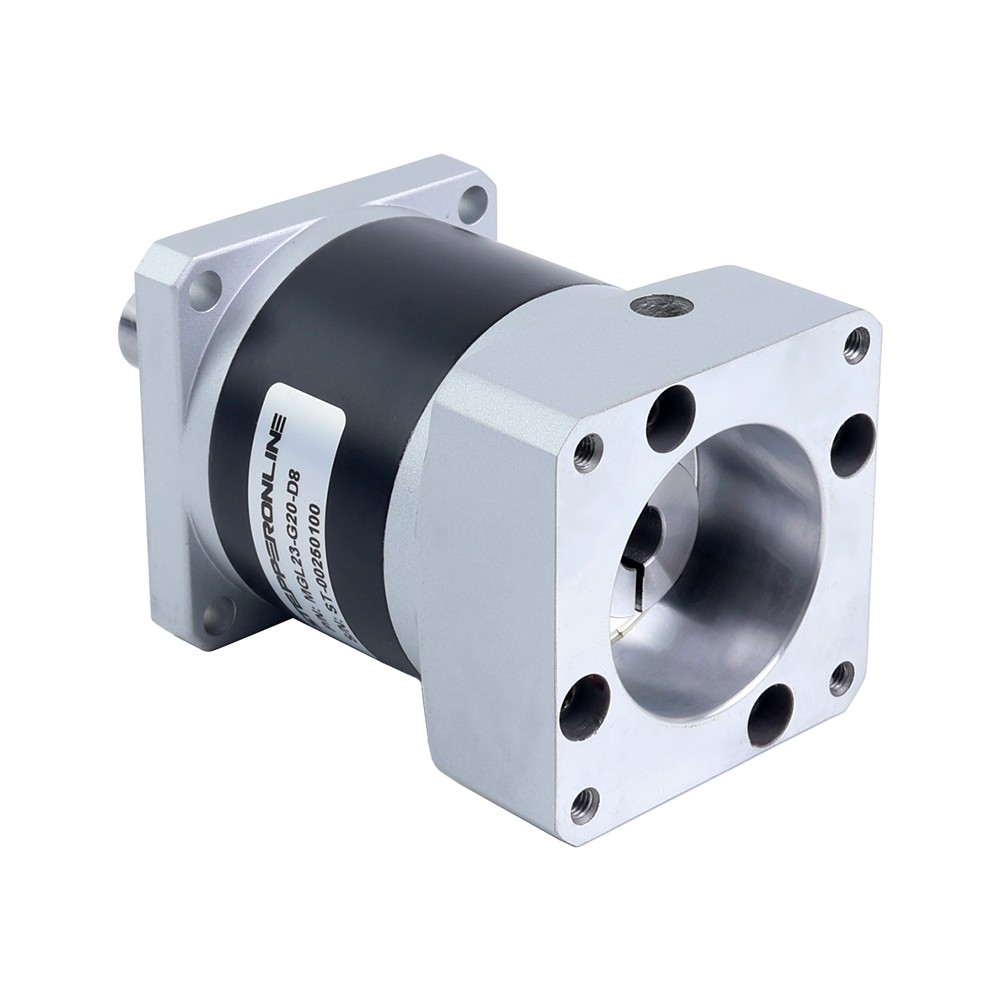

STEPPERONLINE Nema 23 Stepper Motor Planetary Gearbox Ratio 20:1 8mm Input Shaft
STEPPERONLINE Nema 23 Stepper Motor Planetary Gearbox Ratio 20:1 8mm Input Shaft STEPPERONLINE Nema 23 Stepper Motor Planetary Gearbox Ratio 20:1 8mm Input Shaft STEPPERONLINE Nema 23 Stepper Motor Planetary Gearbox Ratio 20:1 8mm Input Shaft STEPPERONLINE Nema 23 Stepper Motor Planetary Gearbox Ratio 20:1 8mm Input Shaft STEPPERONLINE Nema 23 Stepper Motor Planetary Gearbox Ratio 20:1 8mm Input Shaft

STEPPERONLINE Nema 23 Stepper Motor Planetary Gearbox Ratio 20:1 8mm Input Shaft

USD 41.00 USD
SKU: CHdQ4NHC
Brand: STEPPERONLINE
MPN: MGL23-G20-D8
Condition: New
Tags: 100N 14MM 20-25mm 20:1 25Nm(221.28lb-in) 300N 34mm 50Nm(442.55lb-in) 8mm China IP54 MGL23-G20-D8 Planetary Gearbox STEPPERONLINE
Categories: Woodworking Equipment

Specifications

BrandSTEPPERONLINE
MPNMGL23-G20-D8
Country Of OriginChina
Gear Ratio20:1
IP RatingIP54
Input Shaft Diameter8mm
Output Shaft Diameter14mm
Input Shaft Length20-25mm
Output Shaft Length34mm
Shaft Maximum Axial Load100N
Shaft Maximum Radial Load300N
Moment Permissible Torque50Nm(442.55lb-in)
Max. Permissible Torque25Nm(221.28lb-in)

The MGL series high-precision planetary gearbox features a gear ratio of 20:1 and a maximum backlash of 45arc-min. Different with MG series gearboxes, the MGL series is designed to accommodate standard Nema 23 motors with standard shafts.
