STEPPERONLINE Nema 23 Stepper Motor CNC Kit 1.9Nm(269oz.in) Φ8mm 2.8A W/ Driver
STEPPERONLINE Nema 23 Stepper Motor CNC Kit 1.9Nm(269oz.in) Φ8mm 2.8A W/ Driver STEPPERONLINE Nema 23 Stepper Motor CNC Kit 1.9Nm(269oz.in) Φ8mm 2.8A W/ Driver STEPPERONLINE Nema 23 Stepper Motor CNC Kit 1.9Nm(269oz.in) Φ8mm 2.8A W/ Driver STEPPERONLINE Nema 23 Stepper Motor CNC Kit 1.9Nm(269oz.in) Φ8mm 2.8A W/ Driver

STEPPERONLINE Nema 23 Stepper Motor CNC Kit 1.9Nm(269oz.in) Φ8mm 2.8A W/ Driver

USD 45.00 USD
SKU: llK23NHt
Brand: STEPPERONLINE
MPN: 1-DM542Y-23HS30
Condition: New
Tags: 1-DM542Y-23HS30 1.13ohms 1.8° (200 Steps) 1.9 in 1.9Nm(269oz.in) 2.8A 24 V, 48 V, 24-48VDC 24-48VDC 4-Wire Bipolar 4.8mH±20%(1KHz) 500MΩ 8mm B (Max 266°F) China D-cut STEPPERONLINE
Categories: Testers & Calibrators

Specifications

BrandSTEPPERONLINE
Nominal Rated Input Voltage24 V, 48 V, 24-48VDC
Shaft TypeD-cut
Wiring Configuration4-Wire Bipolar
Shaft Diameter8mm
Full Step Angle1.8° (200 Steps)
MPN1-DM542Y-23HS30
Actual Rated Input Voltage24-48VDC
Holding Torque1.9Nm(269oz.in)
Insulation ClassB (Max 266°F)
Rated Current Per Phase2.8A
Resistance Per Phase1.13ohms
Country Of OriginChina
Inductance4.8mH±20%(1KHz)
Isolation Resistance500MΩ

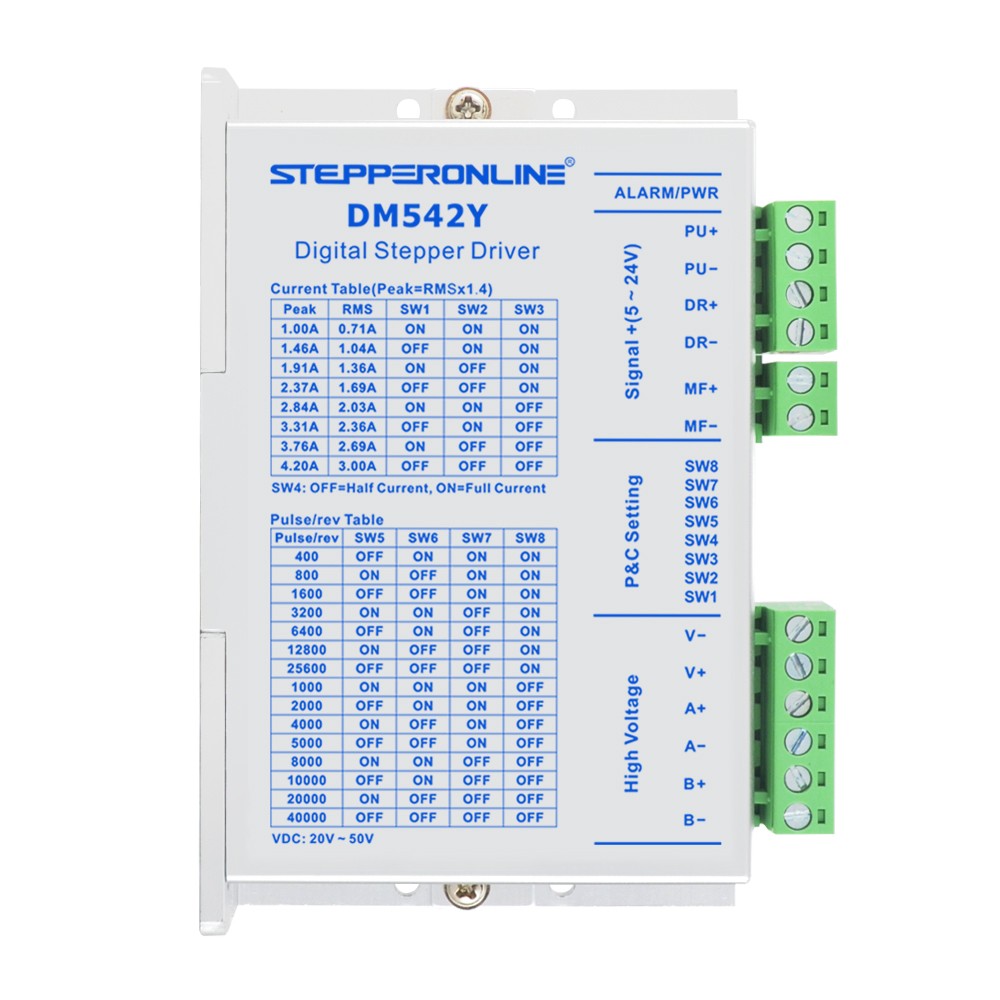

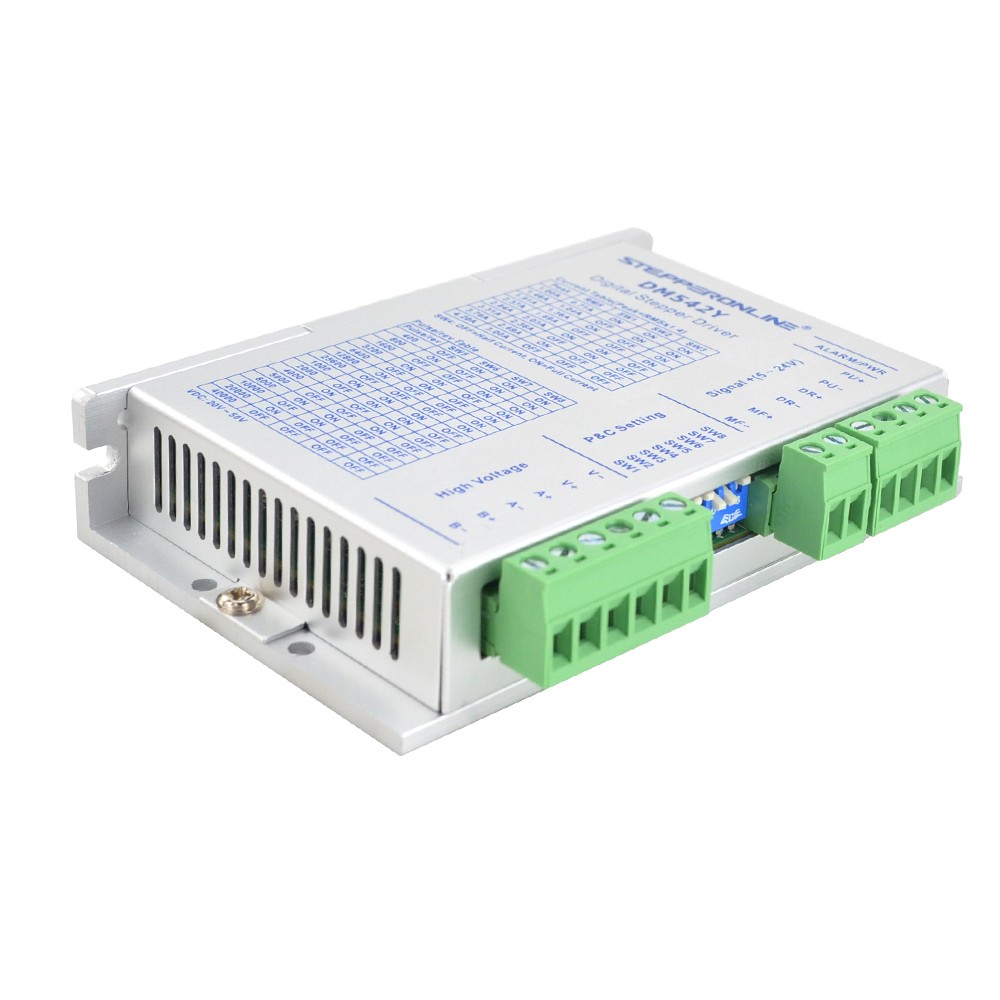

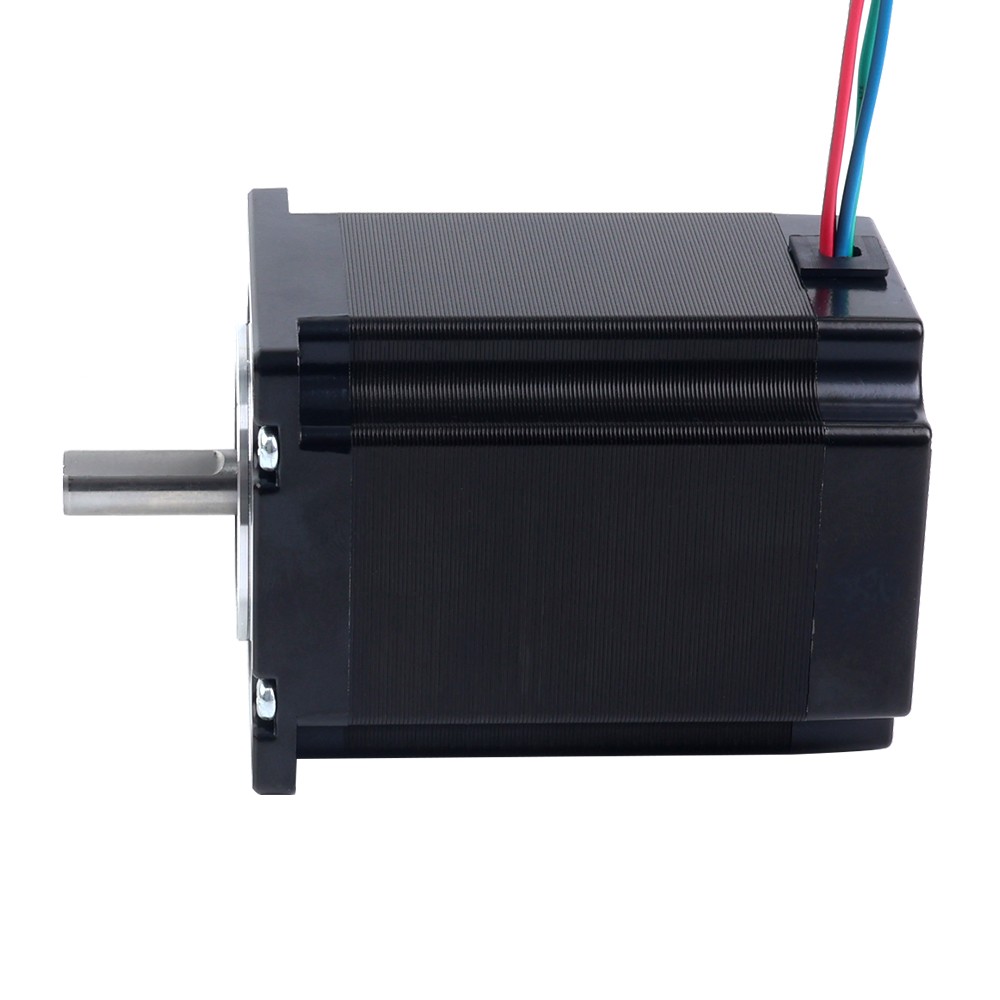

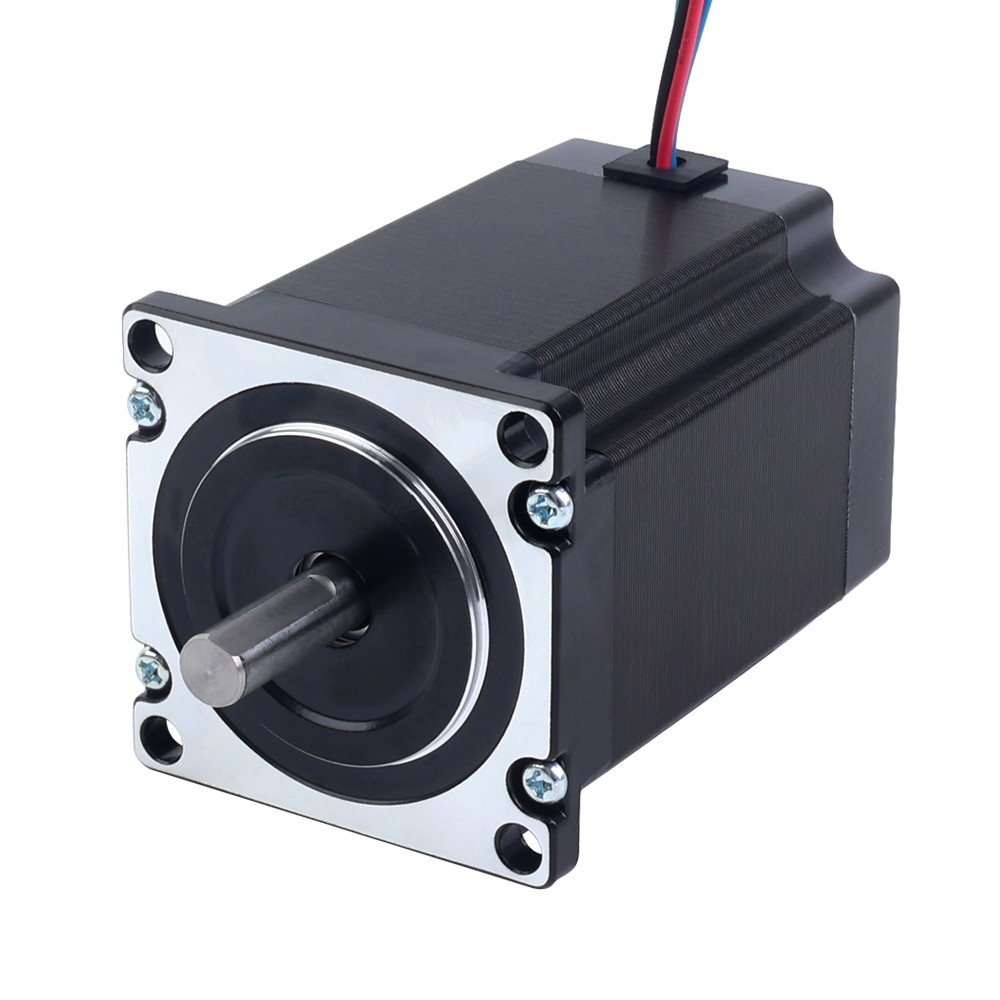

1 x Digital Stepper Driver 1.0-4.2A DC20V-50V for Nema 17, 23, 24 Stepper Motor. Motor Type: Bipolar Stepper. 1 x Nema 23 Bipolar 1.9Nm(269.06oz.in) 2.8A 57x57x76.5mm 4 Wires Φ8mm Shaft. This CNC kit includes.
