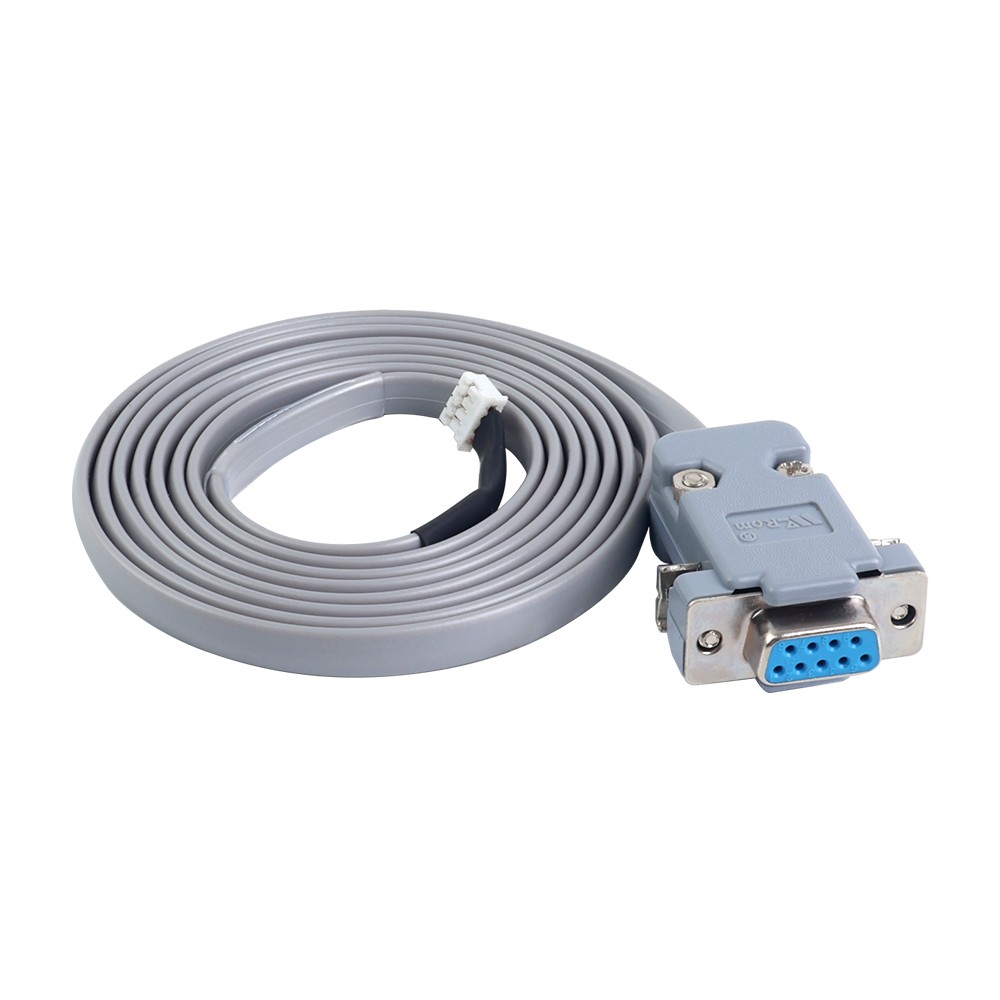

STEPPERONLINE Nema 23 3Nm Closed Loop Stepper Motor Kit 3Nm w/ Driver & Cables
USD 70.00 USD
Specifications
| Brand | STEPPERONLINE |
| Nominal Rated Input Voltage | 24 V, 48 V, 24-48VDC |
| Shaft Type | D-Cut |
| Wiring Configuration | 4-Wire Bipolar |
| Shaft Diameter | 8mm |
| Full Step Angle | 1.8° (200 Steps) |
| MPN | 1-CL57Y-S30-1M5-V20 |
| Actual Rated Input Voltage | 24-48VDC |
| Holding Torque | 3Nm(424.83oz.in) |
| Insulation Class | B (Max 266°F) |
| Resistance Per Phase | 0.7ohms ± 10% |
| Country Of Origin | China |
| Encoder Resolution | 1000PPR(4000CPR) |

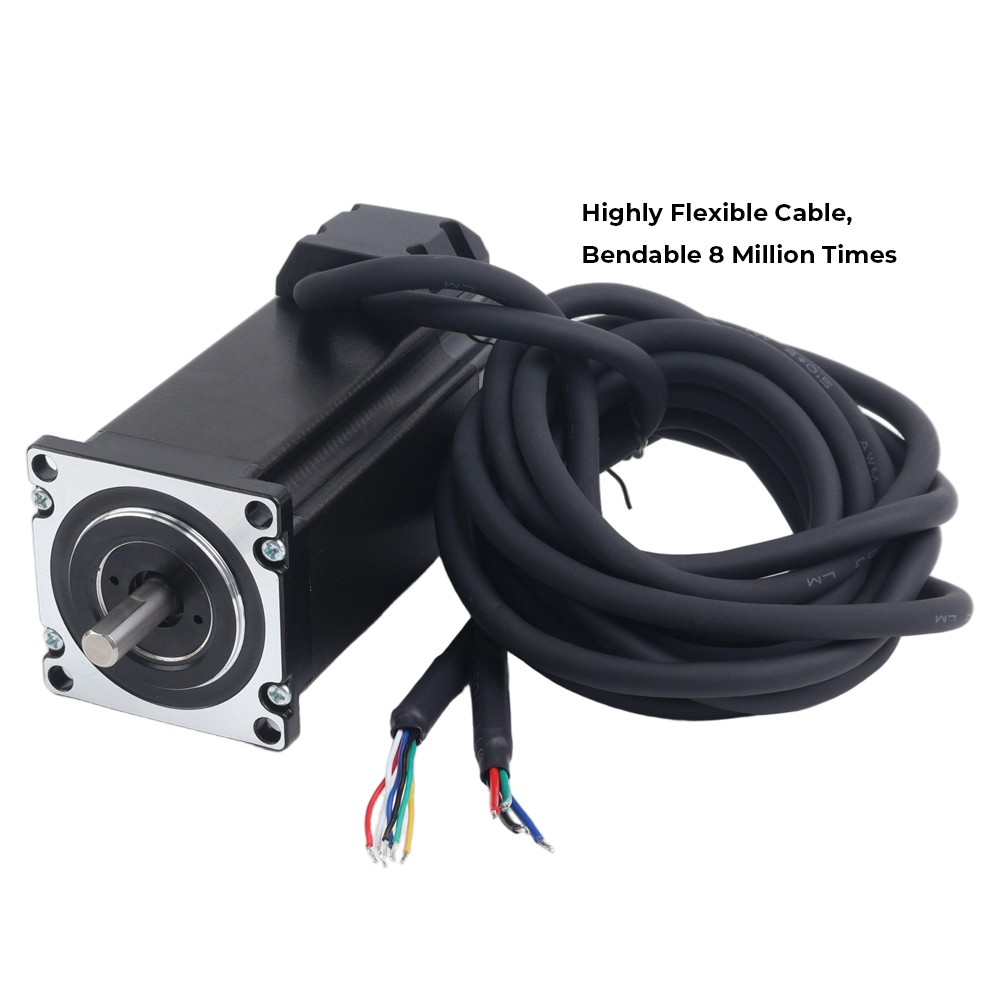

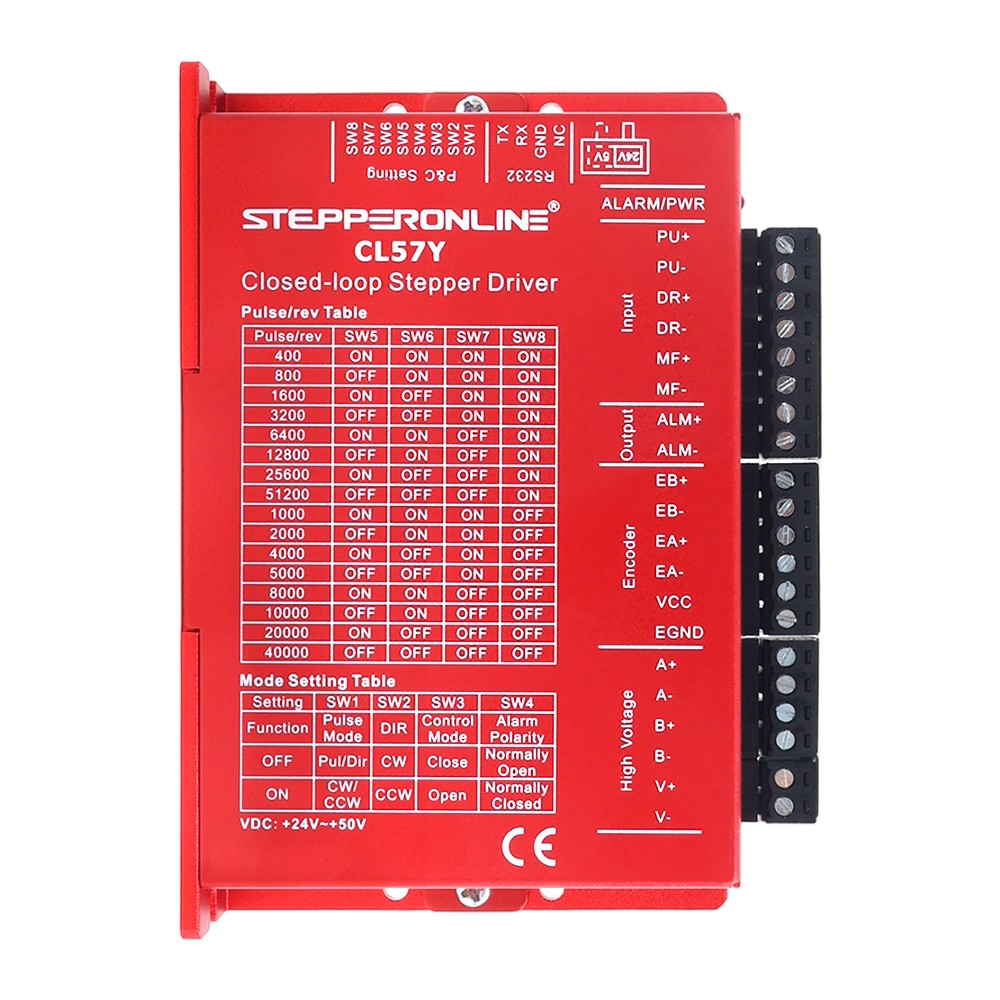

1 x CL57Y-V20: Y Series V2.0 Closed Loop Stepper Driver 0-7.0A 24-50VDC for Nema 17, 23, 24 Stepper Motor. 1 x 23HS40-5004D-E1K-1M5: S Series Nema 23 Closed Loop Stepper Motor 3.00Nm(424.83oz.in) Encoder 1000PPR(4000CPR).
