STEPPERONLINE Nema 23 3Nm Closed Loop Stepper Motor Driver CNC Kit W/ Power
USD 99.00 USD
Specifications
| Package | 1 Axis Kit |
| Brand | StepperOnline |
| Shaft Diameter | Φ8mm |
| MPN | 1/3/4-CLYS30-V20 |
| Holding Torque | 3.00Nm(424.83oz.in) |
| Country/Region Of Manufacture | China |
| Phase Resistance | 0.6ohms ± 10% |
| Inductance | 2.3mH ± 20%(1KHz) |
| Encoder Type | Optical Incremental |
| Encoder Resolution | 1000PPR(4000CPR) |
| Isulation Resistance | 10MΩ |
| Full Step Angle | 1.8° (200 Steps) |
| Wiring Configuration | 4-Wire Bipolar |
| Actual Rated Input Voltage | 24-48VDC |
| Shaft Type | D-Cut |

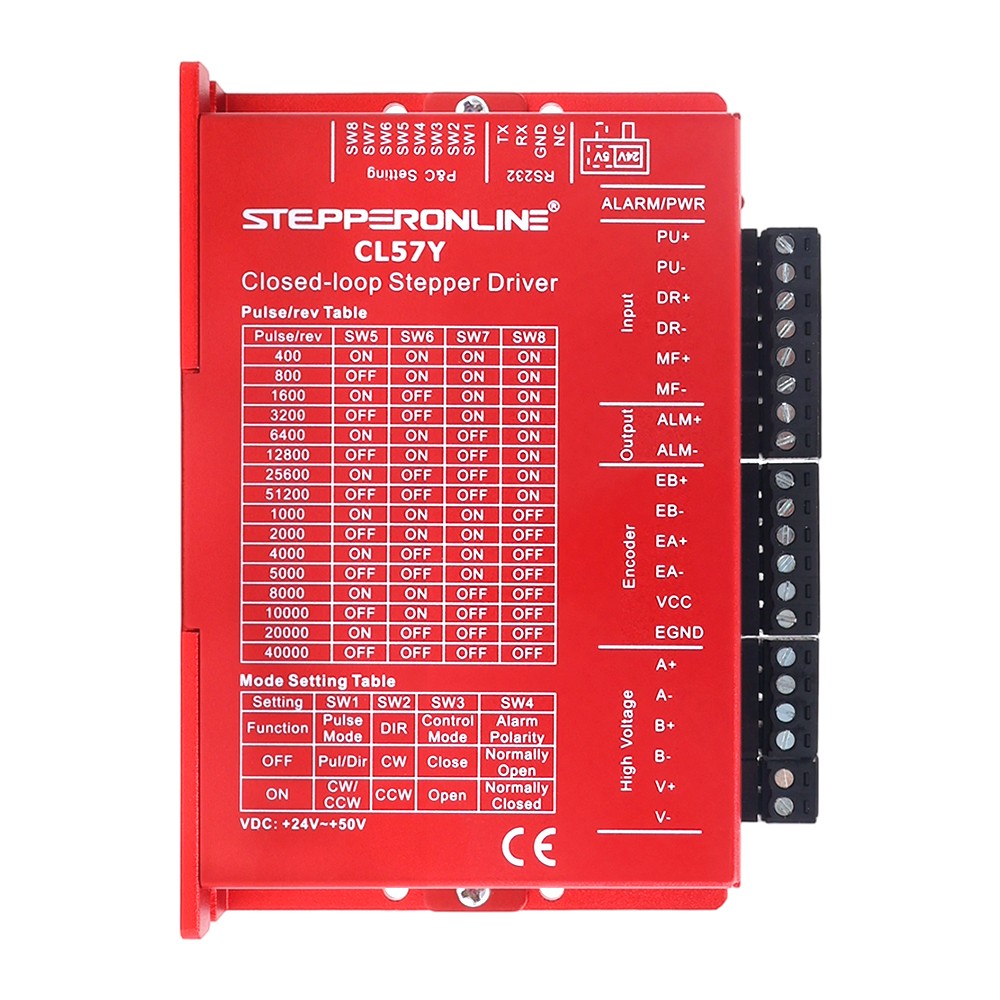

1 x Closed Loop Stepper Driver 0-7.0A 24-50VDC for Nema 17, 23, 24 Stepper Motor. 3 x Closed Loop Stepper Driver 0-7.0A 24-50VDC for Nema 17, 23, 24 Stepper Motor. 4 x Closed Loop Stepper Driver 0-7.0A 24-50VDC for Nema 17, 23, 24 Stepper Motor.
