STEPPERONLINE Nema 17 Closed Loop Stepper Motor 42Ncm(59oz.in) & Driver CNC Kit
STEPPERONLINE Nema 17 Closed Loop Stepper Motor 42Ncm(59oz.in) & Driver CNC Kit STEPPERONLINE Nema 17 Closed Loop Stepper Motor 42Ncm(59oz.in) & Driver CNC Kit STEPPERONLINE Nema 17 Closed Loop Stepper Motor 42Ncm(59oz.in) & Driver CNC Kit

STEPPERONLINE Nema 17 Closed Loop Stepper Motor 42Ncm(59oz.in) & Driver CNC Kit

USD 65.00 USD
SKU: 1DyB2NHC
Brand: STEPPERONLINE
MPN: 1-CL42T-S04-V41
Condition: New
Tags: 1-CL42T-S04-V41 1.5A 1.65ohms 1.8° (200 Steps) 12 V, 24 V, 12-24VDC 12-24VDC 2.5mH ± 20%(1KHz) 4-Wire Bipolar 42Ncm(59.48oz.in) 5mm B (Max 266°F) China D-cut STEPPERONLINE
Categories: Testers & Calibrators

Specifications

Full Step Angle1.8° (200 Steps)
Actual Rated Input Voltage12-24VDC
Rated Current Per Phase1.5A
Shaft TypeD-Cut
Shaft Diameter5mm
MPN1-CL42T-S04-V41
Insulation ClassB (Max 266°F)
Holding Torque42Ncm(59.48oz.in)
BrandSTEPPERONLINE
Inductance2.5mH ± 20%(1KHz)
Nominal Rated Input Voltage12 V, 24 V, 12-24VDC
Resistance Per Phase1.65ohms
Wiring Configuration4-Wire Bipolar
Country Of OriginChina

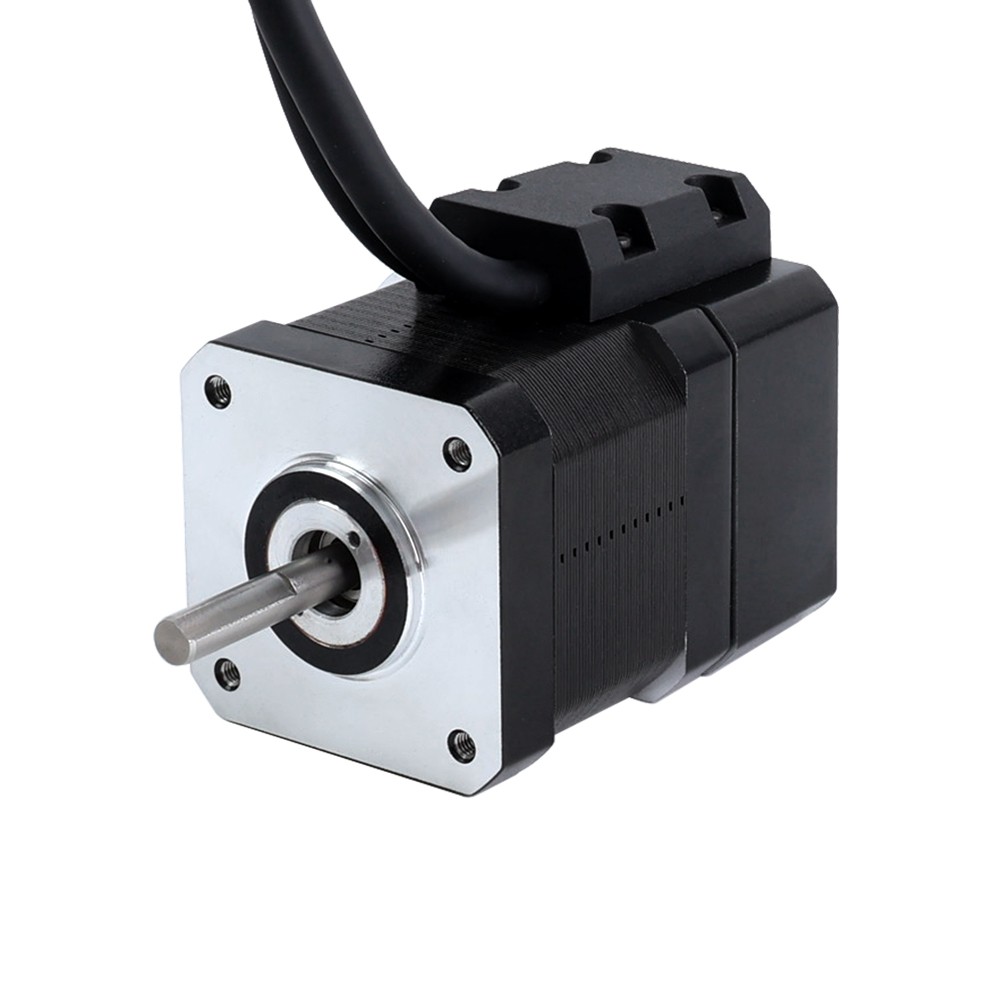

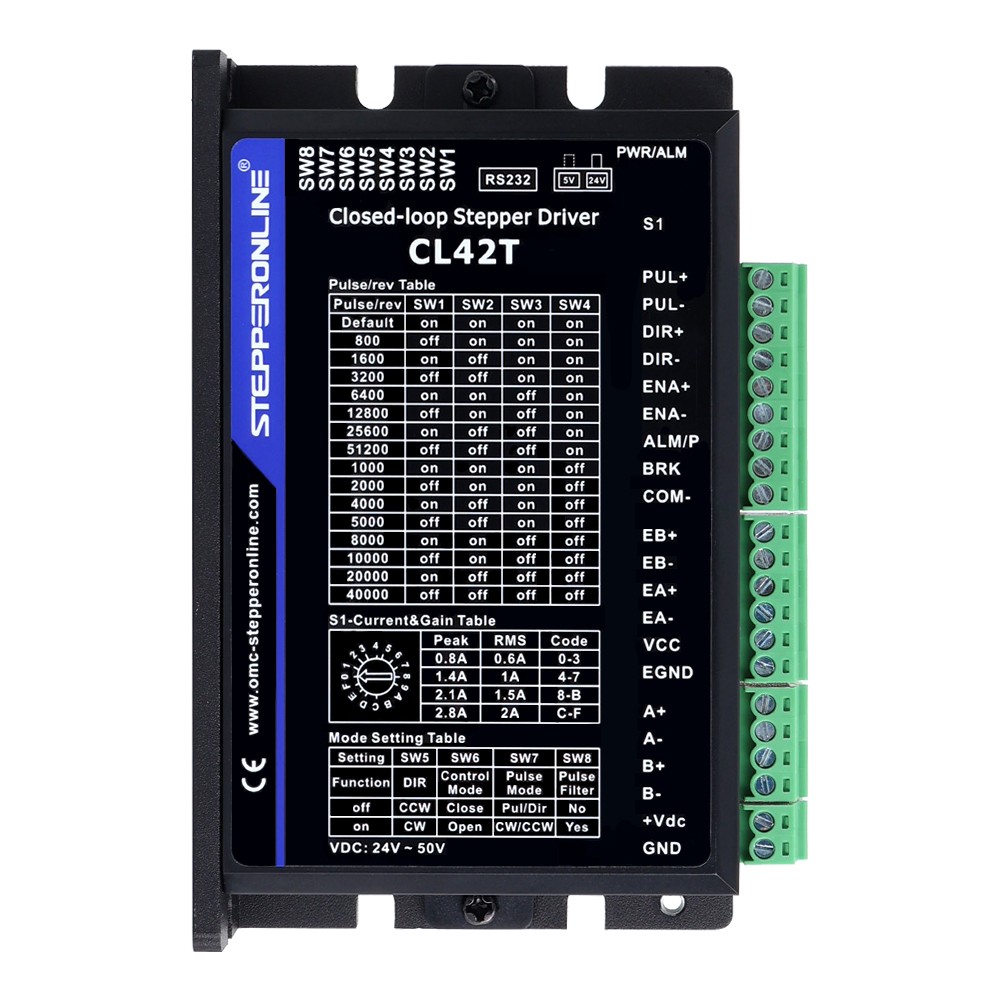

1 x 17HS15-1504D-E1K: Nema 17 Closed Loop Stepper Motor 42Ncm(59.48oz.in) with Encoder 1000PPR(4000CPR). Holding Torque: 42Ncm(59.48oz.in). 1 x CL42T-V41: Closed Loop Stepper DriverV4.1 0-3.0A 24-48VDC for Nema 11, 14, 17 Stepper Motor.
