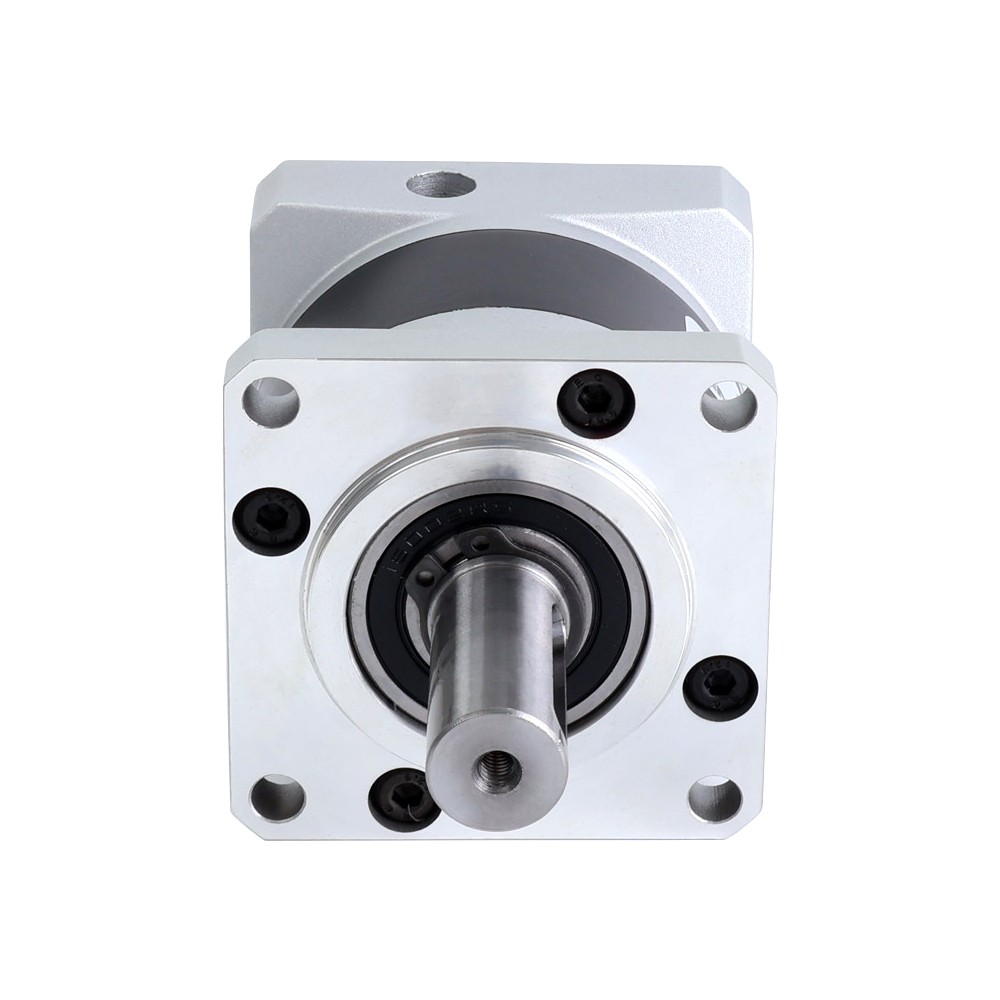

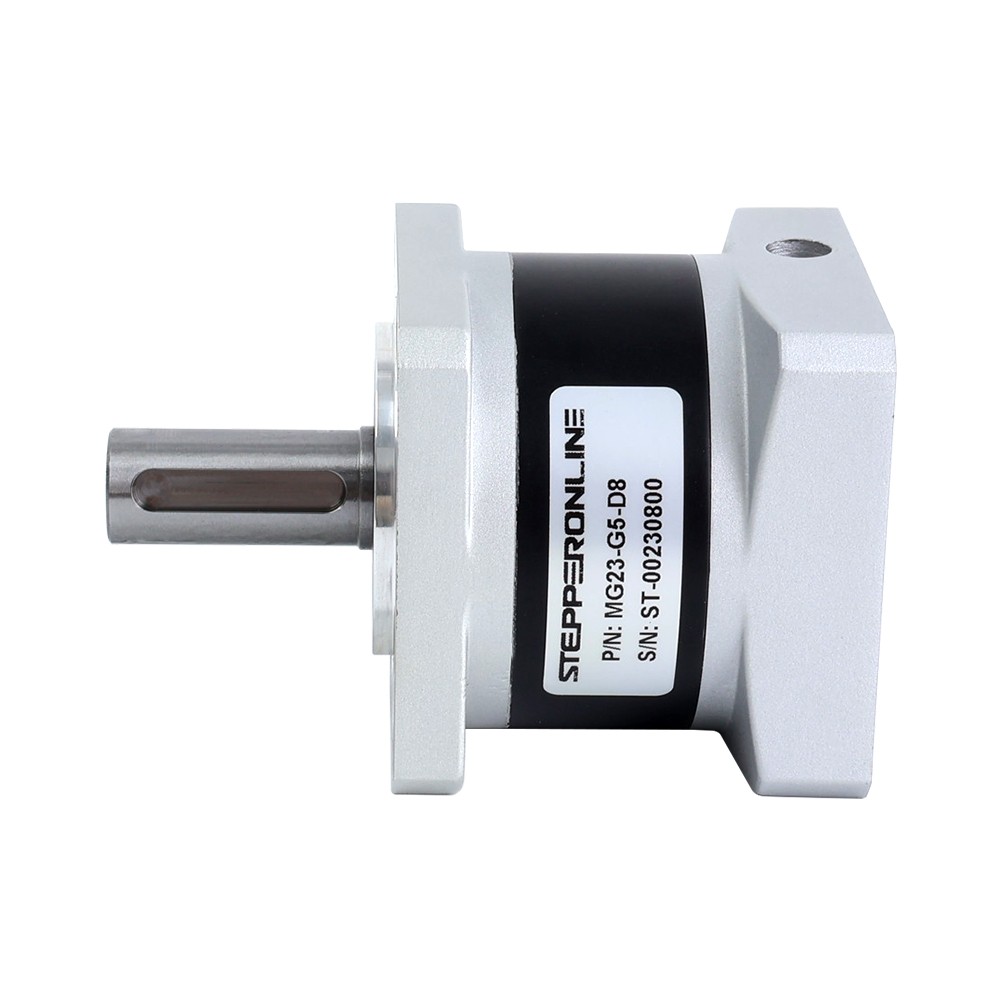

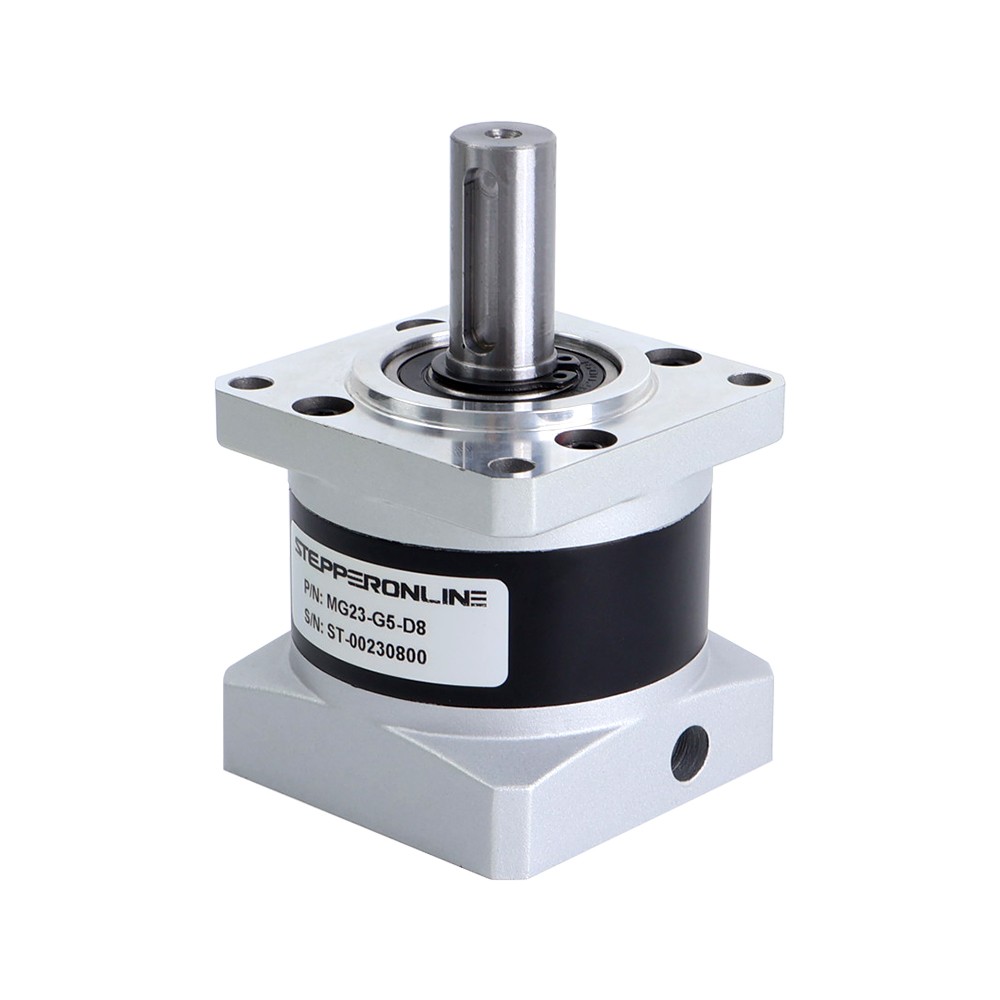

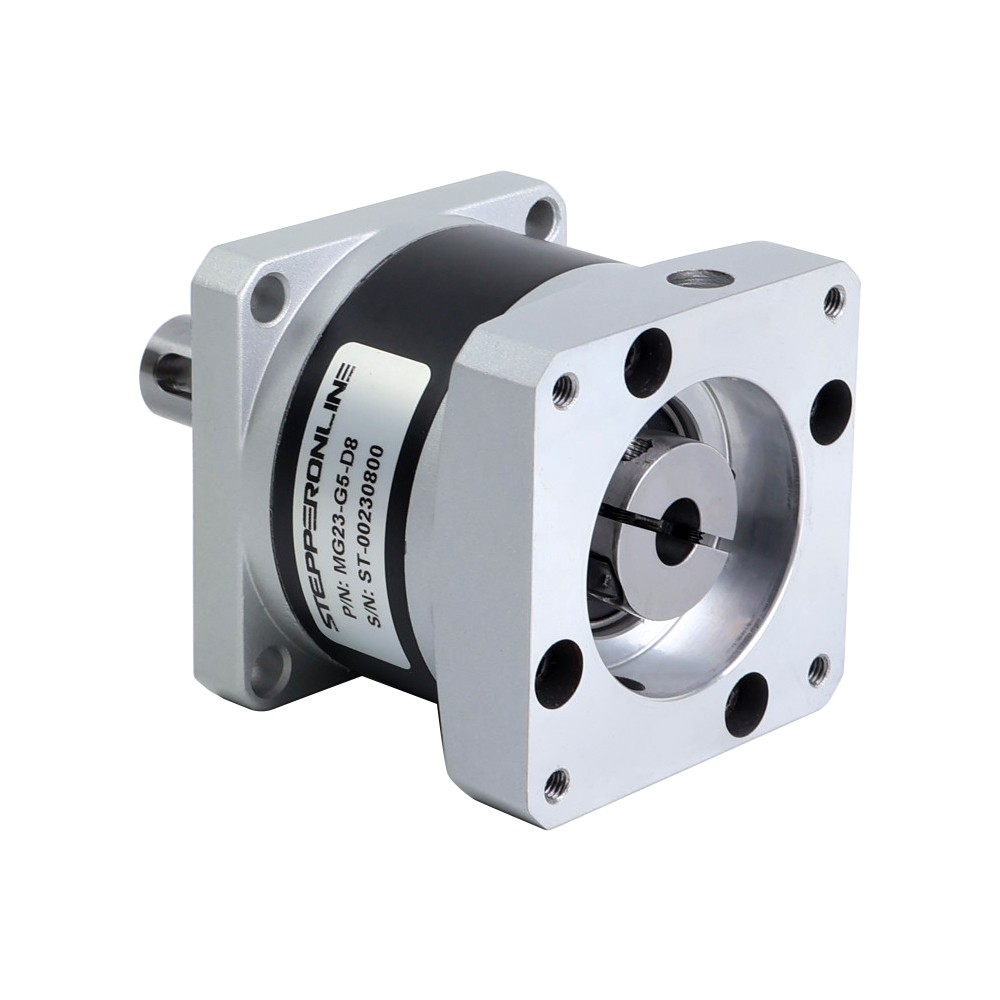

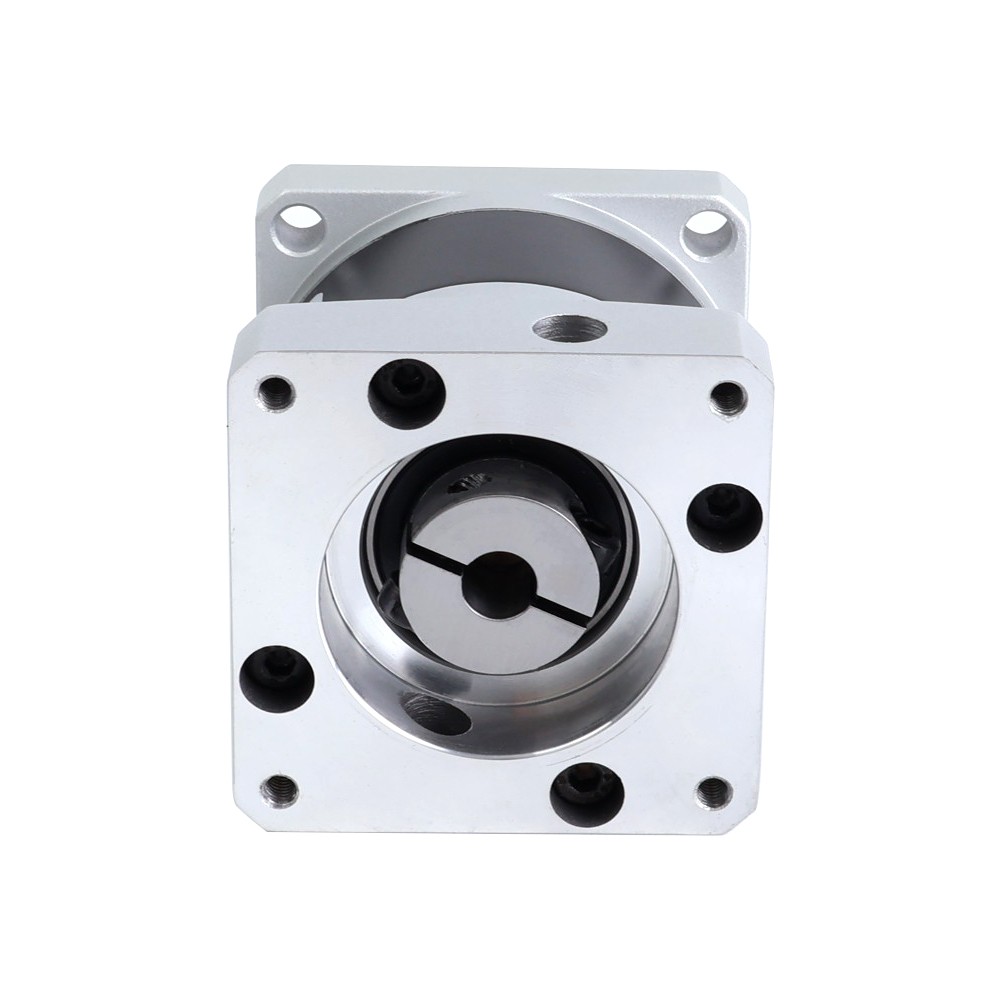

STEPPERONLINE 5:1 Backlash 30arc-min Planetary Gearbox for Nema 23 8mm Input

STEPPERONLINE 5:1 Backlash 30arc-min Planetary Gearbox for Nema 23 8mm Input

USD 37.30 USD

SKU: AvxuZ0Ij

Brand: STEPPERONLINE

MPN: MG23-G5-D8

GTIN: 742803058276

Condition: New

Tags: 0.13kg·cm² 0742803058276 25Nm(221.27lb-in) 34mm 5 min 5:1 55.5mm 742803058276 8-14mm China IP54 Key way MG23-G5-D8 Powder Metallurgy Spur Planetary STEPPERONLINE Φ14mm Φ8mm

Categories: Woodworking Equipment

Specifications

Country Of Origin	China
Brand	STEPPERONLINE
MPN	MG23-G5-D8
UPC	742803058276
EAN	0742803058276
Gear Ratio	5:1
Input Shaft Diameter	Φ8mm
Output Shaft Diameter	Φ14mm
Output Shaft Type	Key way
Rotor Inertia	0.13kg·cm²
Gearbox Length	55.5mm
Gearbox Type	Spur Planetary
Output Shaft Length	34mm
Max.Permissible Torque	25Nm(221.27lb-in)
Waterproof Rating	IP54
Gear Material:	Powder Metallurgy
Matching Motor's Input Shaft Length	8-14mm

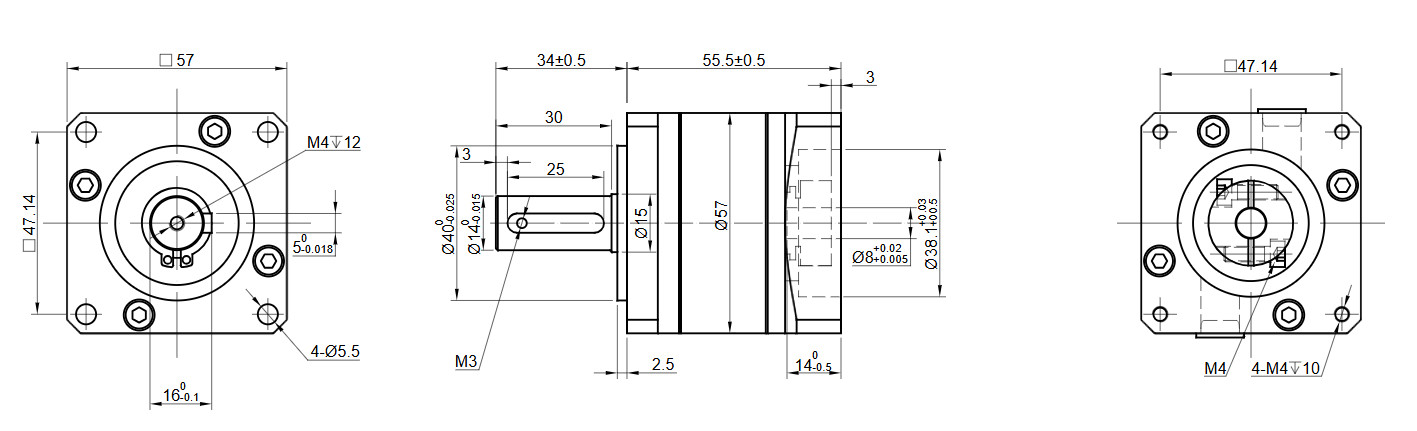

This high-precision planetary gearbox is belong to MG series gearbox, with gear ratio 5:1 and a maximum 30arc-min backlash. Backlash at No-load: <=30arcmin. Gearbox Type: Spur Planetary. Gearbox Specifications.
