STEPPERONLINE 4-Axis Nema23 3Nm Closed Loop Stepper Motor 8mm Shaft & Driver Kit
STEPPERONLINE 4-Axis Nema23 3Nm Closed Loop Stepper Motor 8mm Shaft & Driver Kit STEPPERONLINE 4-Axis Nema23 3Nm Closed Loop Stepper Motor 8mm Shaft & Driver Kit STEPPERONLINE 4-Axis Nema23 3Nm Closed Loop Stepper Motor 8mm Shaft & Driver Kit STEPPERONLINE 4-Axis Nema23 3Nm Closed Loop Stepper Motor 8mm Shaft & Driver Kit STEPPERONLINE 4-Axis Nema23 3Nm Closed Loop Stepper Motor 8mm Shaft & Driver Kit STEPPERONLINE 4-Axis Nema23 3Nm Closed Loop Stepper Motor 8mm Shaft & Driver Kit

STEPPERONLINE 4-Axis Nema23 3Nm Closed Loop Stepper Motor 8mm Shaft & Driver Kit

USD 335.00 USD
SKU: hJbLa0I8
Brand: STEPPERONLINE
MPN: 4-CLYS30A-V20
GTIN: Does not apply
Condition: New
Tags: 0.82ohms 1.8° (200 Steps) 1000PPR(4000CPR) 15mm 2.5μS 24-48VDC 25mA 3.00Nm(424.83oz.in) 4-CLYS30A-V20 4-Wire Bipolar 4.2A 500MΩ China D-cut Optical Incremental STEPPERONLINE Φ8mm
Categories: Testers & Calibrators

Specifications

BrandSTEPPERONLINE
Shaft TypeD-Cut
Wiring Configuration4-Wire Bipolar
Shaft DiameterΦ8mm
Full Step Angle1.8° (200 Steps)
MPN4-CLYS30A-V20
Actual Rated Input Voltage24-48VDC
Holding Torque3.00Nm(424.83oz.in)
Rated Current Per Phase4.2A
Resistance Per Phase0.82ohms
Country Of OriginChina
D-cut Shaft Length15mm
Output Current25mA
Encoder TypeOptical Incremental
Encoder Resolution1000PPR(4000CPR)
Isolation Resistance500MΩ
Pulse Width2.5μS

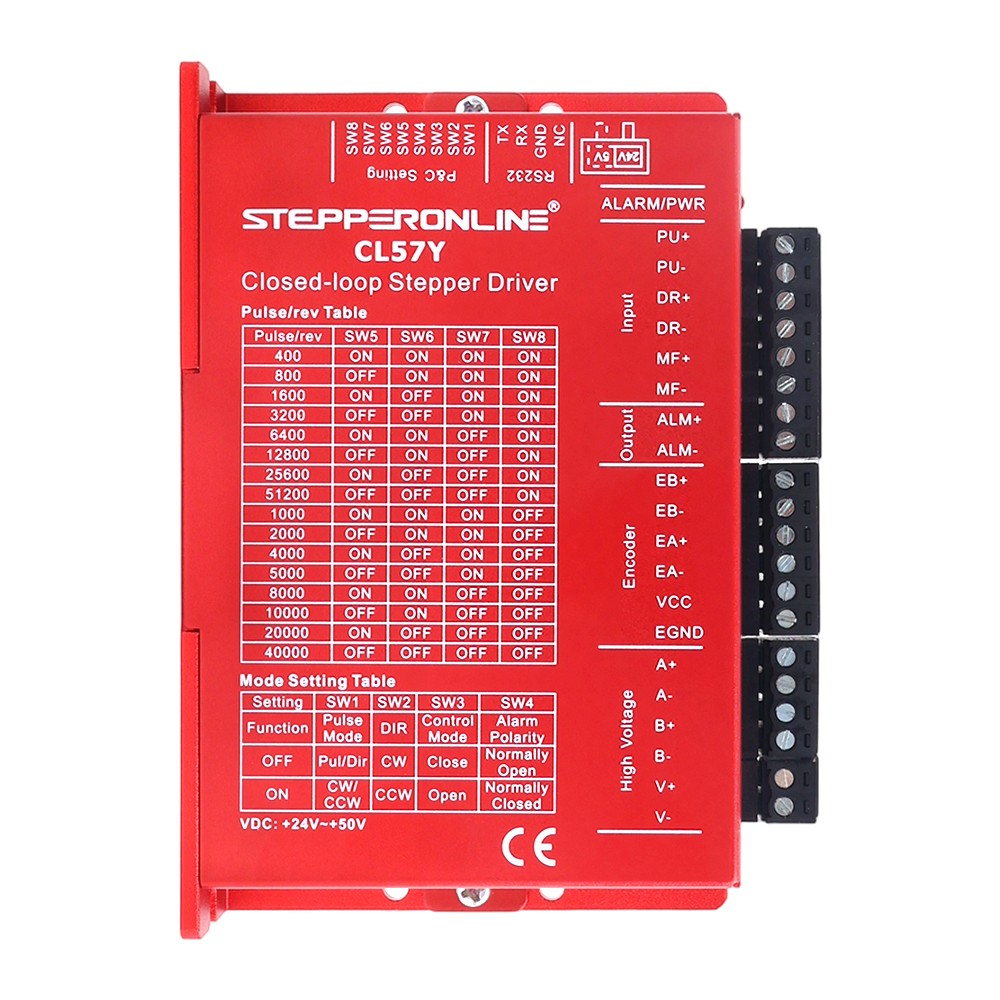

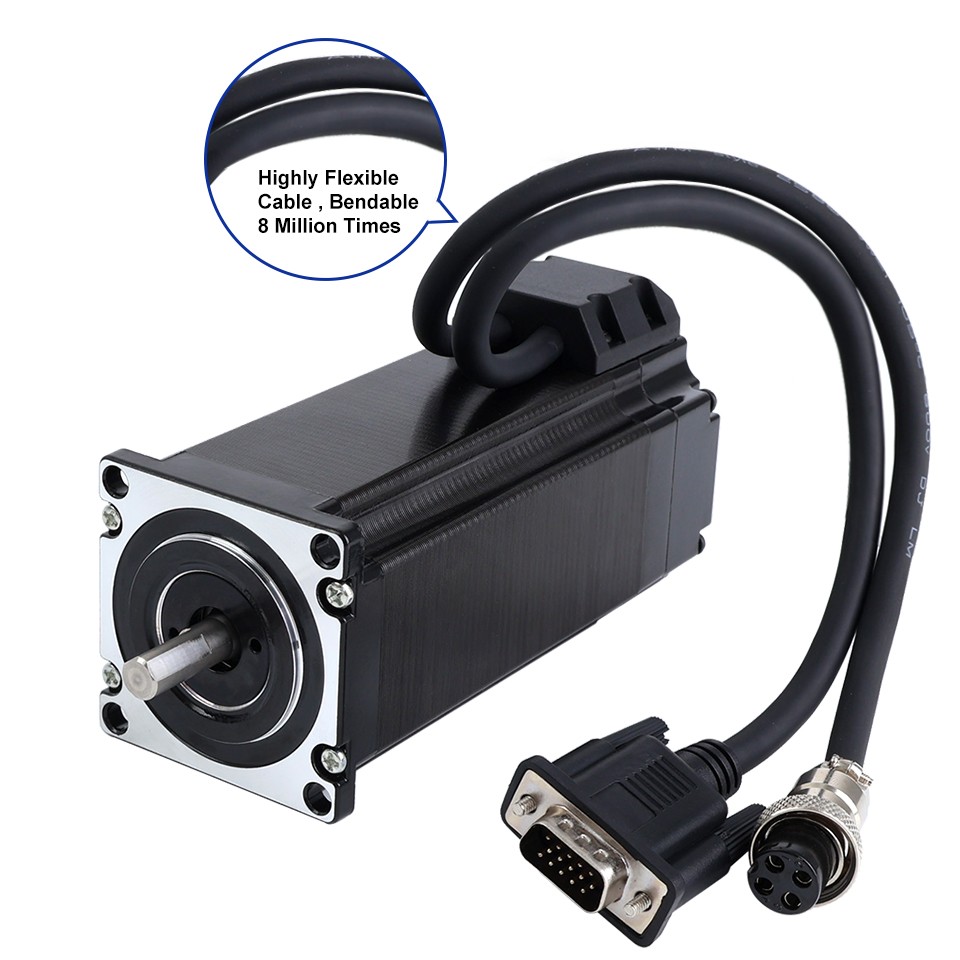

4 x Closed Loop Stepper Driver 0-7.0A 24-50VDC for Nema 17, 23, 24 Stepper Motor CL57Y V20. 4 x Nema 23 Closed Loop Stepper Motor 3.00Nm(424.83oz.in) Encoder 1000PPR(4000CPR). Shaft Length: 21mm. D-Cut Shaft Length: 15mm.

Related Items

Dental VITA Toothguide 3D Master with Bleached Shade Guide 29 Colors 16 Colors
Dental VITA Toothguide 3D Master with Bleached Shade Guide 29 Colors 16 Colors

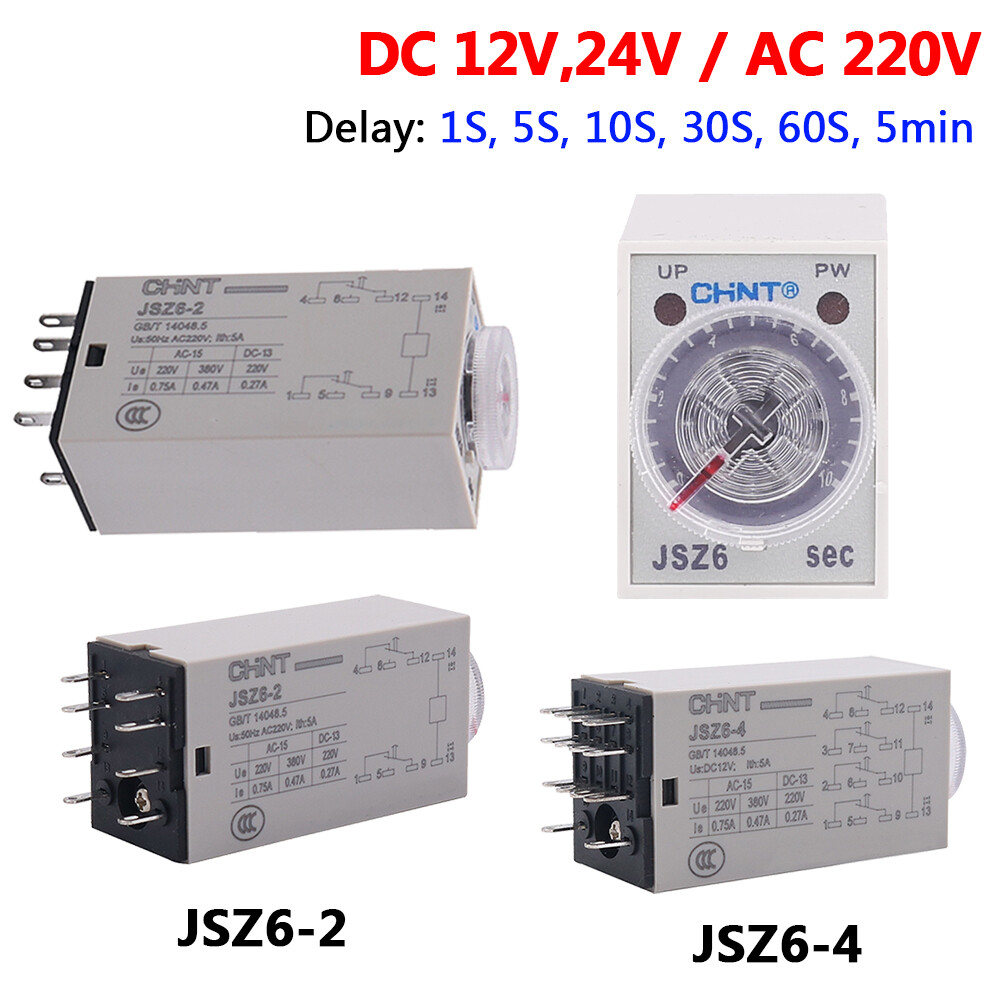

 AC 220V DC 12V/24V Time Delay Relays 1/5/10/30/60S 5Min JSZ6-2 8PIN JSZ6-4 14PIN
