STEPPERONLINE 2.4Nm 340oz.in Nema 23 Stepper CNC Kit Motor & 1~4.5A Driver
STEPPERONLINE 2.4Nm 340oz.in Nema 23 Stepper CNC Kit Motor & 1~4.5A Driver STEPPERONLINE 2.4Nm 340oz.in Nema 23 Stepper CNC Kit Motor & 1~4.5A Driver STEPPERONLINE 2.4Nm 340oz.in Nema 23 Stepper CNC Kit Motor & 1~4.5A Driver STEPPERONLINE 2.4Nm 340oz.in Nema 23 Stepper CNC Kit Motor & 1~4.5A Driver

STEPPERONLINE 2.4Nm 340oz.in Nema 23 Stepper CNC Kit Motor & 1~4.5A Driver

USD 57.65 USD
SKU: BPl1PMHO
Brand: StepperOnline
MPN: 1-DM542T-23HS32
GTIN: 742803053950
Condition: New
Tags: 0.9ohms 0742803053950 1-DM542T-23HS32 1.8° (200 Steps) 15mm 2.4Nm(339.87oz.in) 2.5μS 24 V, 48 V, 24-48VDC 24-48VDC 3.2mH±20%(1KHz) 4-Wire Bipolar 4.0A 500MΩ 742803053950 8mm China STEPPERONLINE
Categories: Testers & Calibrators

Specifications

Country Of OriginChina
BrandStepperOnline
Nominal Rated Input Voltage24 V, 48 V, 24-48VDC
Wiring Configuration4-Wire Bipolar
Full Step Angle1.8° (200 Steps)
Shaft Diameter8mm
MPN1-DM542T-23HS32
Actual Rated Input Voltage24-48VDC
Holding Torque2.4Nm(339.87oz.in)
Rated Current Per Phase4.0A
Resistance Per Phase0.9ohms
UPC742803053950
EAN0742803053950
Inductance3.2mH±20%(1KHz)
D-cut Shaft Length15mm
Isolation Resistance500MΩ
Pulse Width2.5μS

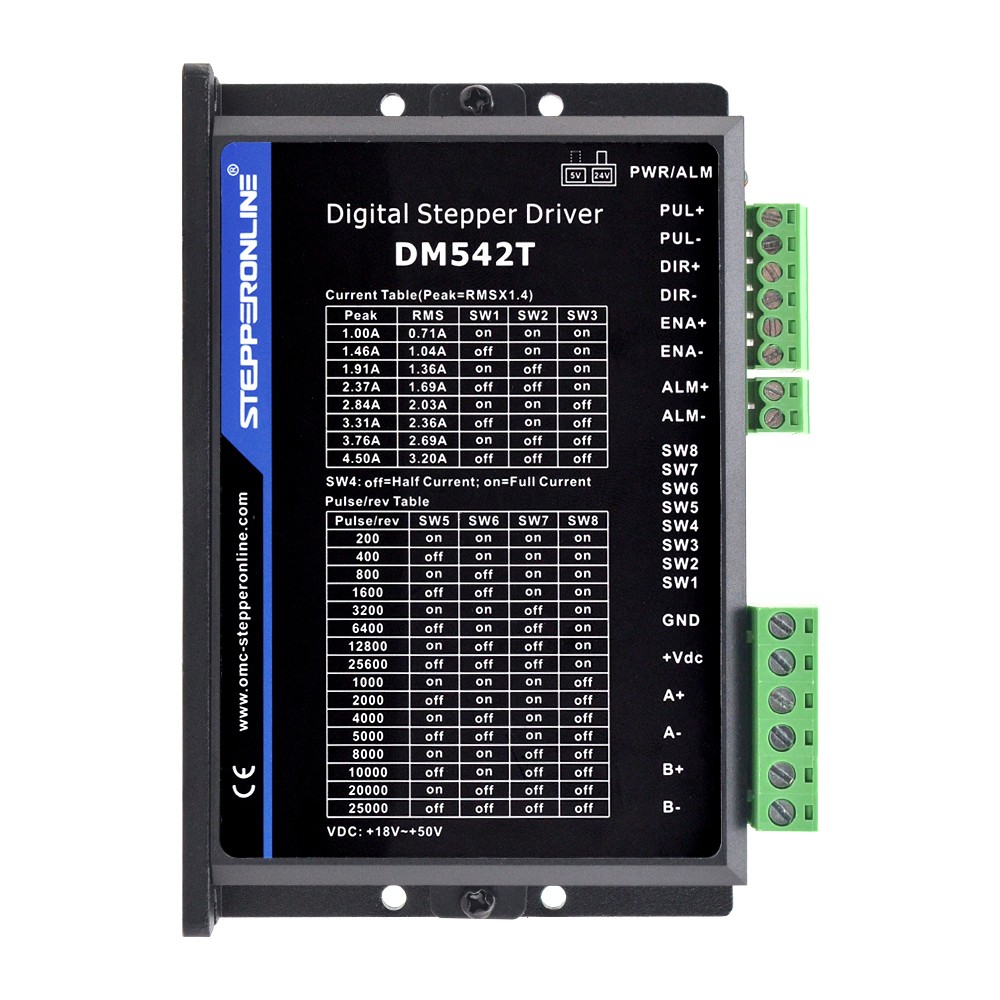

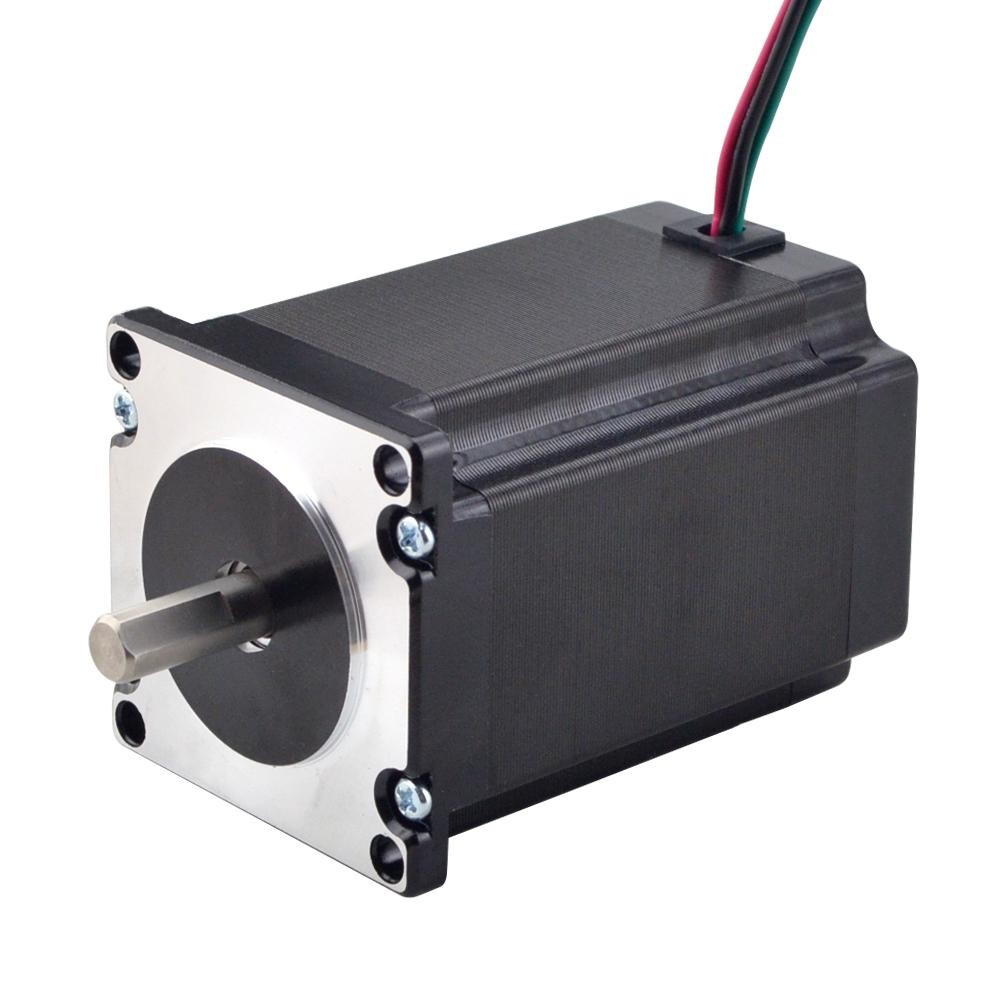

1 x Digital Stepper Driver 1.0-4.5A 18-50VDC for Nema 17, 23, 24 Stepper Motor. 1 x Nema 23 Stepper Motor 2.4Nm(339.87oz.in) 4A 57x57x82mm 8mm Shaft 4 Wires. Suitable for 2-phase and 4-phase motors, works well as nema 17 driver, nema 23 driver.
