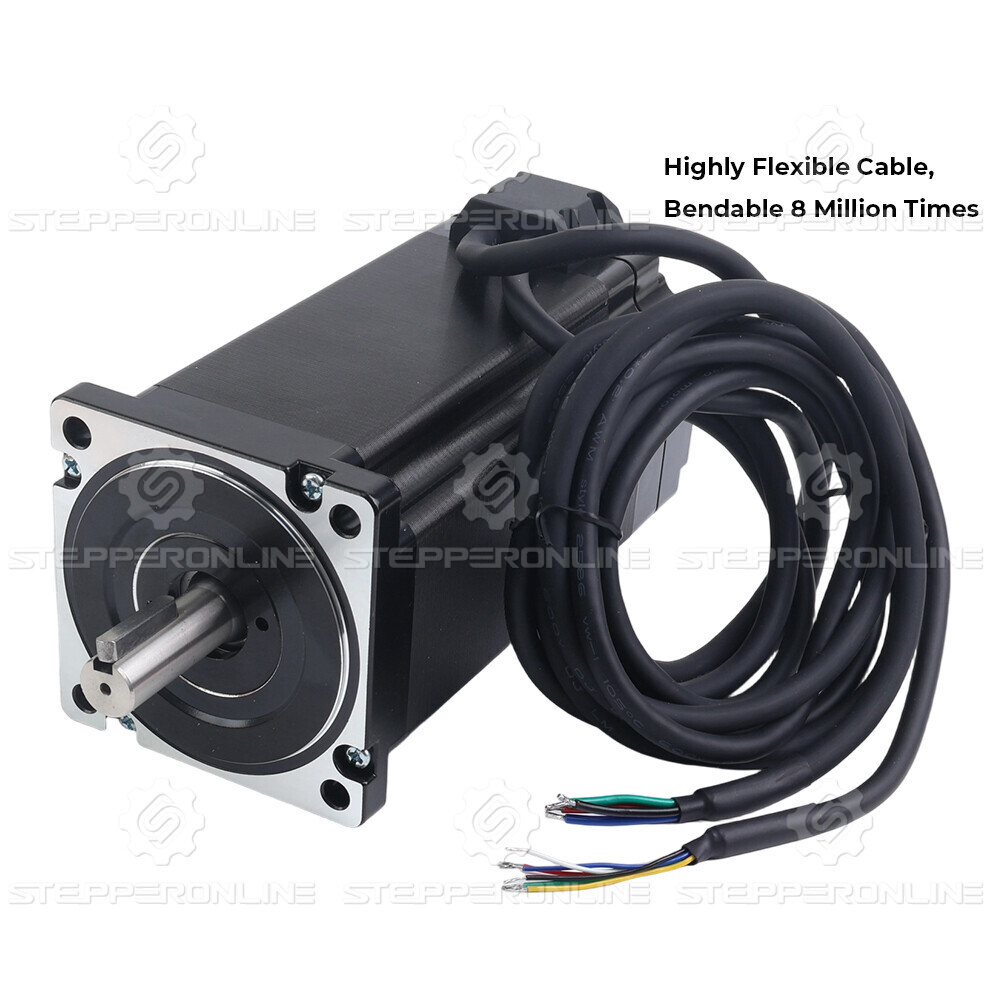

STEPPERONLINE 12Nm Nema 34 Closed Loop Stepper Motor & CL86Y Driver CNC Kit
STEPPERONLINE 12Nm Nema 34 Closed Loop Stepper Motor & CL86Y Driver CNC Kit STEPPERONLINE 12Nm Nema 34 Closed Loop Stepper Motor & CL86Y Driver CNC Kit STEPPERONLINE 12Nm Nema 34 Closed Loop Stepper Motor & CL86Y Driver CNC Kit STEPPERONLINE 12Nm Nema 34 Closed Loop Stepper Motor & CL86Y Driver CNC Kit STEPPERONLINE 12Nm Nema 34 Closed Loop Stepper Motor & CL86Y Driver CNC Kit

STEPPERONLINE 12Nm Nema 34 Closed Loop Stepper Motor & CL86Y Driver CNC Kit

USD 146.00 USD
SKU: FrbqZNHB
Brand: StepperOnline
MPN: 1-CLYS120-1M5
GTIN: Does not apply
Condition: New
Tags: .25mm 0.59ohms ± 10% 1-CLYS120-1M5 1.8° (200 Steps) 1000PPR(4000CPR) 12.00Nm(1699.34oz.in) 36-60VDC/30-70VAC 4-Wire Bipolar 6.0A China KeyWay Optical Incremental STEPPERONLINE Φ14mm
Categories: Testers & Calibrators

Specifications

BrandStepperOnline
Shaft TypeKeyway
Wiring Configuration4-Wire Bipolar
Shaft DiameterΦ14mm
Full Step Angle1.8° (200 Steps)
MPN1-CLYS120-1M5
Actual Rated Input Voltage36-60VDC/30-70VAC
Holding Torque12.00Nm(1699.34oz.in)
Rated Current Per Phase6.0A
Resistance Per Phase0.59ohms ± 10%
Country Of OriginChina
Encoder TypeOptical Incremental
Encoder Resolution1000PPR(4000CPR)
Keyway Shaft Length25mm

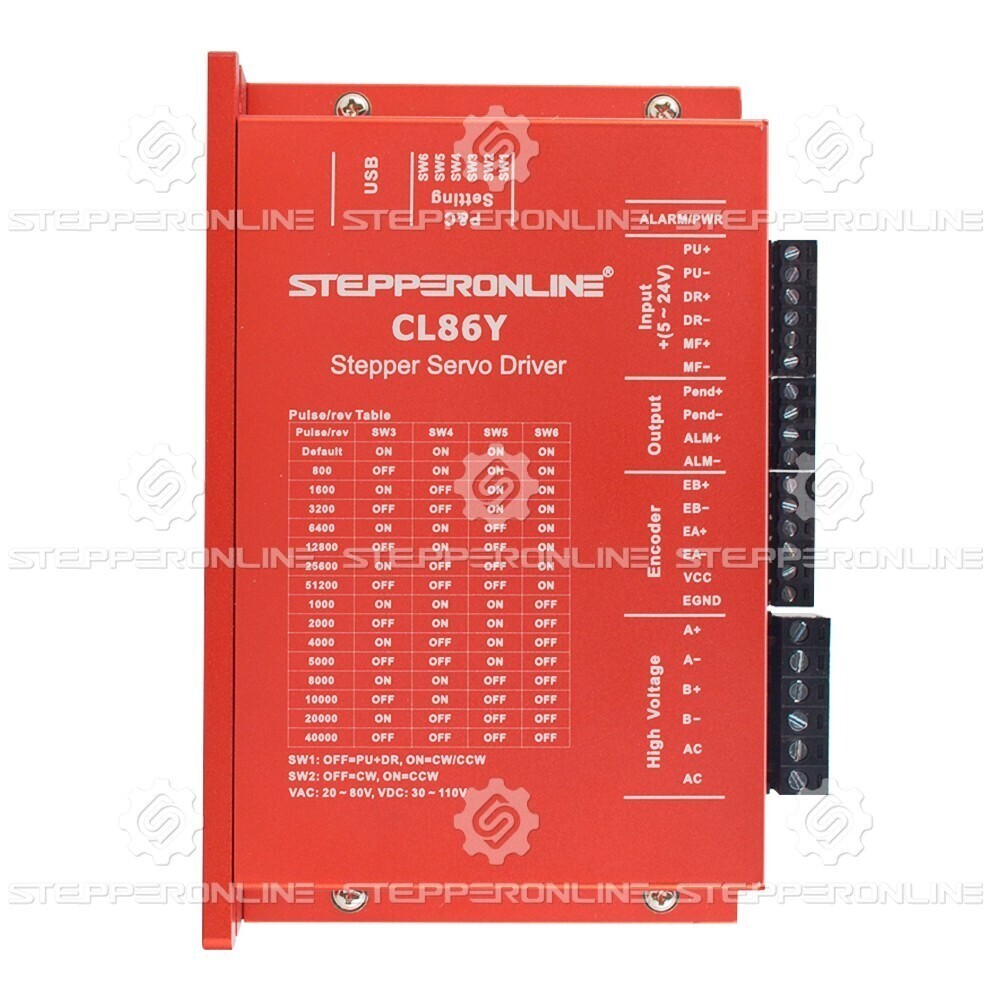

1 x Nema 34 Closed Loop Stepper Motor 12.00Nm(1699.34oz.in)Encoder 1000PPR(4000CPR). 1 x Closed Loop Stepper Driver 0-8.5A 20-80VAC/30-110VDCCL86Y. Motor Type: Bipolar Stepper. This CNC kit includes.
