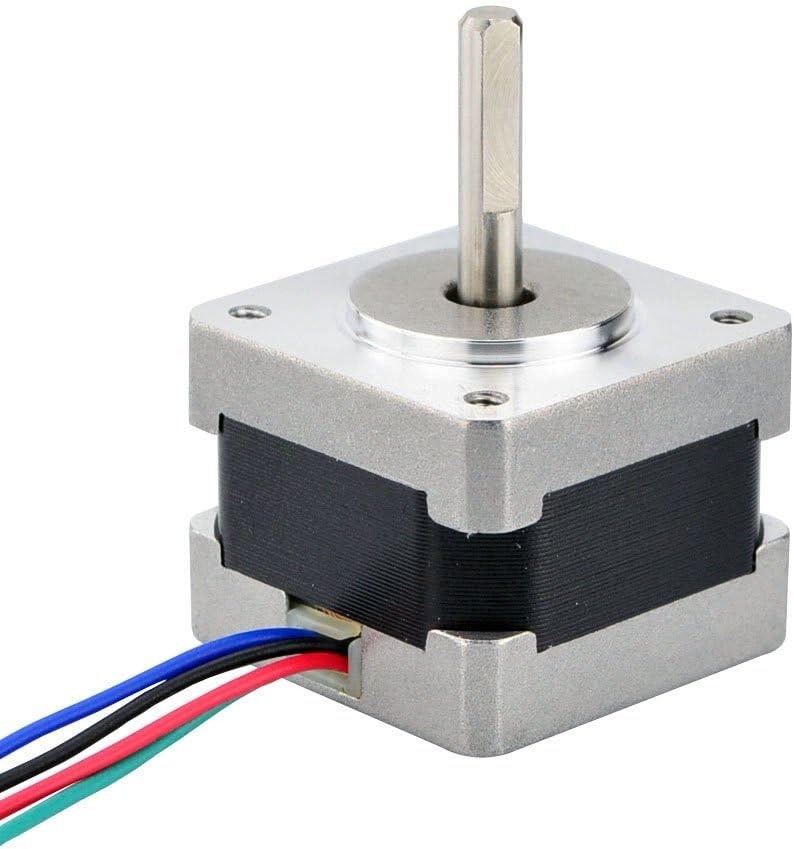

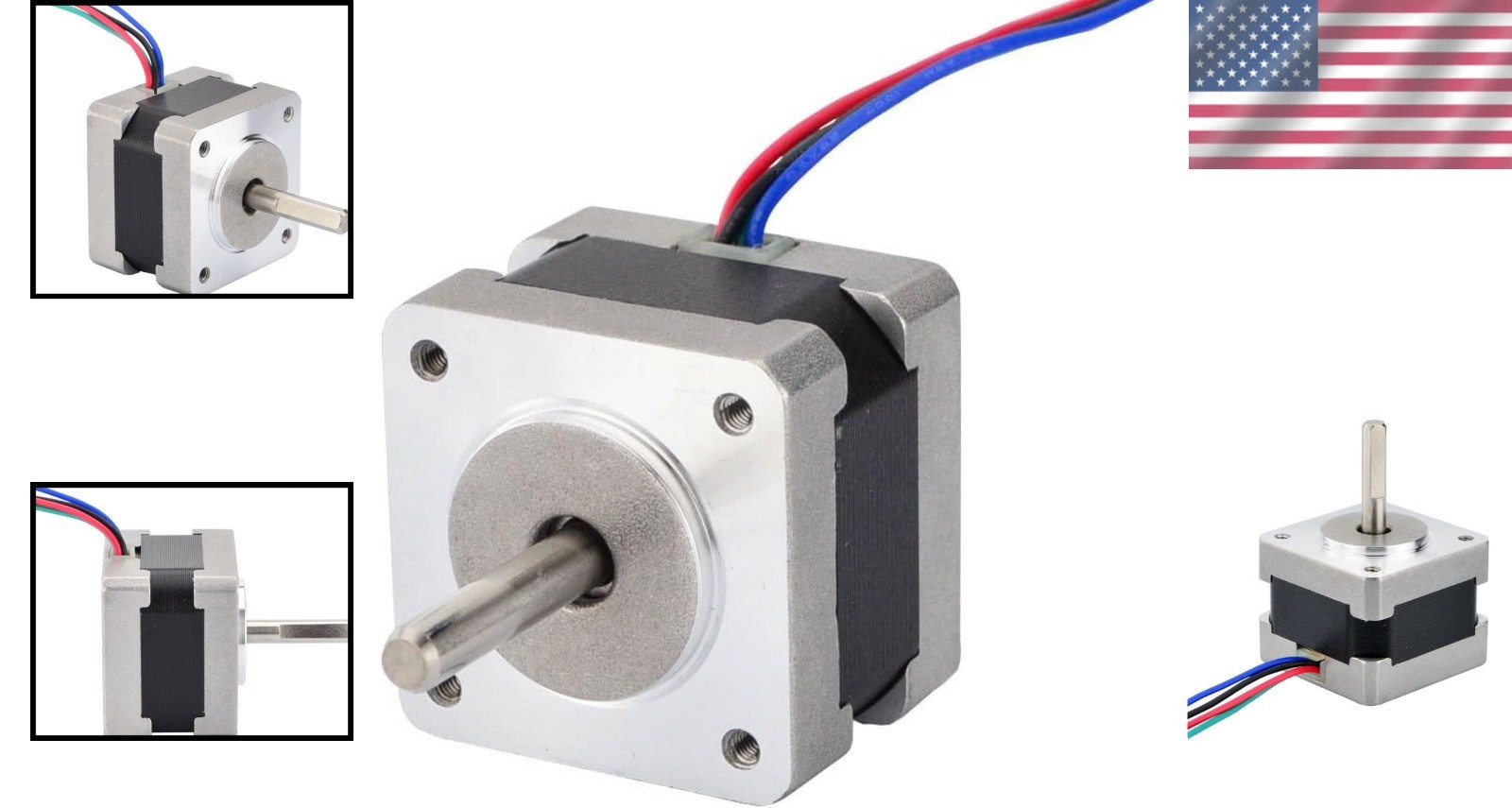

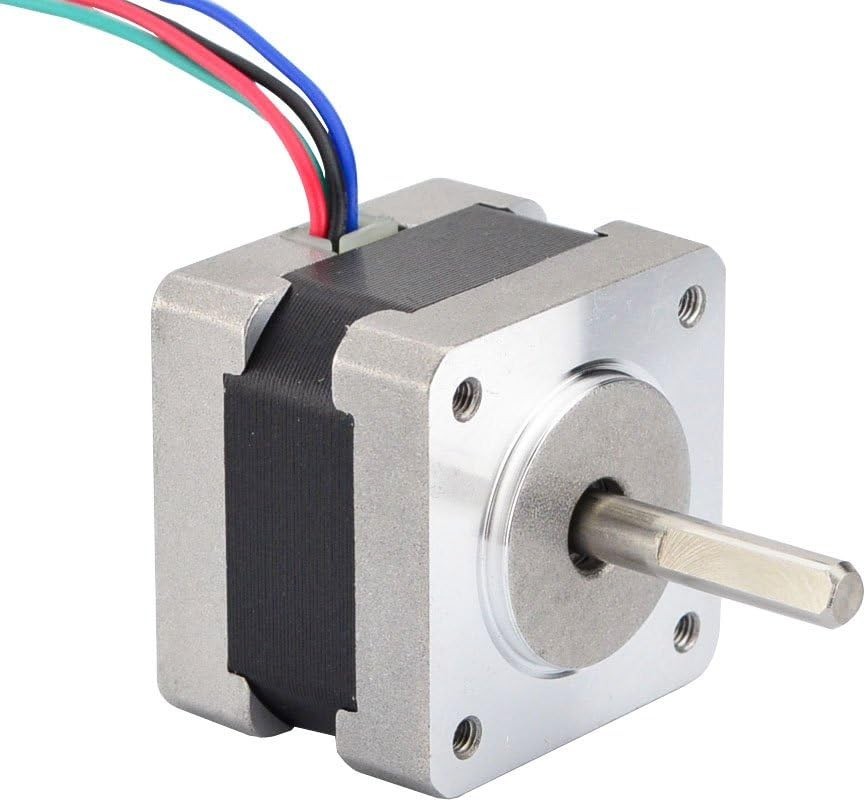

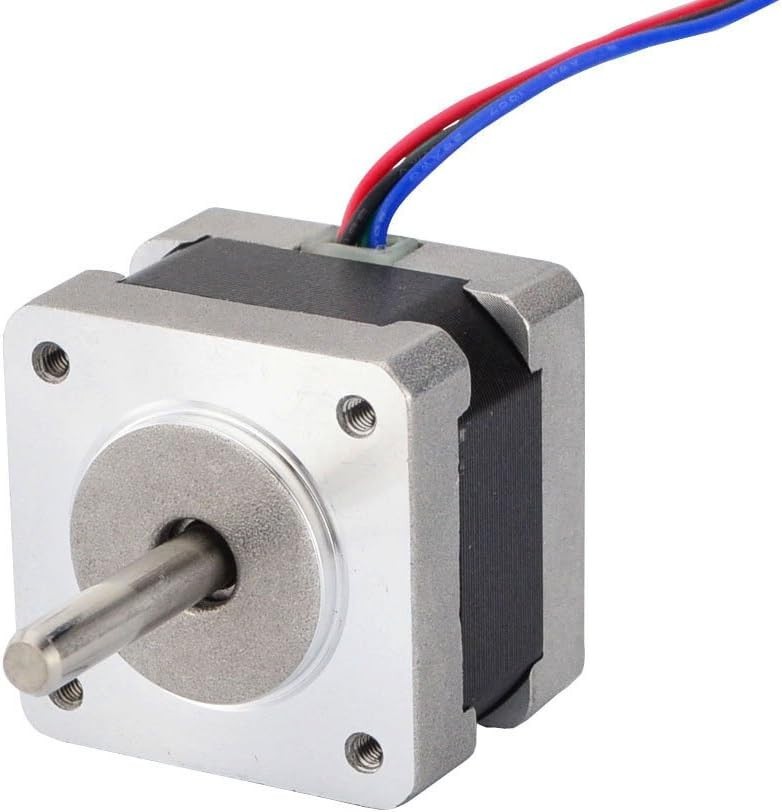

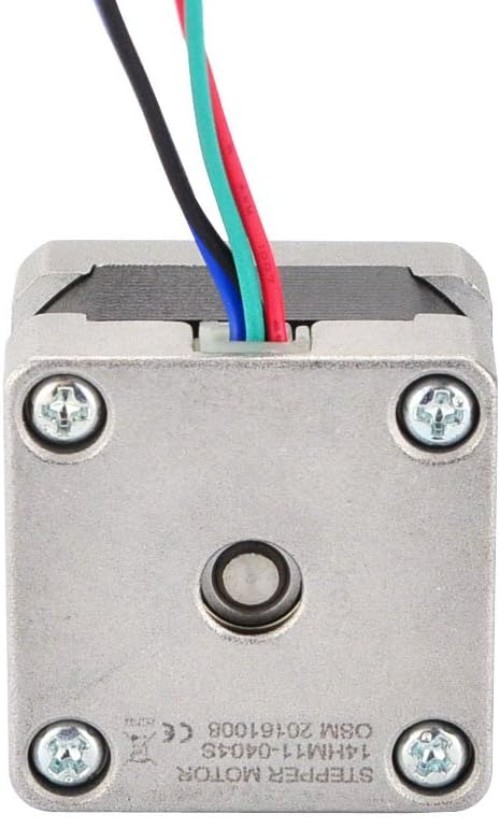

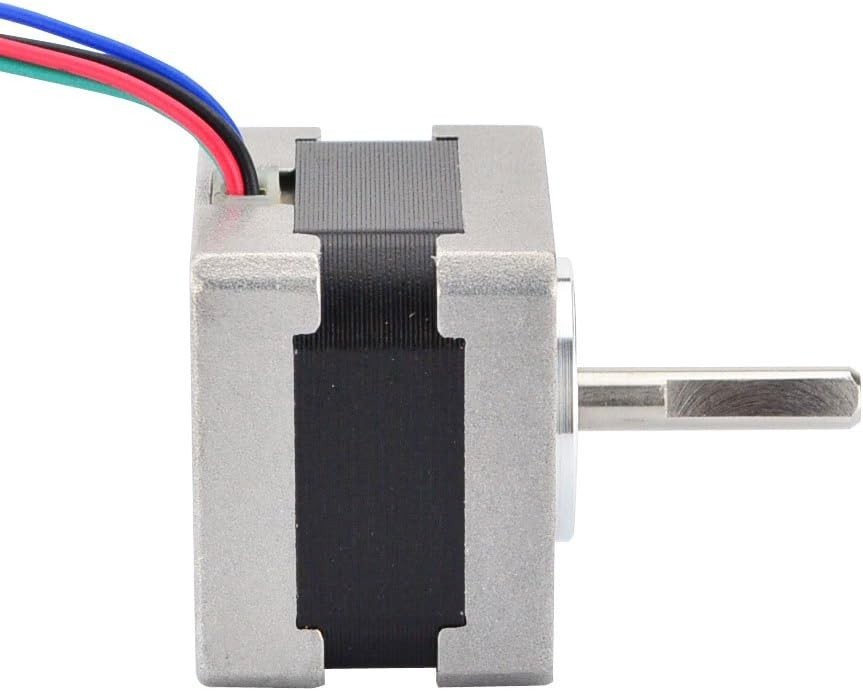

Stepper Motor NEMA 14 Bipolar 0.9 Deg 11Ncm 4-Wires 0.4A
Stepper Motor NEMA 14 Bipolar 0.9 Deg 11Ncm 4-Wires 0.4A Stepper Motor NEMA 14 Bipolar 0.9 Deg 11Ncm 4-Wires 0.4A Stepper Motor NEMA 14 Bipolar 0.9 Deg 11Ncm 4-Wires 0.4A Stepper Motor NEMA 14 Bipolar 0.9 Deg 11Ncm 4-Wires 0.4A Stepper Motor NEMA 14 Bipolar 0.9 Deg 11Ncm 4-Wires 0.4A Stepper Motor NEMA 14 Bipolar 0.9 Deg 11Ncm 4-Wires 0.4A Stepper Motor NEMA 14 Bipolar 0.9 Deg 11Ncm 4-Wires 0.4A Stepper Motor NEMA 14 Bipolar 0.9 Deg 11Ncm 4-Wires 0.4A

Stepper Motor NEMA 14 Bipolar 0.9 Deg 11Ncm 4-Wires 0.4A

USD 44.93 USD
SKU: 85bwo4JT
Brand: Unbranded
MPN: Nema_14_Stepper_Motor
GTIN: Does Not Apply
Condition: New
Tags: 0.4A 0.9 Deg. 0.9° (400 Steps) 10 V 11Ncm (15.6oz.in) 11ncm(15.6oz.in) 140g 15mm 2.5ohms 24mh+/-20%(1khz) 24mm 28mm 300 Millimeters 300mm 35 X 35mm 4-Wire Bipolar 5mm 701056352371 Bipolar Stepper Nema 14 Stepper Motor Nema_14_Stepper_Motor None Not NEMA Rated Not Protected Not Rated Solid Shaft Unbranded
Categories: Testers & Calibrators

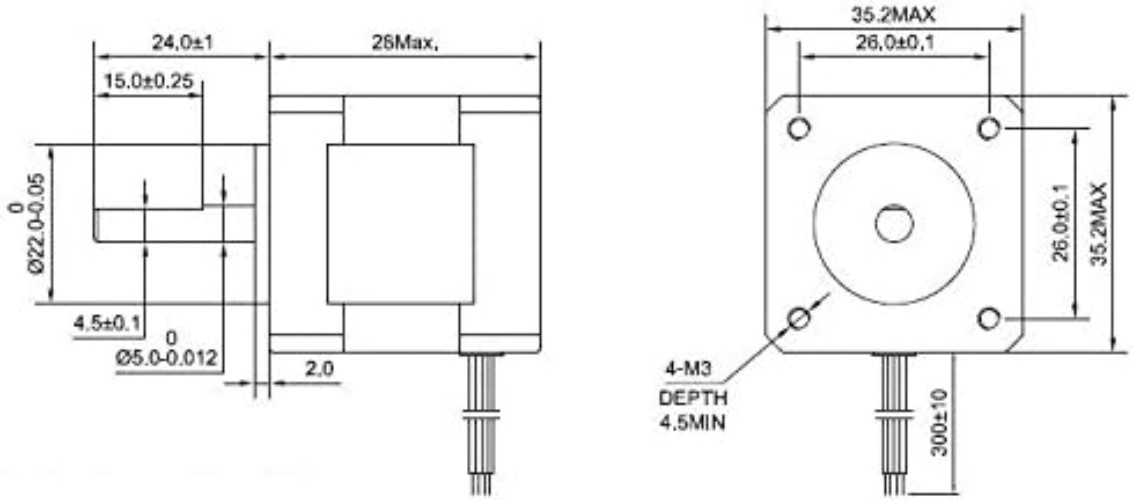

Specifications

Actual Rated Input Voltage10 V
* Lead Length300mm
Base RPMNone
* Body Length28mm
Upc701056352371
MPNNema_14_Stepper_Motor
Insulation ClassNot Rated
Holding Torque11Ncm (15.6oz.in)
* Inductance24mh+/-20%(1khz)
* D-cut Length15mm
* Holding Torque11ncm(15.6oz.in)
* Rated Current/phase0.4a

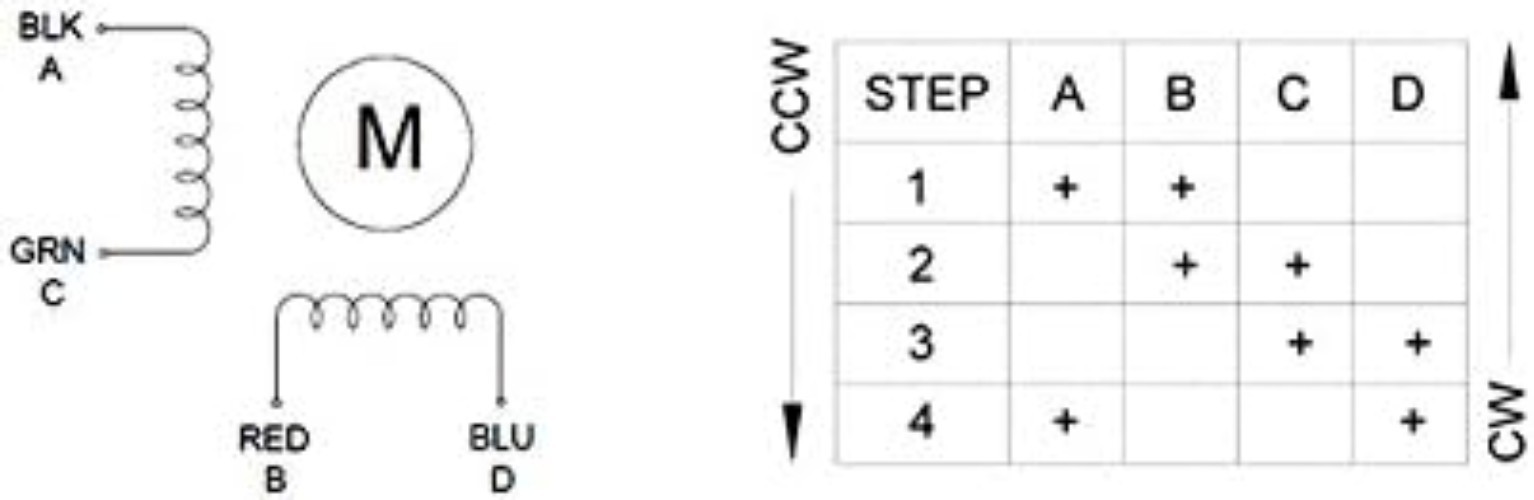

Wiring Configuration4-Wire Bipolar
* Shaft Diameter5mm
Full Step Angle0.9° (400 Steps)
* Weight140g
Full Load Amps0.4A
* Shaft Length24mm
Rated Current Per Phase0.4A
Shaft TypeSolid Shaft
Shaft Diameter5mm
* Phase Resistance2.5ohms
* Frame Size35 X 35mm
BrandUnbranded
Protection Against LiquidsNot Protected
* Motor TypeBipolar Stepper
* Step Angle0.9 Deg.
Resistance Per Phase2.5ohms
Nominal Rated Input Voltage10 V
ModelNema 14 Stepper Motor
Focal Length Description300 Millimeters
Protection Against SolidsNot Protected

Its electrical specifications—such as a phase resistance of 2.5 ohms and inductance of 24mH—ensure smooth operation when paired with a suitable constant current or chopper driver. Holding Torque: 11Ncm (15.6oz.in) Rated Current per Phase: 0.4A Resistance per Phase: 2.5ohms Unit Quantity: 1.

Related Items

Foam Pick and Pluck Inserts – 4 Pcs
Foam Pick and Pluck Inserts – 4 Pcs
 1-5/8″ OD x 1/4″ Wall DOM Seamless Round Tube x 4″ Long, Mild Steel, 1.625″ Dia
1-5/8″ OD x 1/4″ Wall DOM Seamless Round Tube x 4″ Long, Mild Steel, 1.625″ Dia
 Flux Core MIG Welder 145A 3 Functions No Shielding Gas Required Stick TIG
Flux Core MIG Welder 145A 3 Functions No Shielding Gas Required Stick TIG
 Vacuum Pump 4 CFM HVAC Single Stage Rotary Vane Vacuum Pump Oil Included
Vacuum Pump 4 CFM HVAC Single Stage Rotary Vane Vacuum Pump Oil Included
 Dental Orthodontic Arch Wire NiTi Stainless Steel Ovoid/Natural Round Wires
Dental Orthodontic Arch Wire NiTi Stainless Steel Ovoid/Natural Round Wires
 4-20MA 0-10V Temperature Sensor Transmitter Module PT100 Transmitter Module
4-20MA 0-10V Temperature Sensor Transmitter Module PT100 Transmitter Module
 10-100 Kraft/Poly/Bubble Mailers Shipping Padded Envelopes Self-Seal Any Size
10-100 Kraft/Poly/Bubble Mailers Shipping Padded Envelopes Self-Seal Any Size

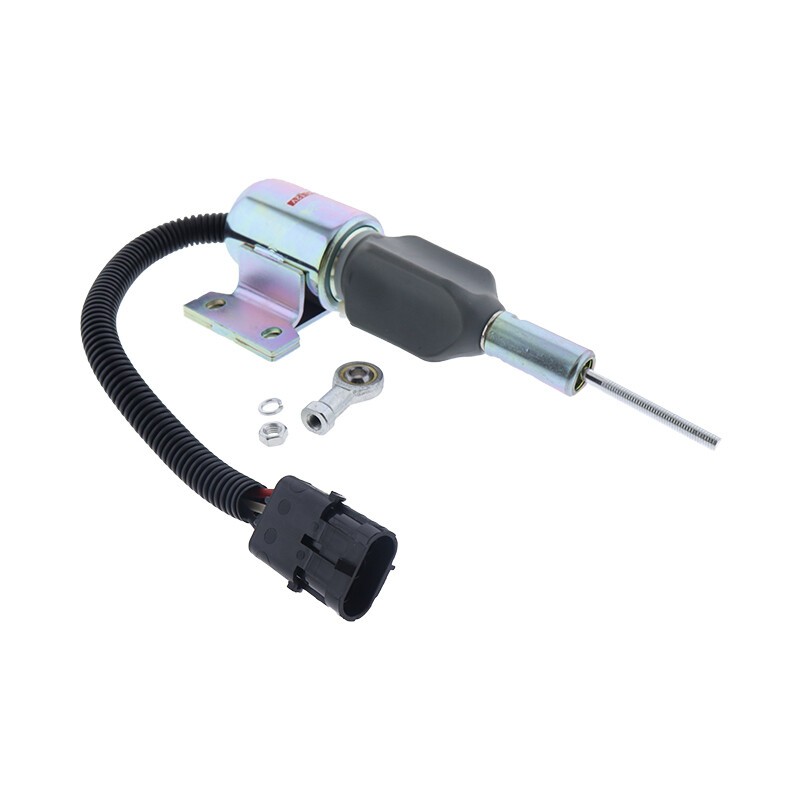

 3932530 3932529 For Hyundai R220-5 210-3 Flameout Solenoid Valve
