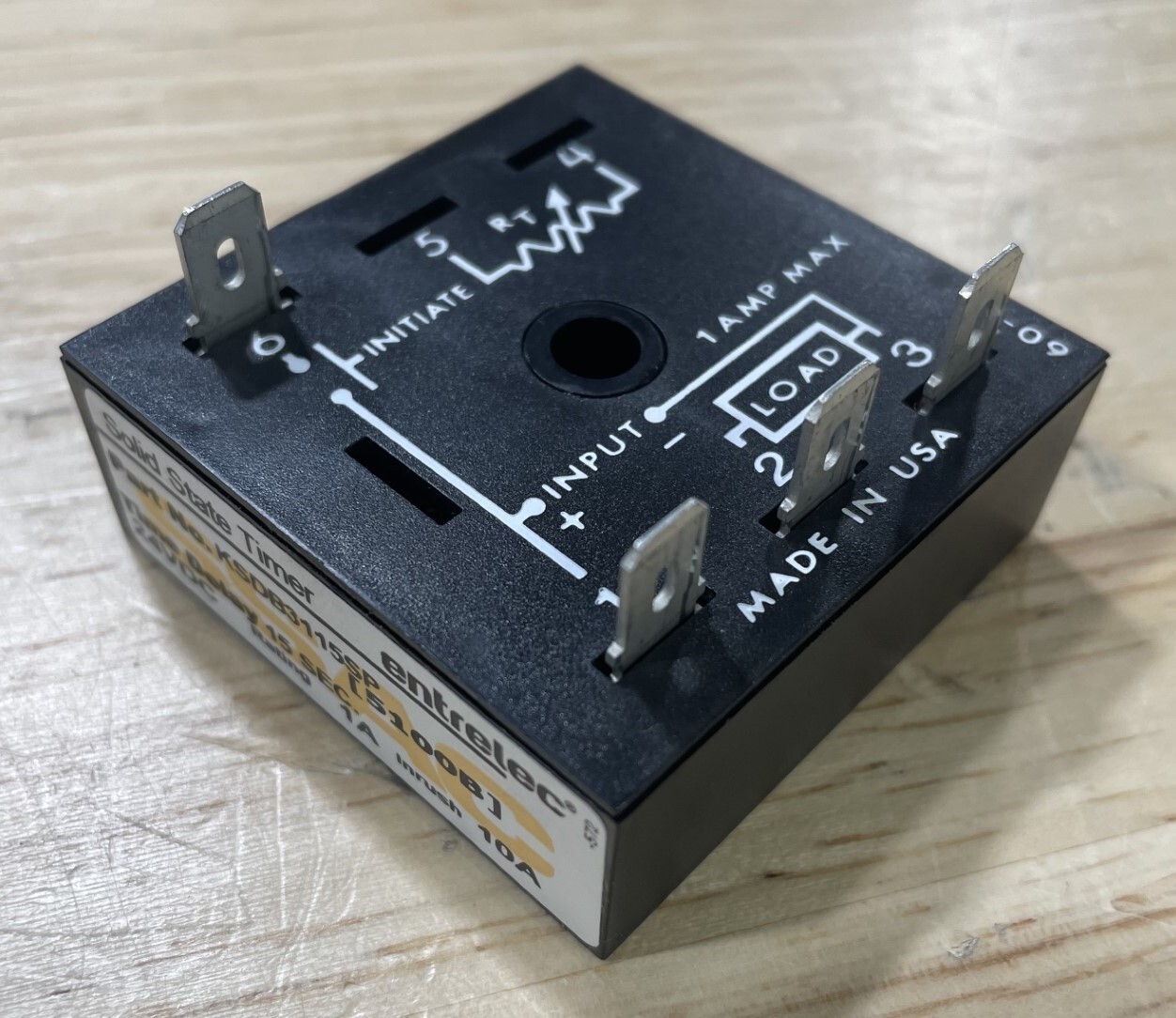

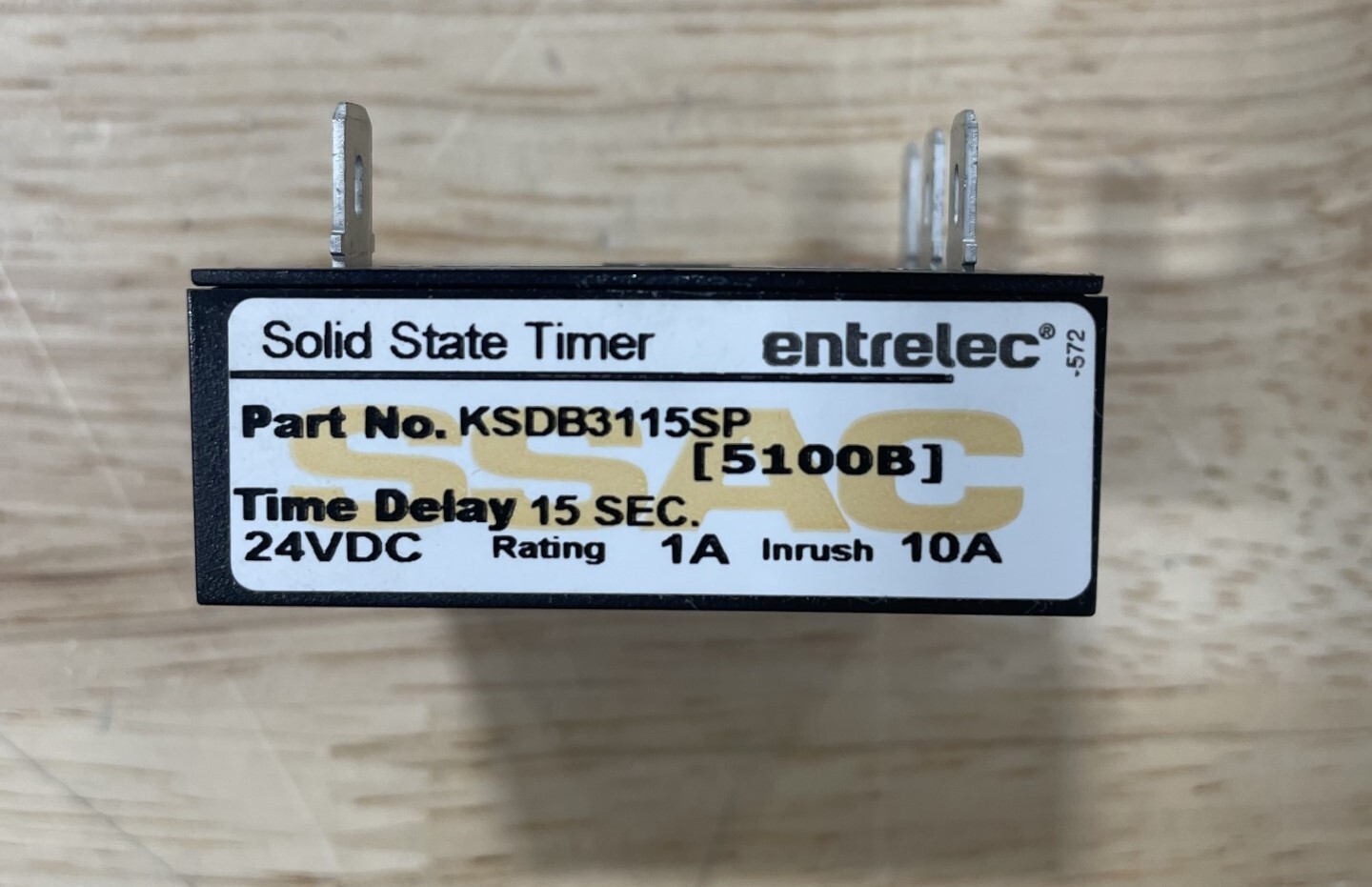

SSAC KSDB3115SP Solid State Timer 15 Sec. Time Delay, 1A 24 VDC
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | SSAC |
| Model | SSAC KSDB3115SP |
| Features | Timer |
| MPN | KSDB3115SP |
New solid state timer, time delay 15 sec, 24 VDC, Rating 1A, Inrush 10 A The KSDB is designed for general purpose commercial and industrial applications where a small, cost effective, reliable solid‑state timer is required. The factory calibration for fixed time delays is within 5% of the target time delay. The repeat accuracy, under stable conditions, is 0.5% of the selected time delay. This series is designed for popular AC and DC voltages. Time delays of 0.1 seconds to 1000 minutes are available in 6 ranges. The output is rated 1A steady and 10A inrush. The modules are totally solid state and encapsulated to protect the electronic circuitry. Operation (Delay‑on‑Break): Input voltage must be applied before and during timing. Upon closure of the initiate switch, the output energizes. The time delay begins when the initiate switch is opened. The output remains energized during timing. At the end of the time delay, the output de‑energizes. The output energizes if the initiate switch is closed when input voltage is applied. Reset: Reclosing the initiate switch during timing resets the time delay. Loss of input voltage resets the time delay and output. SPECS:Manufacturer Part NumberKSDB3115SPItem NumberKSDB3115SPManufacturerSSACProduct SeriesKSDBFamily SeriesSSAC Relays, KSDB SeriesMode of OperationOff DelayMulti-FunctionNoContacts1NOMounting TypeSurfaceTime Range AdjustmentFixedTiming Range15Max Time15 sTime Tolerance5 %Coil Voltage24 VDCNominal Coil Voltage24 VDCContact Rating (A)1 ATermination0.250 in Flat BladeApprovalsCE, CSA, ULCommentsPositive - Switching Mode
