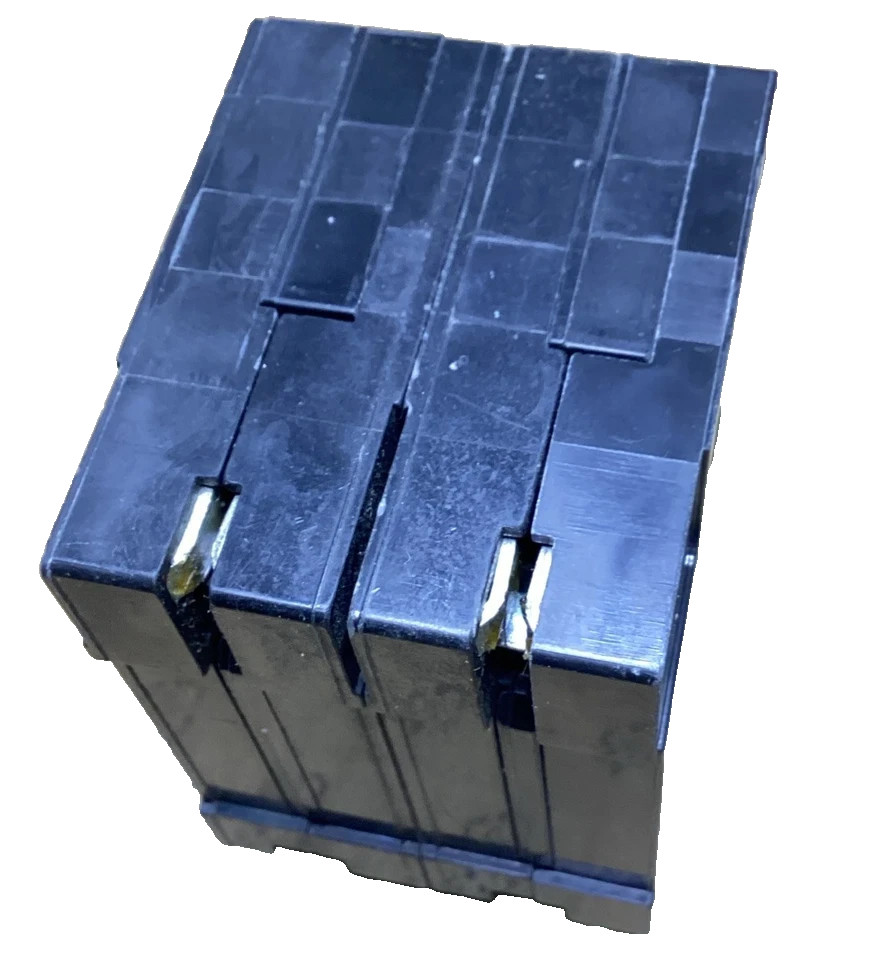

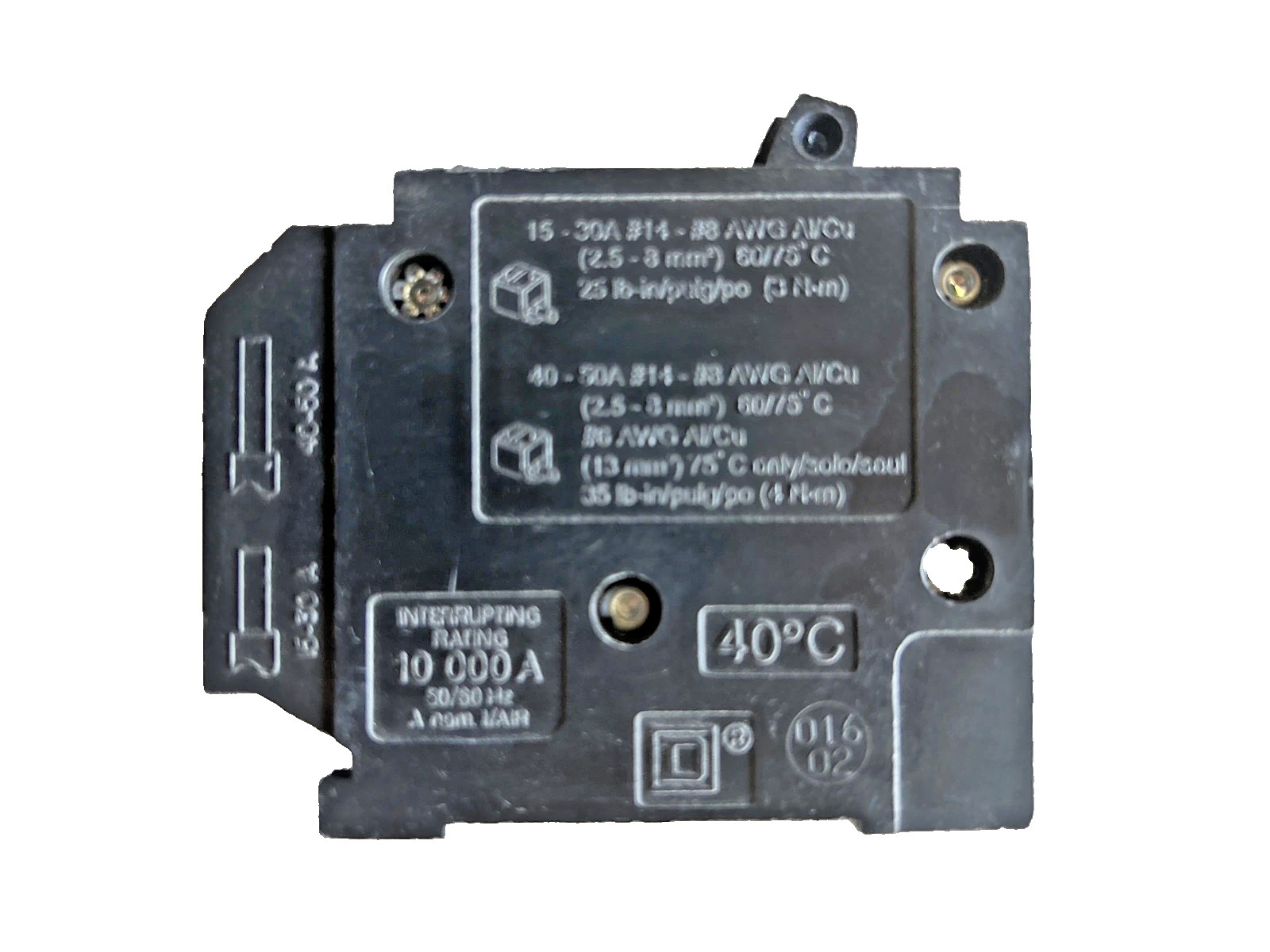

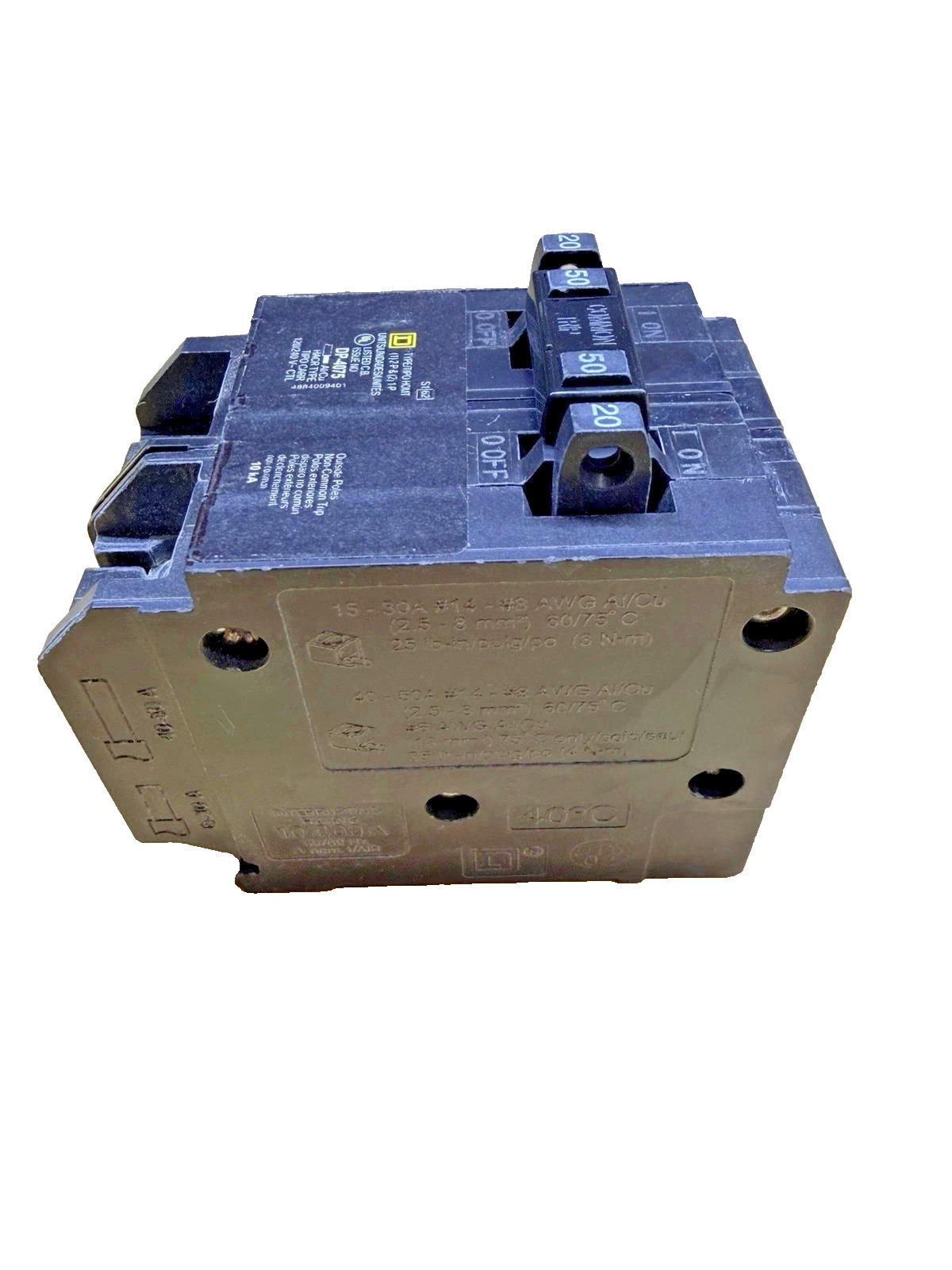

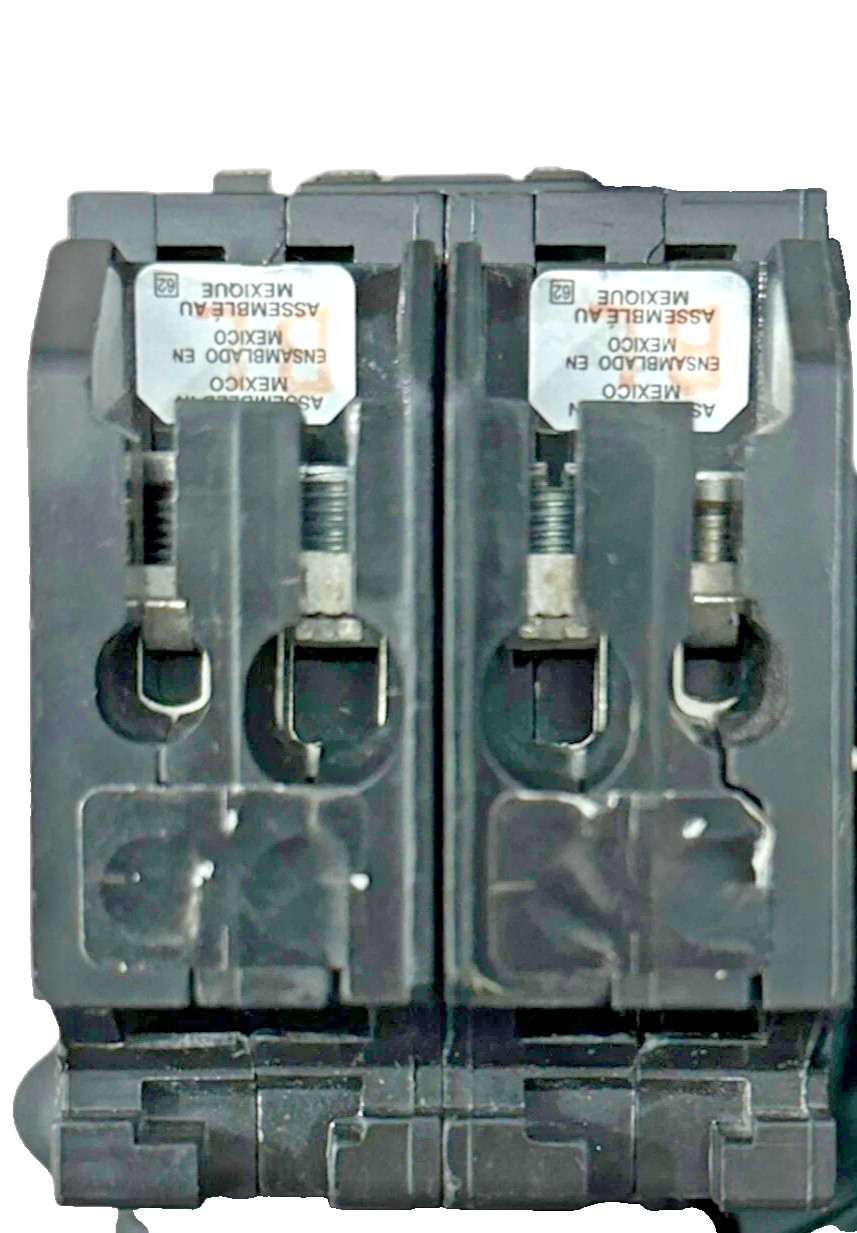

SQUARE D Quad HOMT2020250 Tandem Breaker 50/20A Two 1-Pole 20A & One 2-Pole 50A
USD 34.99 USD
Specifications
| Plug Type | Standard |
| MPN | HOMT2020250 |
| Suitable For | Exterior, Interior |
| Control Style | Switch |
| Unit Type | Unit |
| Voltage | 120/240 Vac |
| Mounting Style | Plug-In/On |
| Operating Temperature | 40 °C (104 °F) |
| Maximum Amperage | 10kA |
| Color | Black |
| Current Rating | 20 - 50A |
| Material | ABS/Plastic |
| Electrical Connection | Screw Terminal |
| Brand | Square D HOMELINE |
| Operation Method | On/Off |
| Type | Tandem Breaker |
| Break Time | Instantaneous |
| Model | HOMT2020250 |
| Class | HACR |
| Country Of Origin | Mexico |
The SQUARE D Quad HOMT2020250 Tandem Breaker is a reliable and efficient circuit breaker suitable for both interior and exterior use. With a manual reset feature and thermal overload protection, it provides short circuit and overcurrent protection for electrical wiring in a branch circuit application. This tandem breaker offers 2 one-pole 20A circuits and 1 two-pole 50A circuit, making it versatile for various electrical needs. With a voltage rating of 120/240 Vac and compatible wire gauge ranging from #14 to #8 for 20A and #14 to #6 for 50A, this circuit breaker from Square D is a high-quality option for any room, indoor or outdoor.
