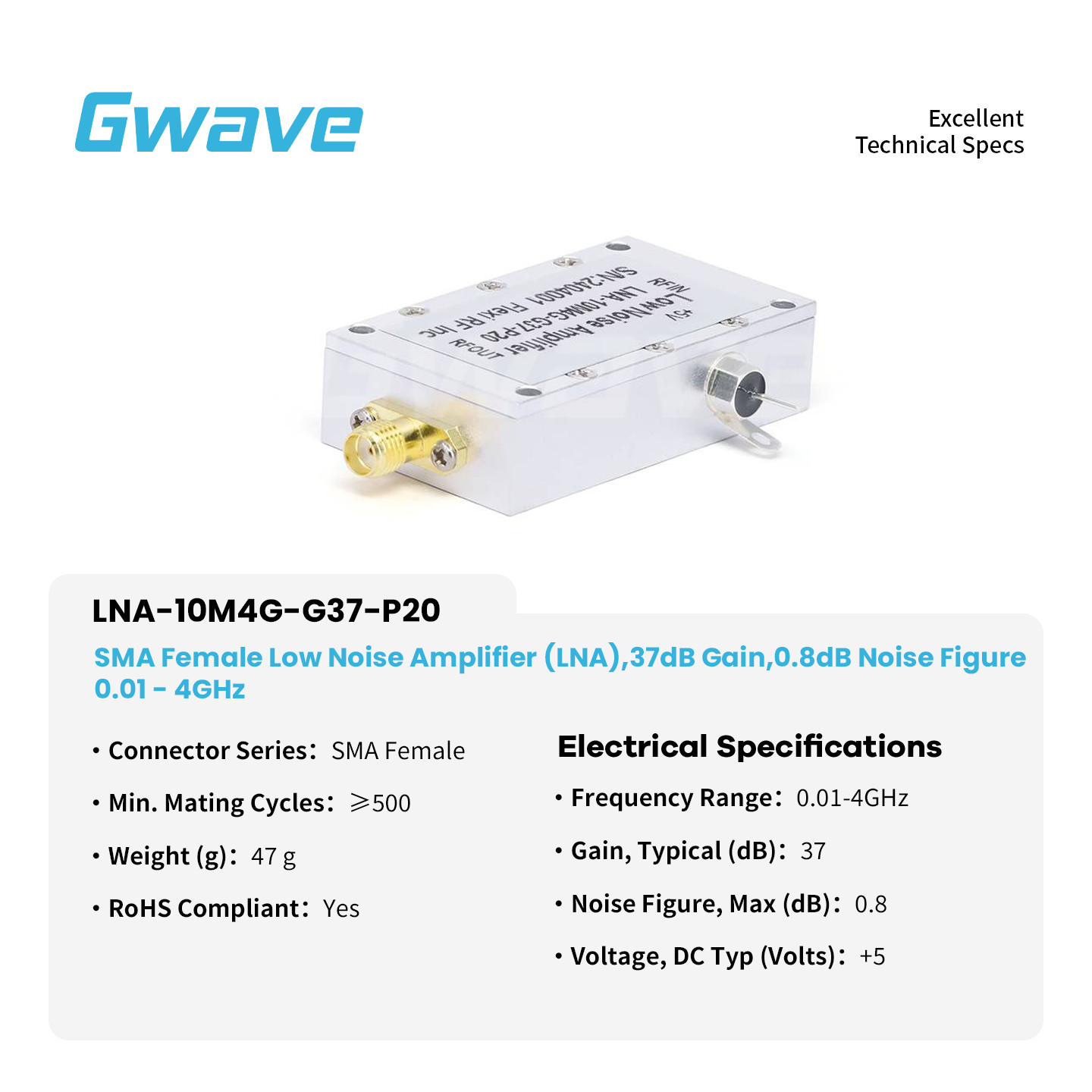

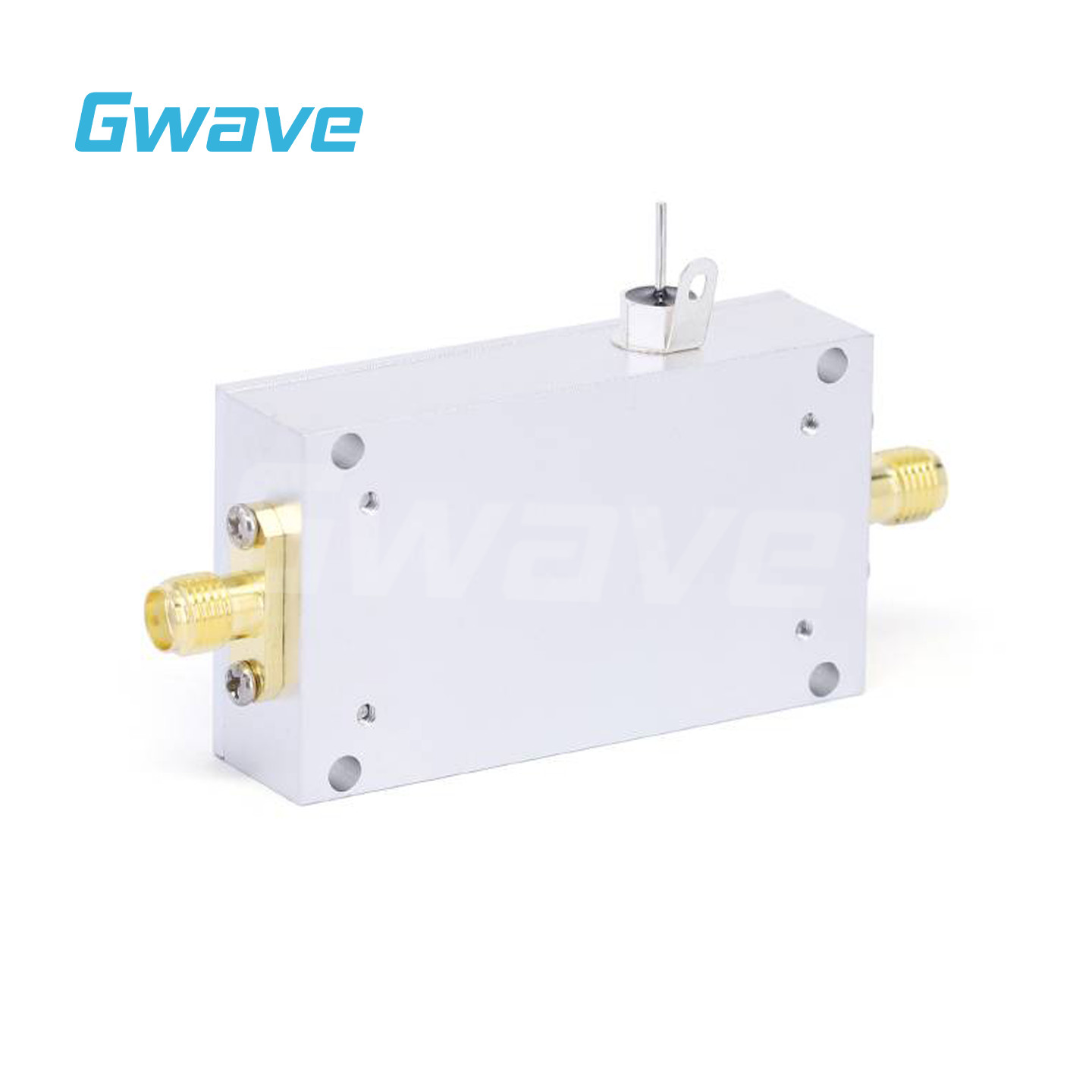

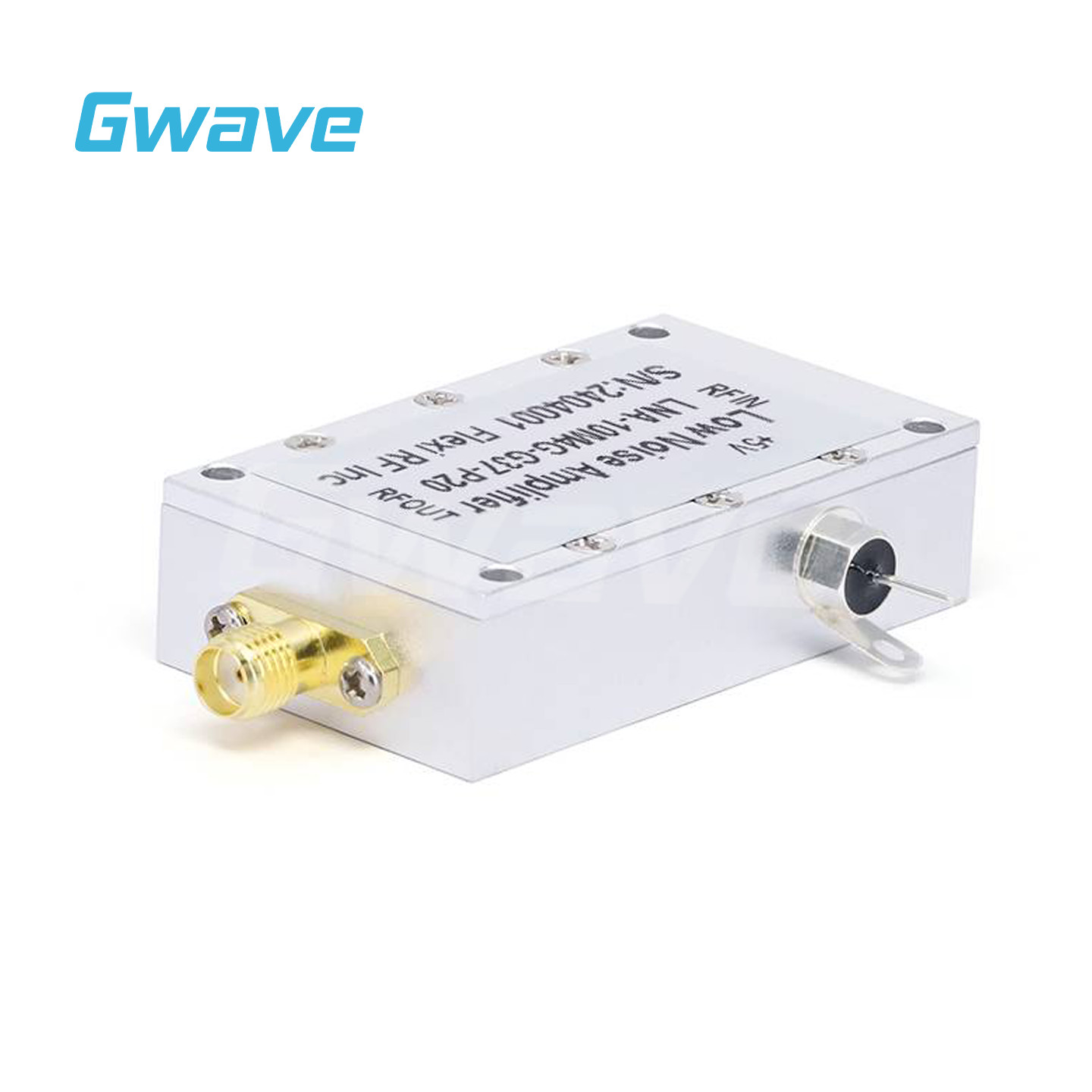

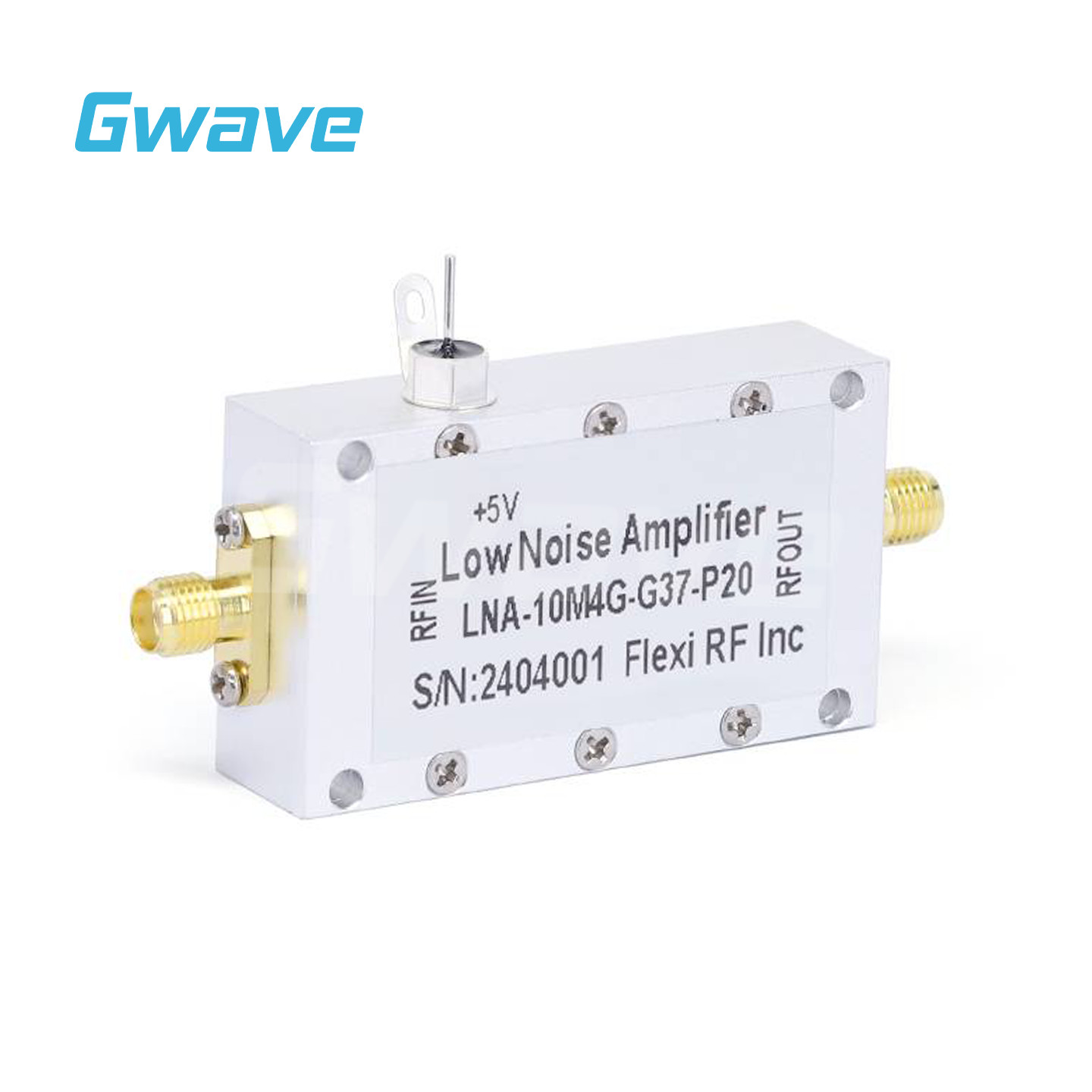

SMA Female Low Noise Amplifier (LNA), 37dB Gain, 0.8dB Noise Figure, 0.01 – 4GHz
USD 105.00 USD
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | Gwave Technology Inc. |
| MPN | LNA-10M4G-G37-P20 |

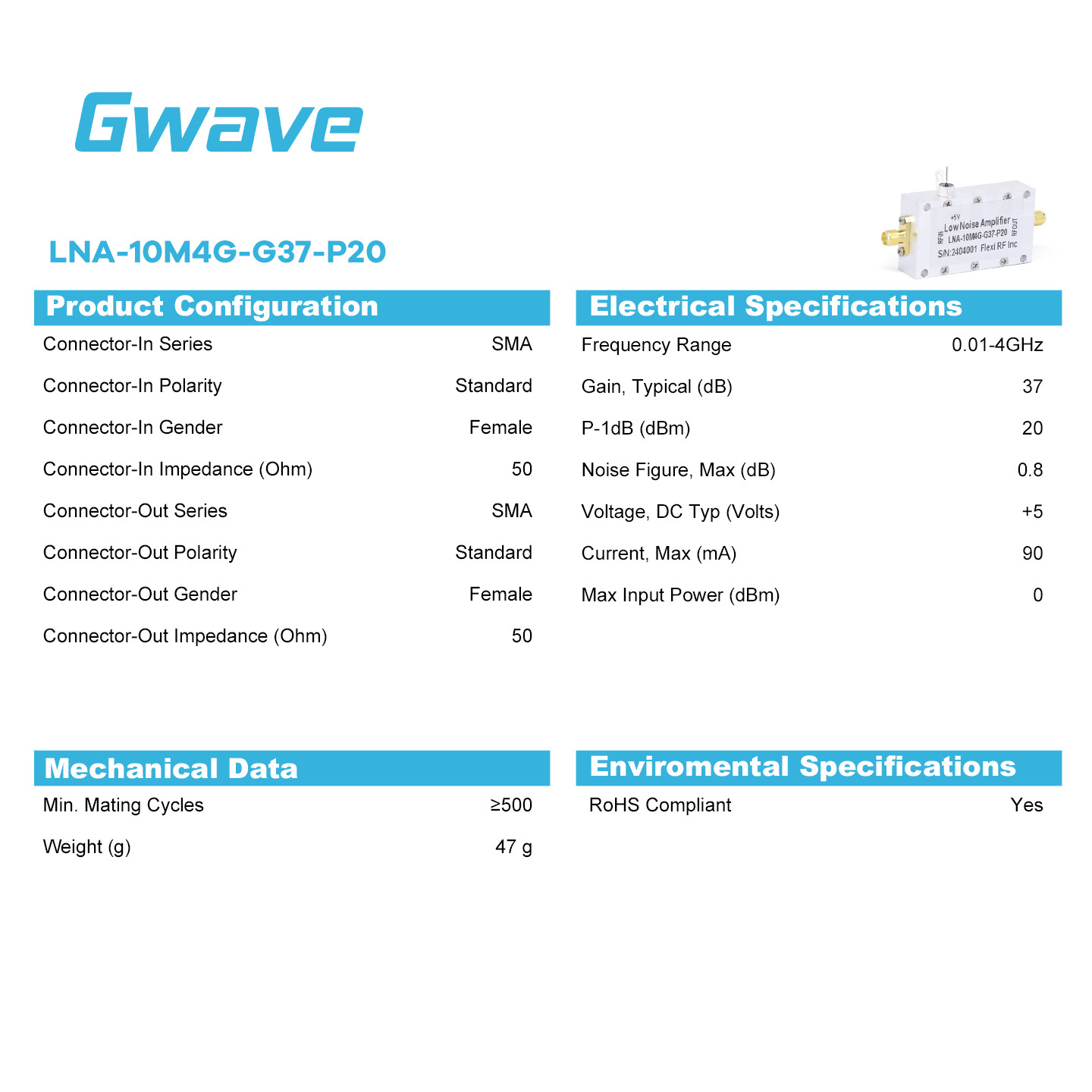

Product Configuration:Connector-In Series: SMAConnector-Out Series: SMAConnector-In Polarity: StandardConnector-Out Polarity: StandardConnector-In Gender: FemaleConnector-Out Gender: FemaleConnector-In Impedance (Ohm): 50Connector-Out Impedance (Ohm): 50Electrical Specifications:Frequency Range: 0.01-4GHzGain, Typical (dB): 37P-1dB (dBm): 20Noise Figure, Max (dB): 0.8Voltage, DC Typ (Volts): +5Current, Max (mA): 90Mechanical Data:Mating Cycles, Min: ≥500Weight(g): 47Environmental Specifications:RoHS Compliant: Yes
