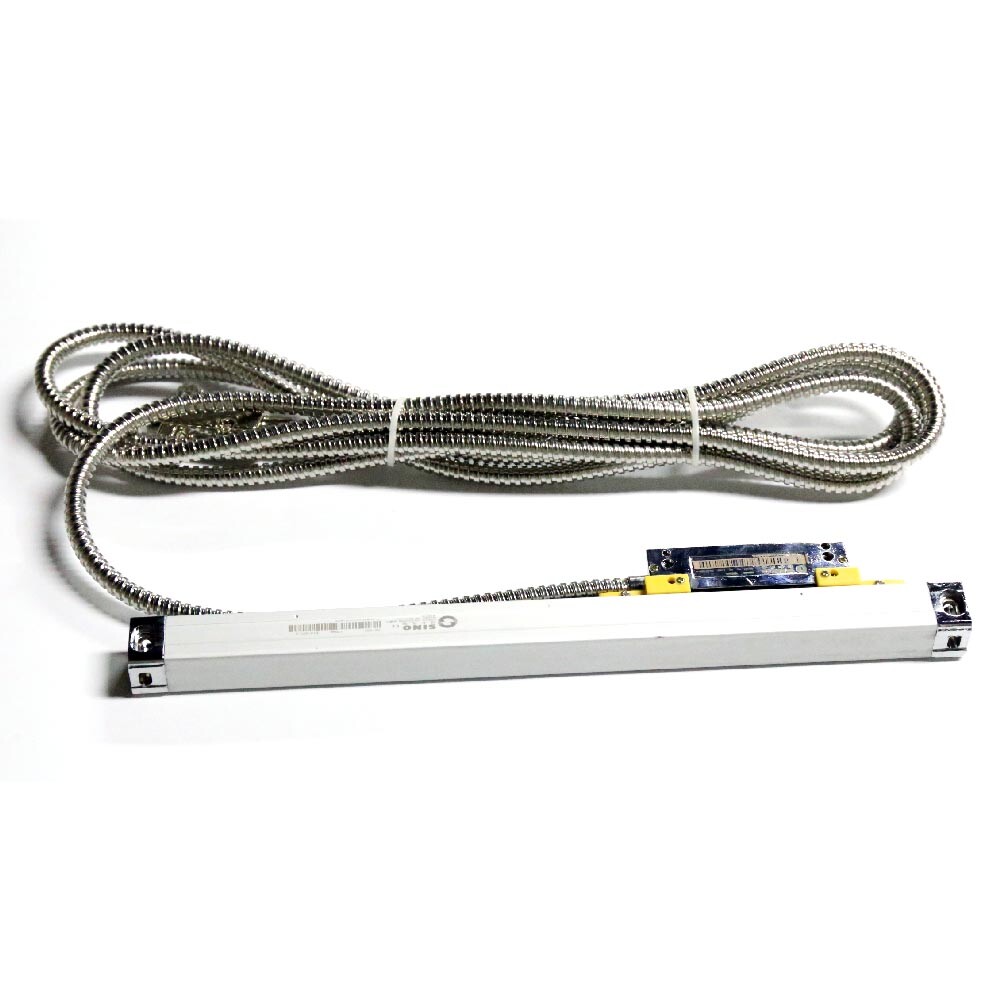

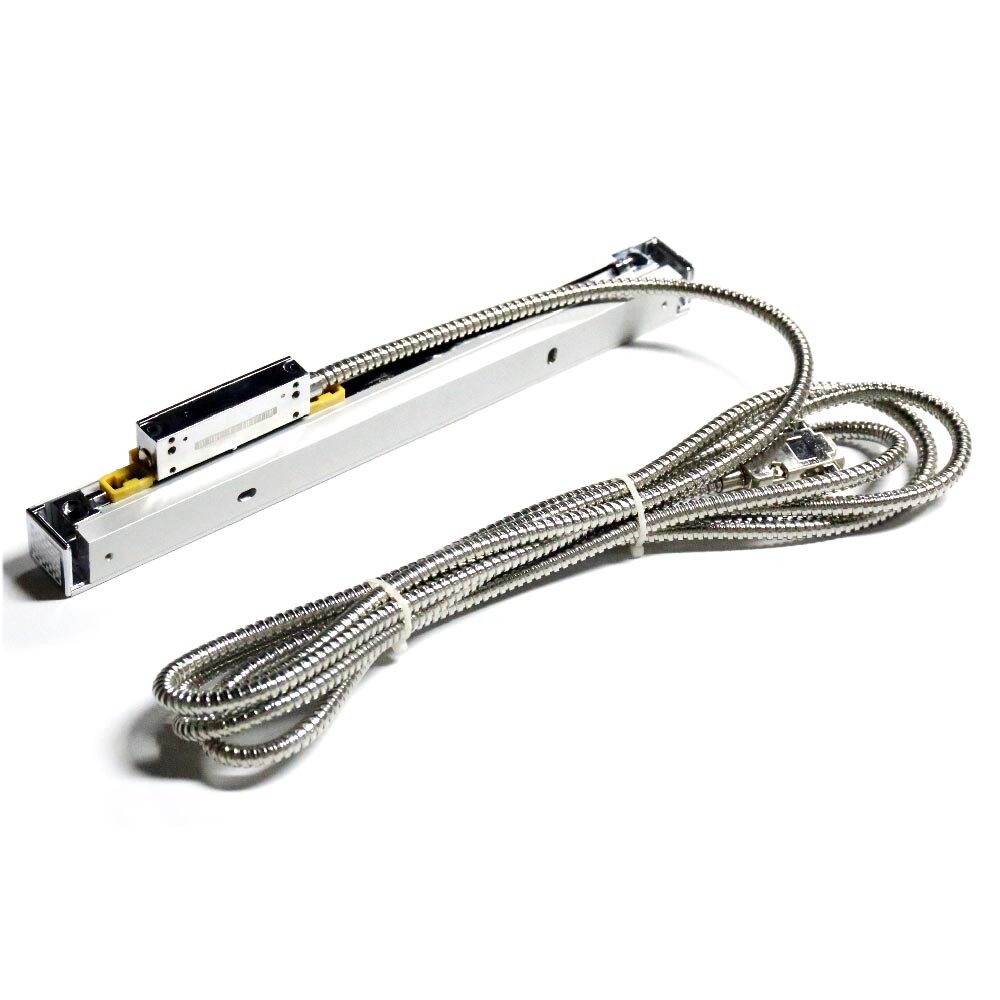

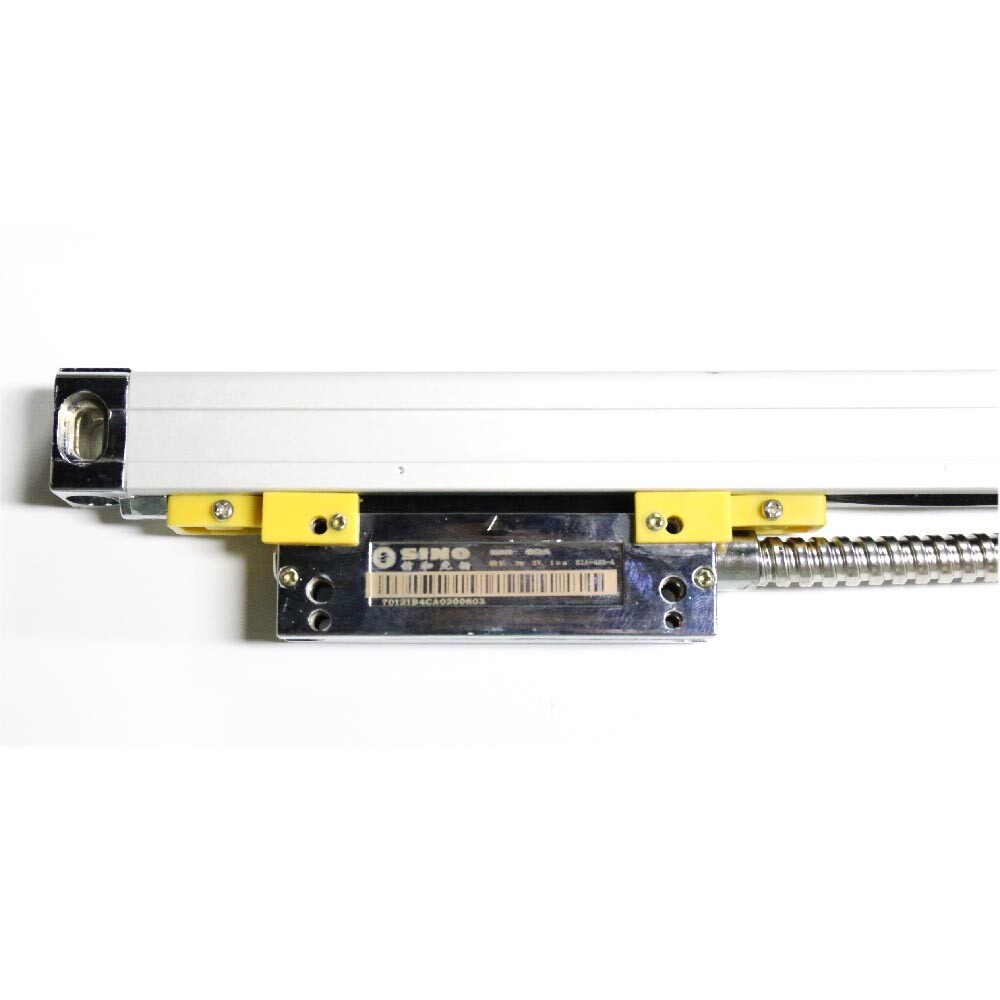

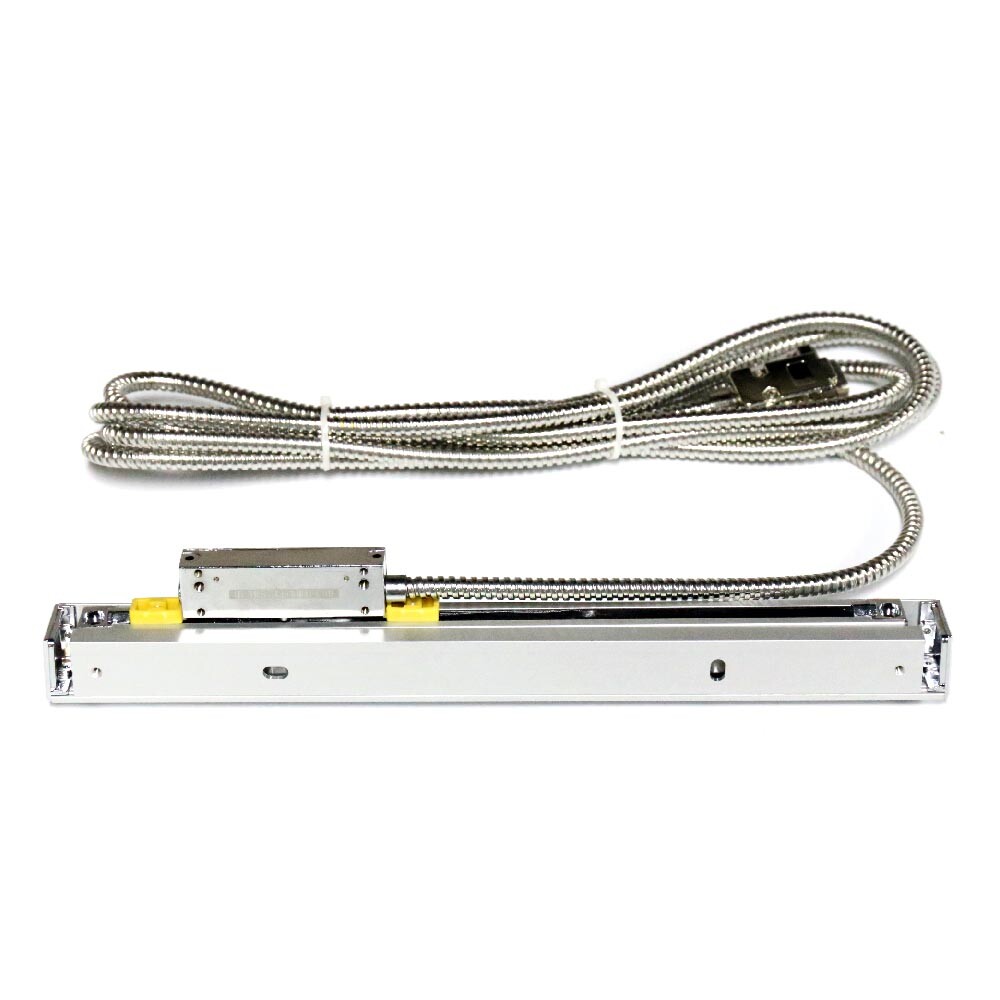

SINO KA-500 DRO Linear Scale 5um Lathe Slim Grating Ruler Optical Encoder
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Origin | CN(Origin) |
| Brand | SINO |
| Input Voltage | 5VDC |
| Cable Length | 3 meter |
| Output Signal | TTL |
| MPN | Does Not Apply |
| Cross Section | 18mm X 20mm |
| Model Number | KA-500 |
| Resolution | 0.005mm |

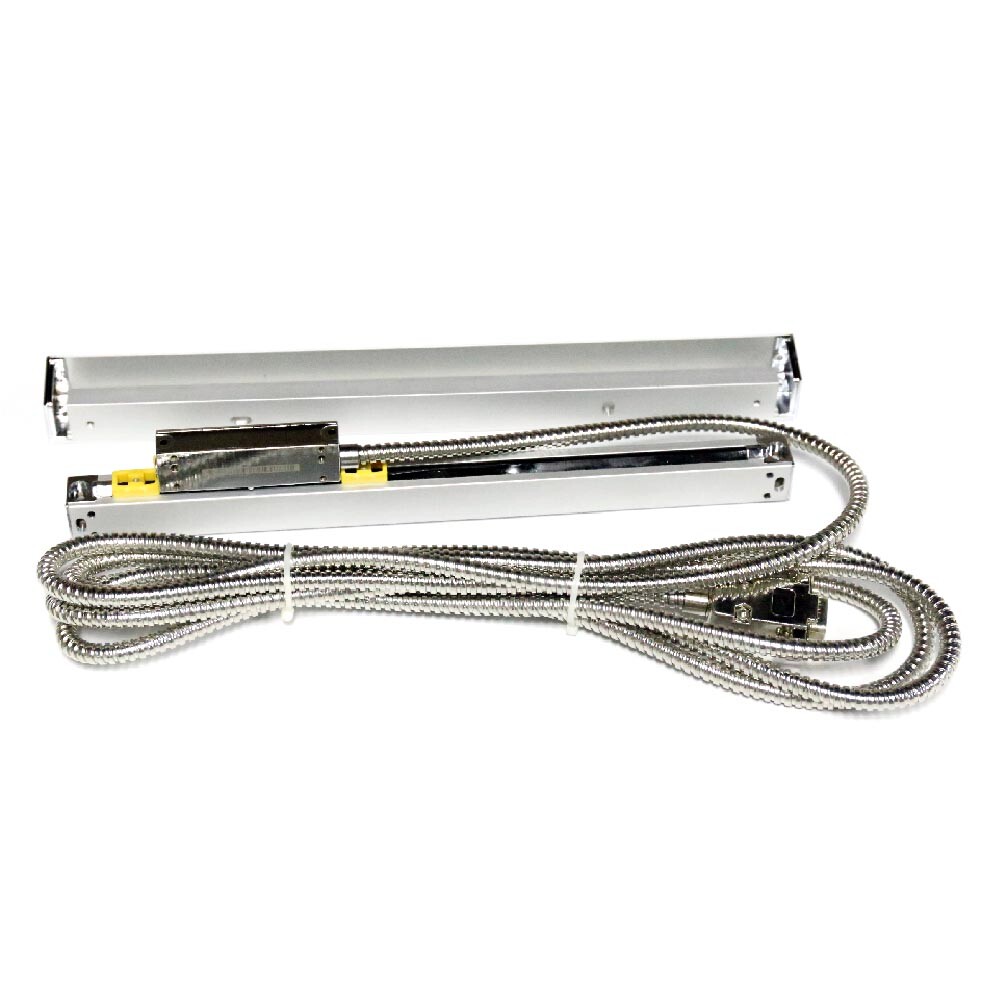

Importants: 1. Our price is not include your import taxes, for EU countries buyers, it need to pay the same taxes no matter ship from EU or ship from China. 2.It takes 5-9 working days for delivery for Spain, France,Germany,Italy, for others EU countries, it takes 8-12 working days. SINO KA-500 DRO Linear Scale 5um TTL Lathe Mill Machine KA500 70 120 170 220 270 320 370 420mm Slim Grating Ruler Optical Encoder KA-500 is a slim series model for those machines which has little spaces for installion. For the KA series of linear encoder from our company, every ruler has passed through the strict quality measure technology dynamic laser control is used to ensure that the precision of every ruler has met the required standard before being delivered from the factory. KA-500 slim linear encoder available in 70mm-770mm, but from 570mm-770mm, it need to customized, and the scale cross section size is 18*20mm. Package include: -1 piece Sino KA-500 scale, 1 piece scale cover, 1 bag screw Scale Fufures Parameter Product name: KA-500 Linear scale Available Measrus Length: 70mm,120mm,170mm,220mm,270mm,320mm,370mm,420mm,470mm,520mm etc Cross Section: 18mm X 20mm Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm) Max of Measuring speed: 60m/min Protection level: IP55 Resolution: 5um(0.005mm) Output signal: TTL Cable standard: 3 meters Bar Pitch: 0.02mm Power: +5V±5%, 80mA Operating temperature:0-45 degree centigrade Connetor: 9 Pins
