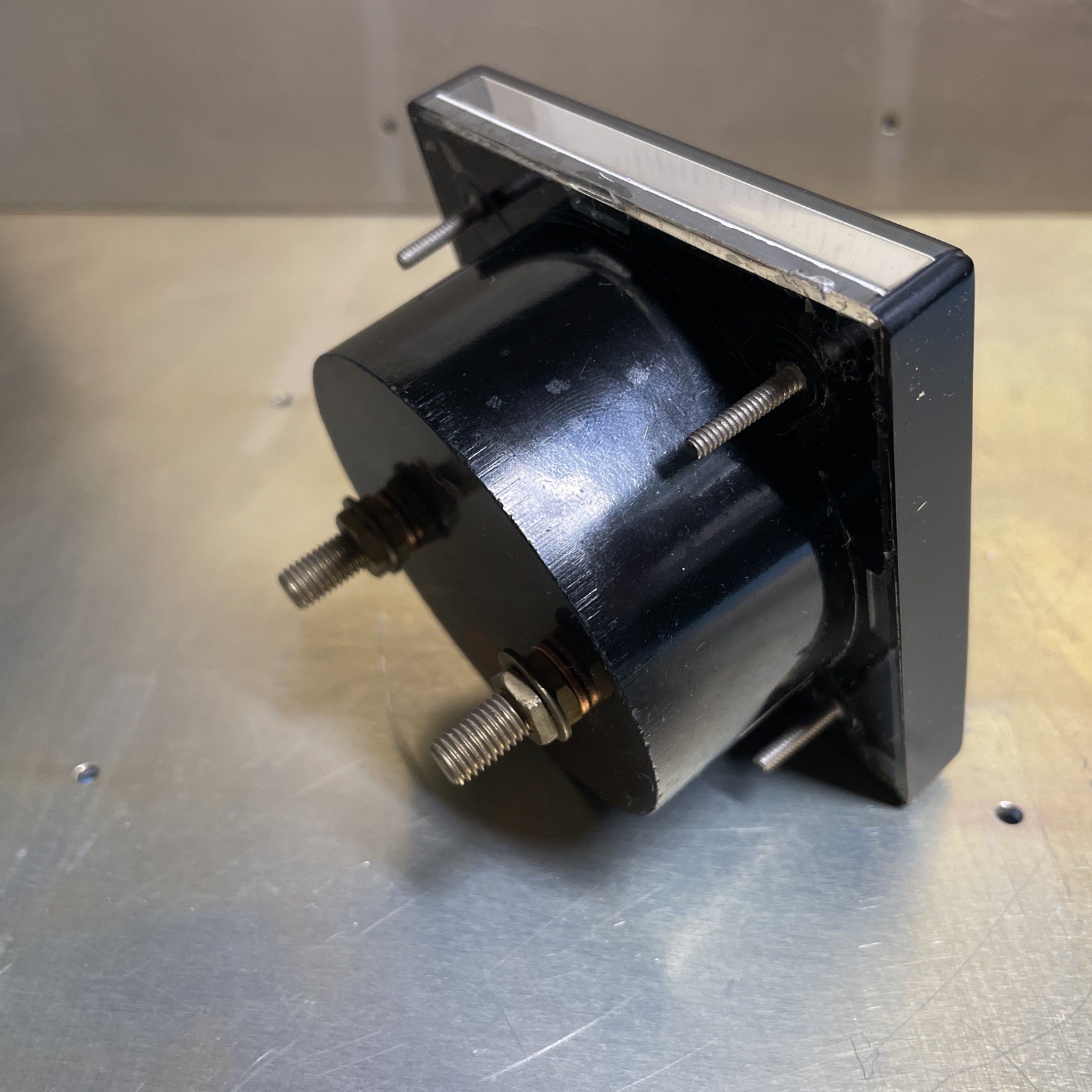

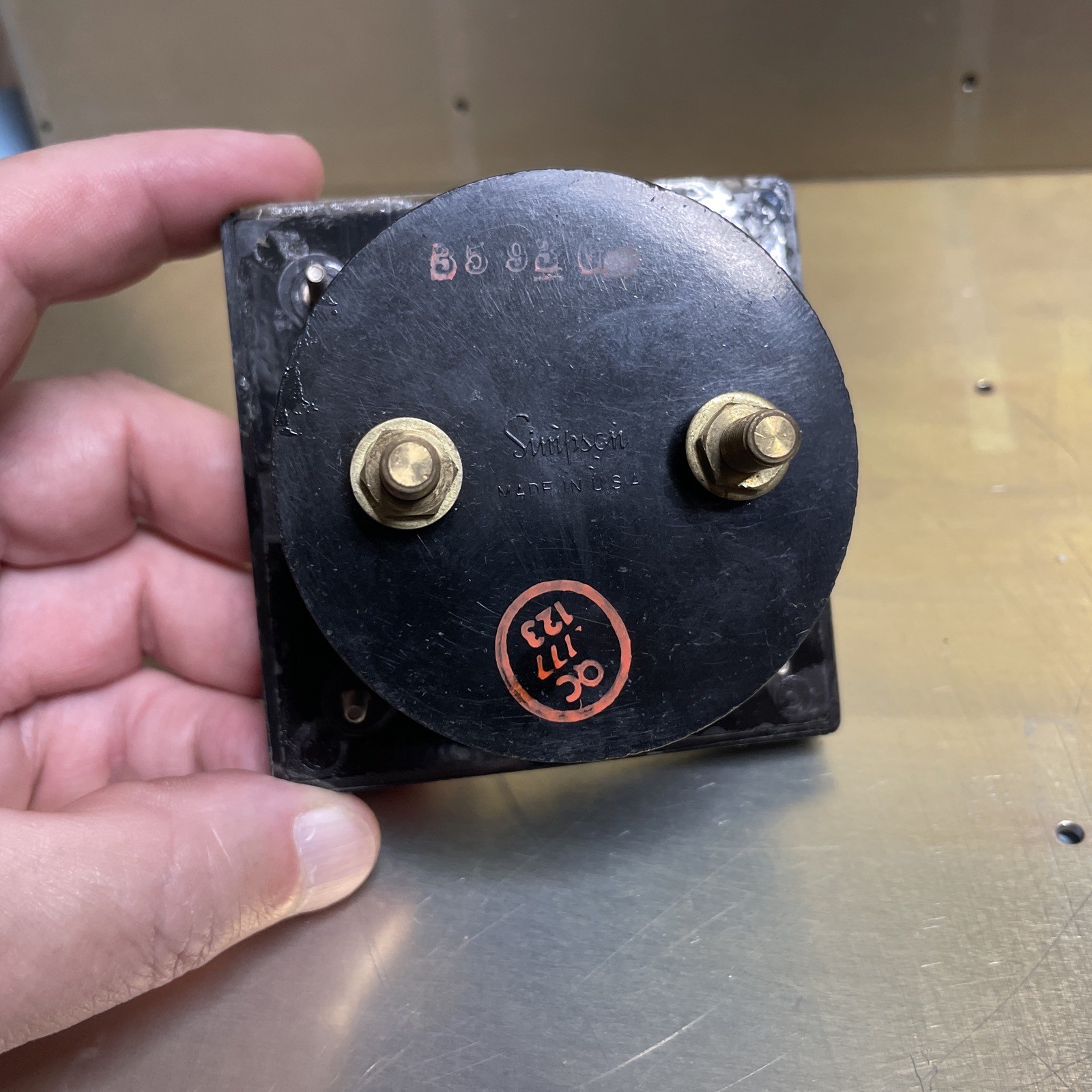

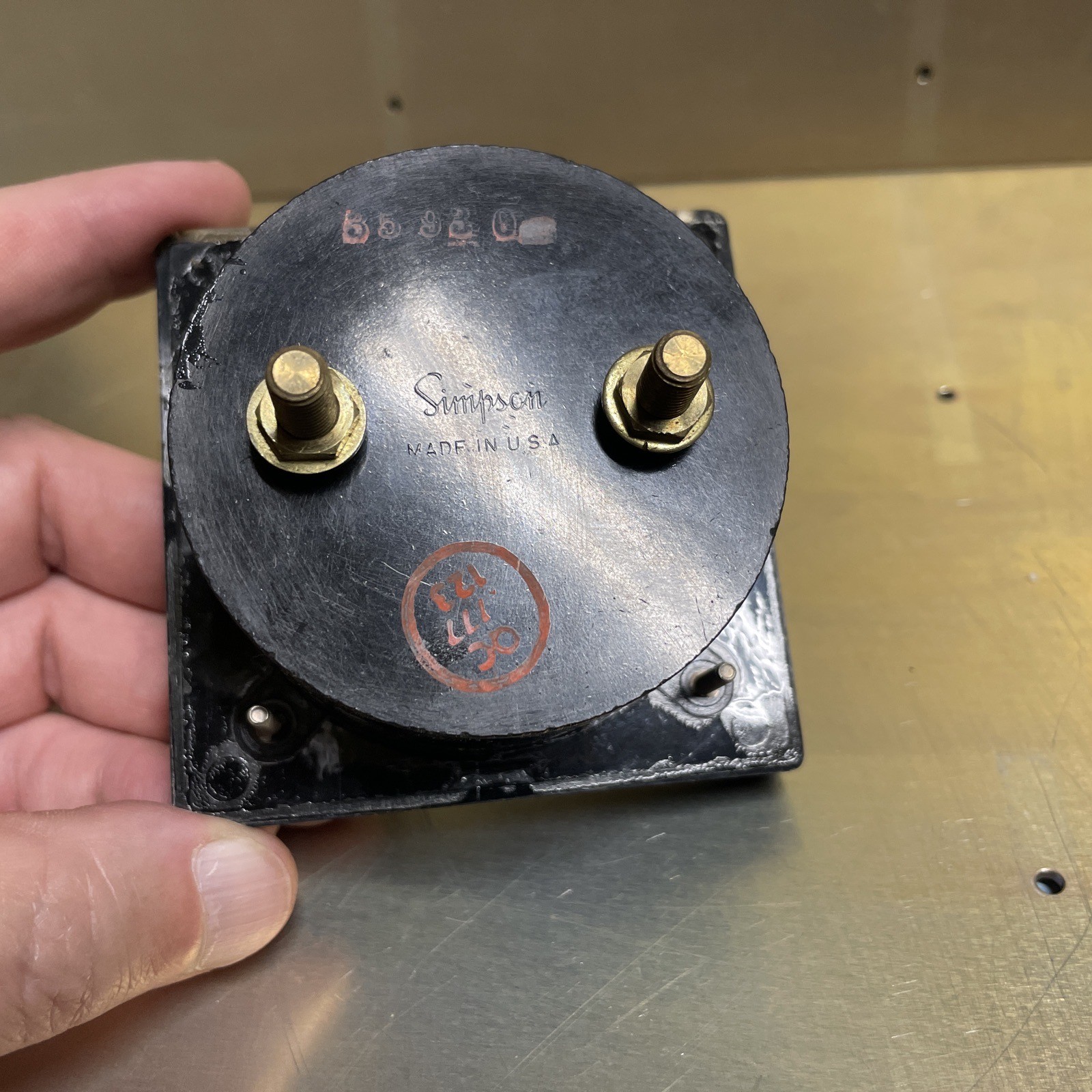

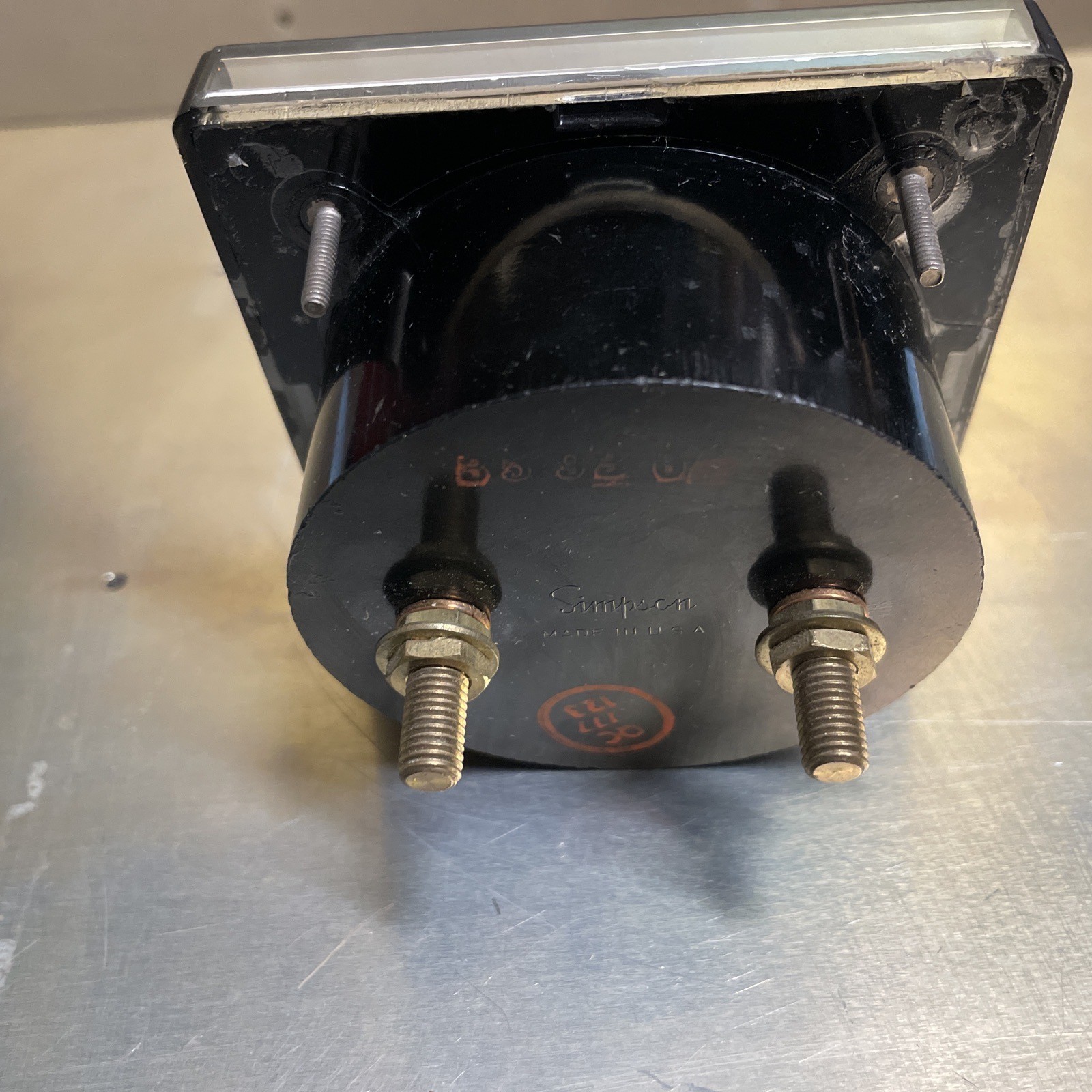

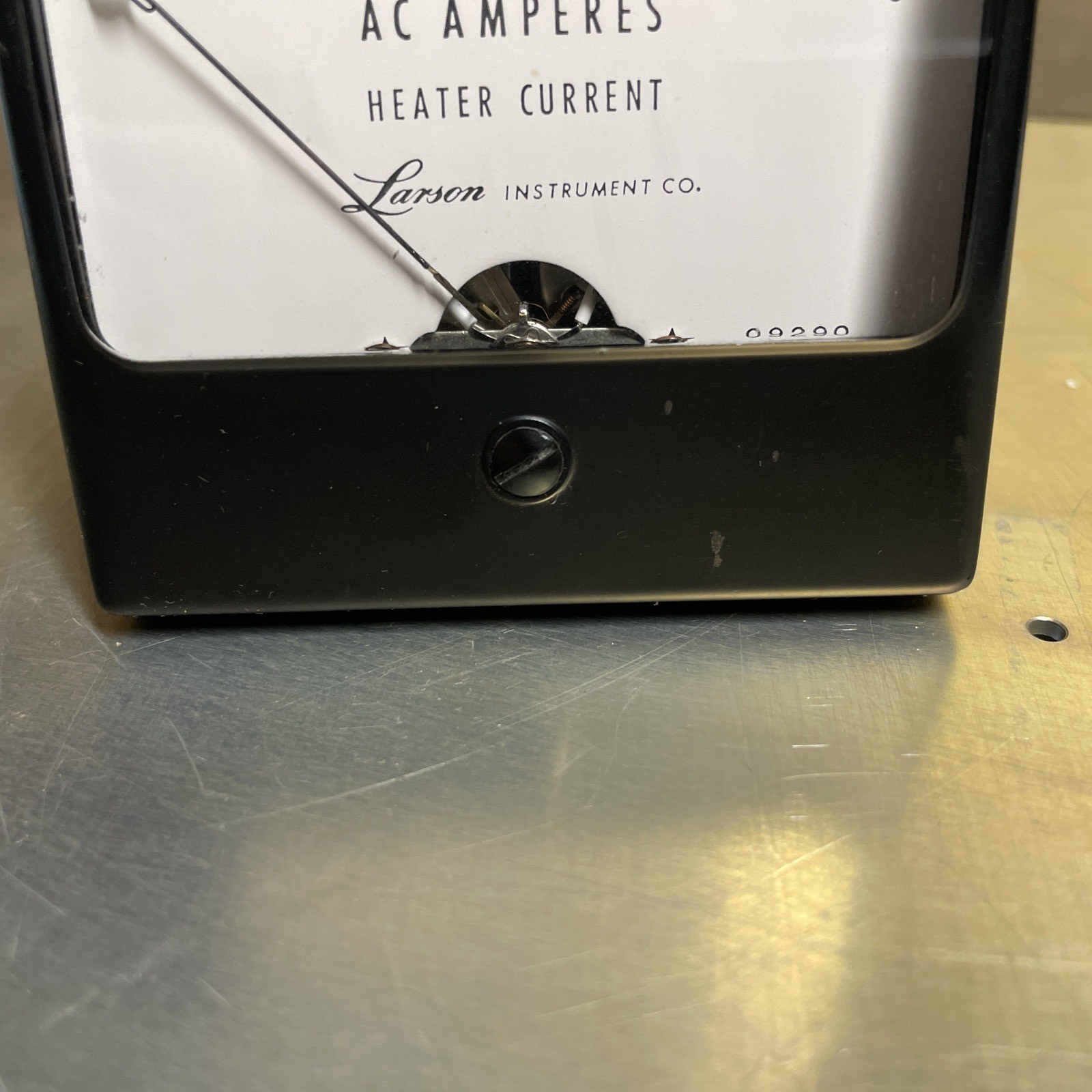

Simpson – Larson 0-200 Amps 1357 Cat #03240 3.5” AC Ammeter “Heater Current” NOS

Specifications

This was in a large box of new old stock parts I purchased which I actually used to work for the company that had these parts. AS SHOWN IN THE LAST PICTURE OF THE SIMPSON CATALOG PAGE, THIS METER RESPONDS TO 5 AMPS FSD. THIS WILL REQUIRE AN EXTERNAL 200:5 CURRENT TRANSFORMER TO READ THE FULL 200 AMP RANGE. There are a lot of sellers on eBay with 200:5 current transformers for around $20. This was spare parts stock for a broadcast transmitter which used this for the tube filament current monitoring, but can be used for any 60 Hz AC. There is a couple very minor surface blemishes on the front that are barely seen, from sliding around in the stock bin.

Related Items

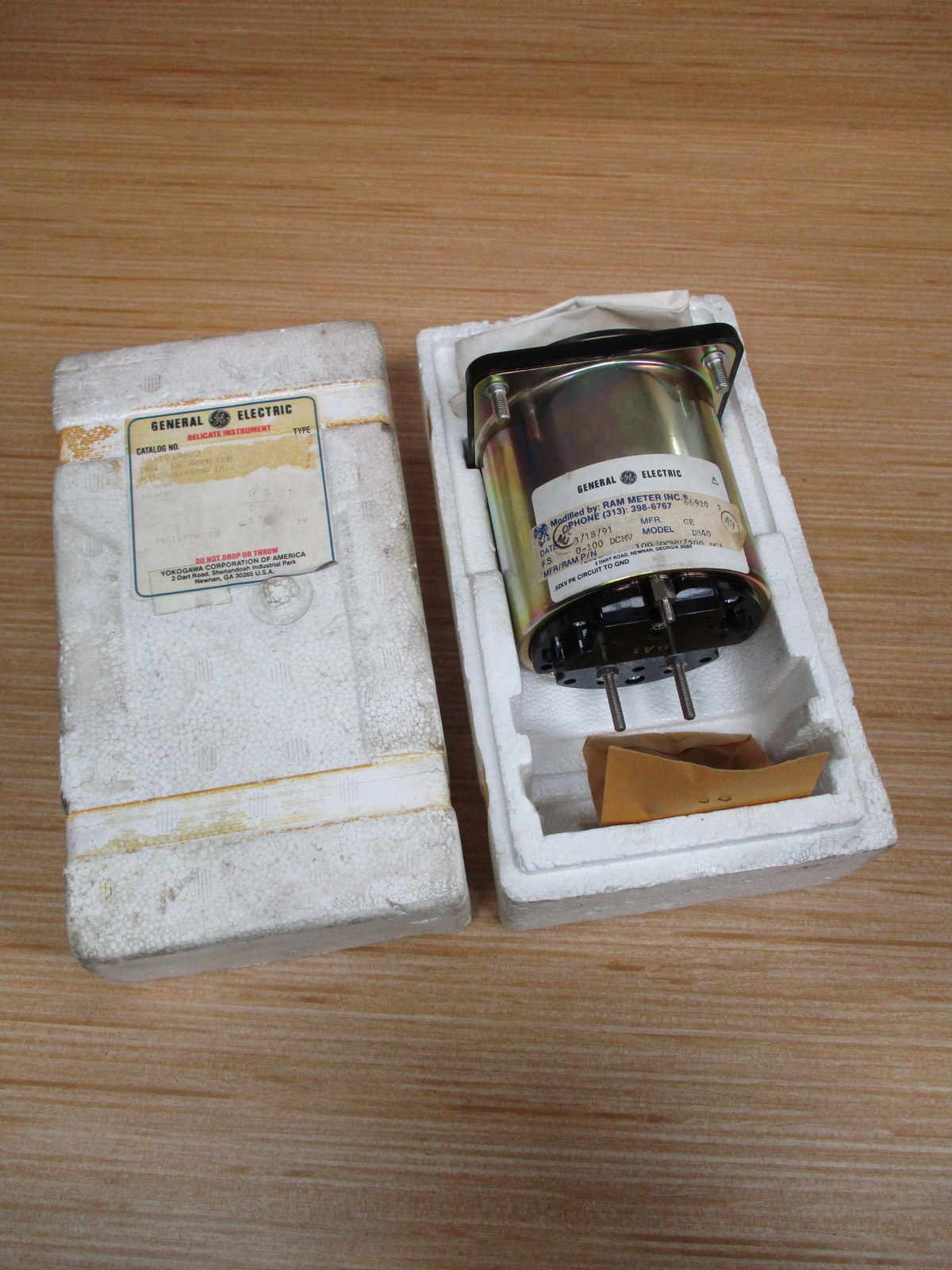

General Electric 103121ABZZ GE D.C. Ammeter DB40 0-200 DC AMPS

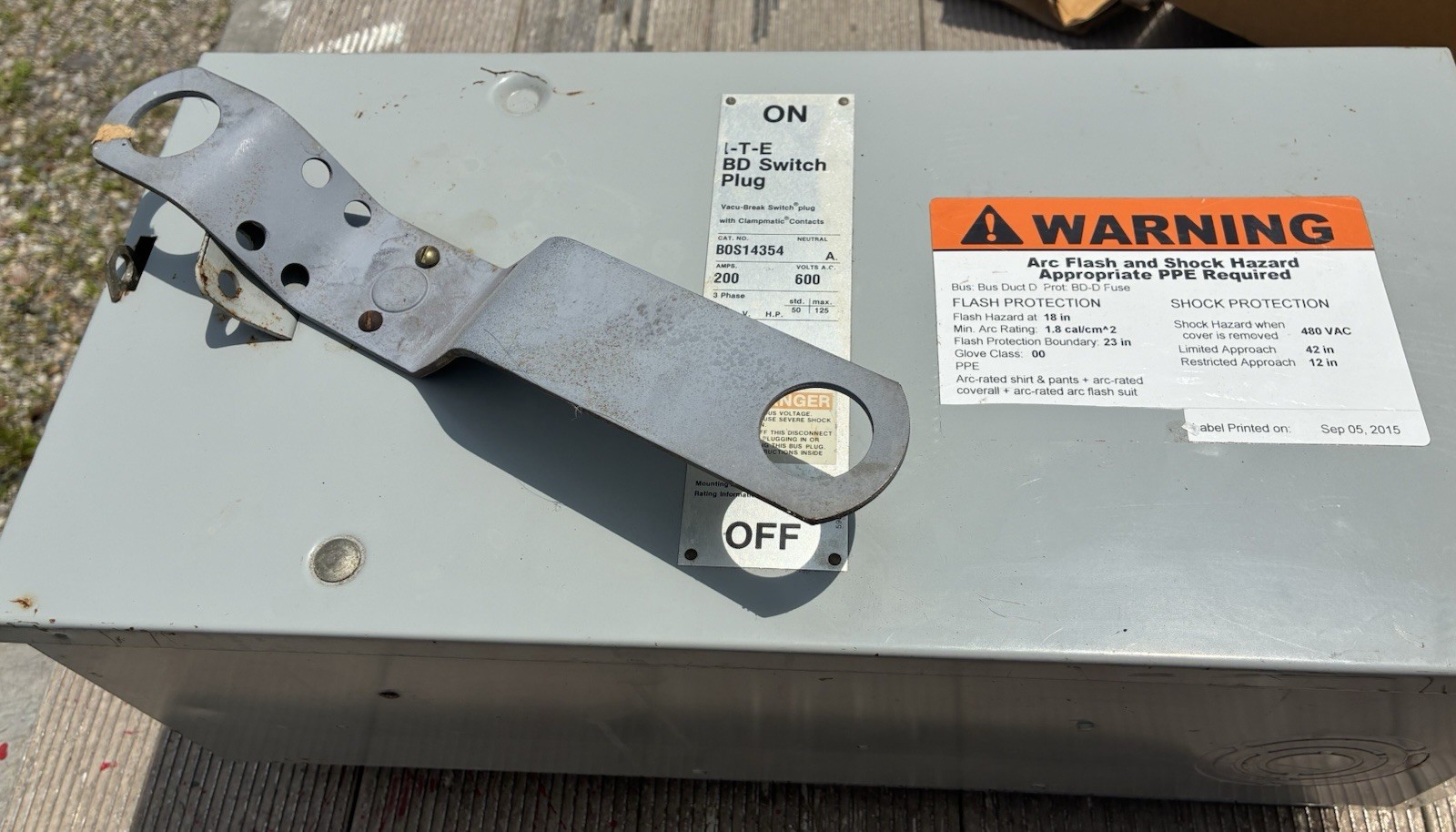

ITE SIEMENS 200 AMP 600 VOLT BUSS PLUG CAT# B0S 14354 – USED

DC Digital Voltmeter Ammeter 0-300V 50A 100A 300A Voltage Amps Power Kwh Meter

1/0-1/0-1/0-2 Aluminum SER Service Entrance Cable 600V Lengths 25′ to 1000′

NEW Crompton 549-78 Panel Mount Ammeter 0-200 AC Amps

Elastimold 165LR-C5270-TLGB 15kV 200 Amp, Loadbreak Elbow Connector w/ 4/0 Lug

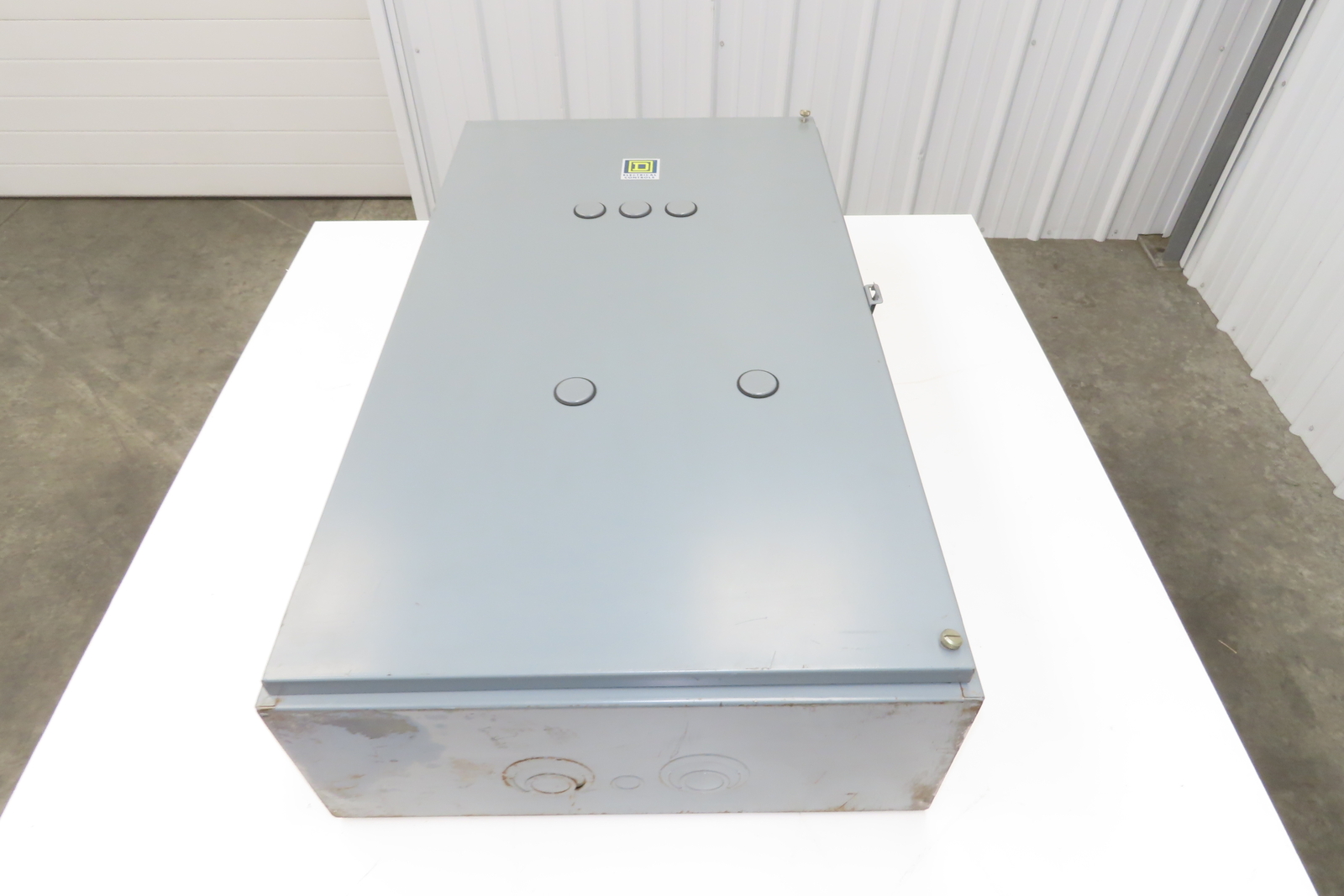

Square D 8903 SV0 2 Lighting Contactor Electrical Enclosure 200 Amps 600V 3 Pole

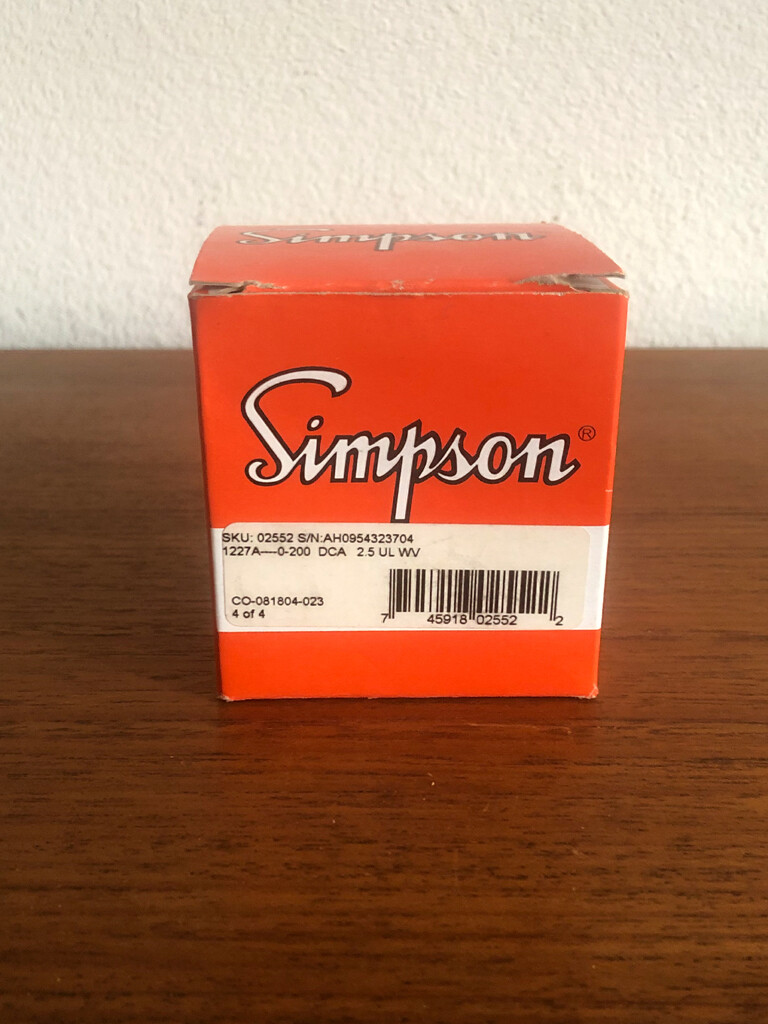

Simpson 1227 “widevue” 2.5 inch panel meter 0-200 DC amps catalog no. 02552
