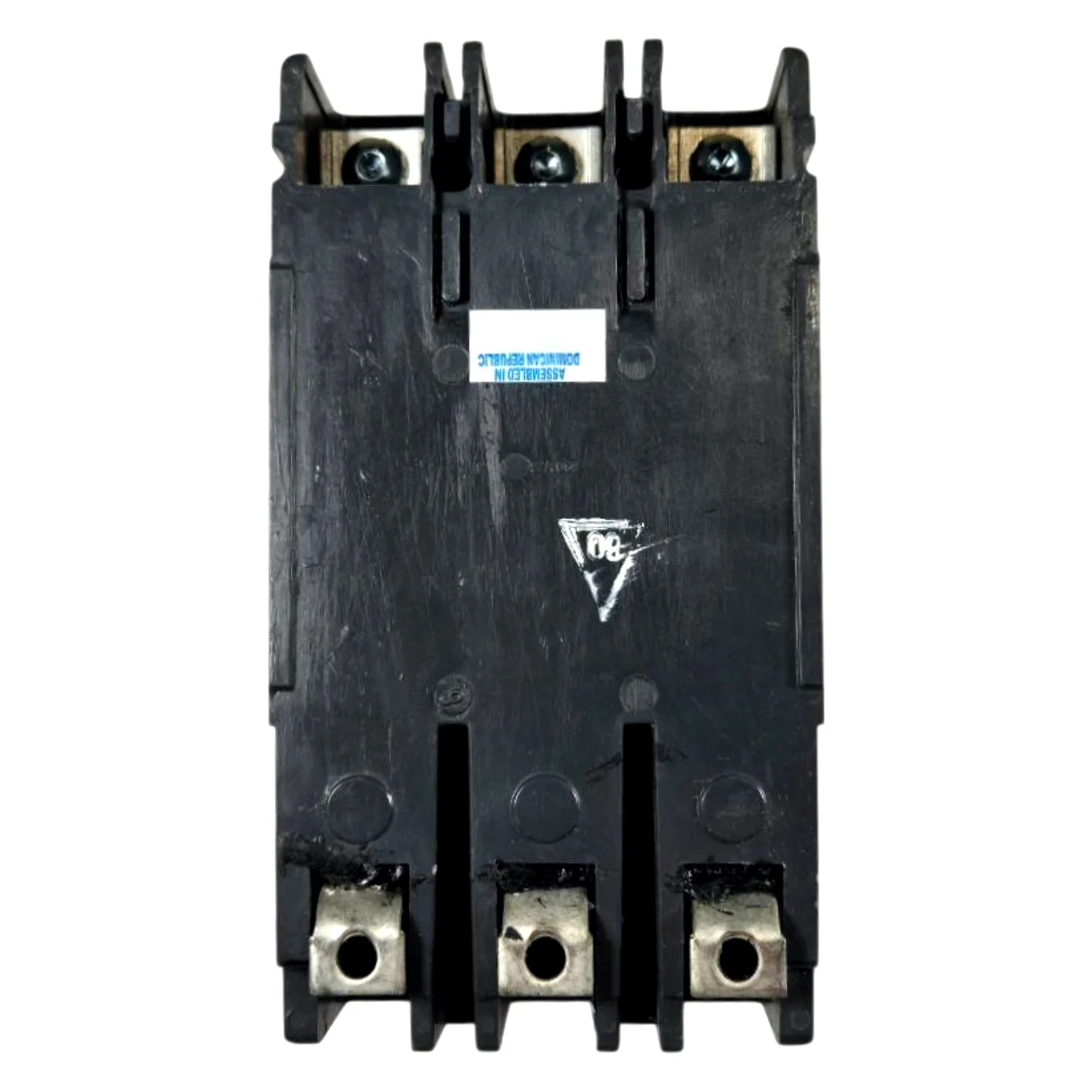

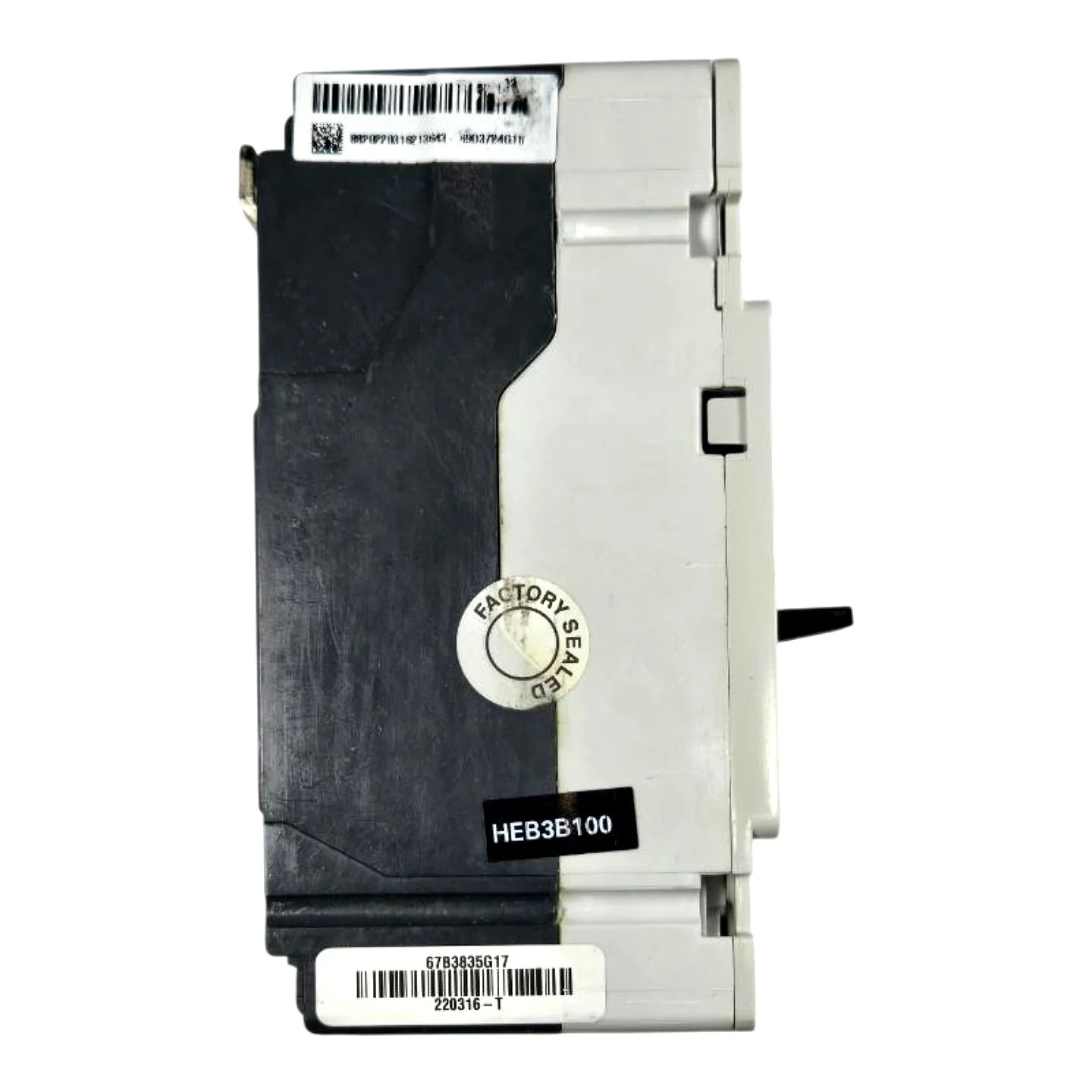

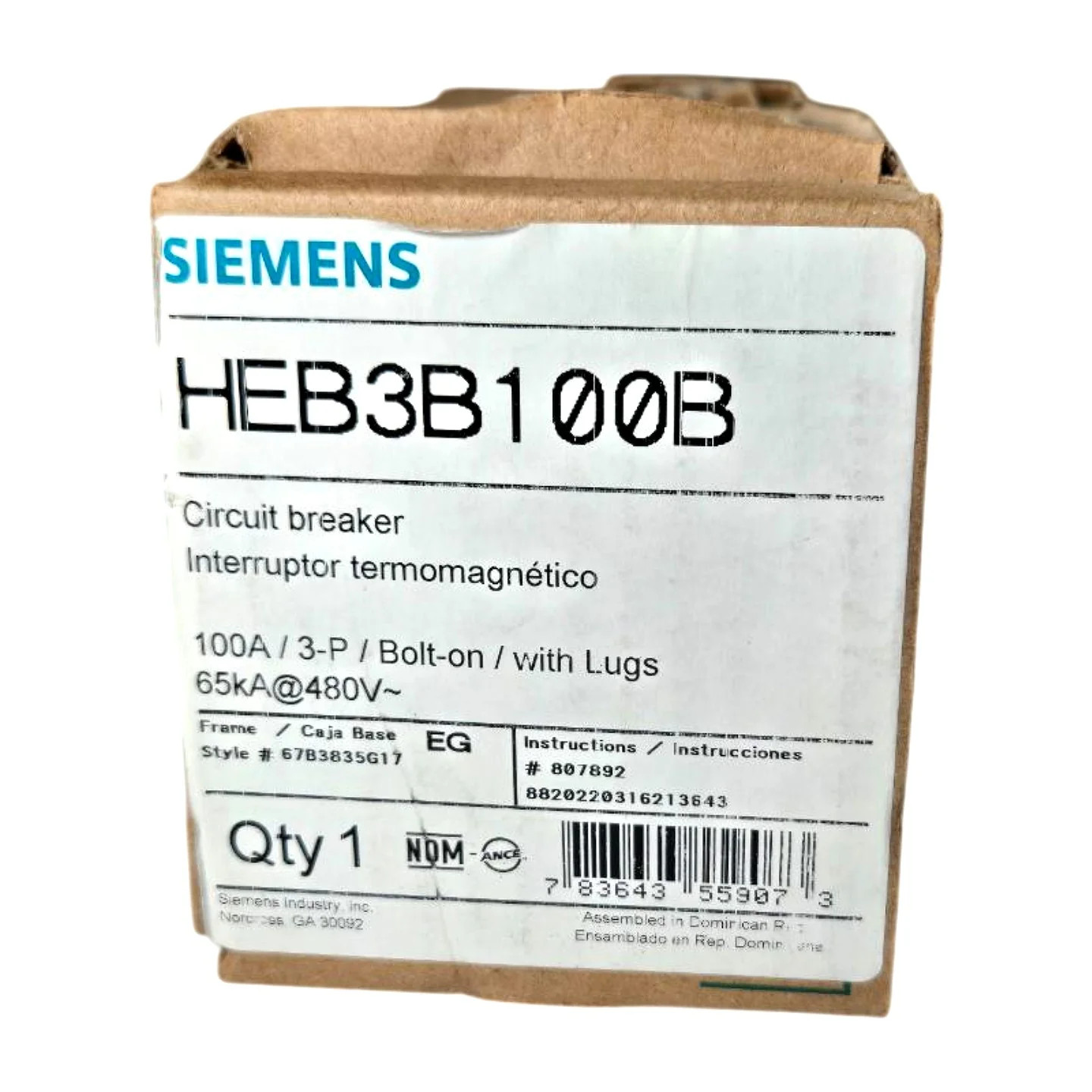

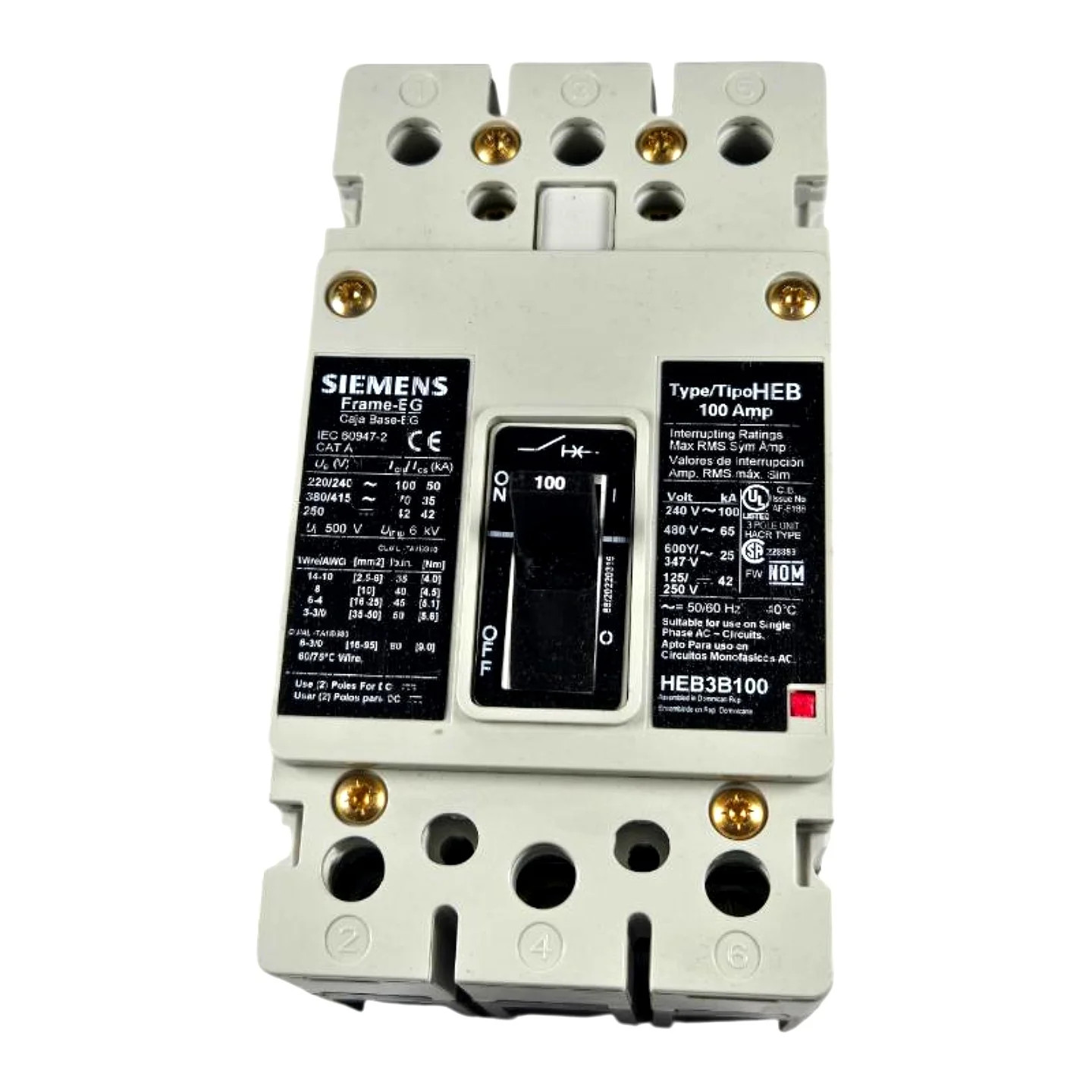

Siemens HEB3B100B 100A 3-Pole 480V 65kA Molded Case Circuit Breaker
USD 3547.50 USD
Specifications
| Brand | Siemens |
| Plug Type | HEB |
| Current Type | HEB |
| Type | HEB |
| Maximum Amperage | 100A |
| Current Rating | 100A |
| Voltage | 600V AC |
| MPN | HEB3B100B |
| Trip Type | Thermal-Magnetic |
| Mounting Type | Bolt-On |
| Interrupting Rating @ 240V | 100 kA RMS Sym |
| Interrupting Rating @ 480V | 65 kA RMS Sym |
| Interrupting Rating @ 600Y/347V | 25 kA RMS Sym |
| Interrupting Rating @ 125/250V | 42 kA RMS Sym |
| IEC Voltage Rating | Ui 500V, Uimp 6kV |
| IEC Rating @ 220/240V | Icu/Ics 100/50 kA |
| IEC Rating @ 380/415V | Icu/Ics 70/35 kA |
| IEC Rating @ 250V | Icu/Ics 12/42 kA |
| IEC Standard | IEC 60947-2 Cat A |
| UL Listing | UL Listed, File AF-E18H |
| Frequency | 50/60 Hz |
| Max Ambient Temperature | 40°C |
| Wire Range (Lug Terminals) | 8-3/0 AWG (16-95 mm²) |
| Lugs Included | Yes |
| Style Number | 67B3835G17 |
| Country Of Assembly | Dominican Republic |
| Compatible Frame Enclosure | Siemens EB Frame |
| Ampere Rating | 100A |
| Max Voltage Rating (AC) | 600V AC |
The breaker operates at 50/60 Hz, is rated for use up to 40°C ambient, and is suitable for single-phase AC circuits using two poles for DC applications. MPN HEB3B100B. Maximum Amperage 100A. Trip Type Thermal-Magnetic.
Related Items
Ultrasonic Piezo Dental Scaler Handpiece Fit EMS/Woodpecker Tips HW-3H st

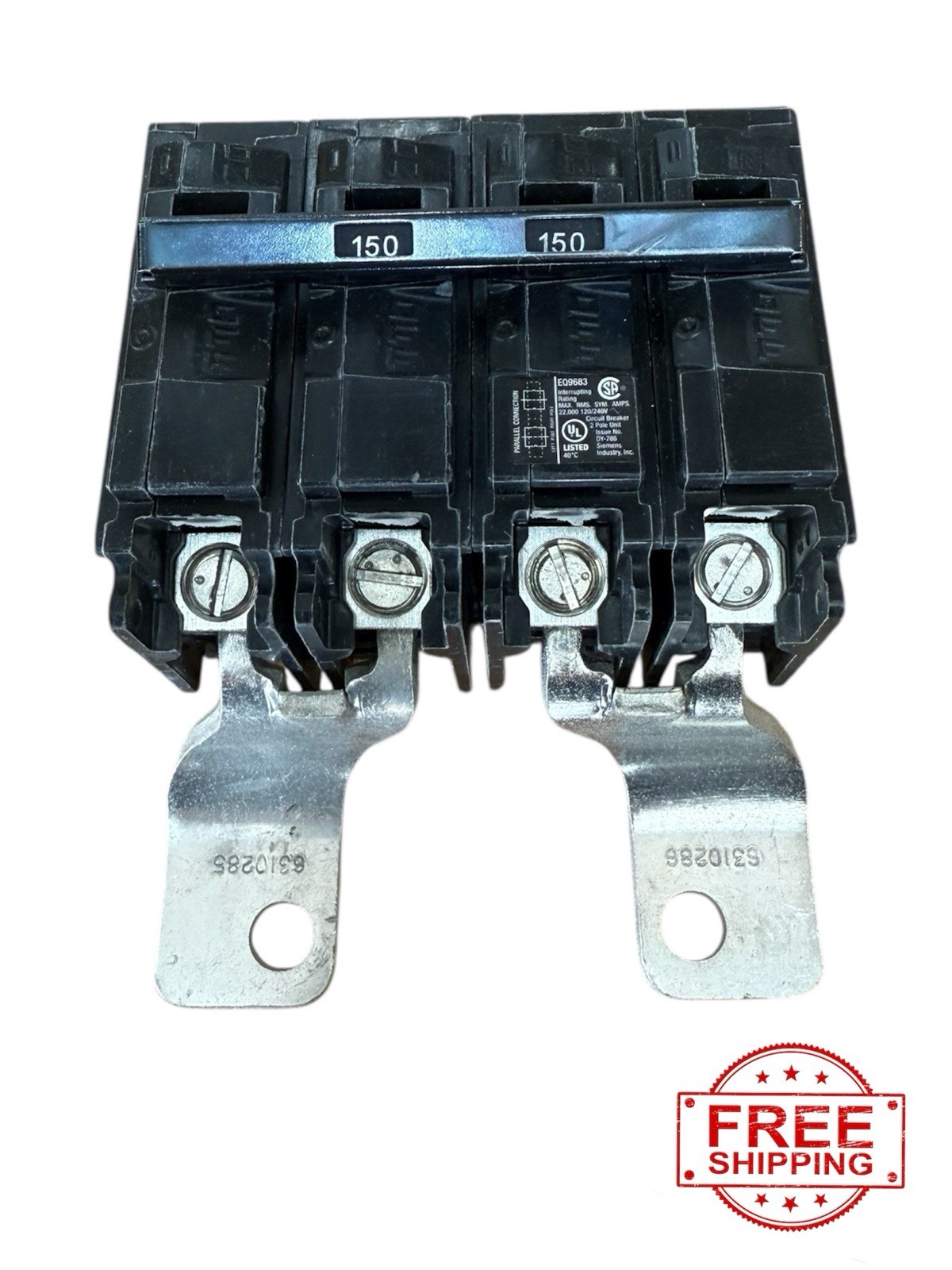

Siemens MBK150 150 Amp 120/240V Main Circuit Breaker Brand NEW
Laparoscopic Trocar Cannula for Laparoscopy Surgery Instruments Autoclavable
LONGER Ray5 miniS 3.5W Laser Engraver Machine, 12000mm/min, 🔥Free Honeycomb-400
Siemens QA115AFCN 15A 1-Pole Plug-On Neutral Circuit Breaker

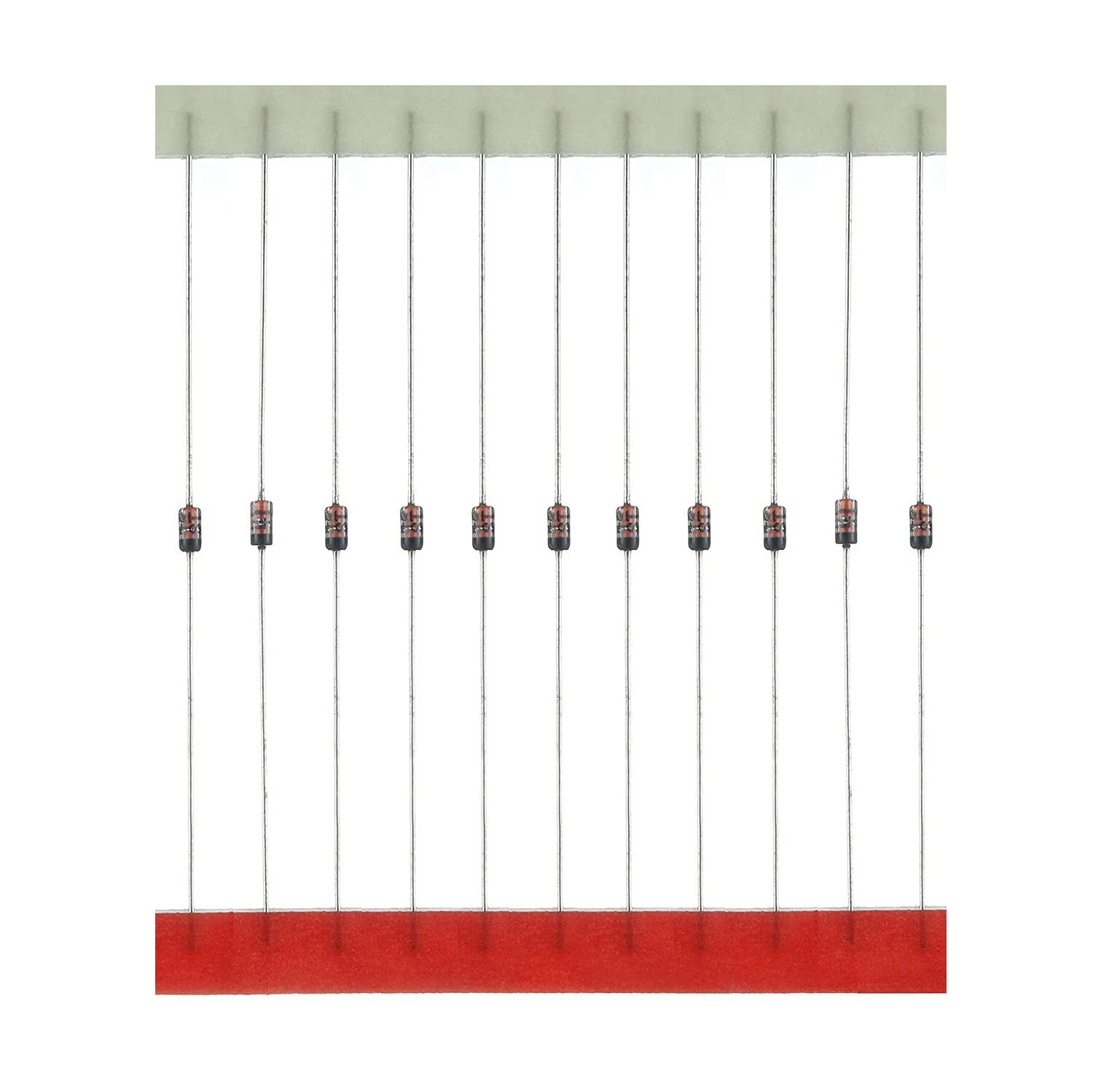

100pcs 1N4148 Switching Diode 200mA 100V DO-35 Axial 4148 200 milliamp 100 Volt
