SEMROCK FF01-546/6-25 BrightLine BANDPASS FILTER Single-Band IDEX FL-004610
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Semrock |
| Unit Type | Unit |
| Model | IDEX # FL-004610 |
| Lumencor PN | 10-10011 |
| MPN | FF01-546/6-25 |
| Country/Region Of Manufacture | United States |

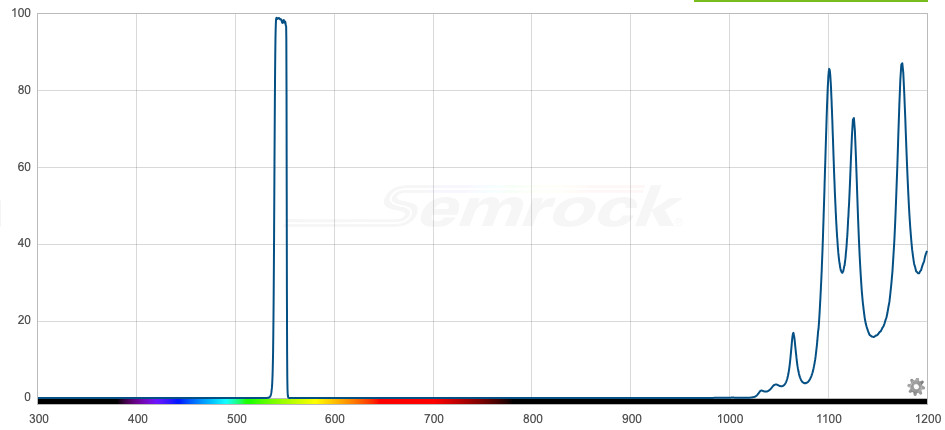

Click here to SEE OUR OTHER LISTINGS! Open Box. Filters were opened in a controlled-environment Demo Lab and handled with gloves. Some filters may have been used in Lumencor Light Engines for testing or demo purposes only. Each filter has been inspected and found to be free of scratches, blemishes, fingerprints or any physical defects that would affect functionality. Filters appear to be in like-new condition. $420 on IDEX / Semrock website Optical SpecificationsValueTransmission Band 1Tavg > 93% 559 – 568 nmBlocking Band 1ODavg > 5 200 – 546.2 nmBlocking Band 2OD > 3.5 551.8 nmBlocking Band 3OD > 3.5 575 nmBlocking Band 4 Understanding Optical Density" data-container="body" data-placement="top" data-trigger="focus" data-html="true" data-original-title="Blocking Band 4" style="box-sizing: border-box; color: rgb(119, 188, 31); text-decoration-line: none; background-color: transparent; line-height: inherit; cursor: pointer; transition: 0.3s;">ODavg > 8 582 – 636 nm (Design specification - measurements are noise-floor limited)Blocking Band 5ODavg > 5 636 – 700 nmBlocking Band 6ODavg > 4 700 – 925 nmBlocking Band 7ODavg > 2 925 – 1100 nmCenter Wavelength 1563.5 nmGuaranteed Minimum Bandwidth 19 nmFWHM Bandwidth 1 (nominal)14.5 nmGeneral Filter SpecificationsValueAngle of Incidence0 ± 5 degreesCone Half-angle7 degreesOptical Damage RatingTesting has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hours.Physical Filter Specifications Applies to standard sized parts; contact us regarding other sizes" data-container="body" data-placement="top" data-trigger="focus" data-html="true" data-original-title="Physical Filter Specifications" style="box-sizing: border-box; color: rgb(119, 188, 31); text-decoration-line: none; background-color: transparent; line-height: inherit; cursor: pointer; transition: 0.3s;">ValueTransverse Dimensions (diameter)25 mmTransverse Tolerance+ 0.0 / – 0.1 mmFilter Thickness (mounted)5.0 mmFilter Thickness Tolerance (mounted)± 0.1 mmClear Aperture≥ 21 mmScratch-Dig60-40Filter Thickness (unmounted)2.0 mmFilter Thickness Tolerance (unmounted)± 0.1 mmOrientationArrow on ring indicates preferred direction of propagation of light
