SD-H-2850 Panel Meters Sound Measuring Instrument (DC 500uA) for Audio Equipment
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Q-BAIHE |
| MPN | SD-H-2850-500uA |
| UPC | Does not apply |
| EAN | Does not apply |

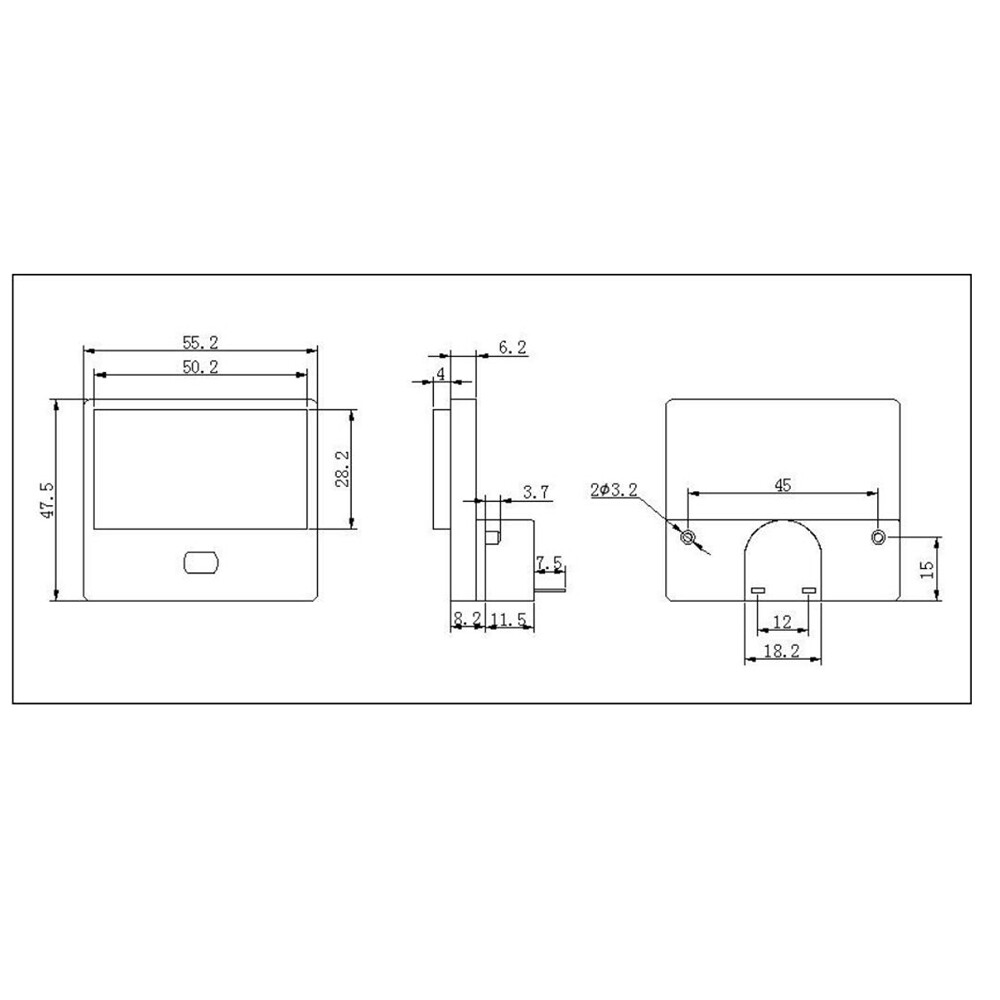

| Size | 29.5X0.35mm |
| Herstellernummer | SD-H-2850-500uA |
| Marke | Q-BAIHE |
| Pointer Material | nickel white copper |
| Nameplate Material | Aluminum plate |
| Internal DC Impedance Of The Meter Head | 650Ω±10% |
| Friction Error | ±1mm |
| Balance Error | ±1.5mm |
| Relative Error | ±5% |
| Damping Time | 2-3 seconds |
| Insulation Strength | above 50MΩ |
Title： SD-H-2850 Panel Meters Sound Measuring Instrument (DC 500uA) for Audio Equipment Table core structure: magnetoelectric system (√) Pointer material: nickel white copper Color: Fluorescent Red Length: 29.5 (±1mm) Width: 0.35 (±1mm) Pointer deflection direction: deflection clockwise from left to right. Cover material: PMMA (transparent) Lower cover material: ABS white Nameplate material: PC Magnet: LF-201 Meter use position: Vertical use Internal DC impedance of the meter head: 650Ω±10% Friction error: ±1mm Balance error: ±1.5mm Relative error: ±5% Damping time: 2-3 seconds Insulation strength: above 50MΩ Calibration value: ±2.0% Light bulb: No internal light bulb Package: 1*1*H-2850 sound measuring instrument On Nov-15-20 at 18:05:10 PST, seller added the following information:
