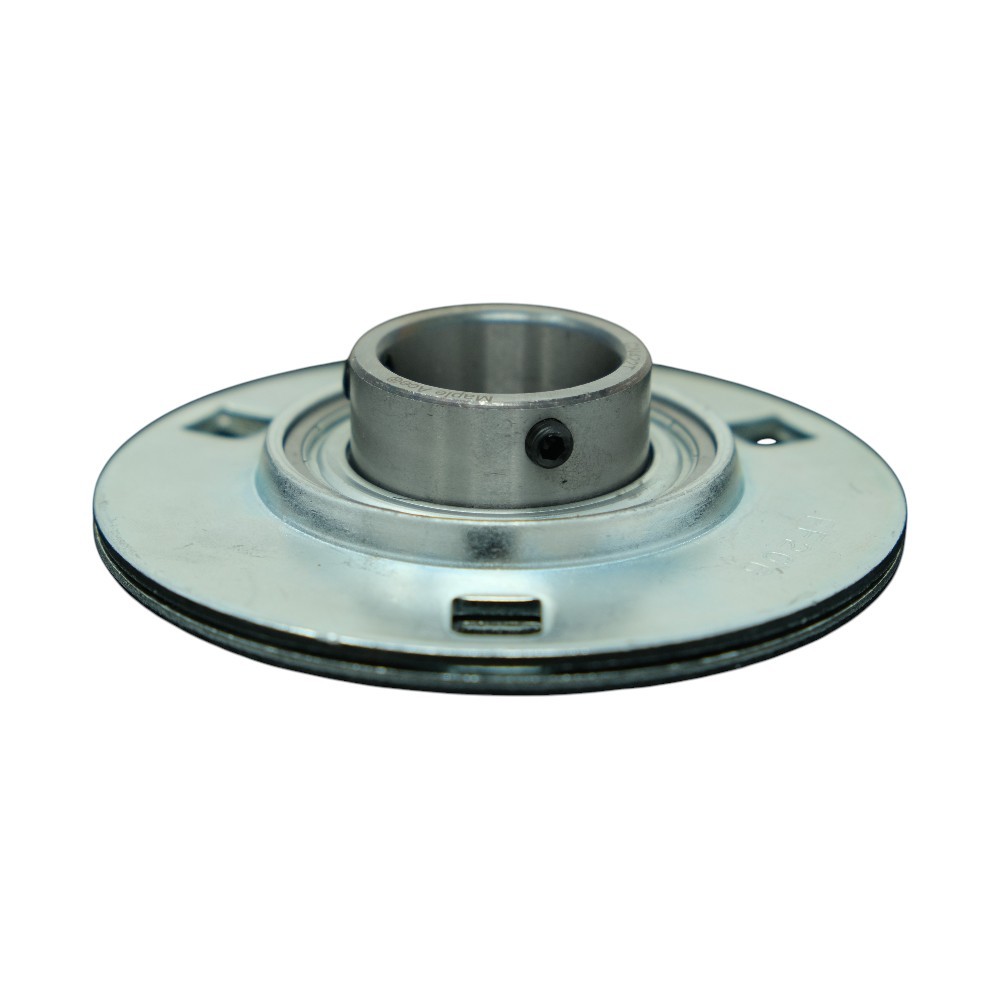

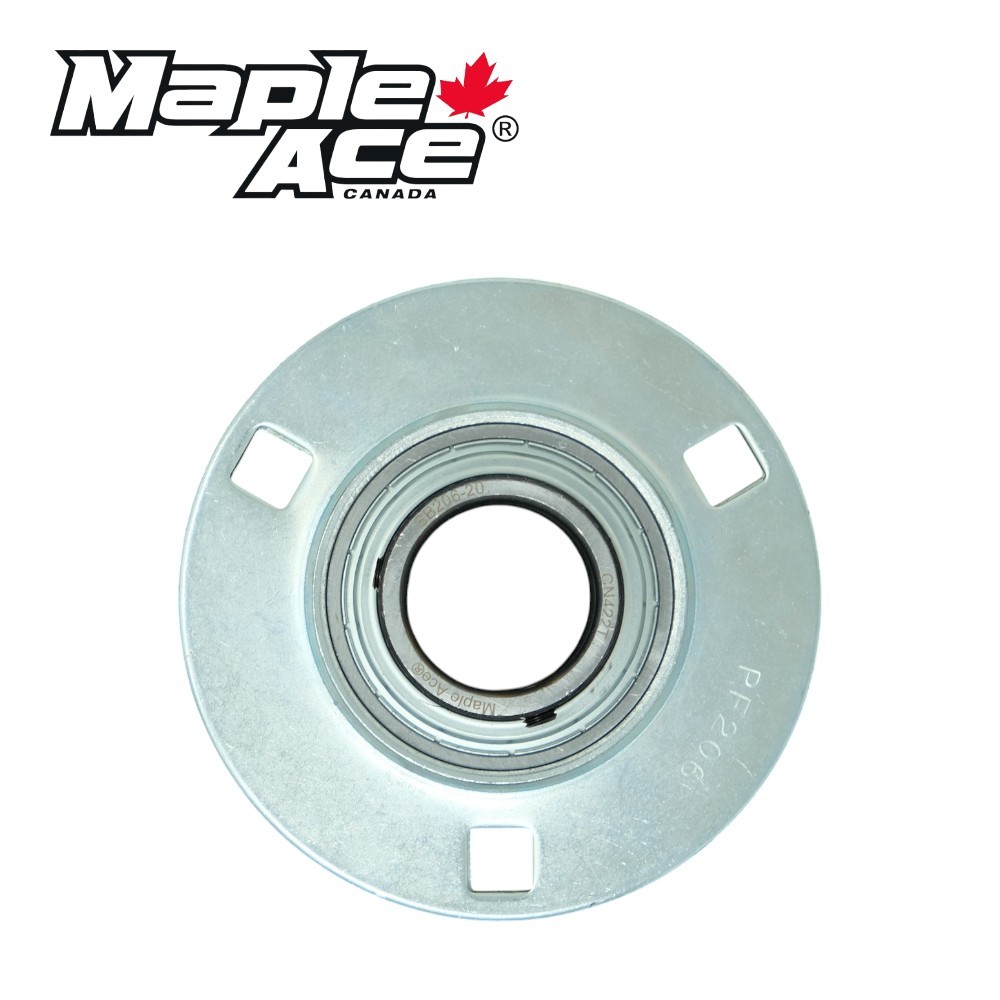

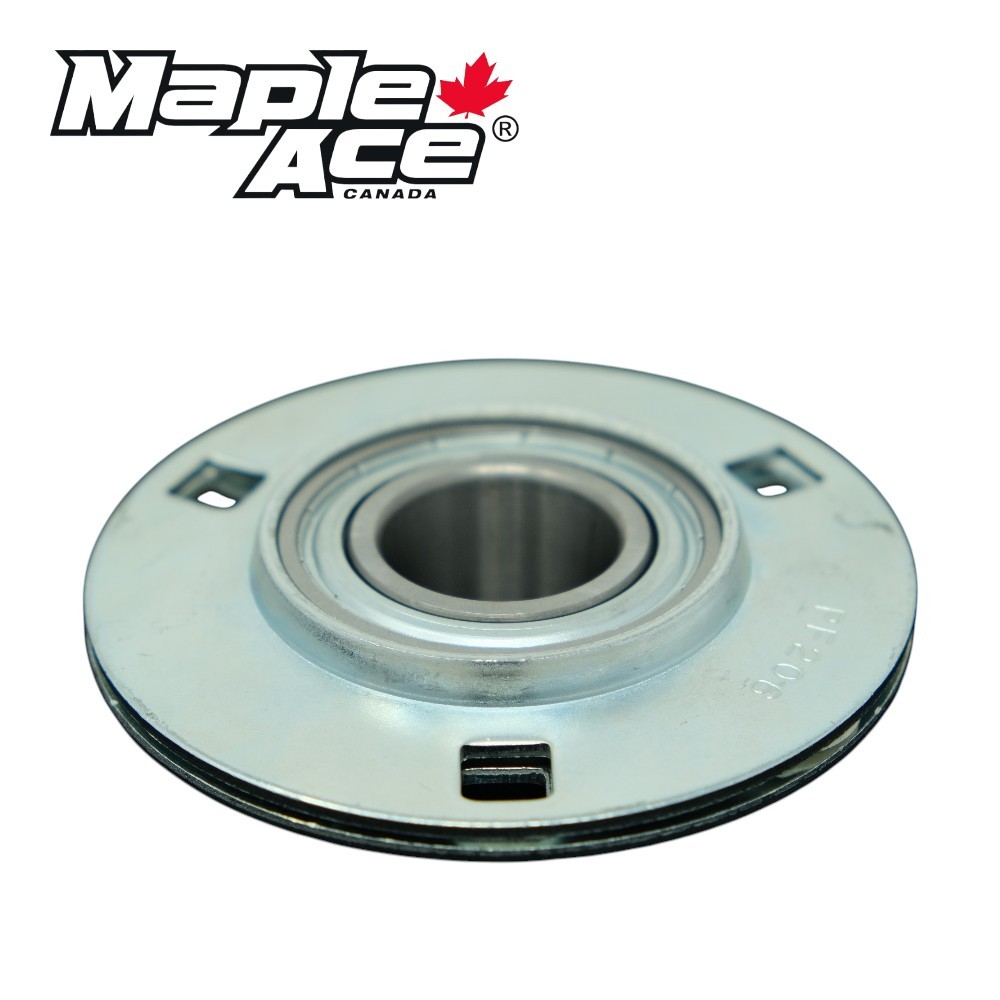

SBPF205-16 Pressed Steel Housing Round Flanged 3-Bolt with Insert Bearing 1″
USD 19.95 USD
Specifications
| Brand | MAPLE ACE |
| Model | SBPF205-16 |
| MPN | SBPF205-16 |
| Lubrication | Grease |
| Dynamic Load Rating Cr | 14000 N |
| Material | Gcr15 |
| Limiting Speed | 7000 r/min |
| Rolling Element Indicator | Ball |
| Static Load Rating Cor | 7800 N |
| UPC | 841339034287 |

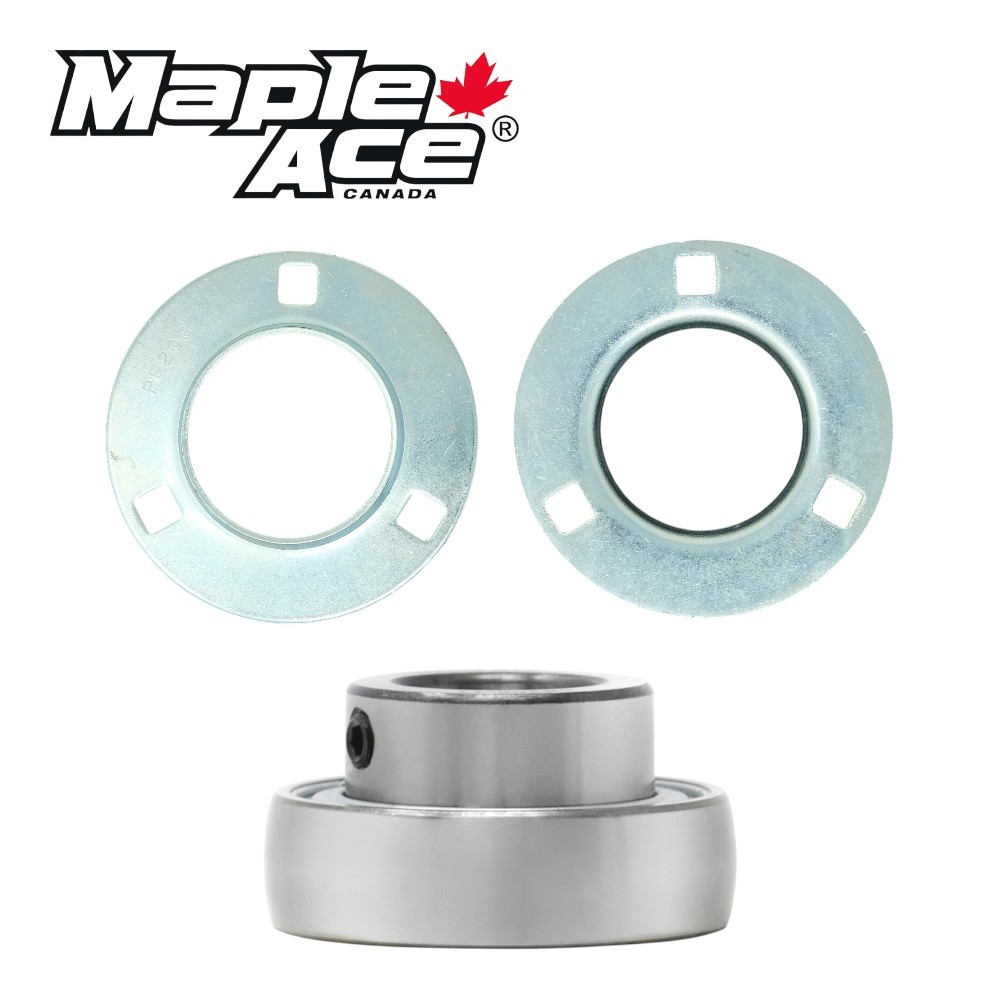

Round flanged pressed-steel housings with insert bearings (set screw locking, narrow inner ring) are lightweight units manufactured from cold-rolled steel and zinc-coated for corrosion resistance. Designed for light-duty applications, these housings provide an economical solution for simple mounting arrangements. The two-piece construction has no relubrication feature and allows the housing to be purchased separately from the insert bearing, giving flexibility to pair with different bearing types. Easy to mount and versatile in configuration, they are ideal for cost-sensitive applications that do not require heavy load capacity. .
