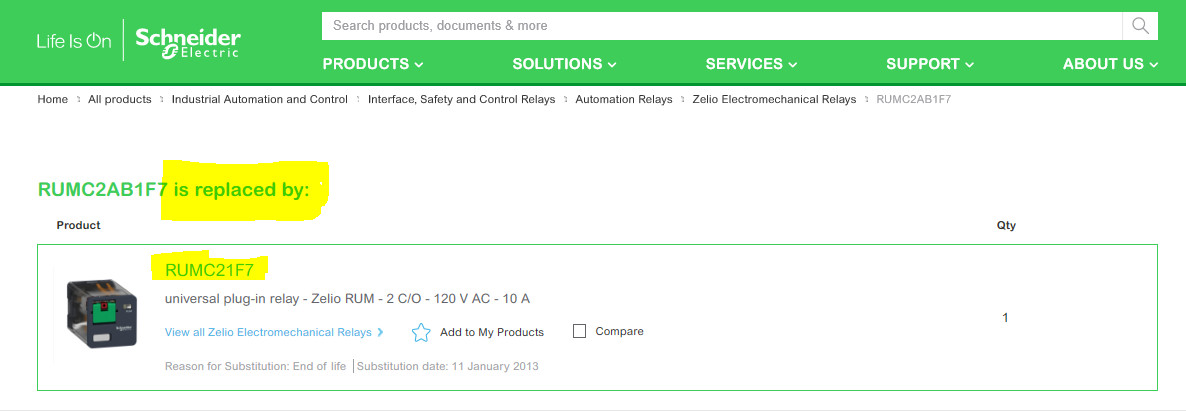

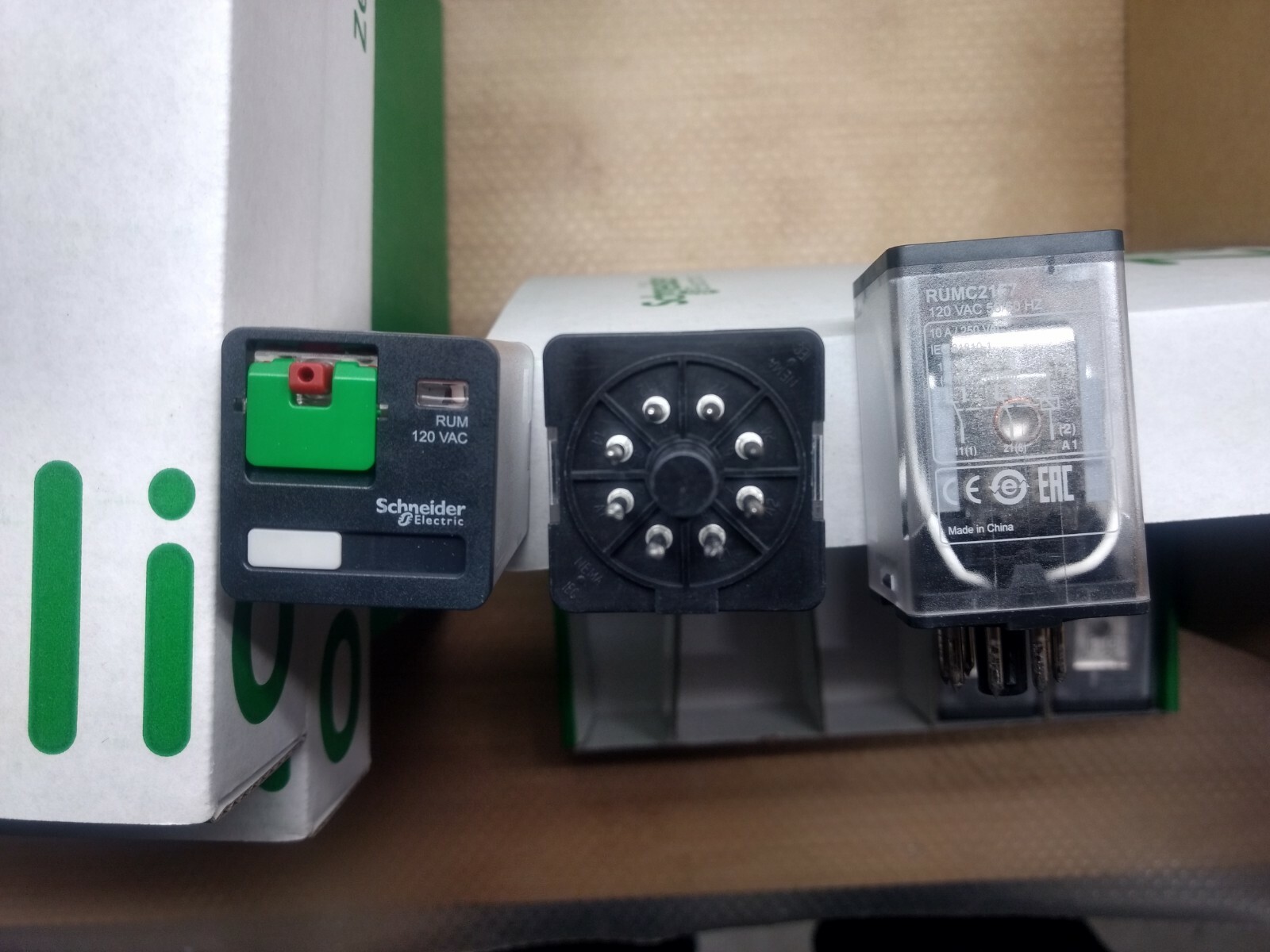

RUMC21F7 Universal plug-in relay Zelio RUM-2C/O-120VAC-10A 8 Pins SCHNEIDER NEW!
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Maximum Amperage | 10 A |
| Current Rating | 1-15 A |
| MPN | RUMC21F7 |
| Smart Home Compatibility | N/A |
| Suitable For | Exterior |
| Brand | Schneider |
| Current Type | AC/DC |
| Type | Power Relay |
| Number Of Pins | 8-Pin |
| Coil Voltage | 101-150 V |
| Contact Material | ABS/Plastic |
| Model | RUMC21F7 |
| Features | Trip Indicator |
| Smart Home Protocol | N/A |

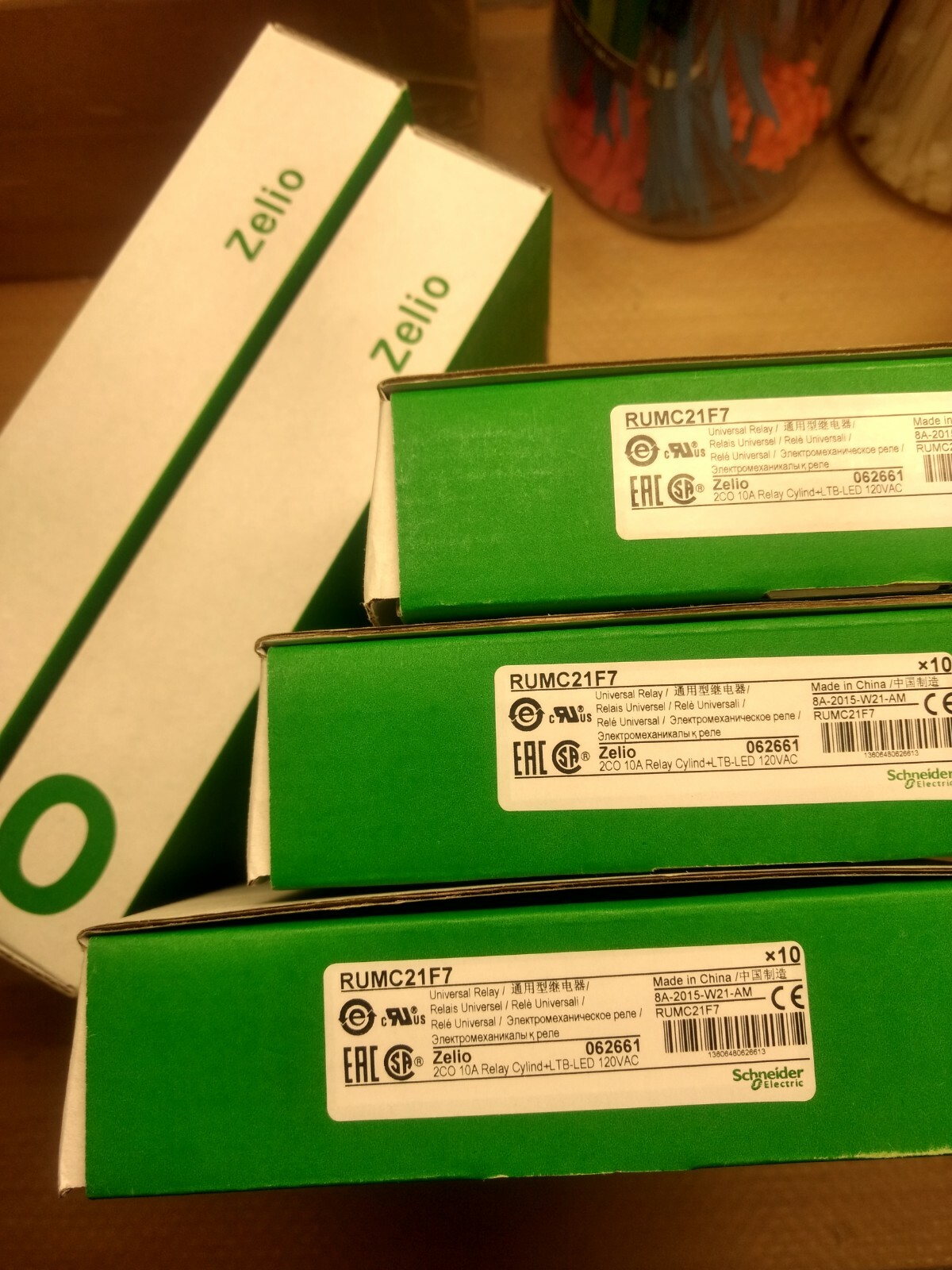

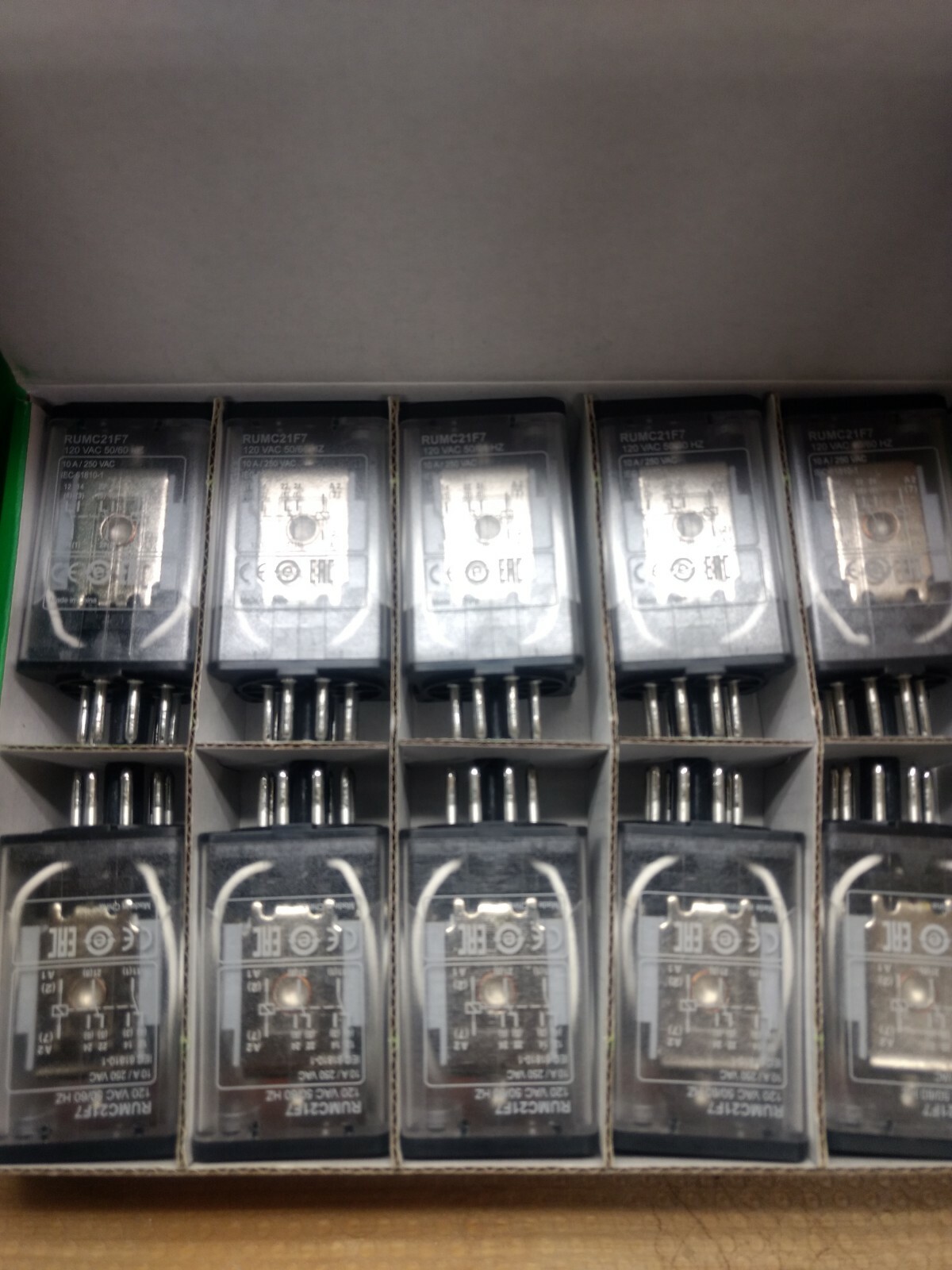

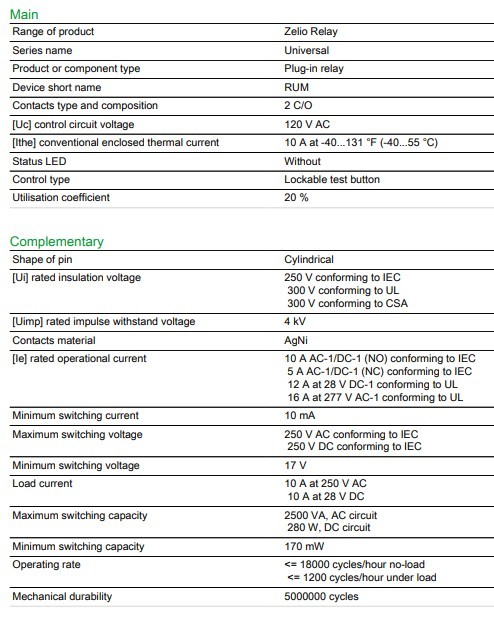

Zelio Plug-in Relays - RUMC21F7 / 110Vac / 8 Pins NOTE: BOX COMES WITH 10 PIECES. If you only buy 1 or less than 5 pieces, you don't get the box. CHARACTERISTICS: range of product Zelio Relay series name Universalproduct or component type Plug-in relaydevice short name RUMcontacts type and composition 2 C/O[Uc] control circuit voltage 120 V AC[Ithe] conventional enclosed thermal current 10 A at -40…55 °Cstatus LED Withoutcontrol type Lockable test buttonutilisation coefficient 20 %Complementaryshape of pin Cylindrical[Ui] rated insulation voltage 250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL[Uimp] rated impulse withstand voltage 4 kVcontacts material AgNi[Ie] rated operational current 10 A AC-1/DC-1 (NO) conforming to IEC 12 A at 28 V DC-1 conforming to UL 16 A at 277 V AC-1 conforming to UL 5 A AC-1/DC-1 (NC) conforming to IECminimum switching current 10 mAmaximum switching voltage 250 V AC conforming to IEC 250 V DC conforming to IECminimum switching voltage 17 VResistive rated load 10 A at 250 V AC 10 A at 28 V DCmaximum switching capacity 2500 VA AC 280 W DCminimum switching capacity 170 mWoperating rate <= 18000 cycles/hour no-load = 0.15 Uc ACOperate time 20 msAverage coil resistance 1700 Ohm at 20 °C +/- 15 %rated operational voltage limits 96...132 V ACprotection category RT Isafety reliability data B10d = 100000operating position Any positionnet weight 0.085 kgEnvironmentdielectric strength 1500 V AC between contacts 1550 V AC between coil and contact 1550 V AC between polesproduct certifications CSA GOST ULstandards CSA C22.2 No 14 UL 508 EN/IEC 61810-1ambient air temperature for storage -40…85 °Cambient air temperature for operation -40…55 °Cvibration resistance 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)10 cycles in operation conforming to EN/IEC 60068-2-27 4 gn, amplitude = +/- 1 mm (f = 10…150 Hz)10 cycles not operating conforming to EN/IEC 60068-2-27IP degree of protection IP40 conforming to EN/IEC 60529shock resistance 10 gn for in operation 10 gn for not operatingpollution degree 3
