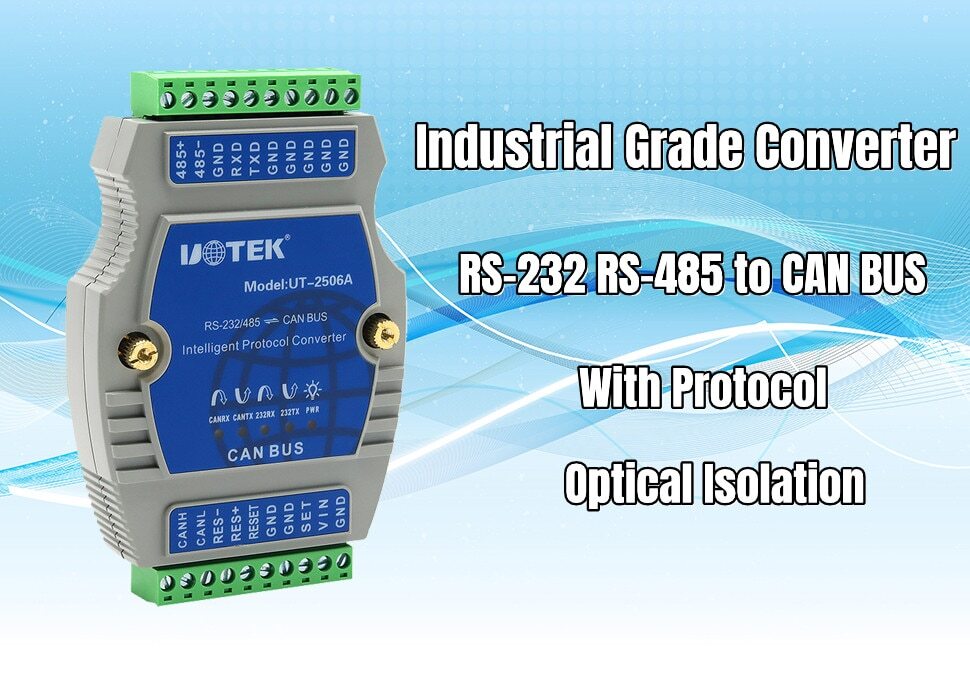

RS232 RS485 to Canbus Adapter CAN BUS Converter Isolation with Protocol UT-2506A
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Origin | Mainland China |
| MPN | UT-2506A |
| Model Number | UT-2506A |
| Certification | CE,FCC,RoHS |
| Brand Name | UOTEK |
| Brand | UOTEK |
| Type | CAN BUS |
| Model | UT-2506A |
| Package | Yes |
| Country/Region Of Manufacture | China |

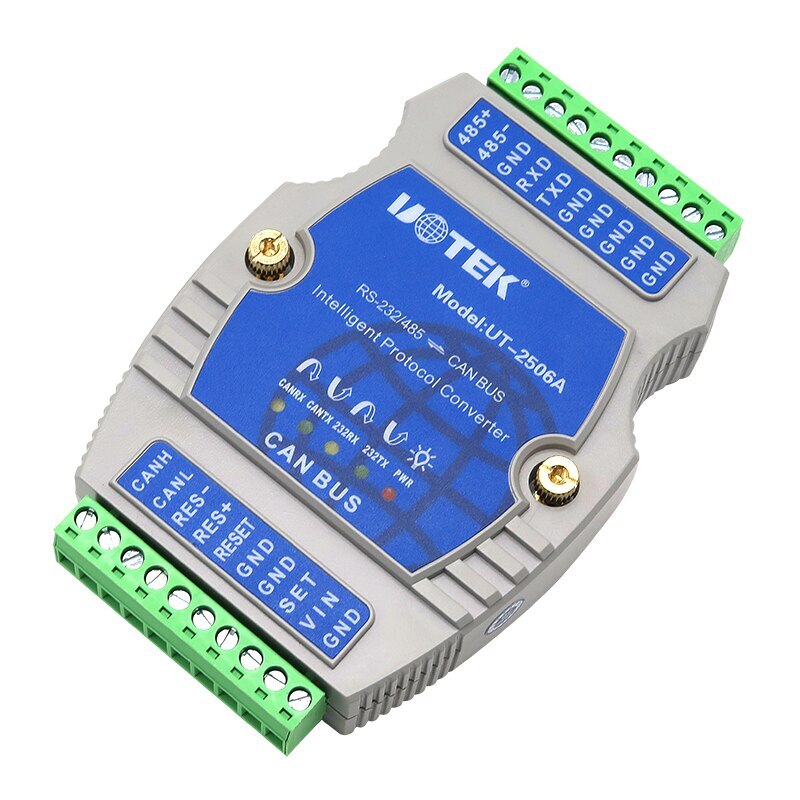

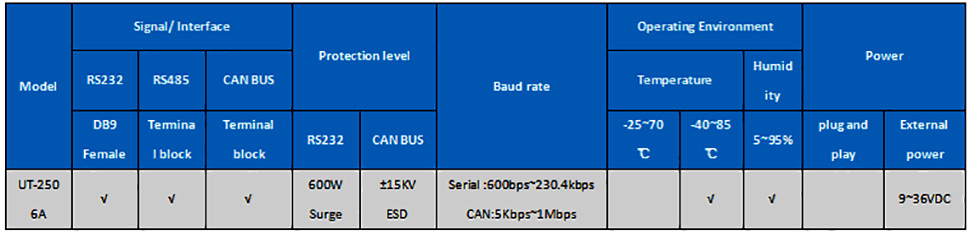

UOTEK Industrial Grade RS-232 RS-485 to CAN BUS Converter with Protocol RS232 RS485 Canbus Adapter UT-2506A Connector UT-2506A is a high performance RS-232/485 to CAN-Bus converter. It supports interconnection between RS-232/485 and CAN-Bus. RS-232/485 baud rate is 1,200-115,200bps, and CAN-bus baud rate is 5kbps-1Mbps.The converter supports three data conversion modes: transparent conversion, transparent tape identification conversion and Modbus protocol conversion. This extends the application scope of this converter. UT-2506A converter provides configuration tools that allow users to set the interface parameters. It is industrial standard design; CAN communication interface and system is isolated; with anti-interference and surge protection ability, it is widely used in industrial control,data communication systems. UT-2506A Details UT-2506A Parameters ● Supports bidirectional data transmission between CAN-bus & RS-232/485 ● Supports CAN 2.0 protocol ● 1-ch CAN-bus interface, 5Kbps-1Mbps transmission rate ● 1-ch RS-232/485 interface, 600bps-230Kbps transmission rate ● Provides 3 data conversion mode: transparent conversion, transparent tape identification conversion, Modbus protocol conversion ● Working voltage: 12-36V DC ● Working current: ≤150mA@12V ●Operating temperature: -40~ 85℃ ● Storage temperature: -40~ 85℃ ● Relative Humidity: 5% to 95%(non-condensing) ● Storage humidity: 5% to 95%(non-condensing) ● Isolated voltage: 1,000VDC UT-2506A Application UTEK Certificate UTEK TECHNOLOGY Introduction
